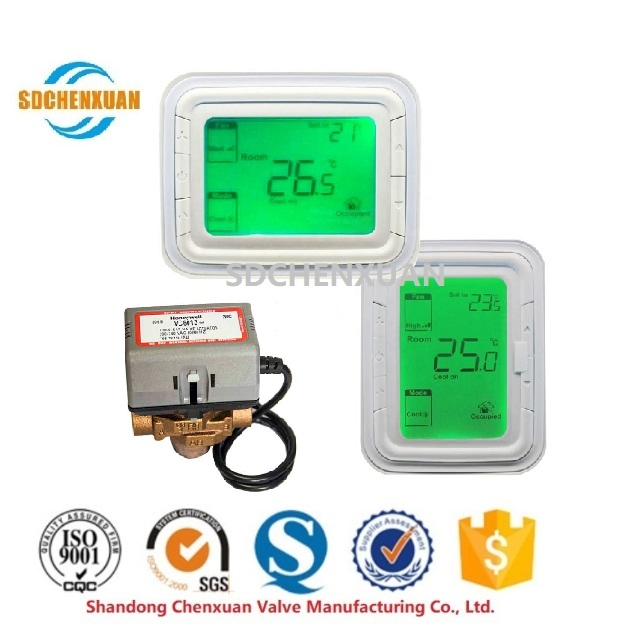

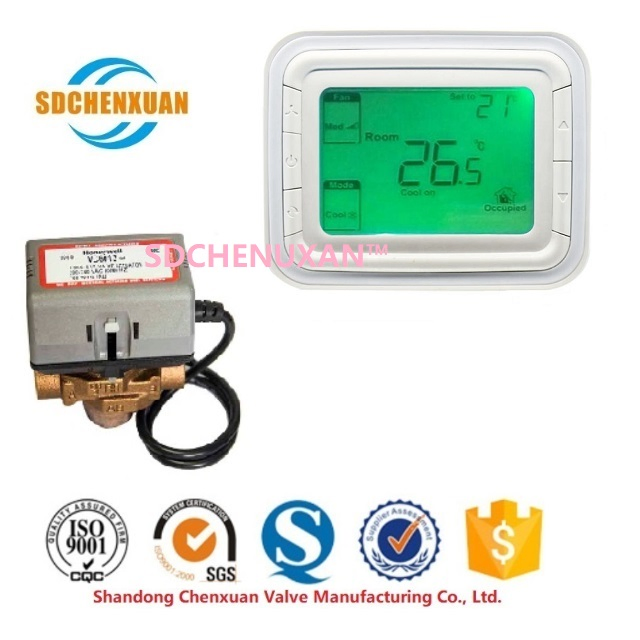

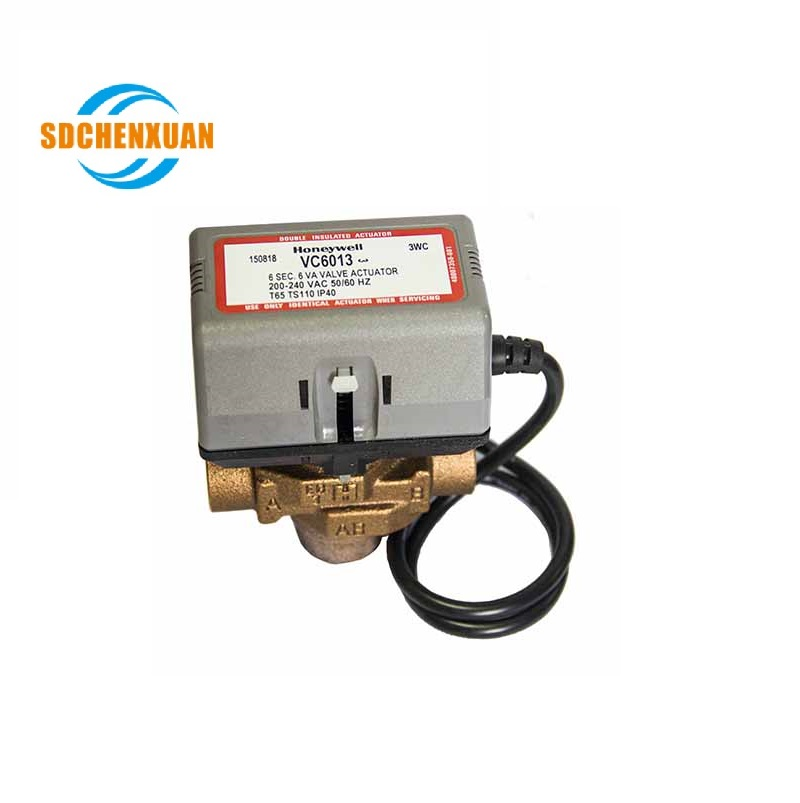

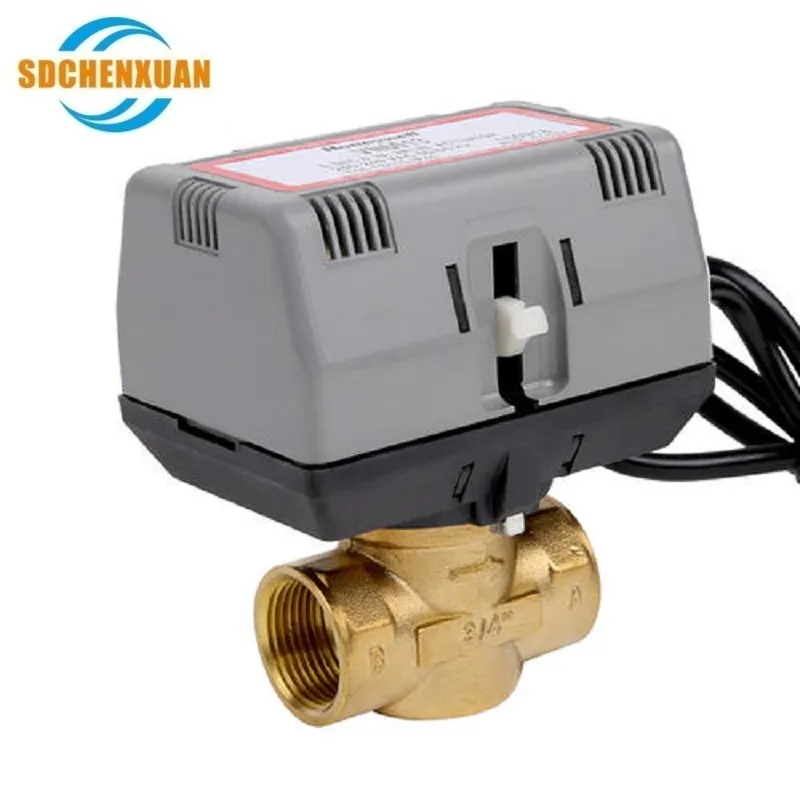

Vc4013 DN20 2-Ways Honeywell Series Spdt 3 Way Fcu Motorized Actuator Zone Valve Vc4013AA1000t
VN6013 VN4013 Honeywell VN Series 2-position on/off valves are used in domestic and small commercial heating and cooling applications to control the flow of hot and/or cold water. They consist of an actuator and valve assembly They can be used to control individual fan coil, radiator, space heater ......
Send Inquiry
Product Description
VN6013 VN4013
Honeywell VN Series 2-position on/off valves are used in domestic and small commercial heating and cooling applications to control the flow of hot and/or cold water. They consist of an actuator and valve assembly They can be used to control individual fan coil, radiator, space heater or convector applications. Depending on the model selected they can be controlled by a SPST or SPDT controller such as a room thermostat, aquastat or flow switch.
Actuator Control Type:
On/Off Voltage: 220Vac(±10%)
Power Consumption: 6W Max. at nominal
voltage(during valve position change only)
Nominal Timing: Opens in 6 seconds @ 60Hz (20% longer @ 50Hz)
Electrical termination: Integral 1000mm lead wire cable
Valve
Medium: Water or water-glycol
mixture (max 50% glycol content)
Min.& Max. Fluid Temperature: 1°C~95°C (34°F~203°F)
Operating Ambient Temperature: 0°C~65°C (32°F ~150°F)
Shipping & Storage Temperature: −40°C~65°C (-40°F~149°F)
Pressure Rating: 16Bar
Operating pressure differential: Max.3.5Bar
Leakage rate: No visible
leakage
Materials: Valve Body:
Forged Brass Stem:
Stainless steel O ring:EPDM/HNBR
VN4013AB1000T | 1/2 inch, 2 Way, ON/OFF 200-240V, BSPT, 500mm cable, Without Protection Cap |
VN4013ABC1000T | 1/2 inch, 2 Way, ON/OFF 200-240V, BSPT, 500mm cable, With Protection Cap |
VN4013AF1000T | 1/2 inch, 2 Way, ON/OFF 200-240V,BSPP, 500mm cable, Without Protection Cap |
VN4013AFC1000T | 1/2 inch, 2 Way, ON/OFF 200-240V,BSPP, 500mm cable, With Protection Cap |
VN4013AJ1000T | 3/4 inch, 2 Way, ON/OFF 200-240V, BSPP, 500mm cable, Without Protection Cap |
VN4013AJC1000T | 3/4 inch, 2 Way, ON/OFF 200-240V, BSPP, 500mm cable, With Protection Cap |
VN4013AK1000T | 3/4 inch, 2 Way, ON/OFF 200-240V,BSPT, 500mm cable, Without Protection Cap |
VN4013AKC1000T | 3/4 inch, 2 Way, ON/OFF 200-240V,BSPT, 500mm cable, With Protection Cap |
VN4013AP1000T | 1 inchi,2-way,on/off control, BSPP, 500mm cable, without protection cap |
VN4013APC1000T | 1 inchi,2-way,on/off control, BSPP, 500mm cable, with protection cap |
VN4013AT1000T | 1 inchi,2-way,on/off control, BSPT, 500mm cable, without protection cap |
VN4013ATC1000T | 1 inchi,2-way,on/off control, BSPT, 500mm cable, with protection cap |
VN6013AB1000T | 1/2 inch, 2 Way, ON/OFF 200-240V, BSPT, 500mm cable, Without Protection Cap |
VN6013ABC1000T | 1/2 inch, 2 Way, ON/OFF 200-240V, BSPT, 500mm cable, With Protection Cap |
VN6013AF1000T | 1/2 inch, 2 Way, ON/OFF 200-240V, BSPP, 500mm cable, Without Protection Cap |
VN6013AFC1000T | 1/2 inch, 2 Way, ON/OFF 200-240V, BSPP, 500mm cable, With Protection Cap |
VN6013AJ1000T | 3/4 inch, 2 Way, ON/OFF 200-240V, BSPP, 500mm cable, Without Protection Cap |
VN6013AJC1000T | 3/4 inch, 2 Way, ON/OFF 200-240V, BSPP, 500mm cable, With Protection Cap |
VN6013AK1000T | 3/4 inch, 2 Way, ON/OFF 200-240V, BSPT, 500mm cable, Without Protection Cap |
VN6013AKC1000T | 3/4 inch, 2 Way, ON/OFF 200-240V, BSPT, 500mm cable, With Protection Cap |
VN6013AP1000T | 1 inchi,2-way,on/off control, BSPP, 500mm cable, without protection cap |
VN6013APC1000T | 1 inchi,2-way,on/off control, BSPP, 500mm cable, with protection cap |
VN6013AT1000T | 1 inchi,2-way,on/off control, BSPT, 500mm cable, without protection cap |
VN6013ATC1000T | 1 inchi,2-way,on/off control, BSPT, 500mm cable, with protection cap |
