Hot Selling SD4 45L /M Single Lever Hydraulic Manual Control Valve

Product Description

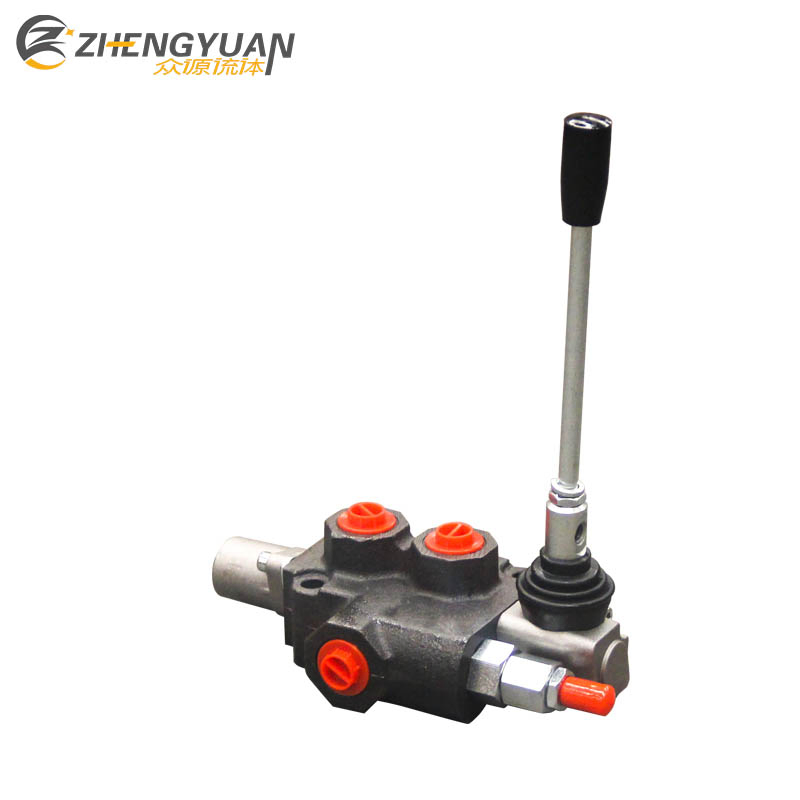

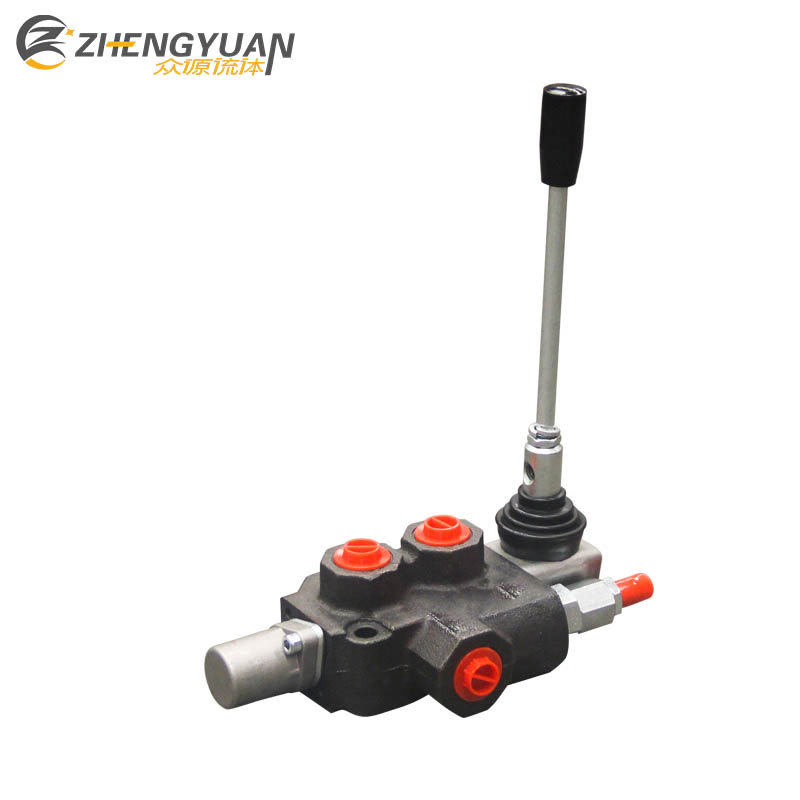

Hot Selling SD4 45L/M Single Lever Hydraulic Manual Control Valve

Simple, compact designed, this valve is only one scetion for open centre and closed centre hydraulic systems.
Fitted with a main pressure relief valve
Diameter 16mm-0.63 inch interchangeable spools
Available manual and remote with flecible cables spool control kits

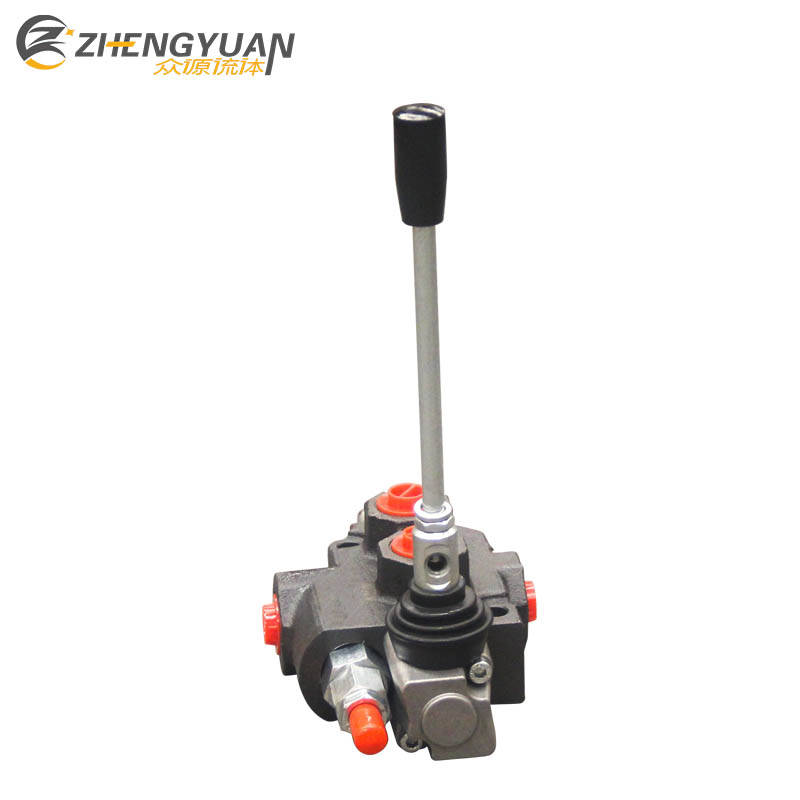

Hot Selling SD4 45L/M Single Lever Hydraulic Manual Control Valve

PARAMETERS

Nom. Pressure (MPa)	Max.Pressure (MPa)	Nom. Flow rate (L/min)	Max. Flow rate(L/min)	Back Pressure(MPa)	hydraulic oil
					Tem.rang (ºC)	Visc.rang (mm2/S)	filtrating accuracy (μm)
20	31.5	45	50	≤1	-20~+80	10~400	≤10

Flow rate	45l/min
Spool function	Cylinder, motor spool, single acting
Thread	G3/8, 3/4-16UNF, SAE8, M18X1.5
Control way	Spring and detent control
Max pressure	315bar.
Spool diameter	16mm
