45L /M Flow Hydraulic Monoblock Pneumatic Control Air Control Valve Zt-L12
45L/M Flow Hydraulic Monoblock Pneumatic Control Air Control Valve ZT-L12*Inner check valve: The check valve inside the valve body to insure the hydraulic oil not to be returned.*Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure. *Oil ......
Send Inquiry
Product Description

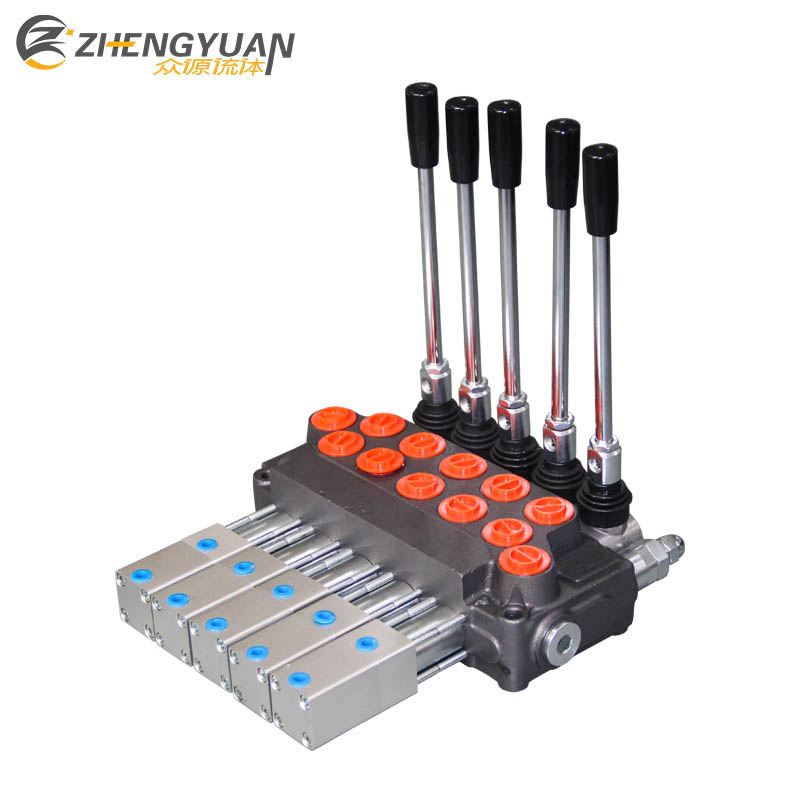

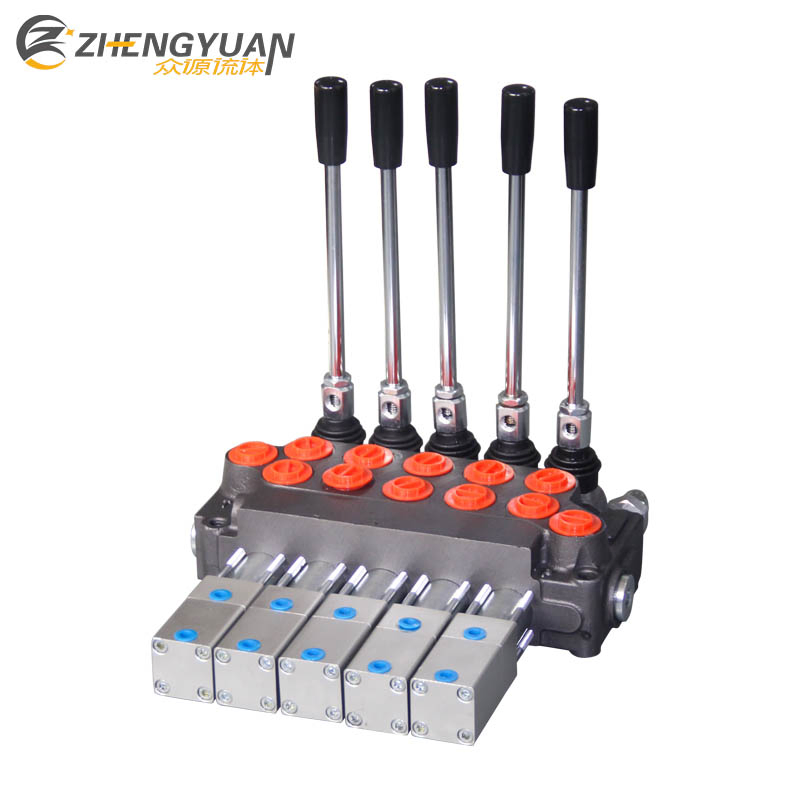

45L/M Flow Hydraulic Monoblock Pneumatic Control Air Control Valve ZT-L12
*Inner check valve: The check valve inside the valve body to insure the hydraulic oil not to be returned.
*Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure. *Oil way: Parallel circuit, with power beyond.
*Control Way: pneumatic control, manual control
*Valve construction: monoblock construction, 1-7 levers are available to assembled as you requests.
*Spool Function: O,A,Y etc.
*Inner check valve: The check valve inside the valve body to insure the hydraulic oil not to be returned.
*Inner relief valve: The relief valve inside the valve body is able to adjust the hydraulic system working pressure. *Oil way: Parallel circuit, with power beyond.
*Control Way: pneumatic control, manual control
*Valve construction: monoblock construction, 1-7 levers are available to assembled as you requests.
*Spool Function: O,A,Y etc.
| Nom.Pressure(MPA) | Max.Pressure(MPA) | Nom.Flow rate(L/M) | Max.Flow Rate(L/M) | Back Pressure(MPA) | Hydraulic Oil | ||
| Oil Tem.rang(°C) | Visc.rang(mm2/s) | filtrating accuracy(um) | |||||
| 20 | 31.5 | 45 | 50 | <=1 | -20~+80 | 10~400 | <=10 |
