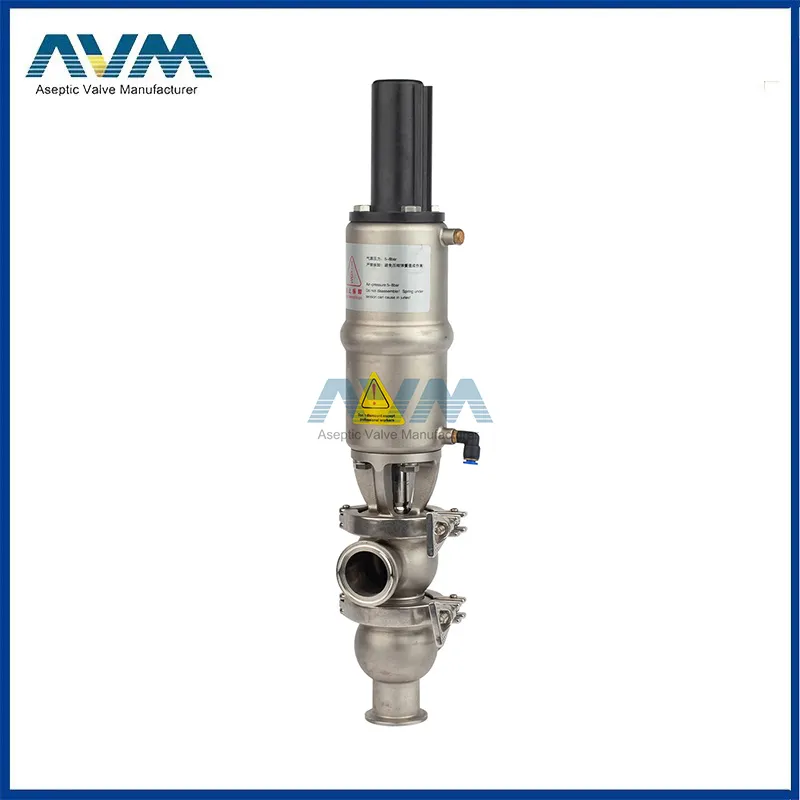

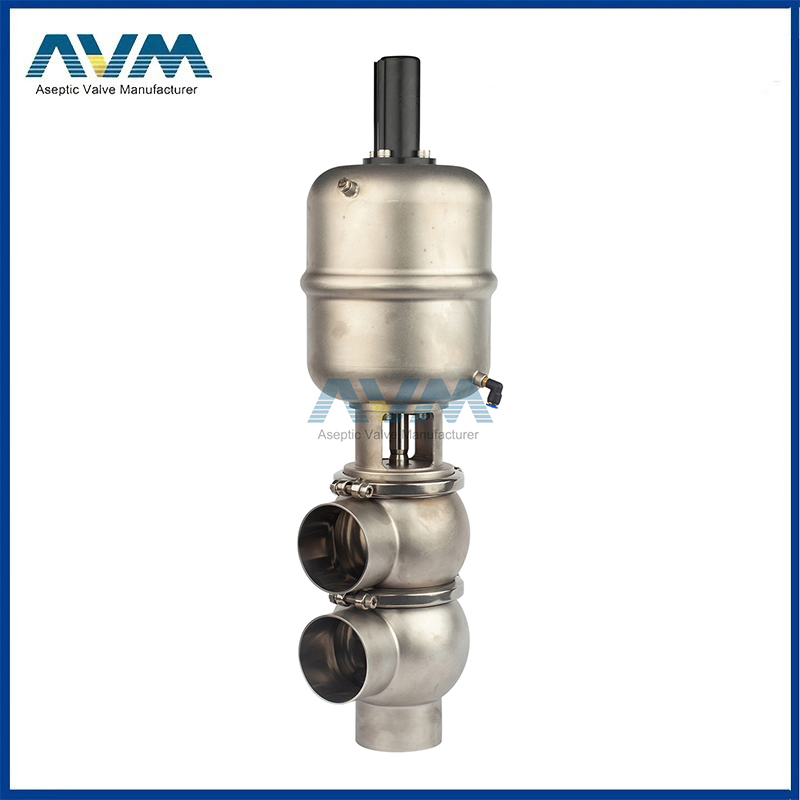

SUS316L Stainless Steel Pneumatic Diversion Valve

Product Description

Hygienic Sanitary Stainless Steel 3A SMS DIN Pneumatic Divert Reversing Valve
SUS316L Stainless Steel Pneumatic Diversion Valve

Operating Principle
Sanitary reversing valve is remotely operated by means of compressed air or manual. By controlling the relative
Position of valve plug, it makes the valve open or closed (shut-off type), or changes the flow direction of media.
Sanitary reversing valve can
Be installed with smart controller.

Design feature
1. Double bearing design with excellent rotation effects, and better stability and long life bearing
2. Self-cleaning self-luvricating design
3. Cleaning without dead angle
4. Low consumption of liquid, operating under low pressure
5. Compliance with industry standard

Technical Parameter

Standard	DIN, 3A, SMS, RJT
Flow Medium Parts	304, 316L(1.4301, 1.4307, 1.4404)
Port Size	Dn20-150 or 3/4"-6"
Flow Type	L(20) , L/L (21) , T/L (22) , T(30) , L/T(31) , T/T(32)
Way of Connection	Weld, Male, Clamp, Flange
Gasket for butterfly valve	Silicone, EPDM, Viton, NBR
Application	It is widely applied to many fileds, such as beer, beverage, dairy food, fruit juice, pharmacy, biological etc
Working principle	Remote-controlled operation by the driving gear or manual operation by handle.
Three drive forms	Normally closed, normally opened and opened and closed by two air flues seperately.
Handle	Metal handle, reinforced nylon handle
Handle	Adjustable handle, built to order according to users' request.
Advantage	1. Sanitary condition passed FDA Certification
	2. With strong resistance to acid, alkali and high temperature
	3. Slight deformation under long-term compression presicion forging valve cartridge. Withstand voltages
	4. Appearance desigh: Keep pace with international latest designs
	5. Service life: Comparable to imported butterfly valve, with 18months warrenty for normal use

Zhejiang Aomi Fluid Equipment Co., Ltd. is a professional manufacturer in high-level of hygiene demanding flow lines. It specializes inmanufacturing high-precision stainless steel sanitary pumps, valves and unions, pipe fittings and tank accessories. Products are widely used in food, pharmaceutical, beverage, wine, dairy, cosmetics, bio-tech industries.
16 Years of research for quality improvement and product enhancement,sale of Zhejiang Aomi is expanding all over the world and expanding itself continuously,Zhejiang Aomi has become able to offer complete range of products according to various international norms such as DIN, SMS, 3A, IDF, RJT, ISO BS, Mâcon and so as to fulfil customers'requirement globally.

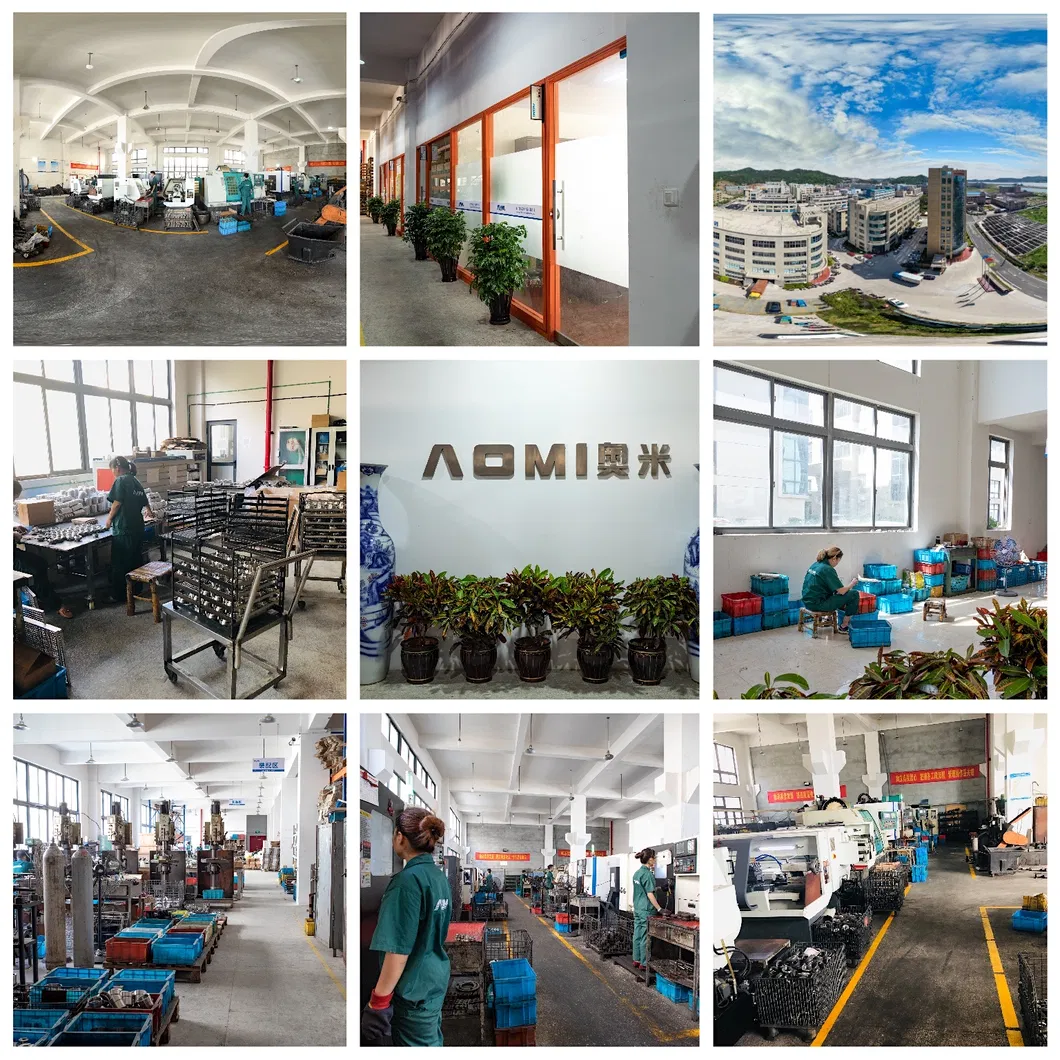

Zhejiang Aomi has passed ISO9001 international quality system certification and CE certification. Zhejiang Aomi introduces advanced CNC equipment LG MAZAK and Korean brand CNC machining center.
Zhejiang Aomi insists on the concept of "Quality first,Prestige important",a well-trained and dedicated team including engineers,technicians and other employees,this allows us to offer customers quality products,competitive price and prompt delivery time.
