Product Description
Runxin Valve Multi-port Manual Filter Control ValveF56L Filter Valve 8m3/h
♦ Part one: Frotec Runxin Valve Description
1.Brief introduction and Technical Specification

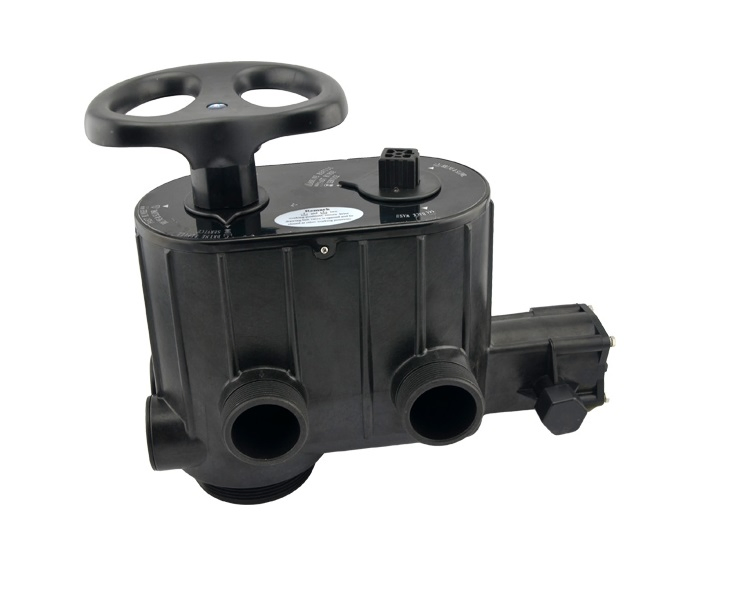

Manual filter valve (F56L)
♦Water Pressure----------------------------------------------0.15-0.6MPa
♦Water Temperature-----------------------------------------5°C-45°C
♦Water Turbidity-----------------------------------------------<20FTU
♦Inlet/Outlet-----------------------------------------------------1″F
♦Drain------------------------------------------------------------1″F
♦Base-------------------------------------------------------------2.5″-8NPSM
♦Riser Pipe------------------------------------------------------1.05″OD
♦Max Flow Rate-------------------------------------------------8m3/h
♦Suitable Tank Size (in)---------------------------------------6″~12″
Featurers:
♦It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
♦No water passes the valve in rinse in single tank type.
♦Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
♦It can be changed to be side-mounted valve with side-mounted connector.
♦It can operate under pressure, without leakage.
Applications:
Residential filtration system
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
| 1.Manual filter valve | |||
| Model | Capacity(T/H) | Base size | pcs/carton |
| F56B1 | 2 | 10″ | 30 |
| F56B2 | 2 | 10″ | 30 |
| F56C1 | 2 | 20″ | 30 |
| F56C3 | 2 | 20″ | 30 |
| F56E1 | 2 | 2.5″ | 30 |
| F56E2 | 2 | 2.5″ | 30 |
| F56A1 | 4.5 | 2.5″ | 30 |
| F56A2 | 4.5 | 2.5″ | 30 |
| F56AN | 4.5 | 2.5″ | 30 |
| F56A1/P | 4.5 | 2.5″ | 30 |
| F56A2/P | 4.5 | 2.5″ | 30 |
| F56AC/P | 4.5 | 2.5″ | 30 |
| F56F1 | 6 | 2.5″ | 30 |
| F56F2 | 6 | 2.5″ | 30 |
| F56D1-top | 10 | 4″ | 6 |
| F56D2-top | 10 | 4″ | 6 |
| F56DN-top | 10 | 4″ | 6 |
| F56D1-side | 10 | connect size 2″ | 6 |
| F56D2-side | 10 | connect size 2″ | 6 |

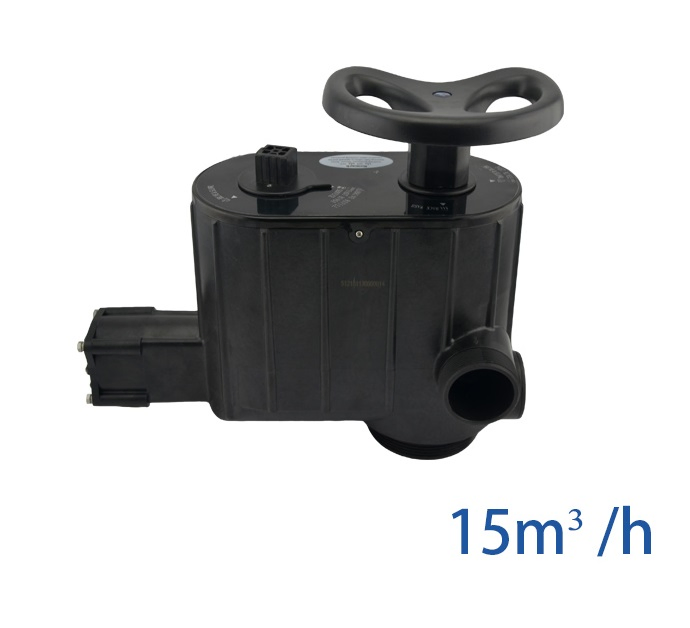

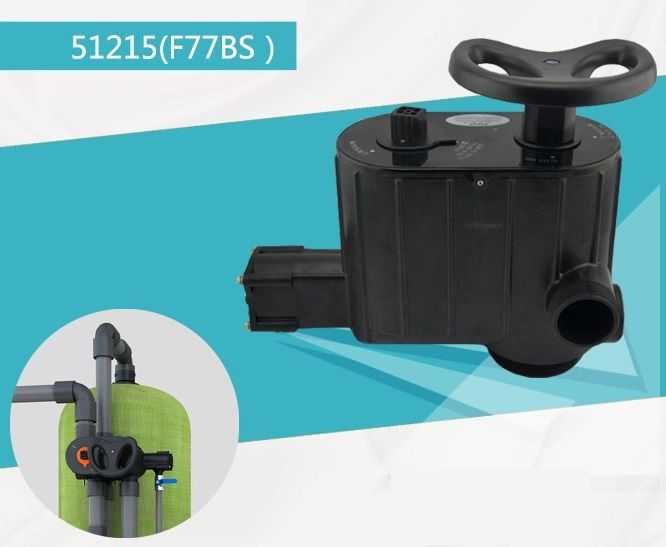

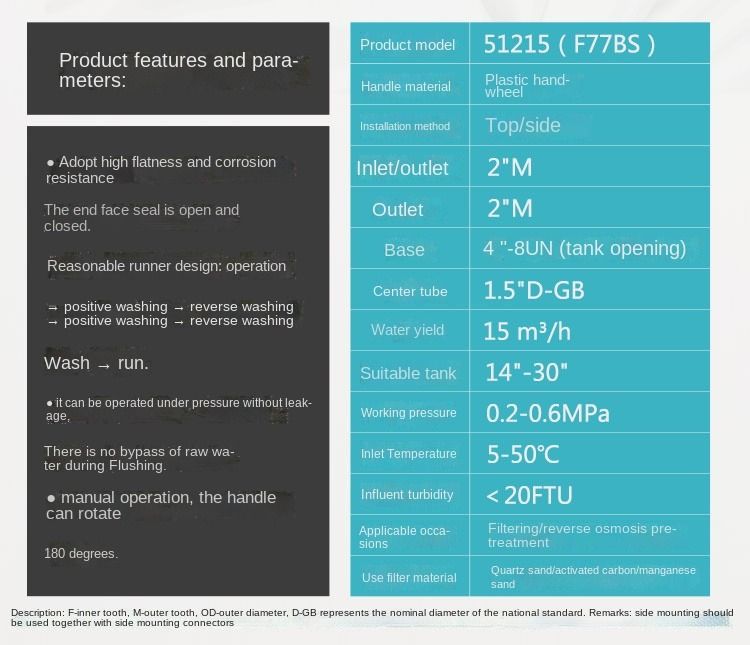

| F77BS | 15 | 4″ | 2 |
| F78BS | 30 | side | 1 |
| 2. Manual soften valve | |||
| F64B | 2 | 2.5″ | 30 |
| F64C | 2 | 2.5″ | 30 |
| F64BC | 2 | 2.5″ | 30 |
| F64A1 | 4 | 2.5″ | 20 |
| F64A2 | 4 | 2.5″ | 20 |
| F64AC/P | 4 | 2.5″ | 20 |
| F64F-top | 6 | 4″ | 6 |
| F64D-top | 10 | 4″ | 6 |
| F64D-side | 10 | 4″ | 6 |
| F77AS | 15 | 4″ | 2 |
| F77ASN | 15 | 4″ | 2 |
| F78AS | 40 | side | 1 |
| 3.Auto filter control valve | |||
| Model | Productivity/M3 | Base Dimension | Piece/Box |
| F71B1/2(53502) | 2 | 2.5″ | 6 |
| F71P1(53502P) | 2 | 2.5″ | 6 |
| F67C1/2(53504) | 4 | 2.5″ | 6 |
| F67P1(53504P) | 4 | 4″ | 6 |
| F75A1/2(53510) | 10 | 4″ | 4 |
| F77B1/2(53518) | 18 | side | 2 |
| F95B1(53520) | 20 | side | 1 |
| F95B3(53620) | 20 | side | 2 |
| F78B1/2(53530) | 30 | side | 1 |
| F96B1(53550)1 | 50 | side | 1 |
| F96B3(53650) | 50 | side | 1 |
| 4.Auto softener control valve | |||
| Model | Productivity/M3 | Base Dimension | Piece/Box |
| F65B1/2(63502) | 2 | 2.5″ | 6 |
| F65B3(63602) | 2 | 2.5″ | 6 |
| F65P1(63502P) | 2 | 2.5″ | 6 |
| F65P3(63602P) | 2 | 2.5″ | 6 |
| F63C1/2(63504) | 4 | 2.5″ | 6 |
| F63C3(63604) | 4 | 2.5″ | 6 |
| F63P1(63504P) | 4 | 2.5″ | 6 |
| F63P3(63604P) | 4 | 2.5″ | 6 |
| F74A1/2(63510) | 10 | 4″ | 2 |
| F74A3(63610) | 10 | 4″ | 2 |
| F77A1/2(63518) | 18 | 4″ | 2 |
| F77A3(63618) | 18 | 4″ | 2 |
| F95A1(63520) | 20 | side | 1 |
| F95A3(63620) | 20 | side | 1 |
| F95A3(63620) | 40 | side | 1 |
| F78A3(63640) | 40 | side | 1 |
| F96A1(63550) | 50 | side | 1 |
| F96A3(63650) | 50 | side | 1 |

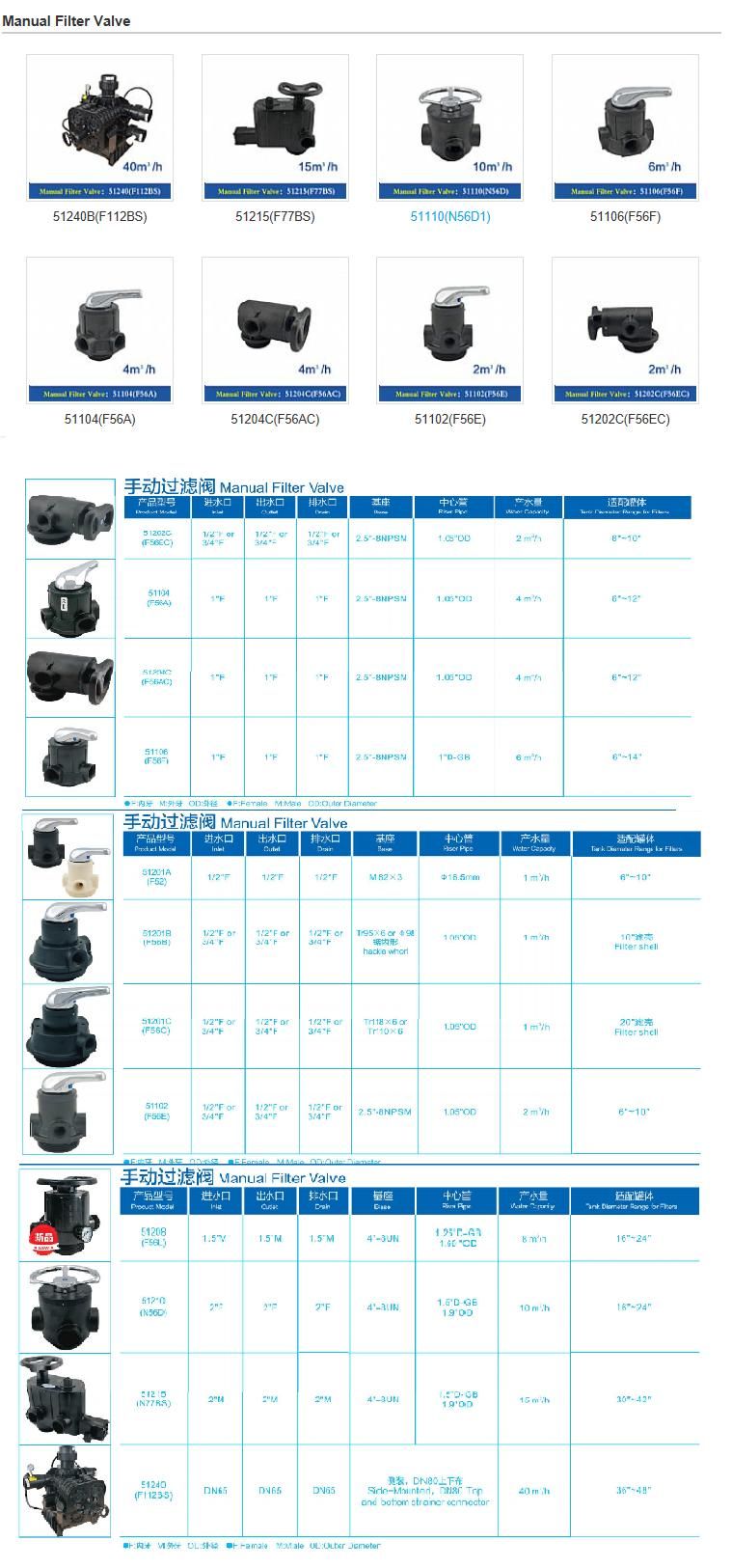

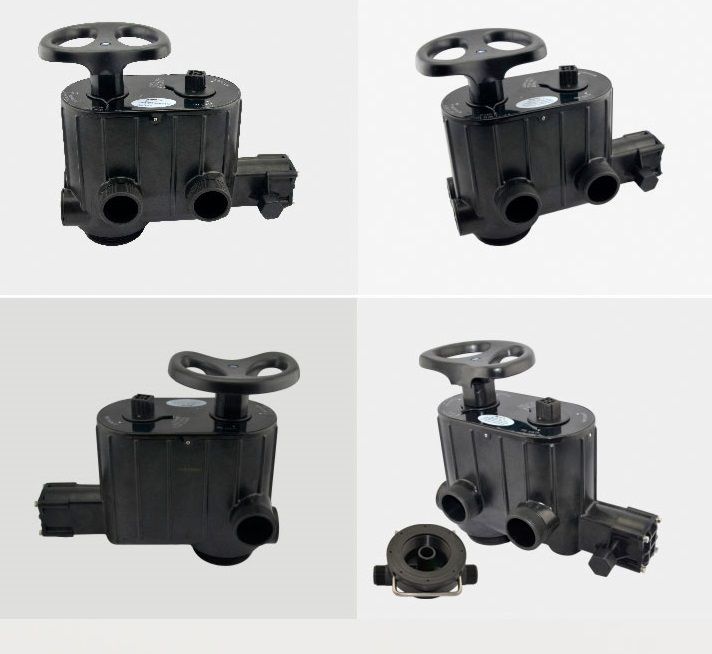

2. Product Show
Runxin Control Valve model:
Manual Filter Valve
F71B1,F71G1,F67B1,F67G1,F67II,F75A1,F75B1,F77B1,F95B1,F78B1
Manual Softener Valve
F65B1,F65G3,F69A1,F63B1,F63C3,F63I3,F68C1,F68A3,F65C,F69C, F74A1,F74B1,F74A3,F74B3,F77A1,F77A3,F95A1,F78A3
Automatic filter valve
F71B1,F71G1,F67B1,F67G1,F67II,F75A1,F75B1,F77B1,F95B1,F78B1
Automatic Softener Valve
F65B1,F65G3,F69A1,F63B1,F63C3,F63I3,F68C1,F68A3,F65C,F69C, F74A1,F74B1,F74A3,F74B3,F77A1,F77A3,F95A1,F78A3
3. Application
Swimming pool filtration equipment
Active carbon or sand filter in RO pretreatment filtration system
Ion exchange equipment
Boiler softening water system
RO pretreatment softening system, etc
