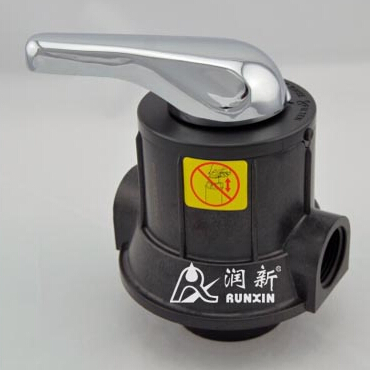

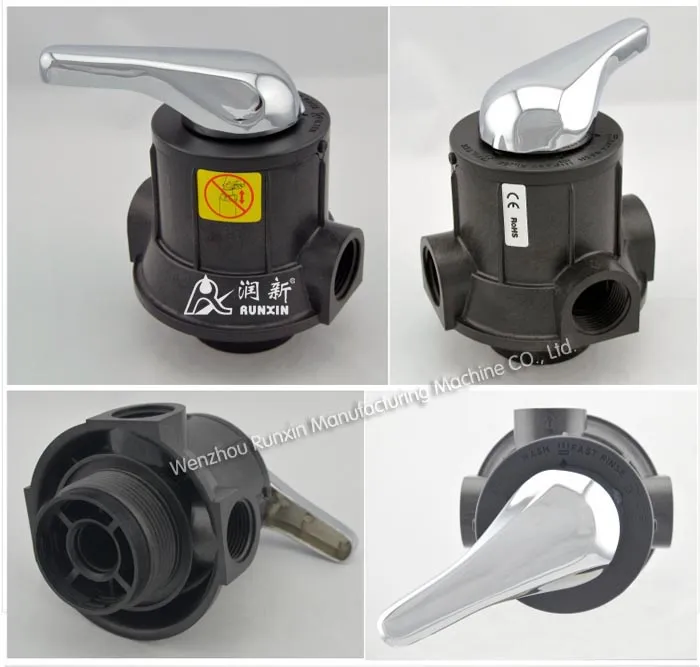

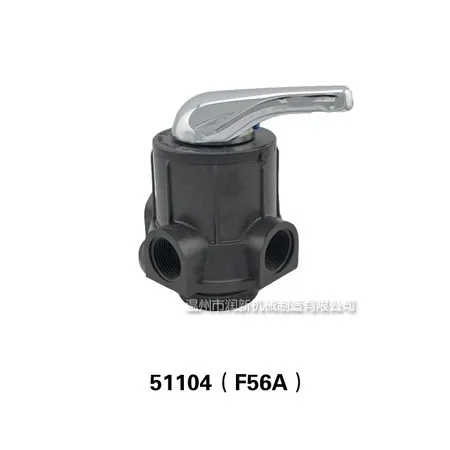

Runxin Control Valve Manual Filter Valve (F56A)
Runxin Control Valve Manual filter valve (F56A)Technical Parameters1. Water Pressure----------------------------------------------0.15-0.6MPa2. Water Temperature-----------------------------------------5ºC-45ºC3. Water Turbidity-----------------------------------------------<20F......
Send Inquiry
Product Description
Runxin Control Valve Manual filter valve (F56A)
Technical Parameters
1. Water Pressure----------------------------------------------0.15-0.6MPa
2. Water Temperature-----------------------------------------5ºC-45ºC
3. Water Turbidity-----------------------------------------------<20FTU
4. Inlet/Outlet-----------------------------------------------------1″F
5. Drain------------------------------------------------------------1″F
6. Base-------------------------------------------------------------2.5″-8NPSM
7. Riser Pipe------------------------------------------------------1.05″OD
8. Max Flow Rate-------------------------------------------------4 m3/h
9. Suitable Tank Size (in)---------------------------------------6″~12″
Product Characteristics
1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
2. No water passes the valve in rinse in single tank type.
3. Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
4. It can be changed to be side-mounted valve with side-mounted connector.
5. It can operate under pressure, without leakage.
Range of Application
1. Residential filtration system
2. Swimming pool filtration equipment
3. Active carbon or sand filter in RO pretreatment filtration system
Note: Other models are available as per requirements, please sending us an inquiry, we will do our best to help you.
Technical Parameters
1. Water Pressure----------------------------------------------0.15-0.6MPa
2. Water Temperature-----------------------------------------5ºC-45ºC
3. Water Turbidity-----------------------------------------------<20FTU
4. Inlet/Outlet-----------------------------------------------------1″F
5. Drain------------------------------------------------------------1″F
6. Base-------------------------------------------------------------2.5″-8NPSM
7. Riser Pipe------------------------------------------------------1.05″OD
8. Max Flow Rate-------------------------------------------------4 m3/h
9. Suitable Tank Size (in)---------------------------------------6″~12″
Product Characteristics
1. It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
2. No water passes the valve in rinse in single tank type.
3. Reasonable design of the flow passage: Service→ Fast Rinse→ Backwash → Fast Rinse → Backwash →Service.
4. It can be changed to be side-mounted valve with side-mounted connector.
5. It can operate under pressure, without leakage.
Range of Application
1. Residential filtration system
2. Swimming pool filtration equipment
3. Active carbon or sand filter in RO pretreatment filtration system
Note: Other models are available as per requirements, please sending us an inquiry, we will do our best to help you.
