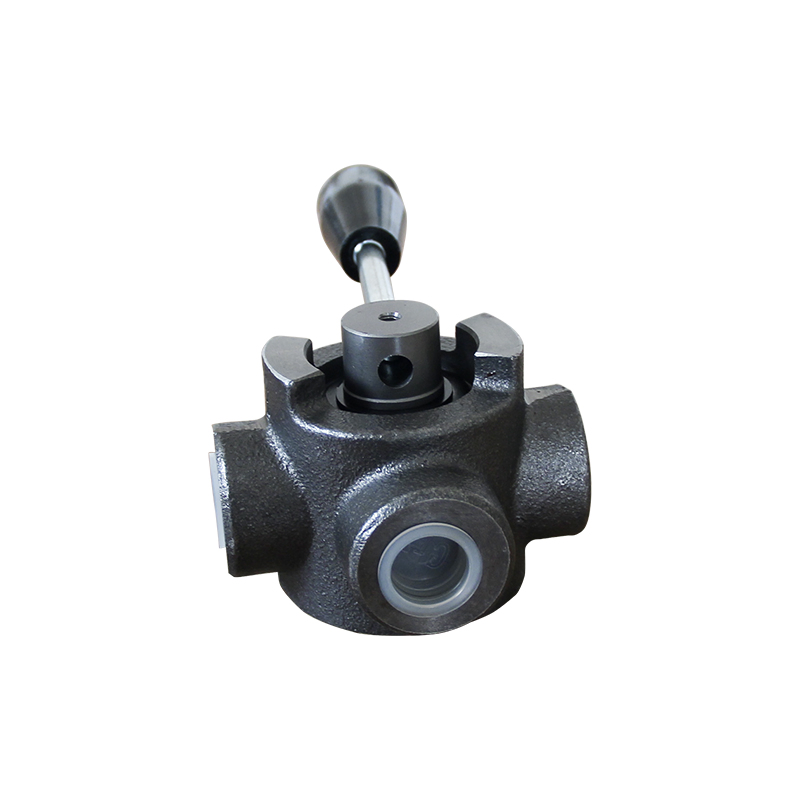

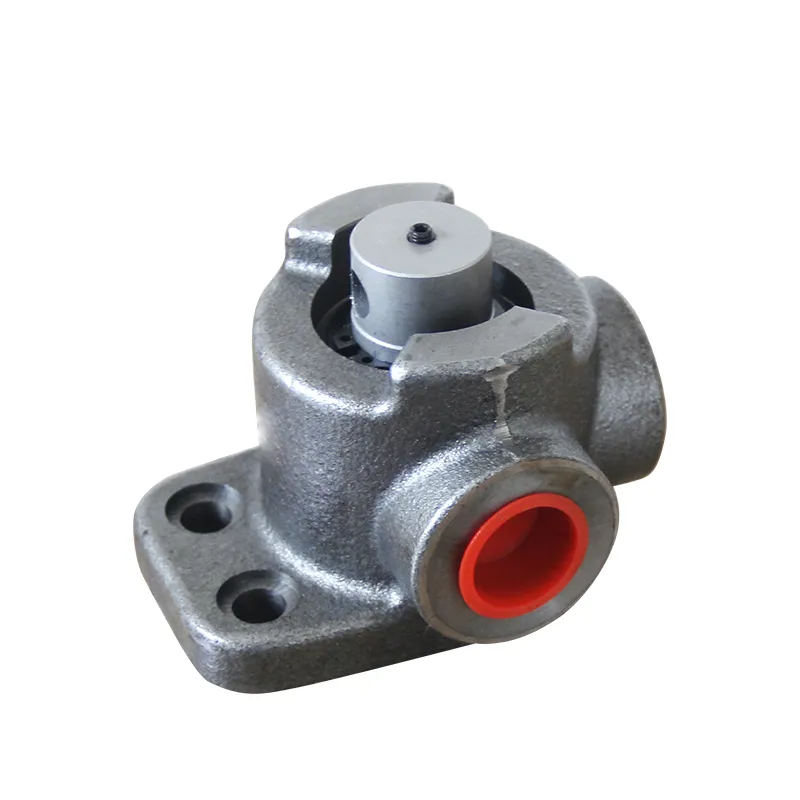

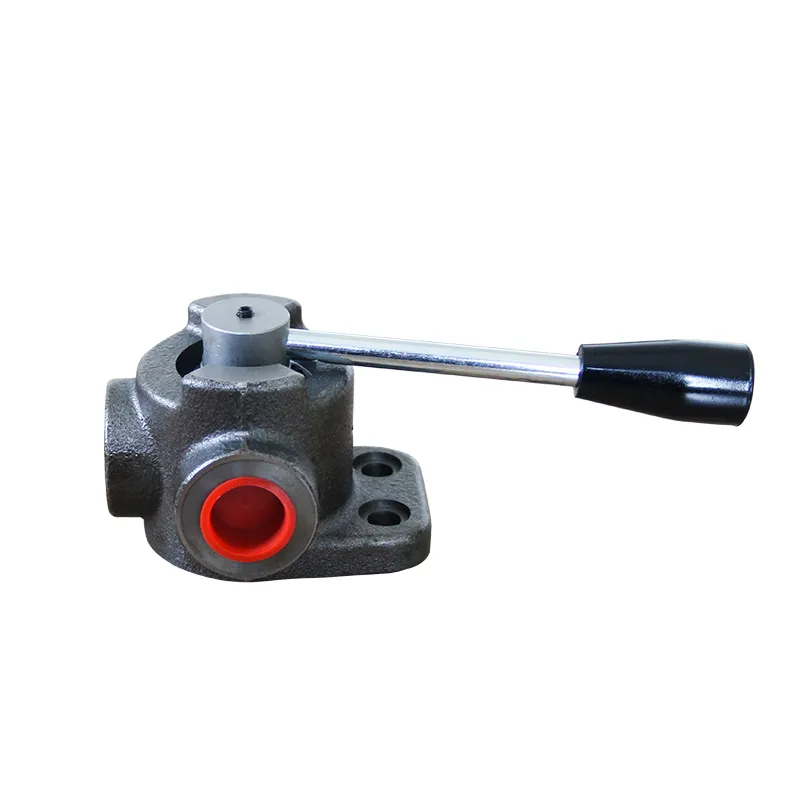

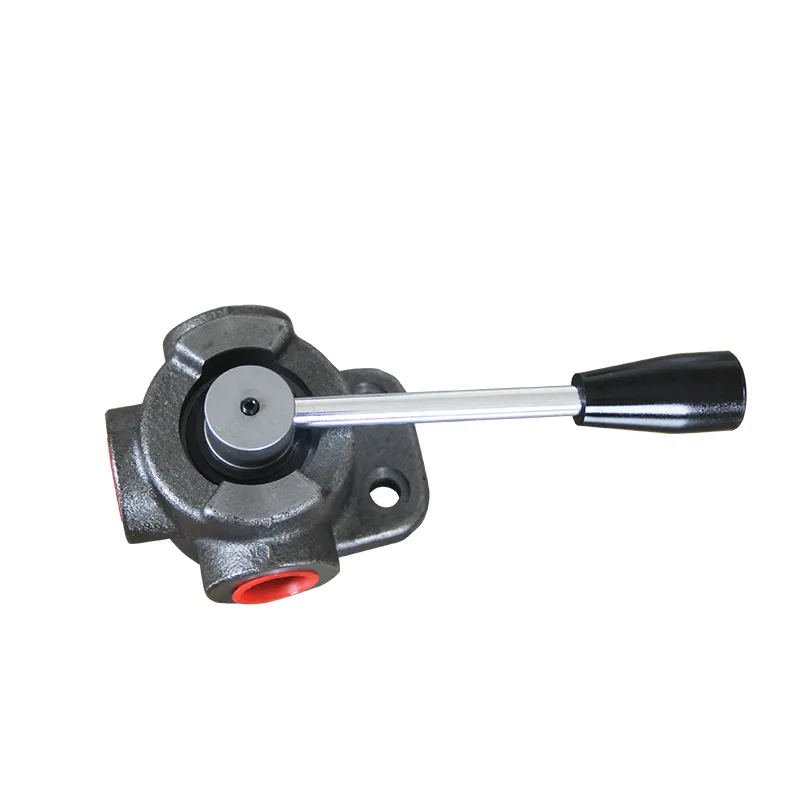

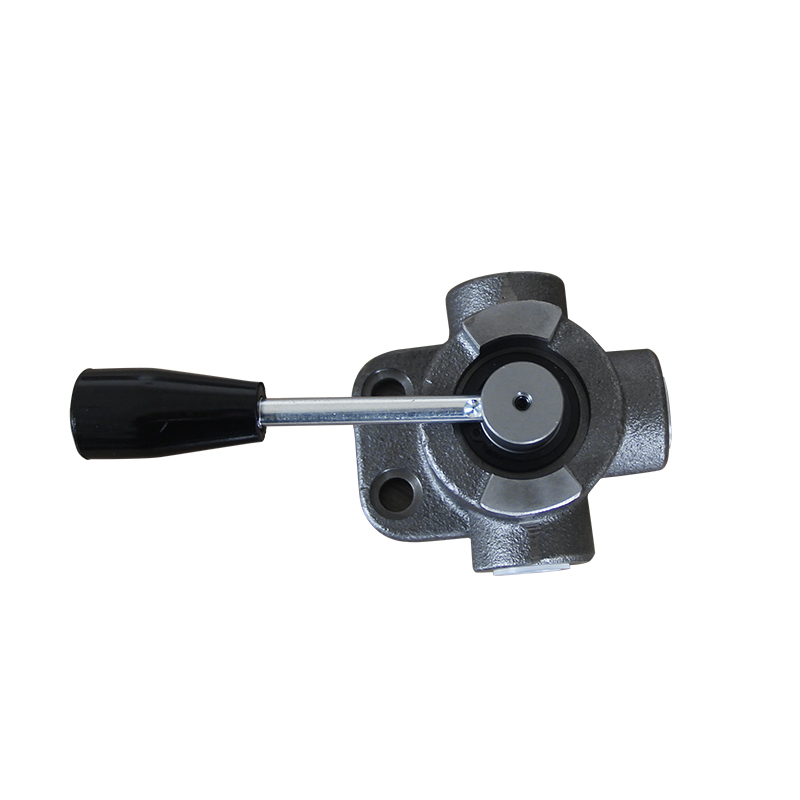

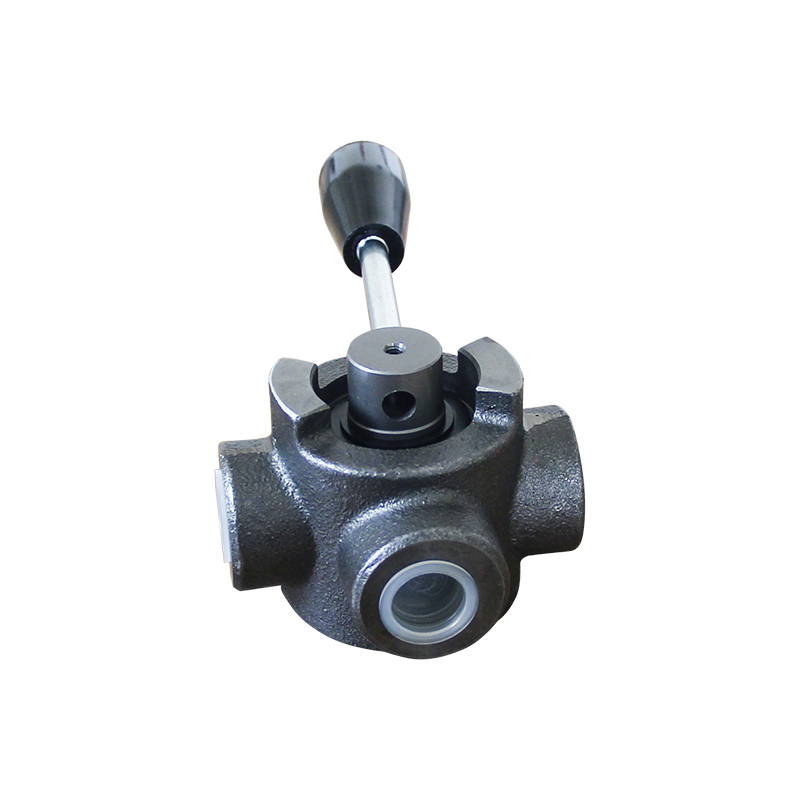

Rotary Valve 120lpm Manual Control Hydraulic Control Valve
Product Description:THE DIRECTIONAL CONTROL VALVE of the rotary spool type consists basically of a rotorwhich is rotated with respect to the valve body.When the rotor is placed in selected positionsinlet and outlet ports are connected in various combinations permitting the start,stop or directional ......
Send Inquiry
Product Description
Product Description:
THE DIRECTIONAL CONTROL VALVE of the rotary spool type consists basically of a rotor
which is rotated with respect to the valve body.When the rotor is placed in selected positions
inlet and outlet ports are connected in various combinations permitting the start,
stop or directional change of fluid under pressure.
The functions specific to a valve primarily on rotor type selected.
| Nom. Pressure(Mpa) | Max.Pressure(Mpa) | Nom.Flow rate(L/min) | Max.Flow rate (L/min) | Back Pressure(Mpa) | hydraulic oil | ||
| Tem.range(ºC) | Visc.rang(mm²/S) | filtrating accuracy(um) | |||||
| 20 | 32 | 120 | 120 | ≤1 | -20~+70 | 15-380 | ≤10 |
1. Nominal Flow:120L/min, Max Working Pressure 320bar
2. Control way: manual control,
3. Thread: G3/8; G1/2; G3/4
Features:
Provides a fast and positive control of oil to and from cylinders and motors.
Customers can select from one of three spool types allowing flow to be diverted from
one line to another or in neutral position of pressure to tank
