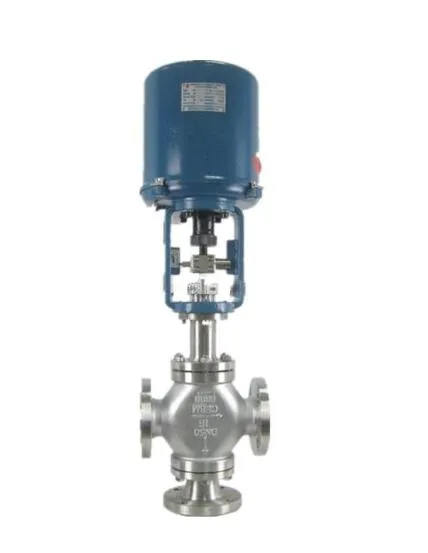

Electric Three-Way Stainless Steel Regulating Valve

Product description of Three-way converging/diverging control valve

Three-way converging/diverging control valve adopts double valve core and valve seat guide structure, and regulates and controls several flow channel media aggregation and separation. Two-way flow channel enters, and all flow channels are called three-way merge flow On the contrary, all the way into the flow path, the two-way flow is called a split. The standard split/split flow path is designed as an unbalanced two-seat inner structure. The area of the throttle surface is changed to control the regulation or cut-off function of the equalization flow composed of the confluence or diversion of any flow path. The confluence valve must be used in confluent applications. The diverge valve must be used in diverting applications, but with a nominal lead of≤80mm, the confluence valve can be used for split and confluence applications due to the small balance force

Features of Three-way combined/divert control valve:

Valve trim features: Double seat structure, seat guide inner

Body type: triple

Upper bonnet type: Normal temperature type.

high temperature heat dissipation type.

low temperature extension type

Temperature range: - 100"C-425"C

Stem Seal Type: Ordinary standard packing seal,

high temperature packing seal. bellows seal

Standard leak class: CLASS Ill (standard. metal seat)

Flow characteristics: equal percentage. straight line

Connection with pipelines: flange. butt welded

Adjustable ratio: 30:1

Applicable standards of three-way joint/shunt control valve:

Sizes: 3/4" - 12" ,DN 20 - DN 300
Pressure Rating: Class150 - Class 600 or PN 16 - PN 110
Material of valve body: WCB,WC6,WC9, LCB, CF3, CF8M, CF3M, A105, LF2, F304, F304L, F316, F316L etc.

Operated by:  Electric actuator ,Pneumatic actuator  and hydraulic actuator
