53502 F71b1 53602 F71b3 2m3/H Valve Runxin Automatic Water Flow Control Valve for Water Treatment

53502 F71B1 2M3/H valve Runxin Automatic Water Flow Control Valve for water treatment

♦ Part one: Frotec Runxin Valve Description

1.Brief introduction and Technical Specification

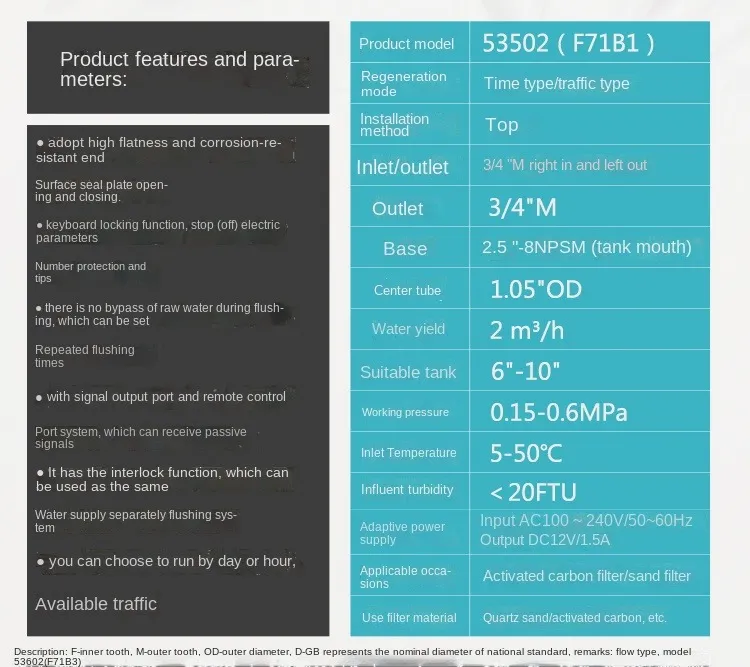

Technical Parameters:
Water Pressure------------------------------------------------0.15-0.6MPa
Water Temperature-------------------------------------------5ºC-50ºC
Transformer Output-------------------------------------------DC12V,1.5A
Water Turbidity------------------------------------------------<20FTU
Inlet/Outlet-------------------------------------------------------3/4″F
Drain--------------------------------------------------------------3/4″F
Base---------------------------------------------------------------2.5″-8NPSM
Riser Pipe--------------------------------------------------------1.05 ″OD
Max Flow Rate---------------------------------------------------2 m3/h
Suitable Tank Size (in)-----------------------------------------6″~10″


Product Characteristics:
It adopts hermetic head faces with high degree pottery and corrosion resistance for opening and closing.
No water passes the valve in rinse in single tank type.

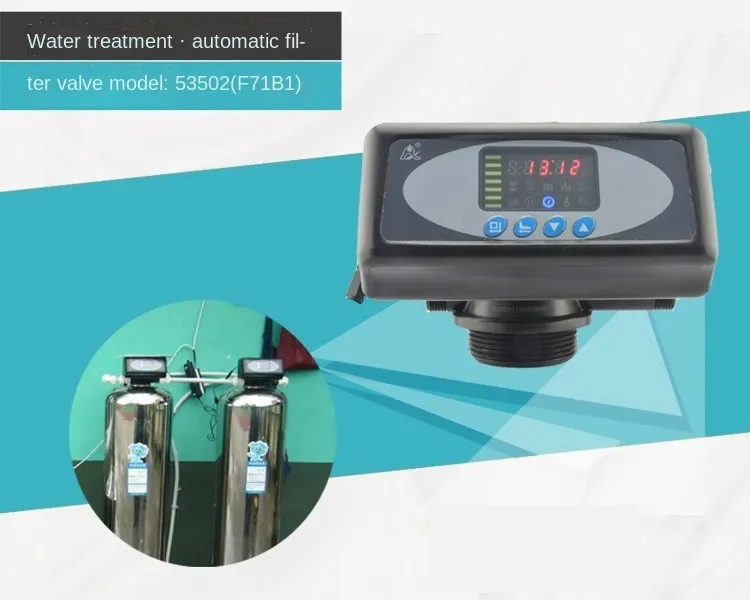

LED dynamic screen display LED.The stripe on dynamic screen flash, it indicates the control valve is in service, otherwise, it is in rinse cycle.
Having long outage indicator
It could set up rinsing frequence
There are two kinds of time clock types: by hours or by days
Buttons are locked when no operation within 1 minute
Having interlock function
With signal output connector
With remote handling input connector
With pressure relief connector
All parameters can be modified according to the need

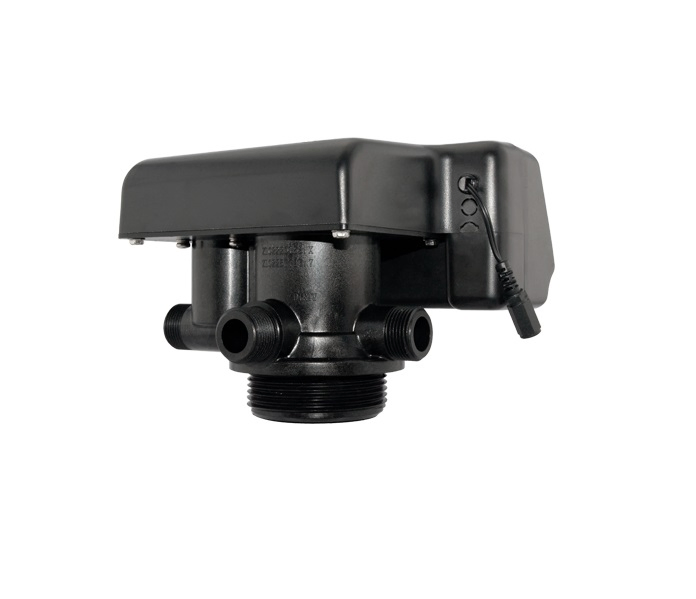

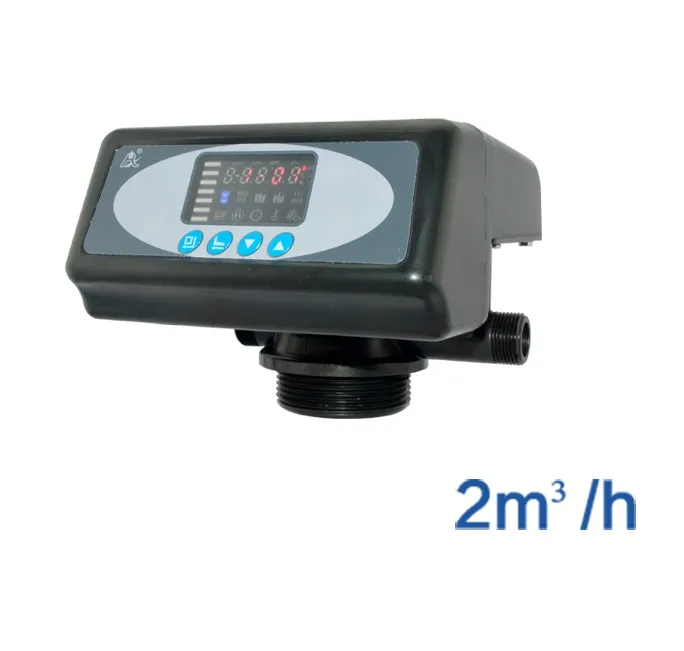

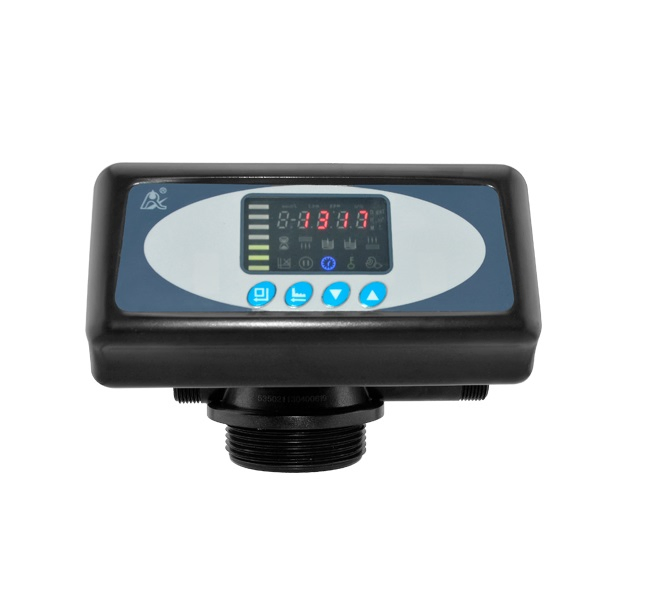

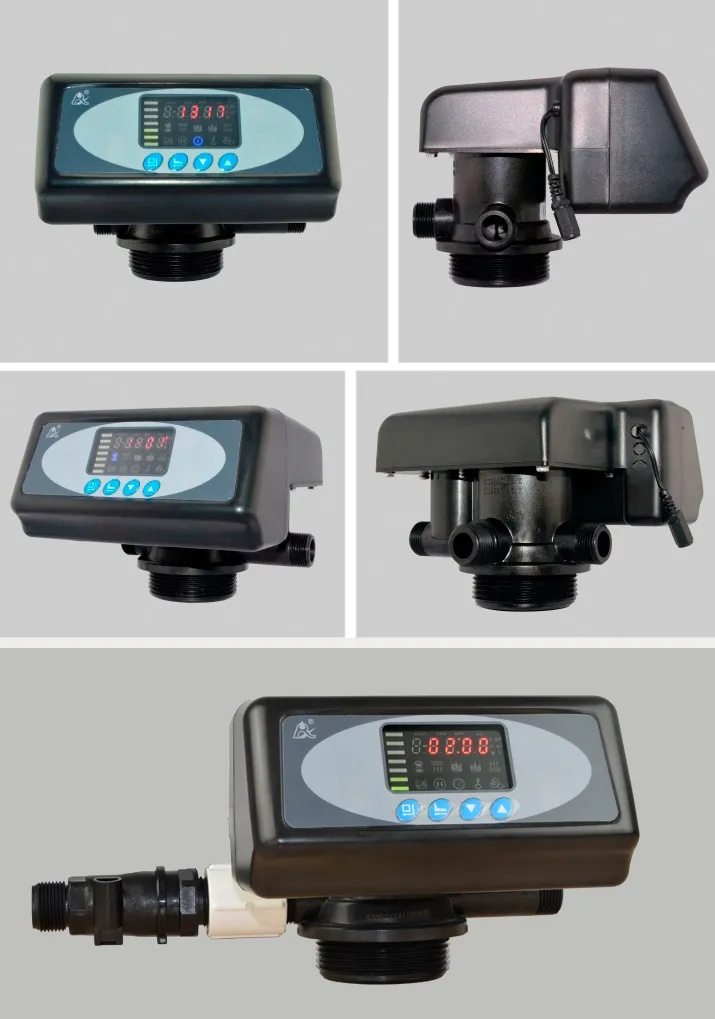

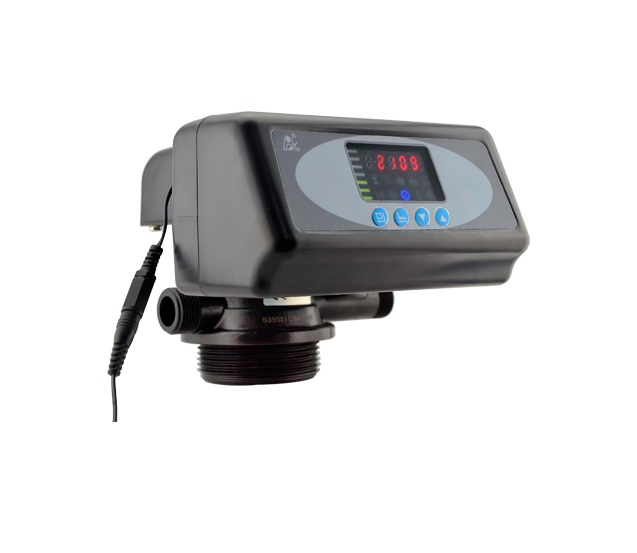

 2. Product Show
