10bar/16bar/25bar Water Flow Control Valve with Exquisite Workmanship
10Bar/16Bar/25Bar Water Flow Control Valve With Exquisite WorkmanshipPurposeThis valve is used mainly for water supply and drainage system and can be set on the pump outlet to prevent the pump from getting harmed the medium back flow. it can also be set on the mouth of a water outlet pipe to prevent......
Send Inquiry
Product Description

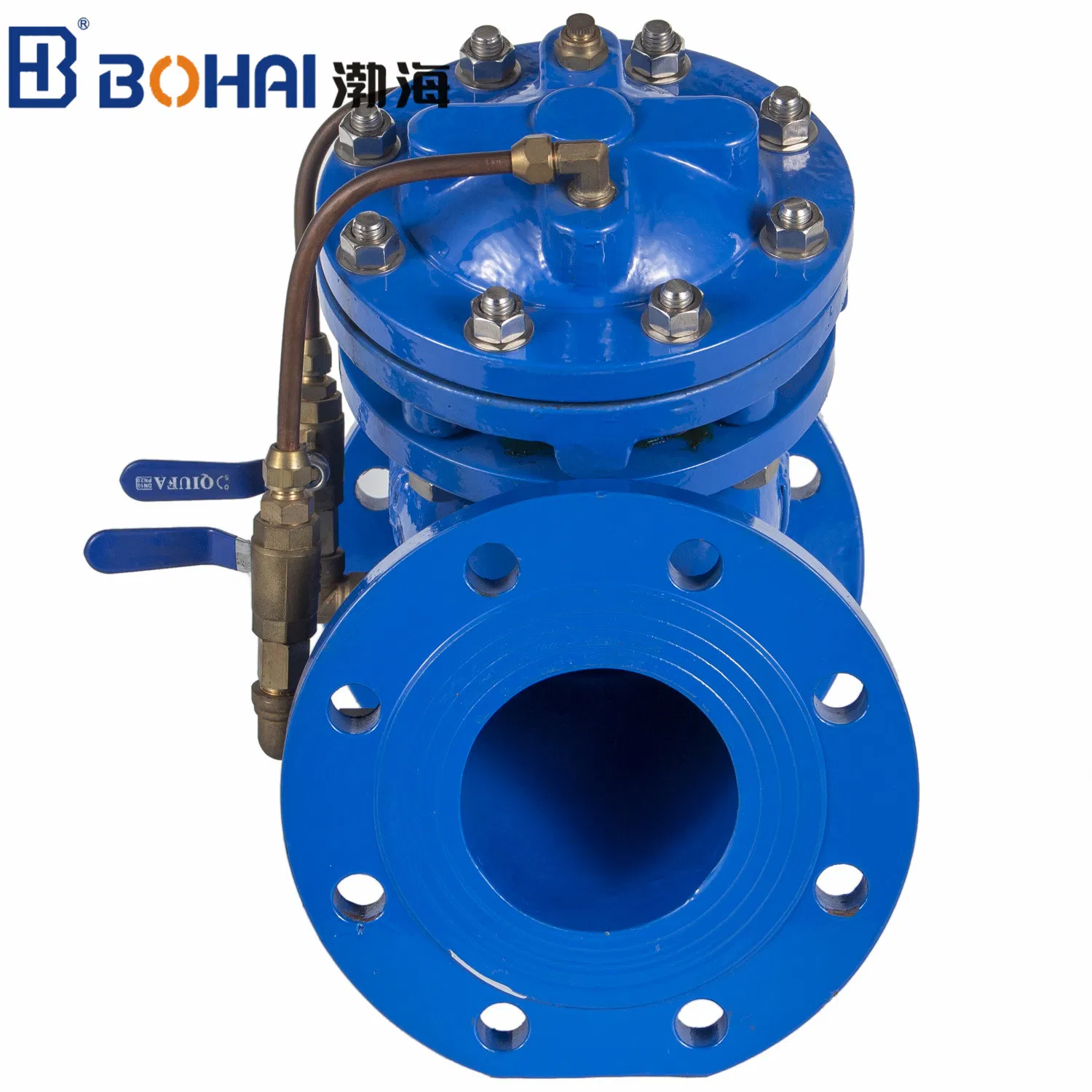

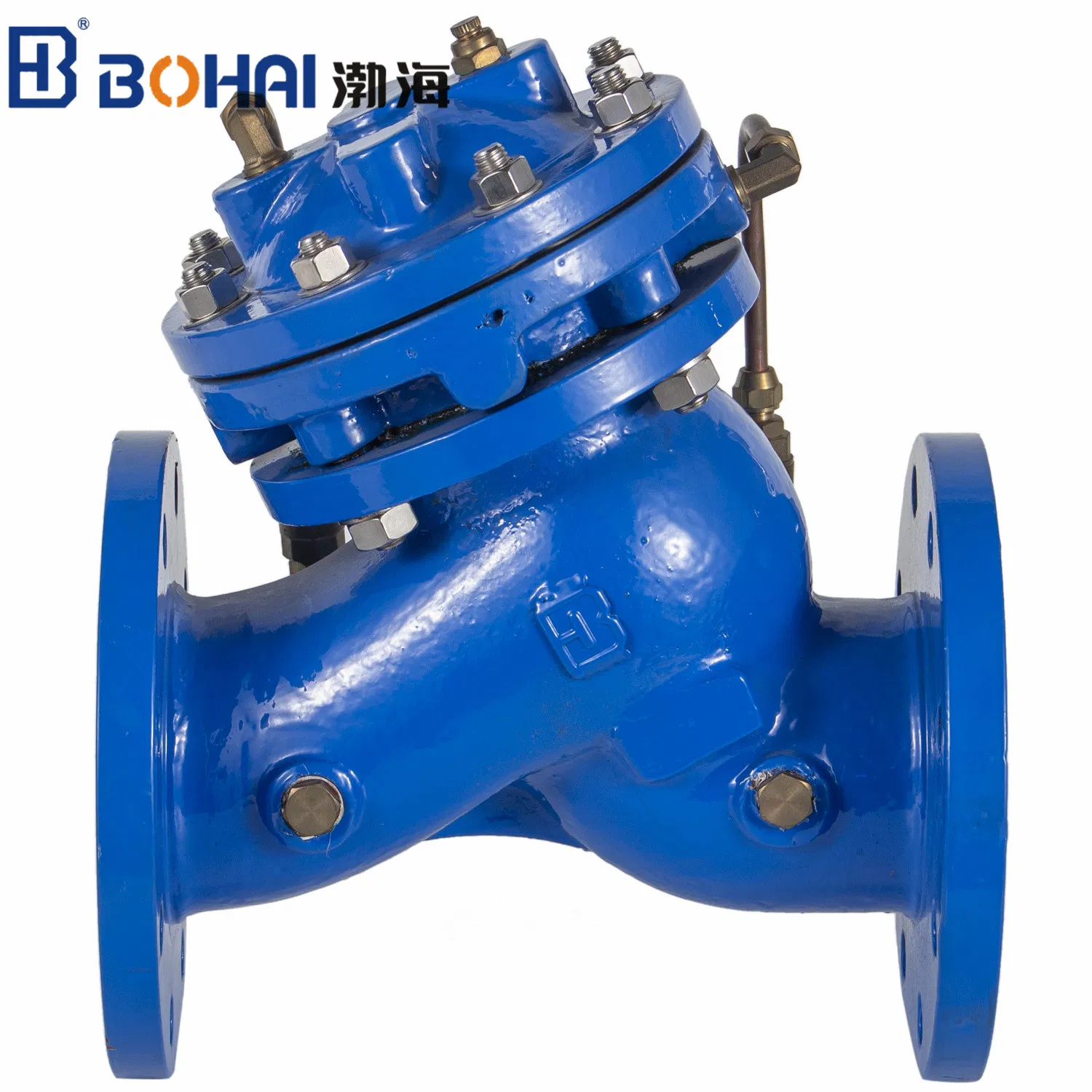

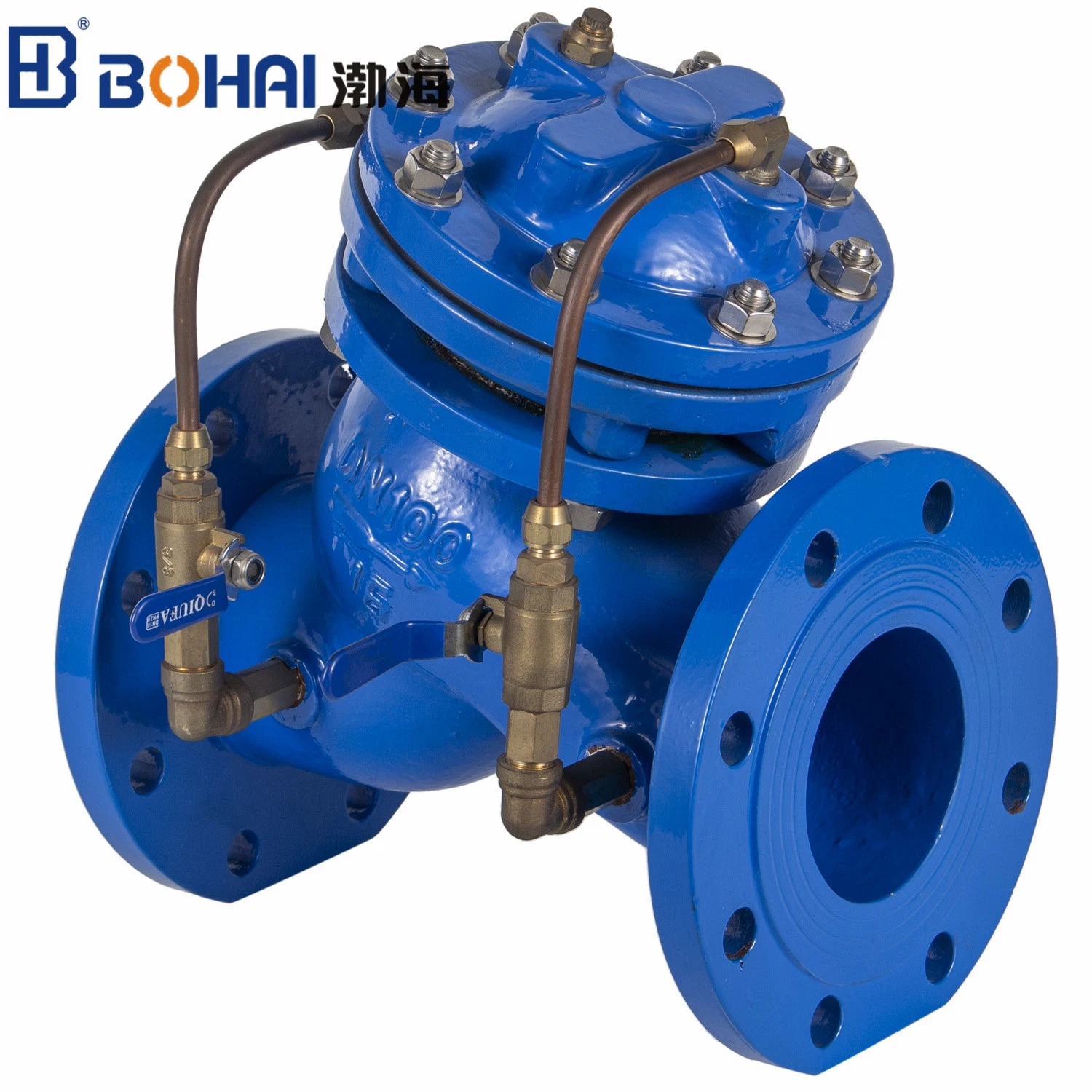

10Bar/16Bar/25Bar Water Flow Control Valve With Exquisite Workmanship
Purpose
This valve is used mainly for water supply and drainage system and can be set on the pump outlet to prevent the pump from getting harmed the medium back flow. it can also be set on the mouth of a water outlet pipe to prevent the medium from backflow.
Features
Simple structure, reliable performance, long durable, open-close times can be up to over million ones, suitable for sewage.
Executive Standard
GB/T 9113.1
API 609 Category A
BS EN593/BS5155
Performance parameters
Nominal diameter:2"-24"/DN50-DN600
Working pressure:10Bar/16Bar/25Bar
Face-to-face: API 609 Table 1/ISO 5752 Series 20/BS 5155
Flange accommodation: ANSI B16.1 Class125/150
EN1092-2 PN6/10/16/25
Top Flange:ISO5211
Tightness Inspection: API 598/ISO 5208,/EN12226-2
Main part material
Body: Ductile Iron ,Cast steel, Stainless Steel
Disc: Ductile Iron ,Cast steel, Stainless Steel
Stem: Stainless Steel
Sealing ring: Stainless Steel/PTFE
Packing: Flexible Graphite/PTFE
Performance parameters:
| DN | 40-----600 mm |
| PN | 1.0----1.6 MPa |
| Suitable temperatur | 100 °C max |
| Media | Water, gas, oil. |
| Operation | Manual |

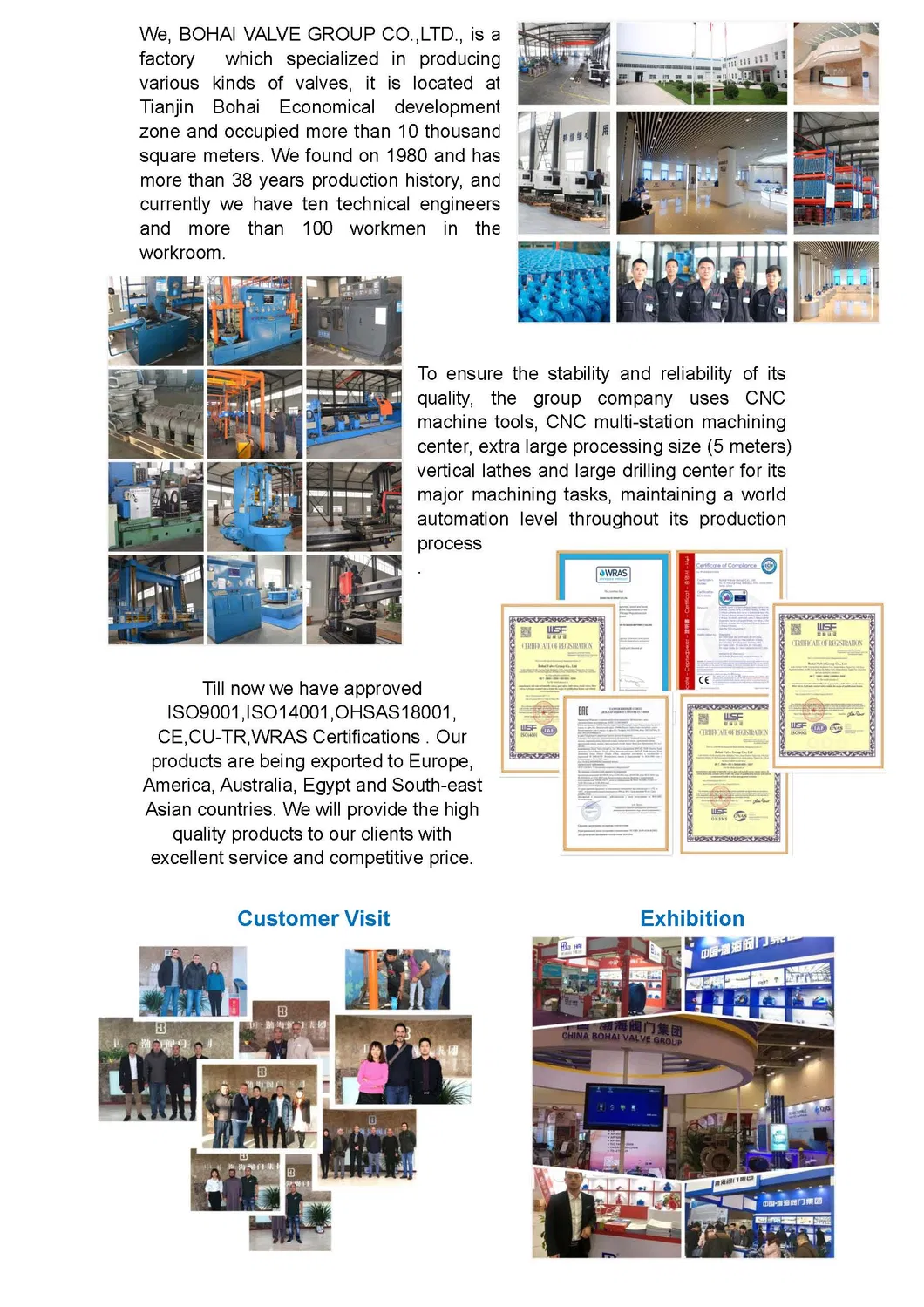

Company Information

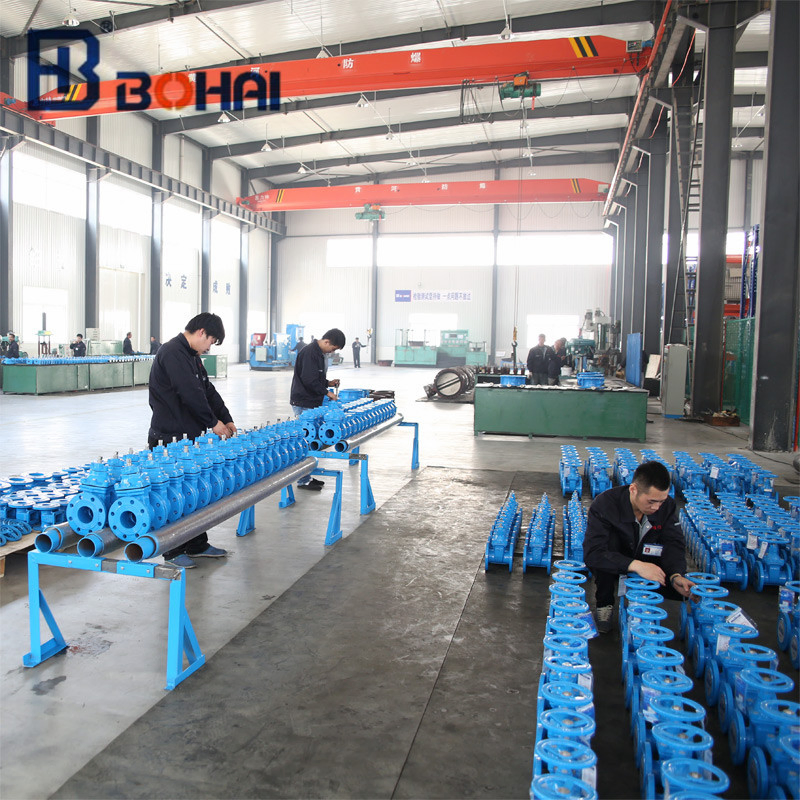

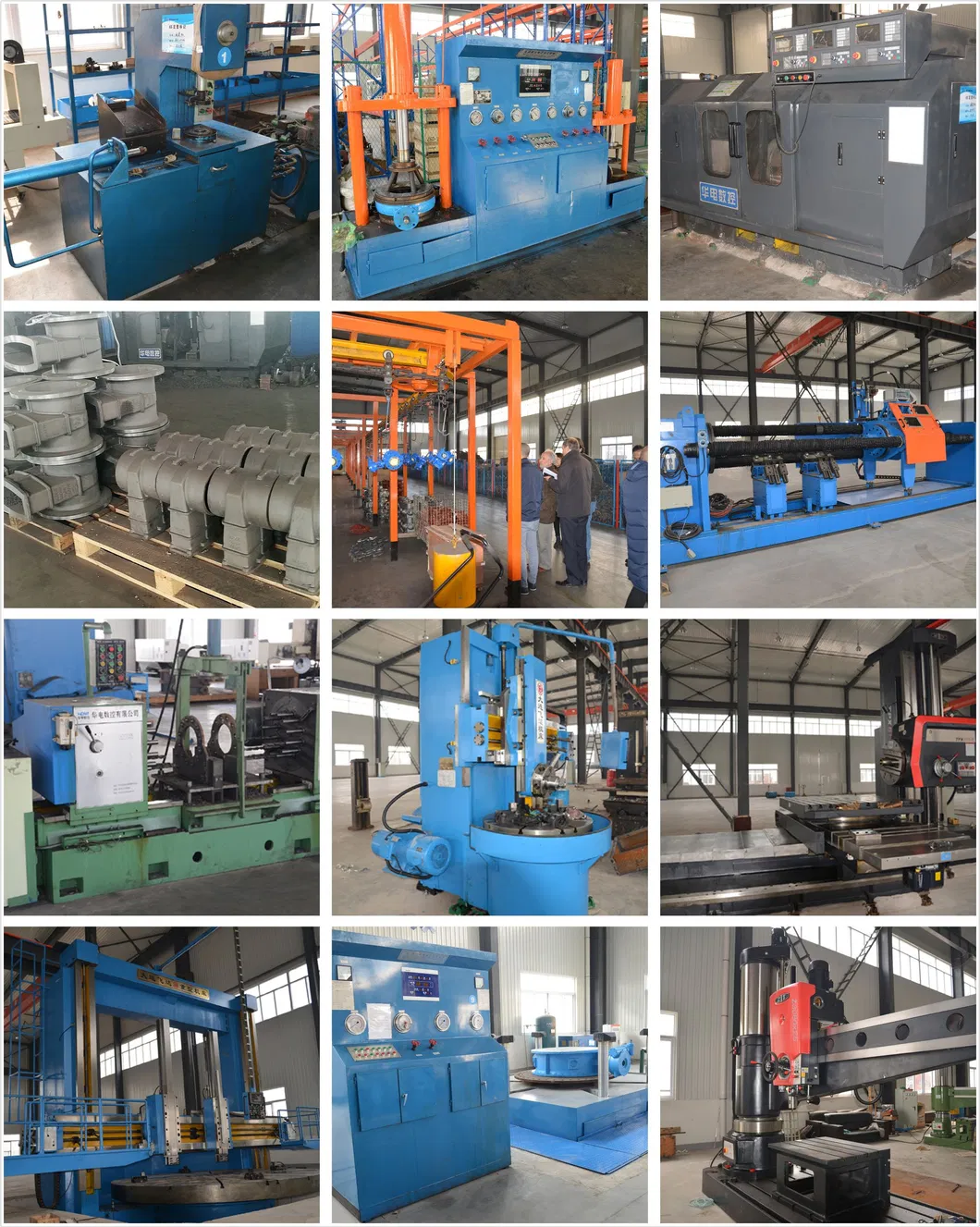

Work shop
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory Located In Tianjin, China.
Q: What's your product range?
A: We produce Butterfly valve, Gate valve, Check valve, Y strainer ,Water Controlling Valve and other Pipe Accessories .
Q: What's Execution Standard?
A: ISO/ANSI/DIN/JIS/ EN/GOST/AS standard.
Q: What's your Strong product ?
A: Centre Line Butterfly valve, Eccentric Butterfly valve ,Resilient Seat Gate valve, and largest size to DN3200 .
Q: How long is your delivery time?
A: Generally it is 10 days if the goods are in stock. or it is 35 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 30% T/T in advance ,balance before shipment.
