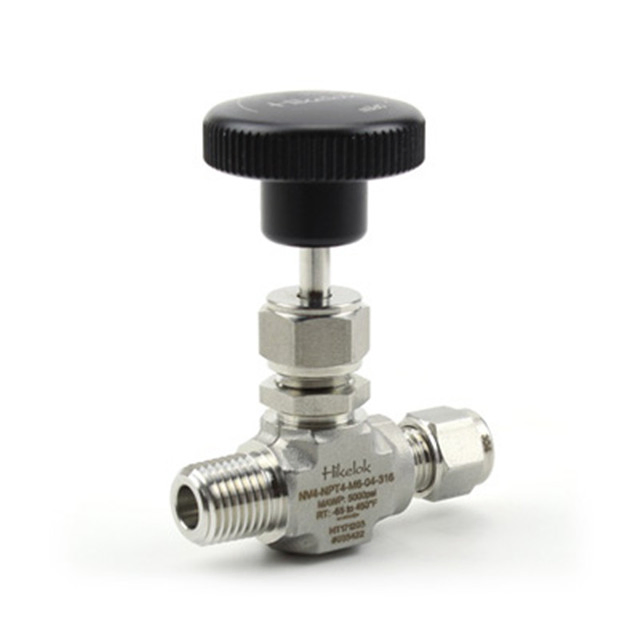

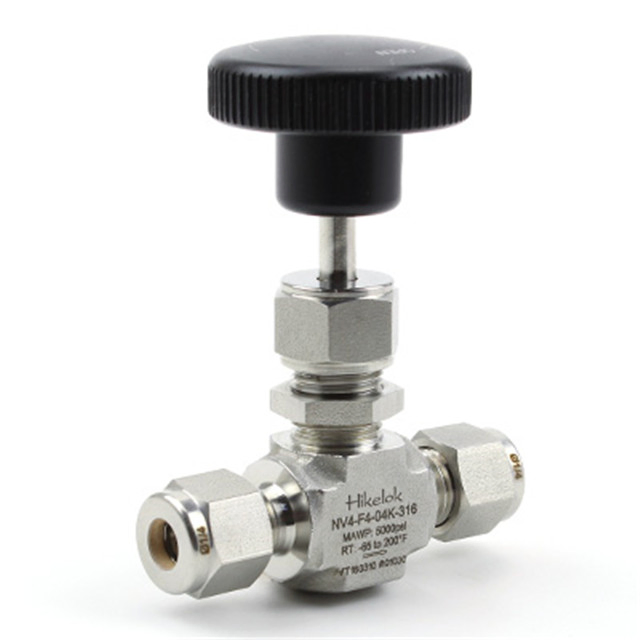

Swagelok Type Hikelok Stainless Steel Brass Straight Angle Cross Pattern Needle Valve
Needle Valve* Maximum working pressure up to 5000 psig (344 bar)* Working temperature from -65ºF to 600 ºF (-53ºC to 315 ºC)* Live-loaded packing system* Packing nut enables easy external adjustments* Straight, angle and cross patterns* Softseat stem with PCTFE ti......
Send Inquiry
Product Description
Needle Valve

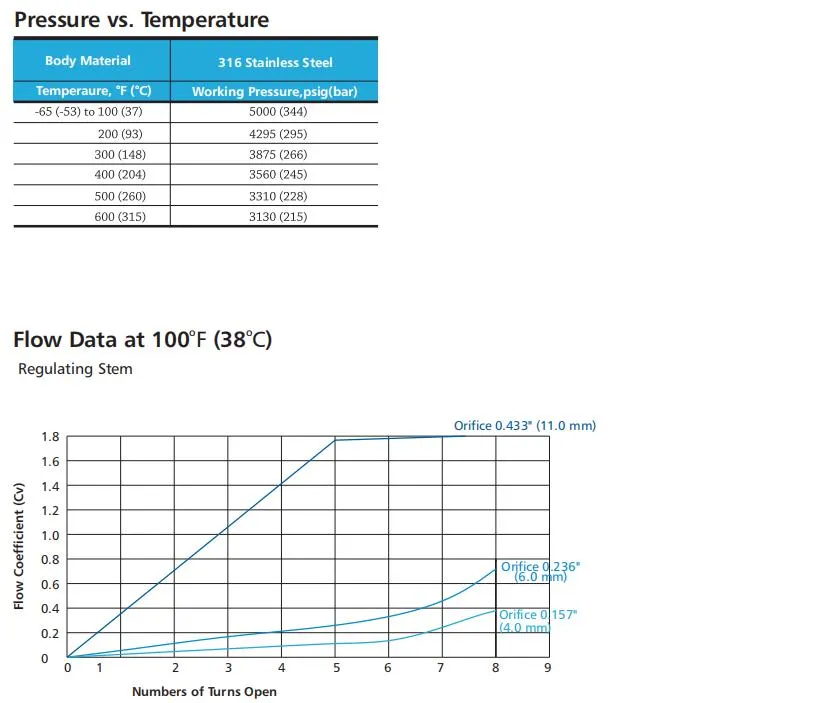

* Maximum working pressure up to 5000 psig (344 bar)
* Working temperature from -65ºF to 600 ºF (-53ºC to 315 ºC)
* Live-loaded packing system
* Packing nut enables easy external adjustments

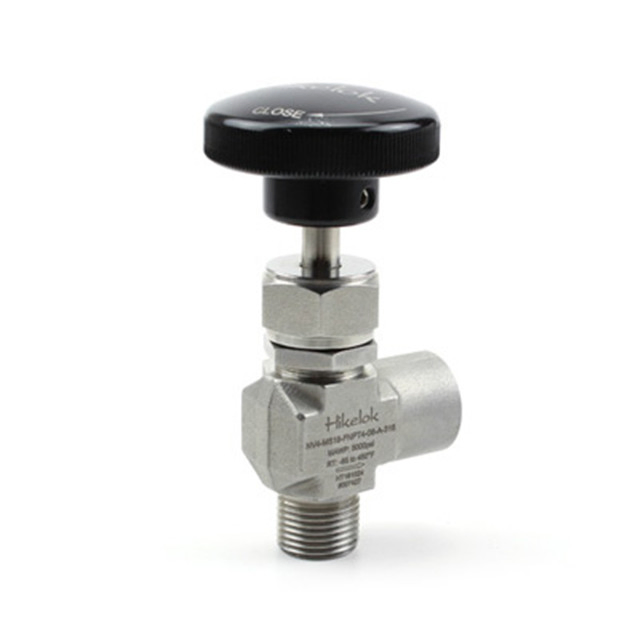

* Straight, angle and cross patterns

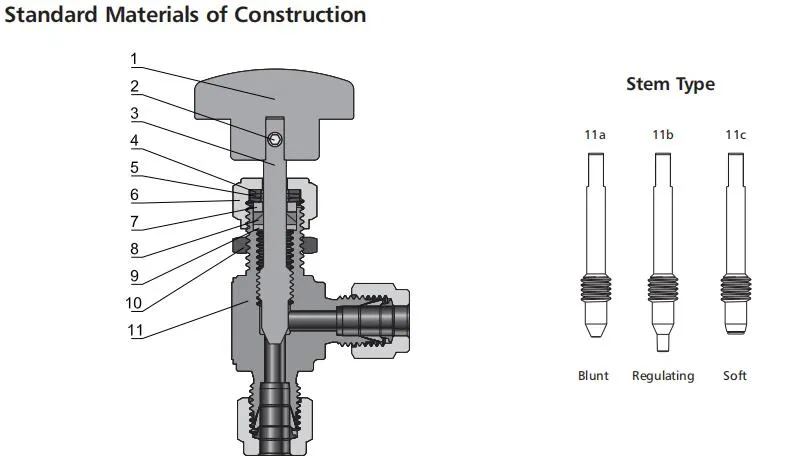

* Softseat stem with PCTFE tip available

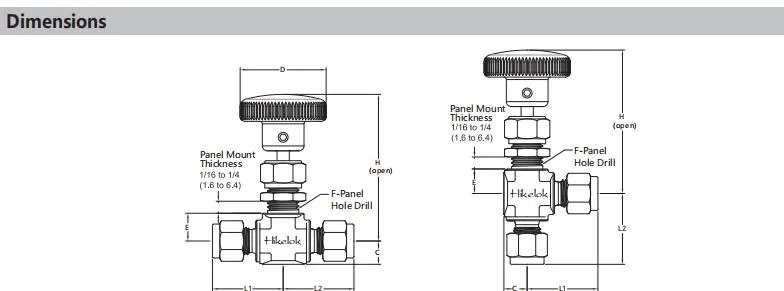

* Panel mounting available
* Optional handle colors available
* Maximum working pressure up to 5000 psig (344 bar)
* Working temperature from -65ºF to 600 ºF (-53ºC to 315 ºC)
* Live-loaded packing system
* Packing nut enables easy external adjustments
* Straight, angle and cross patterns
* Softseat stem with PCTFE tip available
* Panel mounting available
* Optional handle colors available
