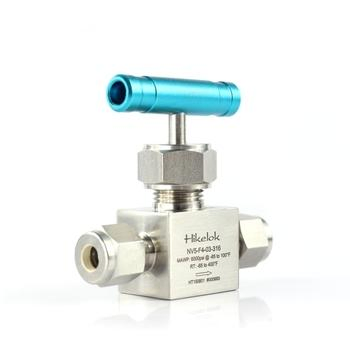

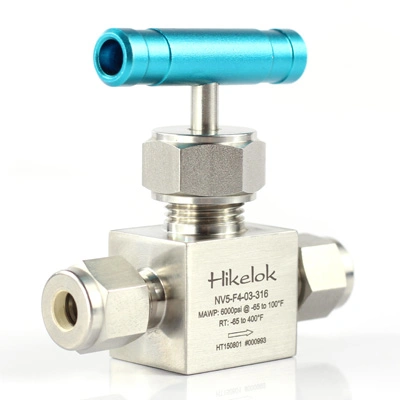

Hikelok PCTFE Stem High Pressure 316 Stainless Steel Needle Valve
Needle Valve- NV5 SeriesFeatures* Maximum working pressure up to 6000 psig (413 bar)* Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)* Compact size design* Packing nut enables easy external adjustments* Straight and angle patterns* Softseats stem with PCT......
Send Inquiry
Product Description
Needle Valve- NV5 Series
Features
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)
* Compact size design
* Packing nut enables easy external adjustments
* Straight and angle patterns
* Softseats stem with PCTFE tip available
* Optional handle colors available
Certifications

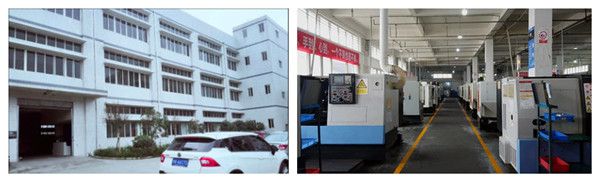

Factory
Other Options:
Hikelok Needle Valve- NV1 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* One- piece forged body
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Panel mounting available
* Optional handle colors available
Needle Valve- NV2 Series
* Maximum working pressure up to 10000 psig (689 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* One- piece heavy wall forged body
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Safety back seating needle in fully open position
* Panel mounting available
* Optional handle colors available
Needle Valve- NV3 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* Union- bonnet construction for safety
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Panel mounting available
* Optional handle colors available
Needle Valve- NV4 Series
* Maximum working pressure up to 5000 psig (344 bar)
* Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)
* Live- loaded packing system
* Packing nut enables easy external adjustments
* Straight, angle and cross patterns
* Softseat stem with PCTFE tip available
* Panel mounting available
* Optional handle colors available
Needle Valve- NV5 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)
* Compact size design
* Packing nut enables easy external adjustments
* Straight and angle patterns
* Softseats stem with PCTFE tip available
* Optional handle colors available
Needle Valve- NV6 Series
* Maximum working pressure up to 300 psig (20.6 bar)
* Working temperature from -20ºF to 200ºF (-28ºC to 93ºC)
* One- piece forged body
* Straight and angle flow patterns
* Opens and closes quickly
* Soft- seat shutoff
* O- ring stem seal needs no adjustment
Needle Valve- NV7 Series
* Maximum working pressure up to 3000 psig (206 bar)
* Working temperature from -20ºF to 450ºF (-28ºC to 232ºC)
* One- piece forged body
* Straight and angle patterns
* Norotating stem provides repetitive shutoff
* Protective handle prevents contaninants from entering
* Actuation threads isolated from system
* Optional handle colors available
Needle Valve- NV8 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* Bar stock valve body
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Two- piece knuckle joint provides nonrotating neeedle feature
* Nonrotating, hardened needle for positive shutoff
* Safety back- seating in fully open position
* Optional handle colors available
FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT ME!
Features
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)
* Compact size design
* Packing nut enables easy external adjustments
* Straight and angle patterns
* Softseats stem with PCTFE tip available
* Optional handle colors available
Certifications
Factory
Other Options:
Hikelok Needle Valve- NV1 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* One- piece forged body
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Panel mounting available
* Optional handle colors available
Needle Valve- NV2 Series
* Maximum working pressure up to 10000 psig (689 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* One- piece heavy wall forged body
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Safety back seating needle in fully open position
* Panel mounting available
* Optional handle colors available
Needle Valve- NV3 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* Union- bonnet construction for safety
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Panel mounting available
* Optional handle colors available
Needle Valve- NV4 Series
* Maximum working pressure up to 5000 psig (344 bar)
* Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)
* Live- loaded packing system
* Packing nut enables easy external adjustments
* Straight, angle and cross patterns
* Softseat stem with PCTFE tip available
* Panel mounting available
* Optional handle colors available
Needle Valve- NV5 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 600ºF (-53ºC to 315ºC)
* Compact size design
* Packing nut enables easy external adjustments
* Straight and angle patterns
* Softseats stem with PCTFE tip available
* Optional handle colors available
Needle Valve- NV6 Series
* Maximum working pressure up to 300 psig (20.6 bar)
* Working temperature from -20ºF to 200ºF (-28ºC to 93ºC)
* One- piece forged body
* Straight and angle flow patterns
* Opens and closes quickly
* Soft- seat shutoff
* O- ring stem seal needs no adjustment
Needle Valve- NV7 Series
* Maximum working pressure up to 3000 psig (206 bar)
* Working temperature from -20ºF to 450ºF (-28ºC to 232ºC)
* One- piece forged body
* Straight and angle patterns
* Norotating stem provides repetitive shutoff
* Protective handle prevents contaninants from entering
* Actuation threads isolated from system
* Optional handle colors available
Needle Valve- NV8 Series
* Maximum working pressure up to 6000 psig (413 bar)
* Working temperature from -65ºF to 1200ºF (-53ºC to 648ºC)
* Bar stock valve body
* Straight and angle patterns
* Upper stem and lower stem design, stem threads above packing protected from system media
* Two- piece knuckle joint provides nonrotating neeedle feature
* Nonrotating, hardened needle for positive shutoff
* Safety back- seating in fully open position
* Optional handle colors available
FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT ME!
