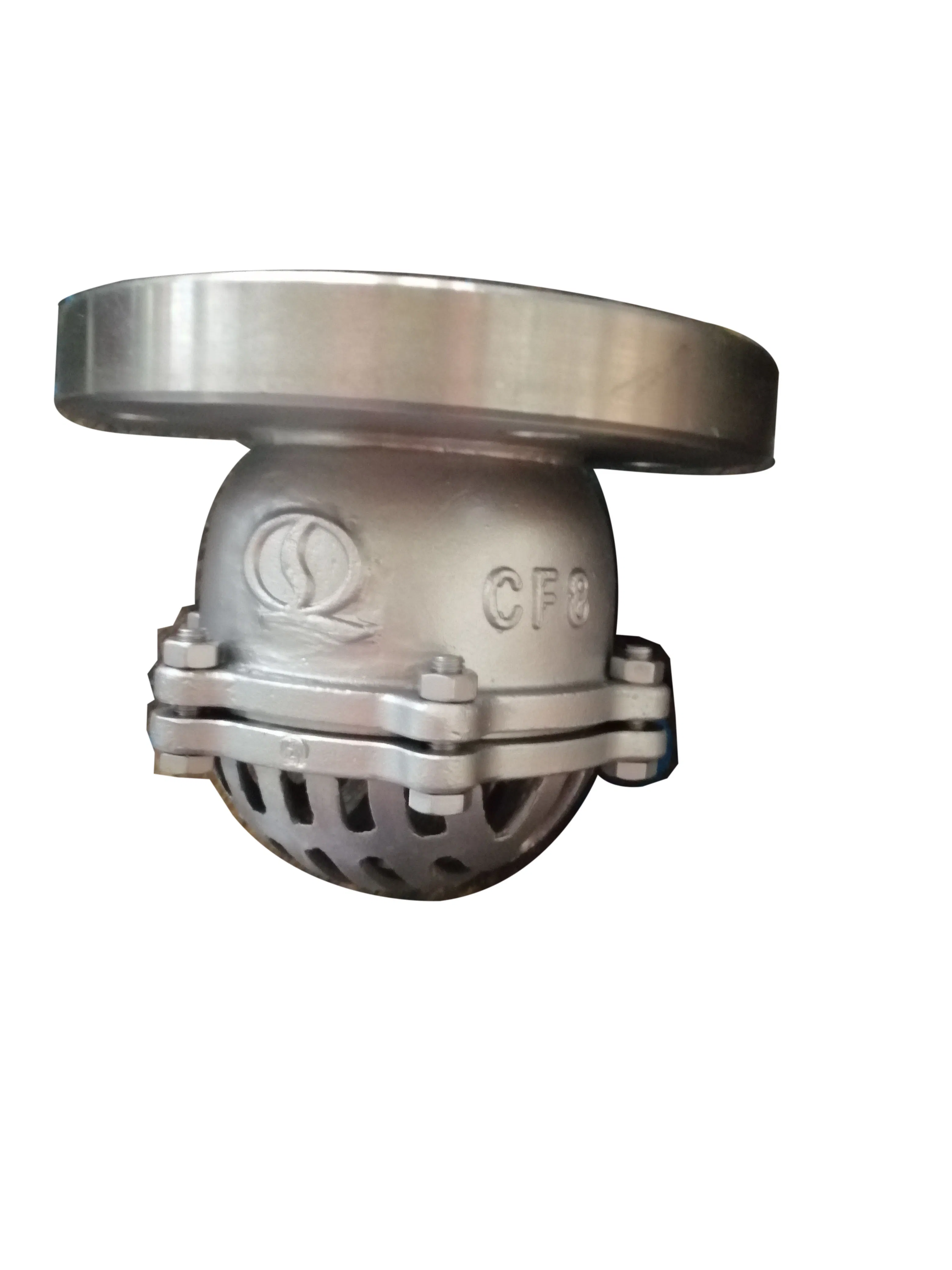

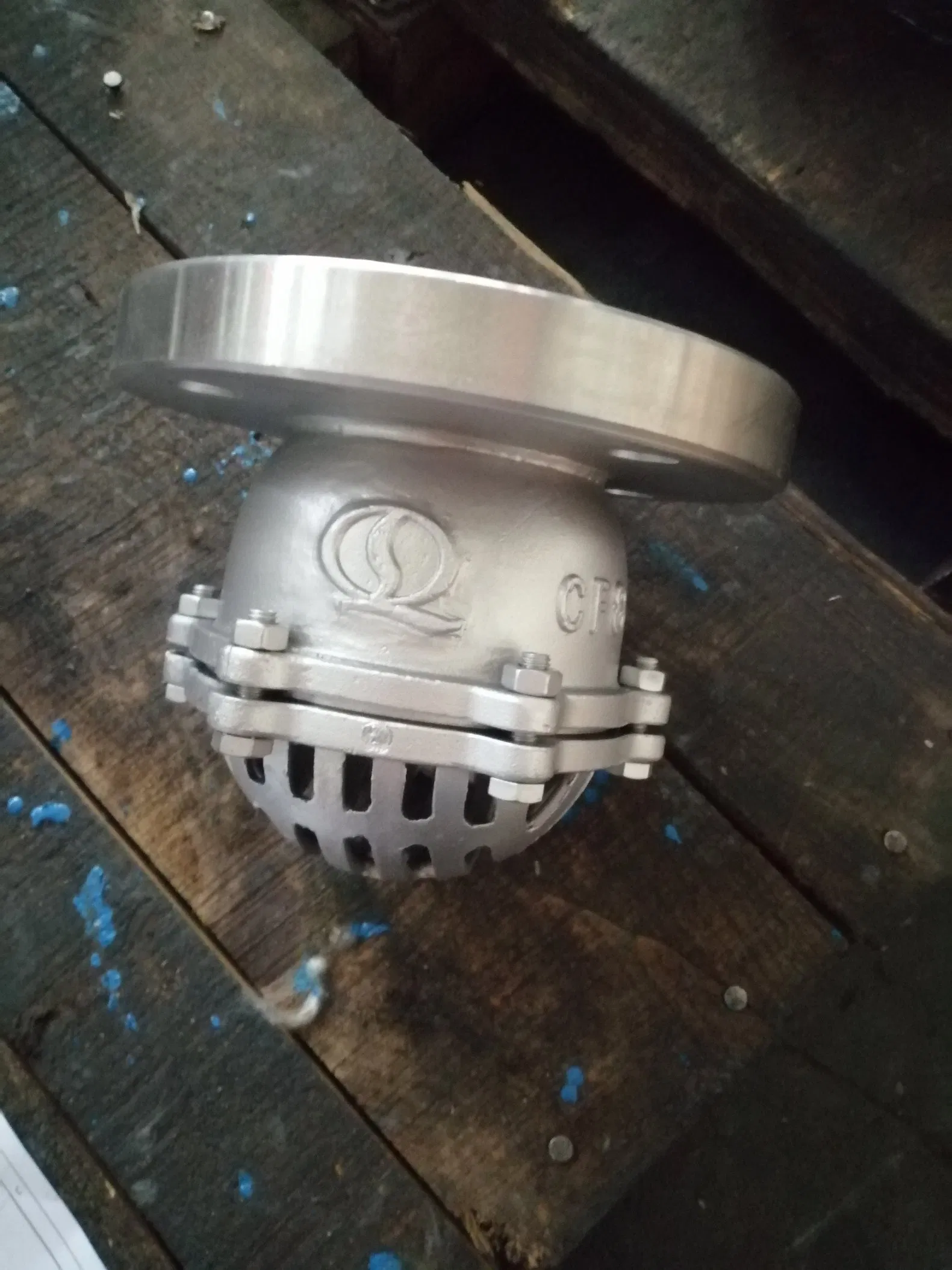

Stainless Steel Foot Valve

Foot valve is a kind of energy saving valve, usually installed at the bottom of the suction pipe of pump. The function of foot valve is preventing the water in the pipe flowing back to the water sources and only allow the water flow forward . As many inlet and stiffeners are designed on the valve bonnet , the valve is not easy to clog . The foot valve is usually applied at suction pipe . The valve disc usually designed as signal disc ,and connection method is flange .

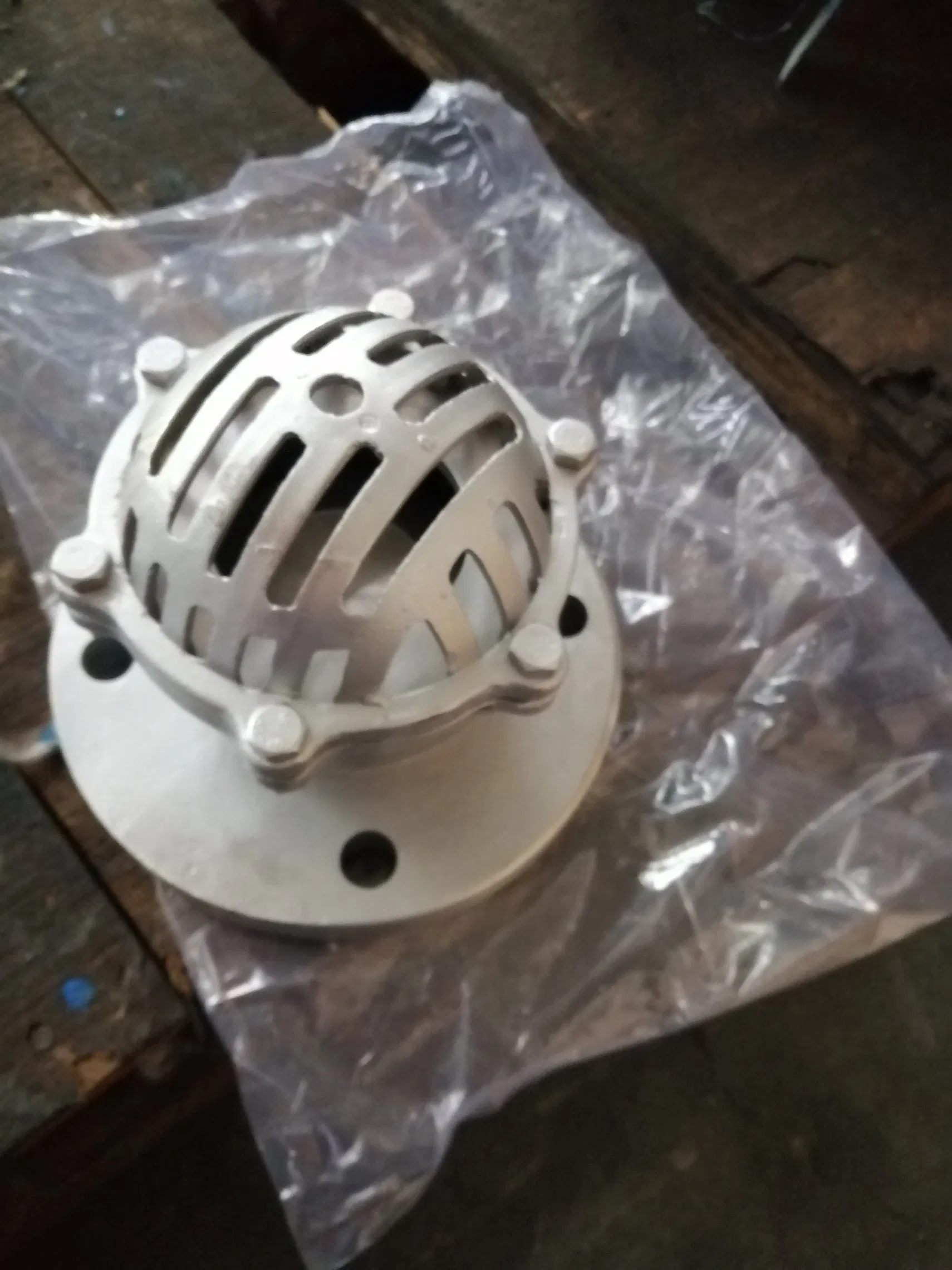

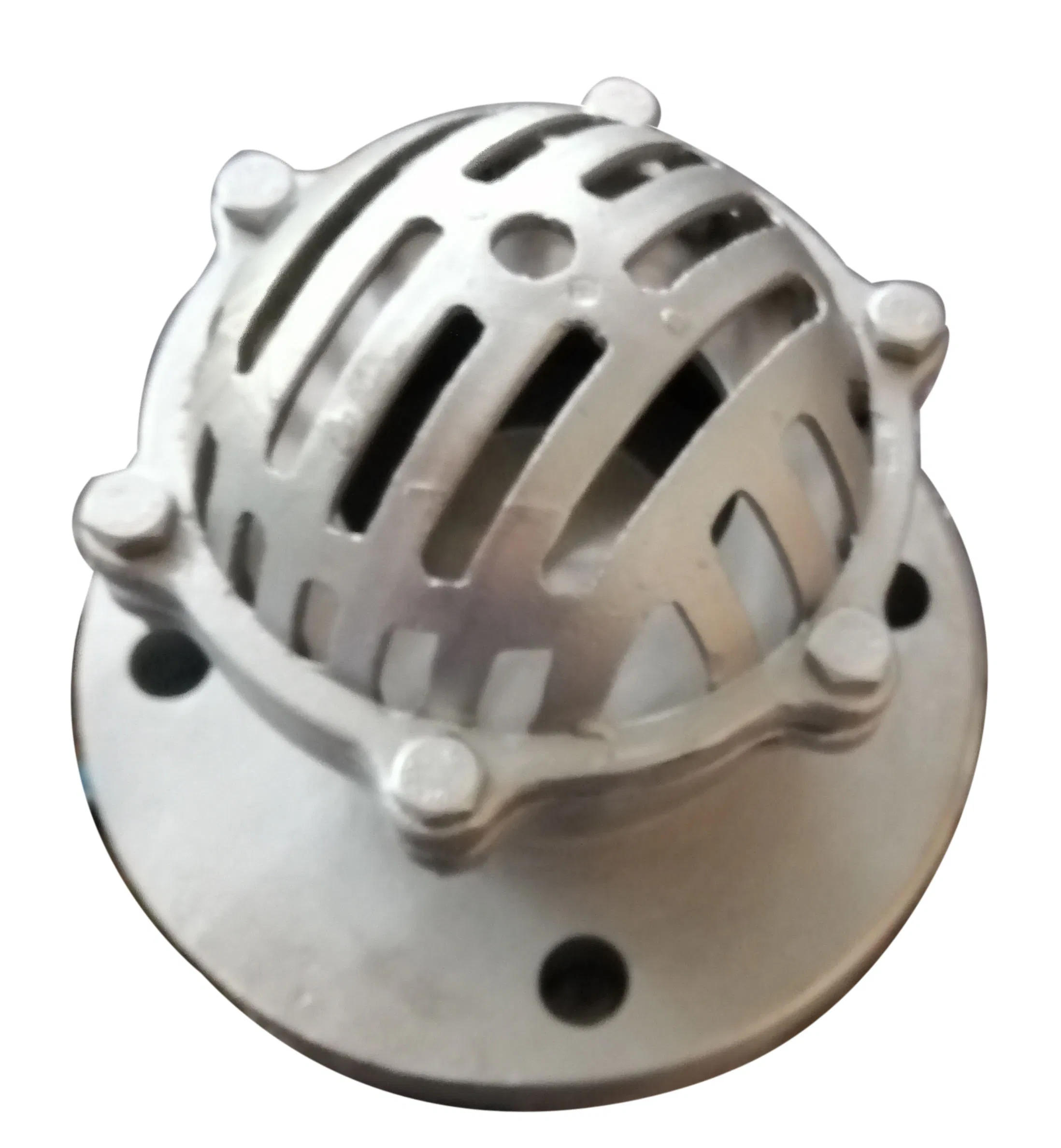

This valve is composed of valve body, disc, cover,strainer basket, sealing ring and other parts.
The disc is moved up and down under fluid pressure drop between inlet and outlet to realize the valve opening and closing.  That is to say , the valve opens under the pressure of the fluid;
When the pump stops working, the valve will be shut off quickly under pressure of outlet pipe , and the liquid will not flow back to the water source, which will help the water suction pump and save water loss.

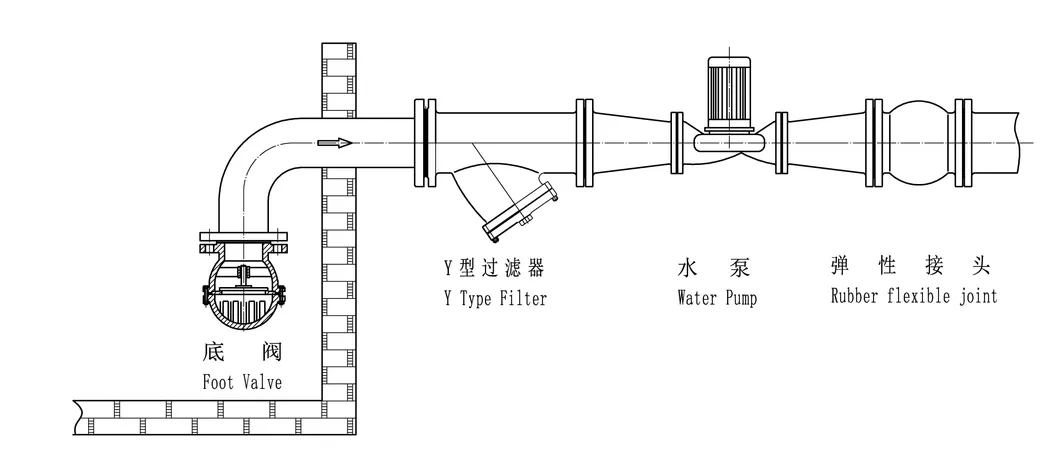

Foot valve with lift vertical disc should be installed on the vertical pipe


Technical Specifications

Size:  3"
Pressure:  Class 150
Working temperature: 0~80ºC
Body materials: CF8M
Sealing material: Rubber
Connection method: Flange


Applications

Water,oil and Corrosive medium

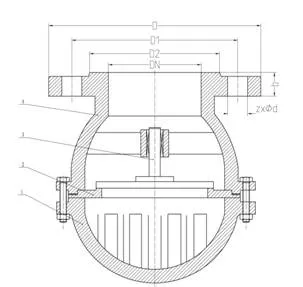

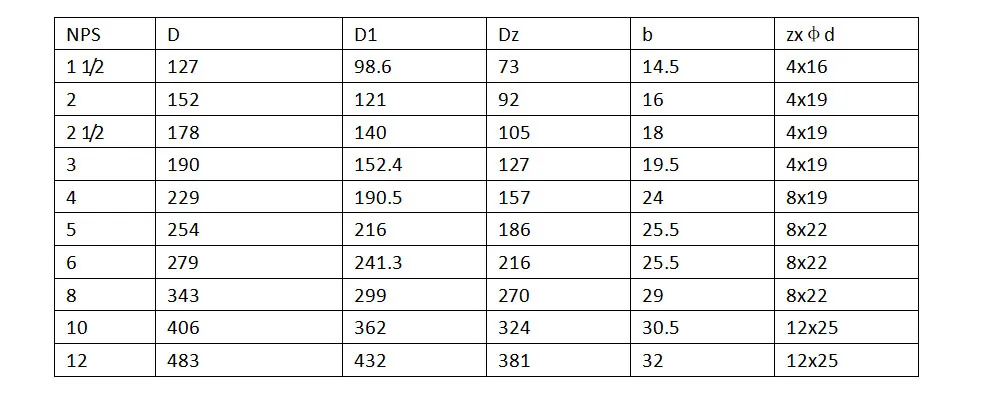

Dimensions
