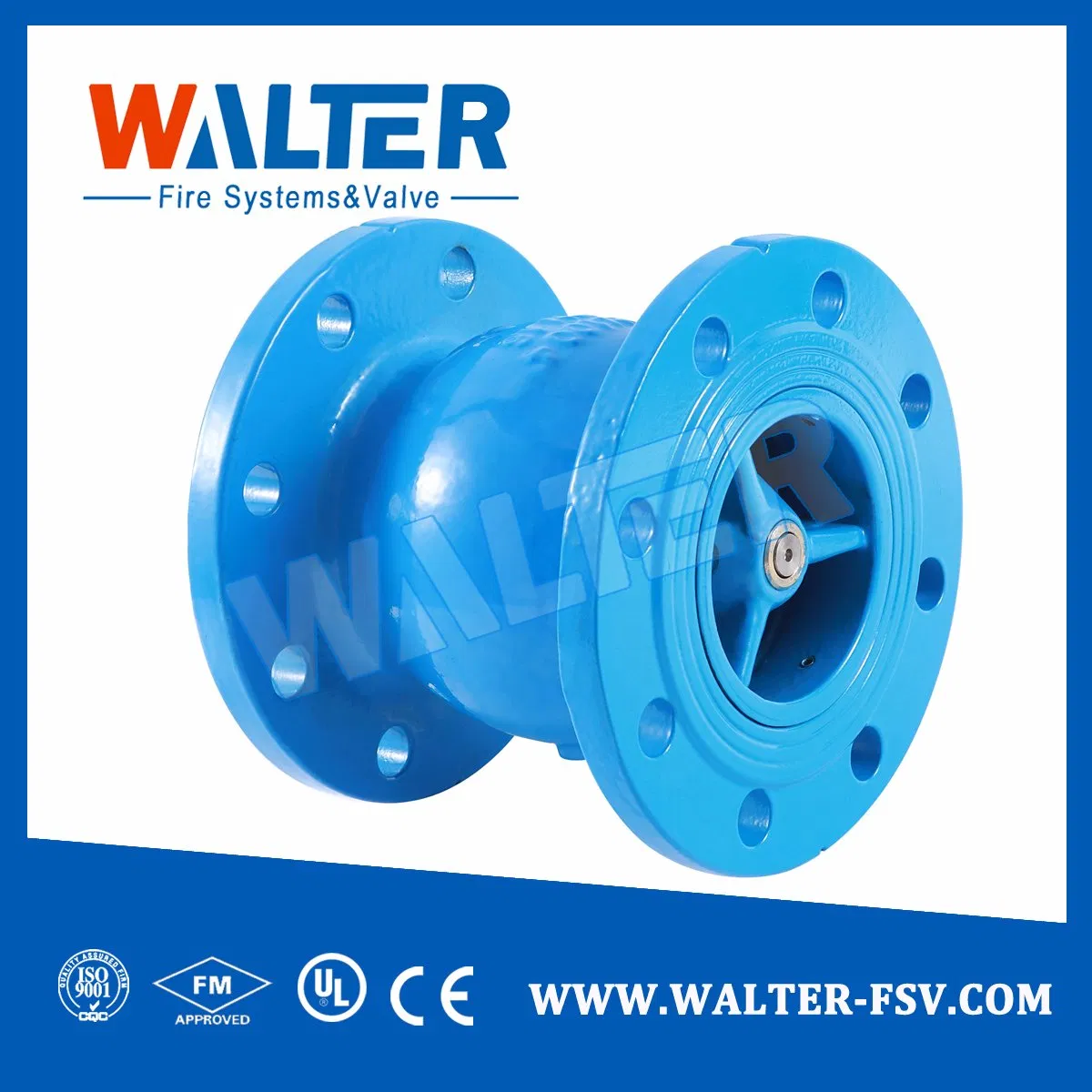

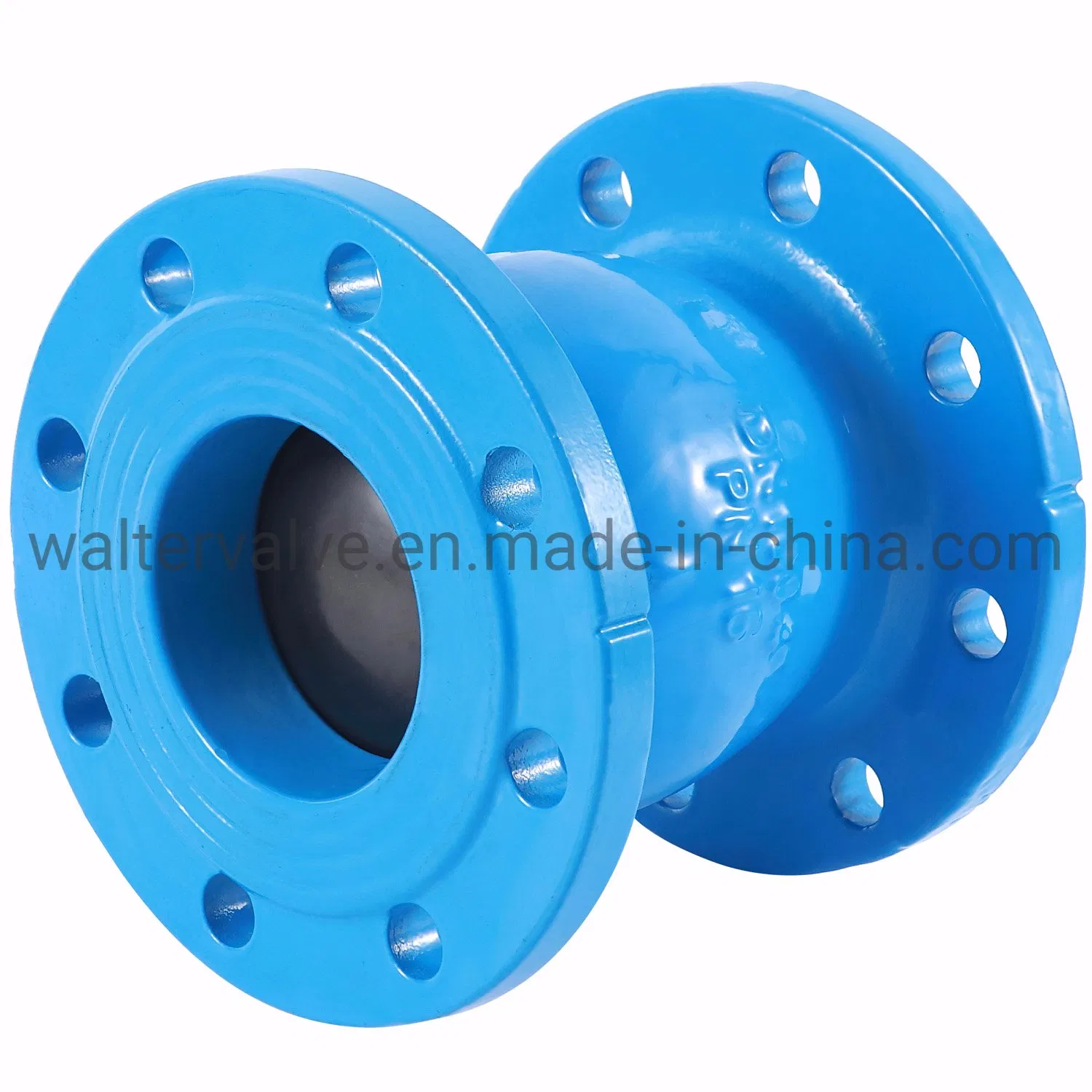

Non-Return Silence Check Valve

Product Description

Our Silent Check Valve is desgin with BS EN 1074-3 or BS EN 12334 or BS 5163 Standard. The silent check valve have advantage as below:

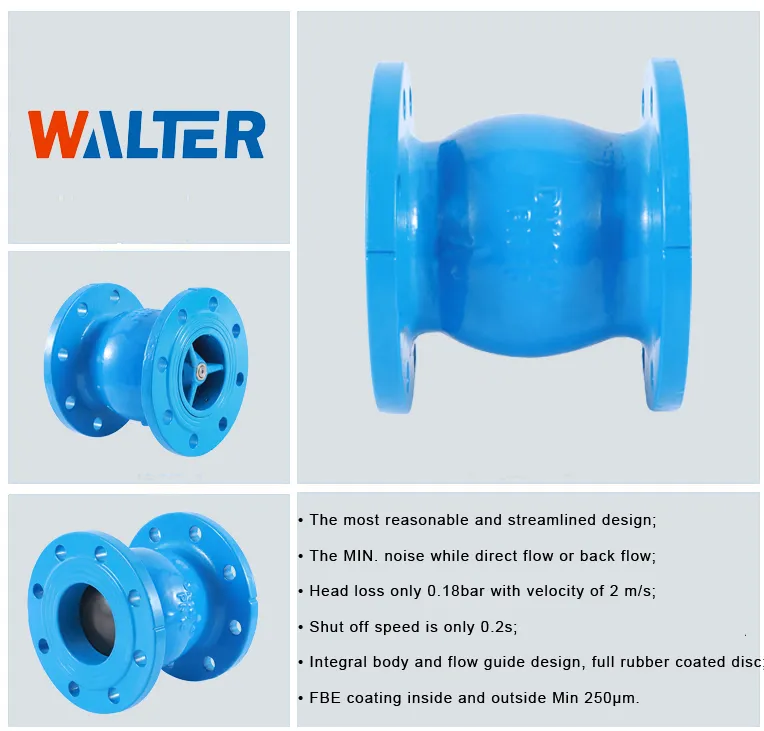

- Reasonable and Streamlined Design
- Small nosize for direct flow or backflow
- 0.2 Bar Head Loss
- Integral body and flow guide
- Disc with full rubber coated

1- Body/Bonnet: GGG40/50 2- Seat/Stem/Spring: SS304

3- Bushes: C61900 4- DISC: GGG40/50 + EPDM Coating

5- Epoxy Resin coating internal & external, thickness above 300 micron

6- Work pressure: PN10/16/25; Size range: 2" to 24"

7- Connection acc. to EN1074, BS5163, ISO 7259

Non-Return Silence Check Valve

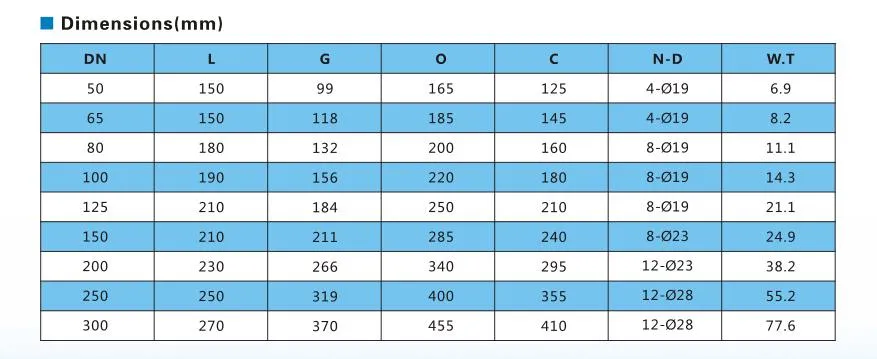

Silent Check Valve size from DN50 - 600, Material D.I Or S.S .

Walter-FSV Company also provide OEM or ODM for GATE VALVE, BUTTERFLY VALVE, CHECK VALVE, PRESSURE REDUCING VALVE, FLOAT CONTROL VALVE, FIRE HOSE AND FIRE SPRINKLERS.
