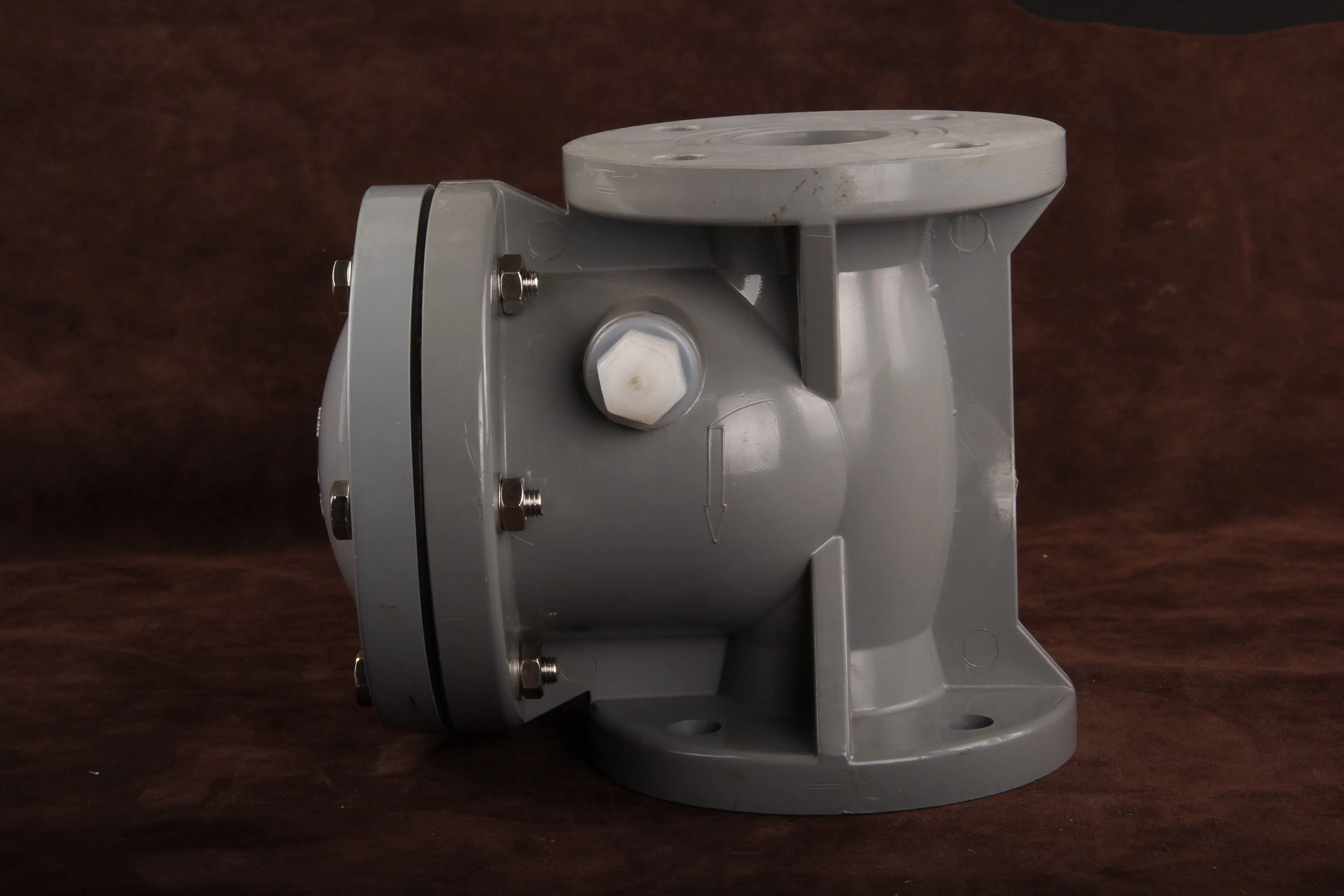

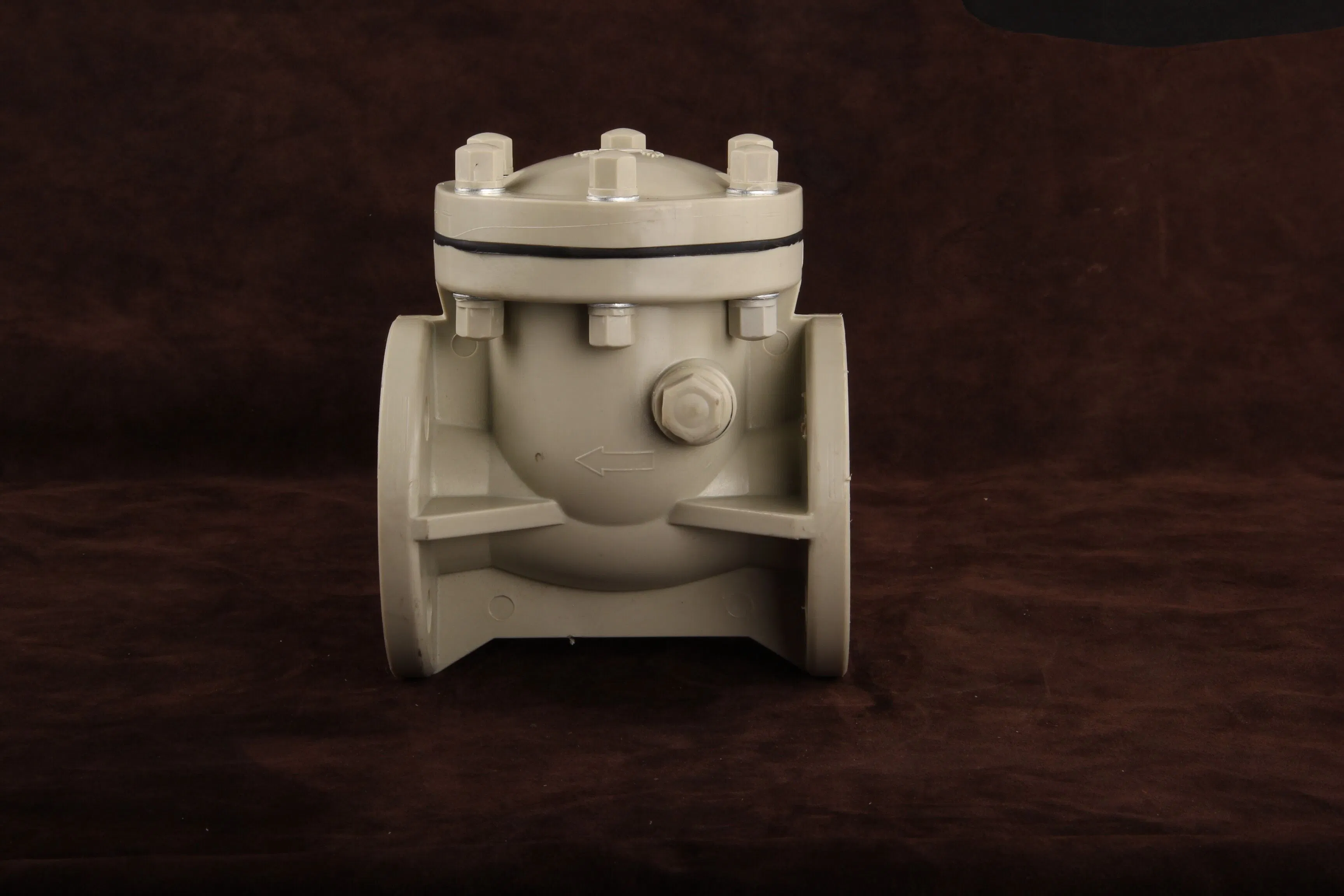

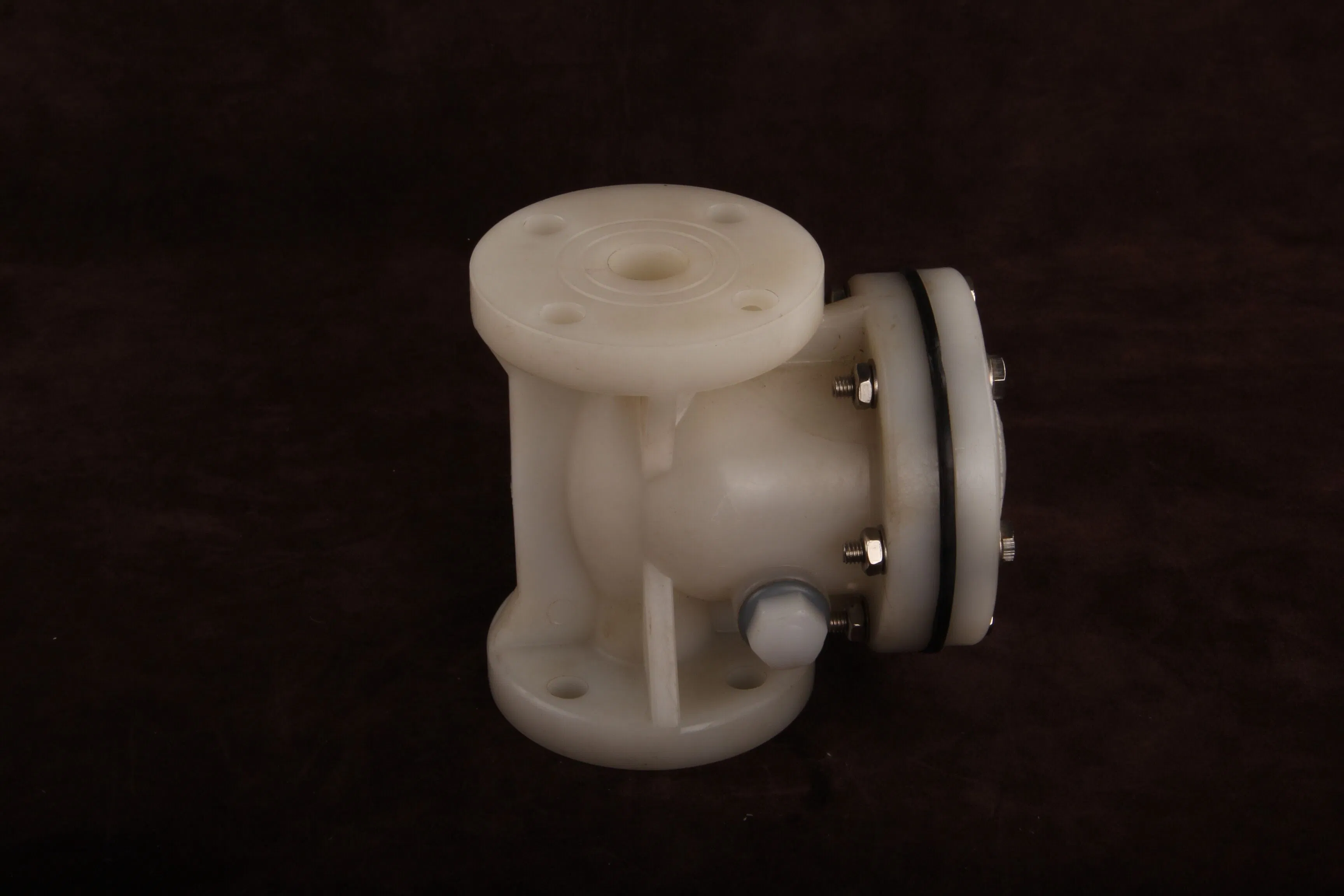

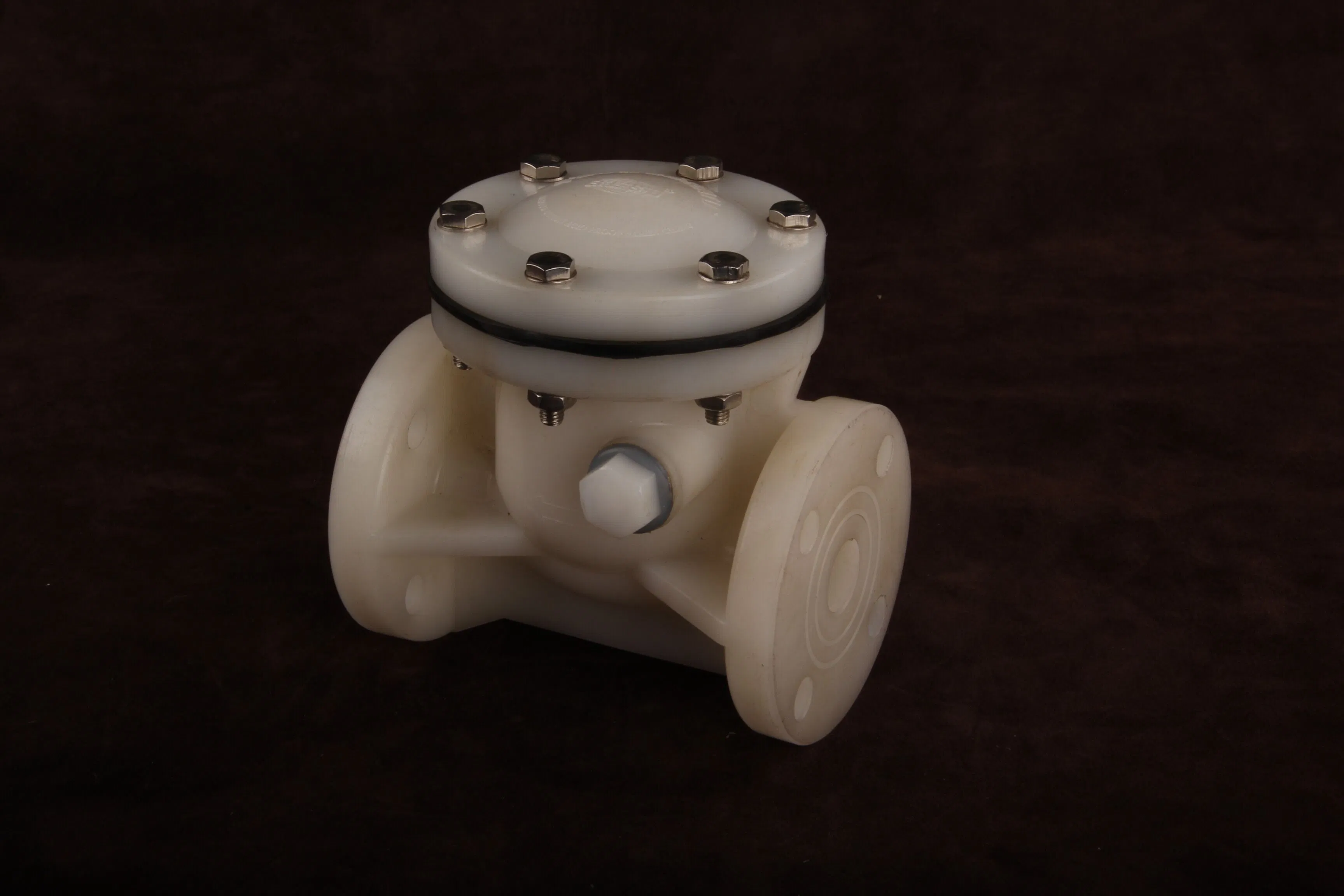

Light Yellow Plastic Valve Pph Swing Check Valve

Product Description

Light Yellow Plastic Valve PPH Swing Check Valve

FEATURES
Valve body color: Dark Grey, Light Grey, Light Yellow

Size		1"-10"
Standard		DIN, JIS, ANSI
Material		PVDF, CPVC, UPVC, FRPP, PPH
End connector		Flange
Color		White and grey
Working pressure		0.5~0.7MPa PVDF0.5~0.7MPa CPVC0.4~0.6MPa FRPP0.4~0.6MPa UPVC

Part material list
NO.	Name	Material	NO.	Name	Material
1	Body	FRPP,PVDF	9	Nut	FRPP, PVDF
2	Bonnet	FRPP, PVDF	10	Packing	FRPP, PVDF
3	Moving board	FRPP,PVDF	11	Nut	Stainless Steel,Steel
4	Sealing ring tray	FRPP, PVDF	12	Packing	Stainless Steel,Sted
5	Swing axle	FRPP,PVDF	13	Packing	PTFE(PVDF,FRPP)
6	Compression sealing cao	PTFE,EPDM	14	Nut	FRPP, PVDF
7	Back seal	EPDM,FPM	15	Fixed screw	FRPP, PVDF
8	Idm	FRPP,PVDF	16	Pin	FRPP, PVDF

SPECIFICATIONS

DN	D1			D2	n-*			L	T	(Mpa) Working pressure
DN	JIS	DIN	ANSI	D2	JIS	DIN	ANSI	L	T	PVDF	CPVC	FRPP
25	90	85	80	125	4-19	4-14	4-16	160	16	0.7	0.7	0.6
40	105	110	99	140	4-19	4-18	4-16	180	18	0.7	0.7	0.6
50	120	125	120	155	4-19	4-18	4-19	200	21	0.7	0.7	0.6
65	140	145	140	175	4-19	4-18	4-19	240	23	0.7	0.7	0.6
80	150	160	152	185	8-19	8-18	4-19	260	25	0.7	0.7	0.6
100	175	180	190	210	8-19	8-18	8-19	300	26	0.5	0.5	0.5
125	210	210	216	250	8-23	8-18	8-22	350	27	0.5	0.5	0.5
150	240	240	240	280	8-23	8-23	8-22	400	27	0.5	0.5	0.5
200	290	295	298	330	12-23	8-23	8-22	500	34	0.5	0.5	0.5
250	355	350	362	395	12-25	12-23	12-25	600	38	0.5	0.5	0.5

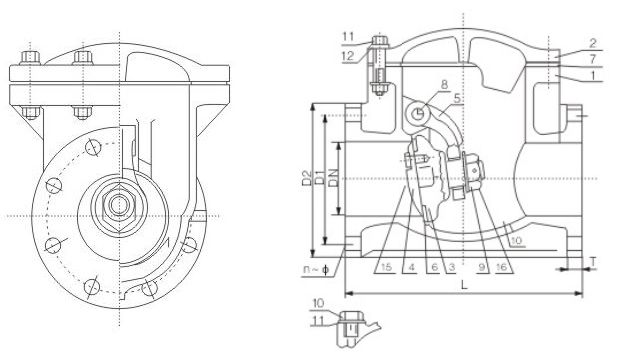

Picture and Drawing

Light Yellow Plastic Valve Pph Swing Check Valve

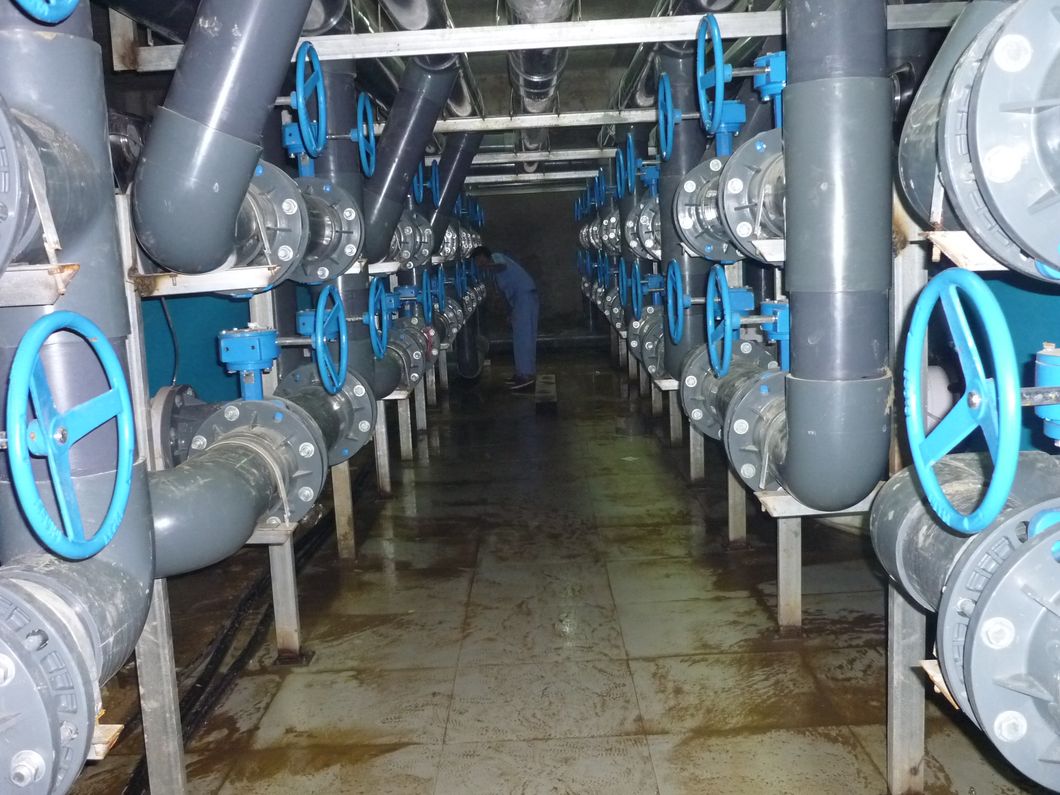

Application

Light Yellow Plastic Valve Pph Swing Check Valve

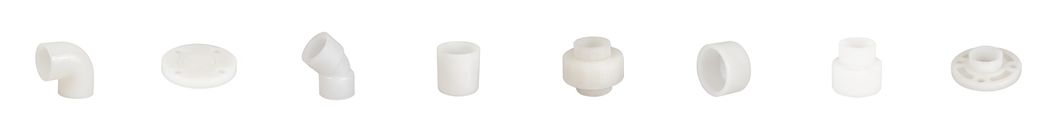

Other Hot Products

Light Yellow Plastic Valve Pph Swing Check Valve

Meet us in Exhibition

Light Yellow Plastic Valve Pph Swing Check Valve
