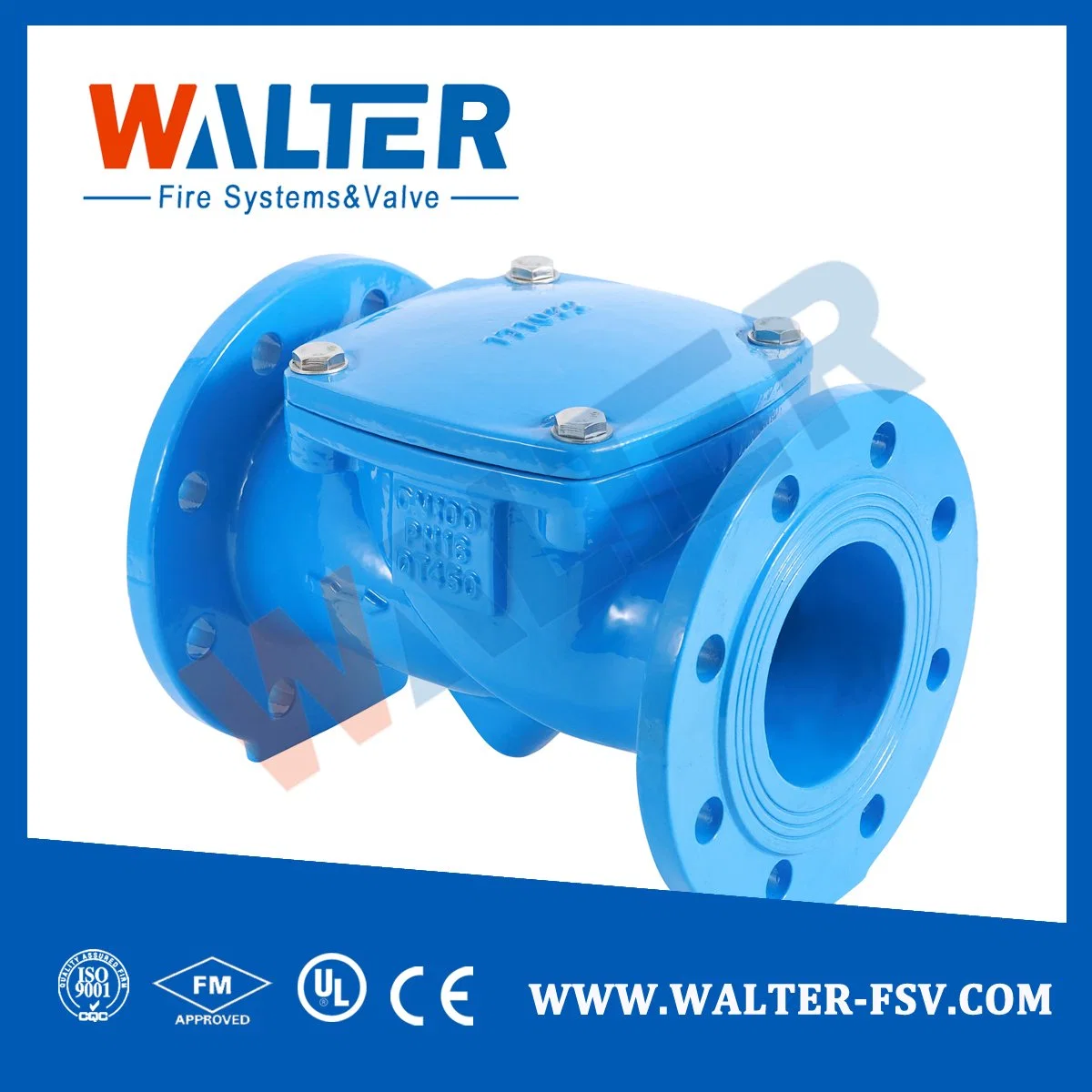

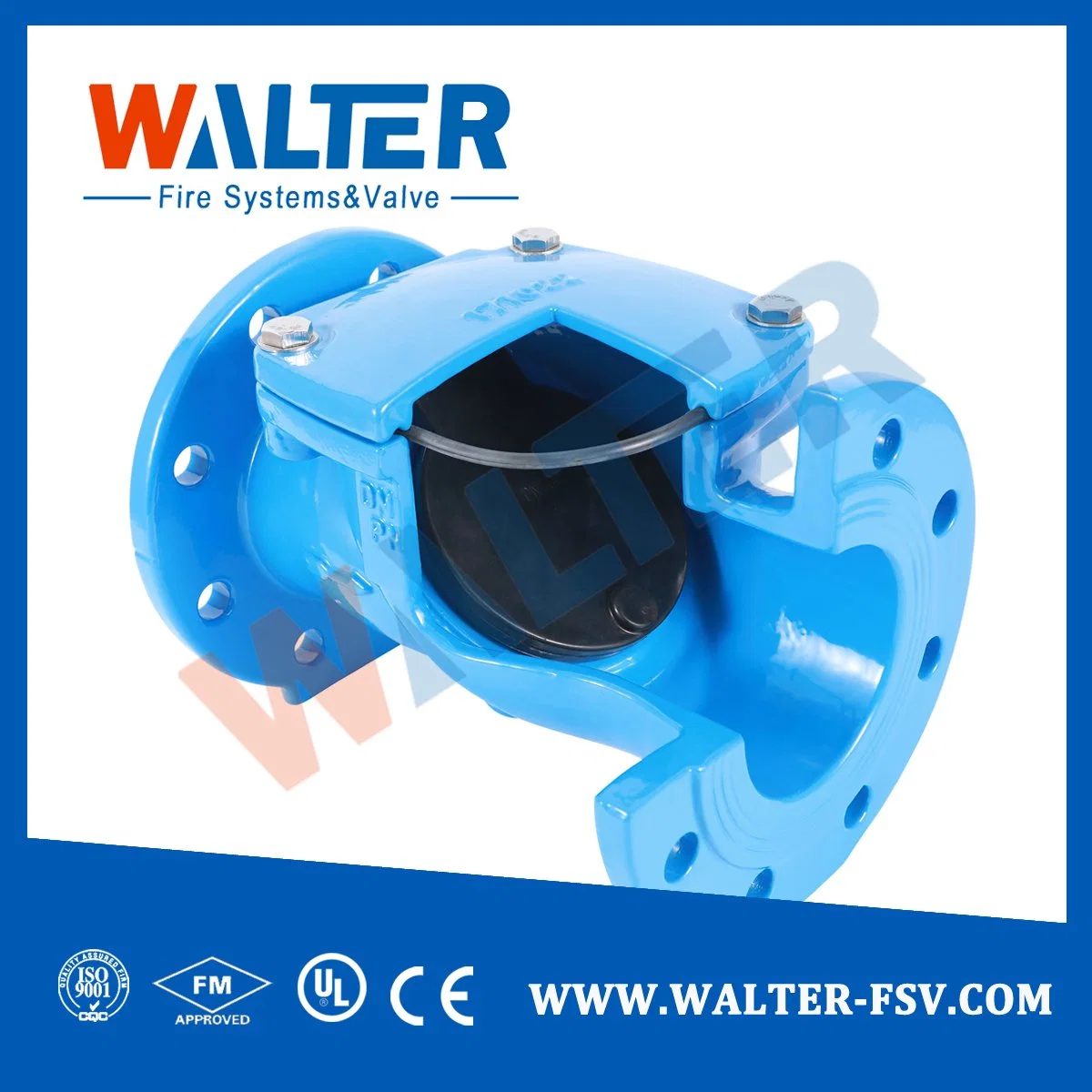

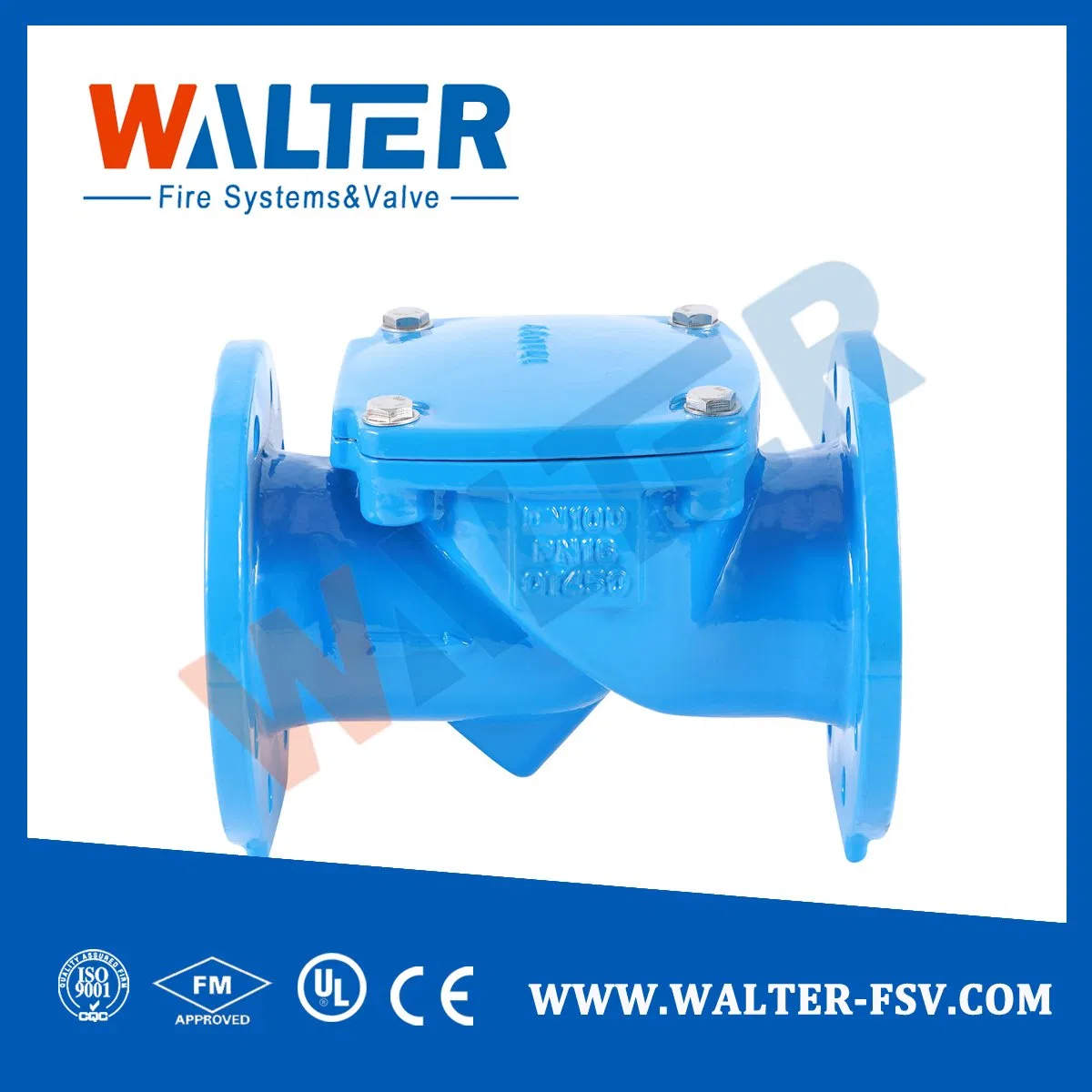

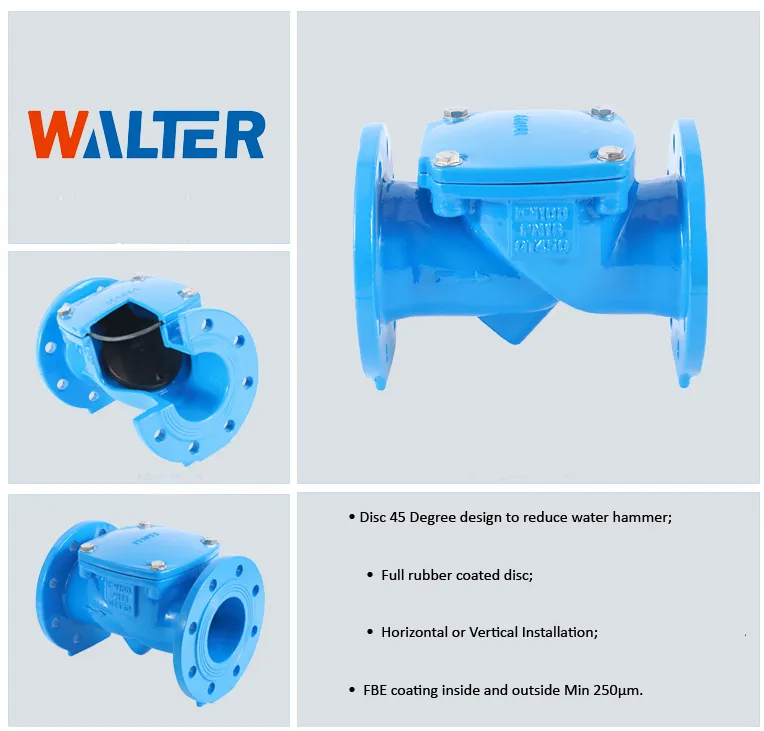

DI +EPDM Disc Swing Check Valve
Swing Check ValveProduct Standard:Design : BS5153 Flanges: BS EN1092-2, ASME B16.1 Face to Face: EN 558-1, DIN F6 Test : BS EN12266 API 598 Technical Specification:Size: DN50~DN600 (2'' ~ 24'') Pressure: PN10/16 Work Temperature: -5°C ~ 85°C Seat Test: 1.1 x PN Shell......
Send Inquiry
Product Description
Swing Check Valve
Product Standard:
MORE TRUST, MORE COOPRATION.
WE ALWAYS WELCOME YOUR INQUIRY AND VISITING!
Product Standard:
Design : BS5153
Flanges: BS EN1092-2, ASME B16.1
Face to Face: EN 558-1, DIN F6
Test : BS EN12266 API 598
Technical Specification:
Size: DN50~DN600 (2'' ~ 24'')
Pressure: PN10/16
Pressure: PN10/16
Work Temperature: -5°C ~ 85°C
Seat Test: 1.1 x PN
Shell Test: 1.5 x PN
Medium: Clean Water,Sewage
Materials:
Dimension (mm)
Materials:
| Item | Parts | Material |
| 1 | Body | Ductile Iron |
| 2 | Disc | Ductile Iron+EPDM |
| 3 | Stem | SS304 |
| 4 | Bonnet | Ductile Iron |
| 5 | O-ring | NBR |
| 6 | Bolt | SS304 |

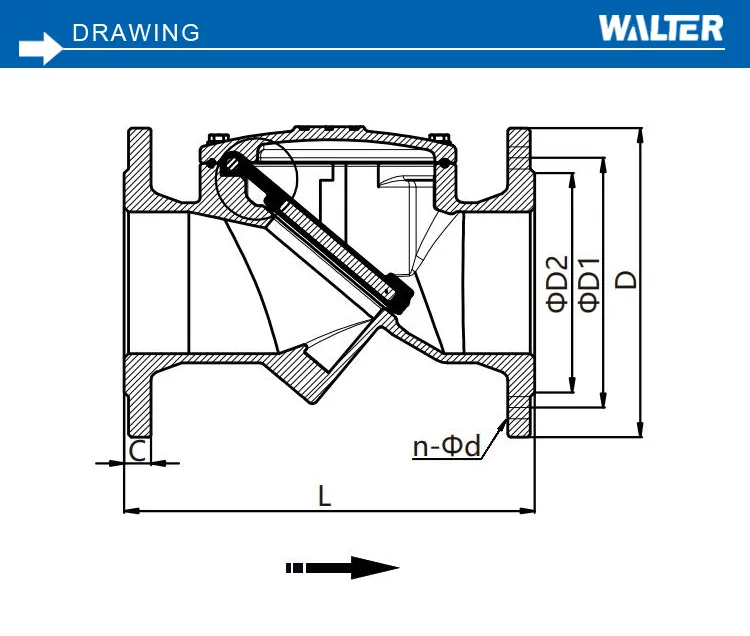

Dimension (mm)
| Code No. | Size | DN | L | D | D1 | D2 | n-Φd PN10 | n-Φd PN16 |
| RDCV-0050 | 2" | 50 | 203 | 165 | 125 | 99 | 4-Ф19 | 4-Ф19 |
| RDCV-0065 | 21/2" | 65 | 216 | 185 | 145 | 118 | 4-Ф19 | 4-Ф19 |
| RDCV-0080 | 3" | 80 | 241 | 200 | 160 | 132 | 8-Ф19 | 8-Ф19 |
| RDCV-0100 | 4" | 100 | 292 | 220 | 180 | 156 | 8-Ф19 | 8-Ф19 |
| RDCV-0125 | 5" | 125 | 330 | 250 | 210 | 184 | 8-Ф19 | 8-Ф19 |
| RDCV-0150 | 6" | 150 | 356 | 285 | 240 | 211 | 8-Ф23 | 8-Ф23 |
| RDCV-0200 | 8" | 200 | 495 | 340 | 295 | 266 | 8-Ф23 | 12-Ф23 |
| RDCV-0250 | 10" | 250 | 622 | 405 | 355 | 319 | 12-Ф23 | 12-Ф28 |
| RDCV-0300 | 12" | 300 | 698 | 460 | 410 | 370 | 12-Ф23 | 12-Ф28 |
| RDCV-0350 | 14" | 350 | 787 | 520 | 470 | 429 | 16-Ф23 | 16-Ф28 |
| RDCV-0400 | 16" | 400 | 914 | 580 | 525 | 480 | 16-Ф26 | 16-Ф31 |
| RDCV-0450 | 18" | 450 | 914 | 640 | 585 | 548 | 20-Ф26 | 20-Ф31 |
| RDCV-0500 | 20" | 500 | 978 | 705 | 650 | 609 | 20-Ф26 | 20-Ф34 |
| RDCV-0600 | 24" | 600 | 1100 | 840 | 770 | 720 | 20-Ф30 | 20-Ф37 |
