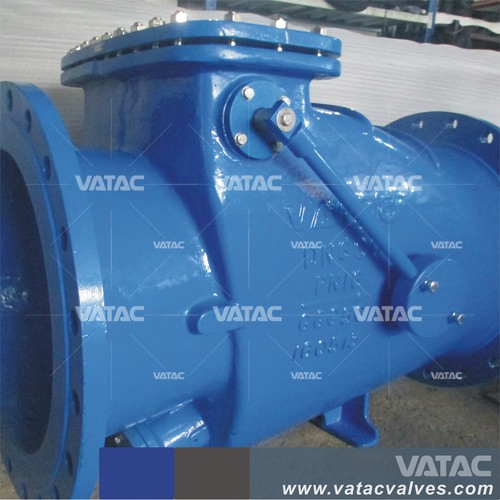

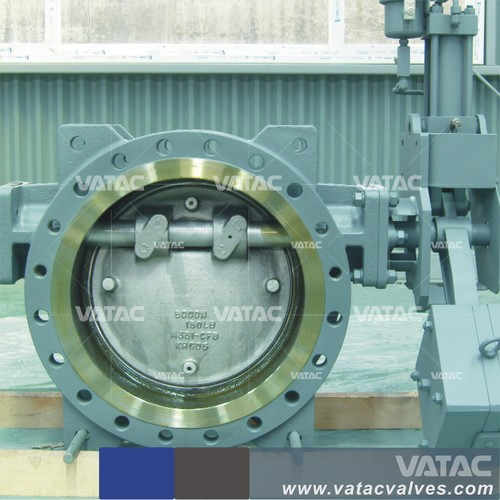

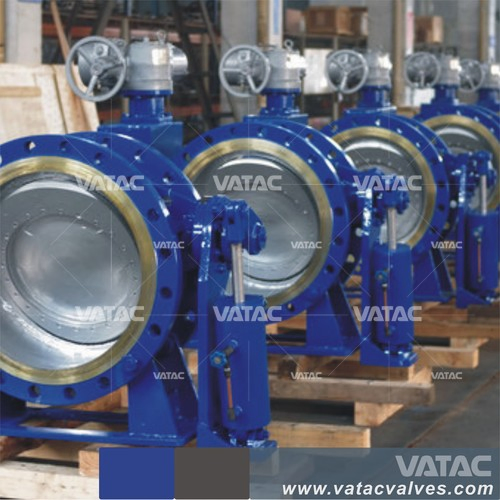

Counter Weight Cast Steel RF Flanged Butterfly Check Valve

Product Description

Counter Weight Cast Steel RF Flanged Butterfly Check Valve

Conform to API 6D, ASME B16.34 and DIN 3202. They are tested according to API 598, and marked as per MSS SP-25

1. Construction is as follows:

- Regular Pore
- With Damper
- Swing Check
- Single or Dual Plate
- With or without counterweight
- Flanged Ends to ASME B16.5 and B16.47 A/B

2. Main Part & Materials

Part Names	Part Materials
Body	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	C83600/C95800
Bonnet	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	C83600/C95800
Disc/Ball/Wedge	WCB	LCB	WC6	CF8	CF8M	CF3	CF3M	C83600/C95800
Stem	F6a	F304	F6a	F304	F316	F304L	F316L	C83600/C95800
Seat/Seat Ring	13%Cr	SS304	13%Cr	SS304	SS316	SS304L	SS316L	C83600/C95800
Packing	Graphite/PTFE
Gasket	SS304+Graphite/SS304+Graphite
Bolts/Nuts	B7/2H	L7/4	B16/4	B8/8	B8M/8M	B8/8	B8M/8M	B8M/8M
Suitable Medium	W.O.G etc.			HNO3, CH3OOH etc.				Sea Water etc.
Suitable Temperature	-29~425 °C	-46~340 °C	-46~340 °C	-196~427 °C	-196~427 °C	-196~427 °C	-196~427 °C	-29~220 °C
