Cast Iron Non Reture Spring Wafer Type Gual Plate Di Flange Connection Sandwich Check Valve with Prices
Cast Iron Non Reture Spring Wafer Type Gual Plate DI Flange Connection Sandwich Check Valve With Prices Technical dataDN (mm) Nominal diameter50(2)~700(28")50(2)~450(18")PN(MPa) Nominal pressure1.01.6(MPa)TestingpressureShell1.52.4Sealing1.11.76°C Suitable temperature Suitable med......
Send Inquiry
Product Description

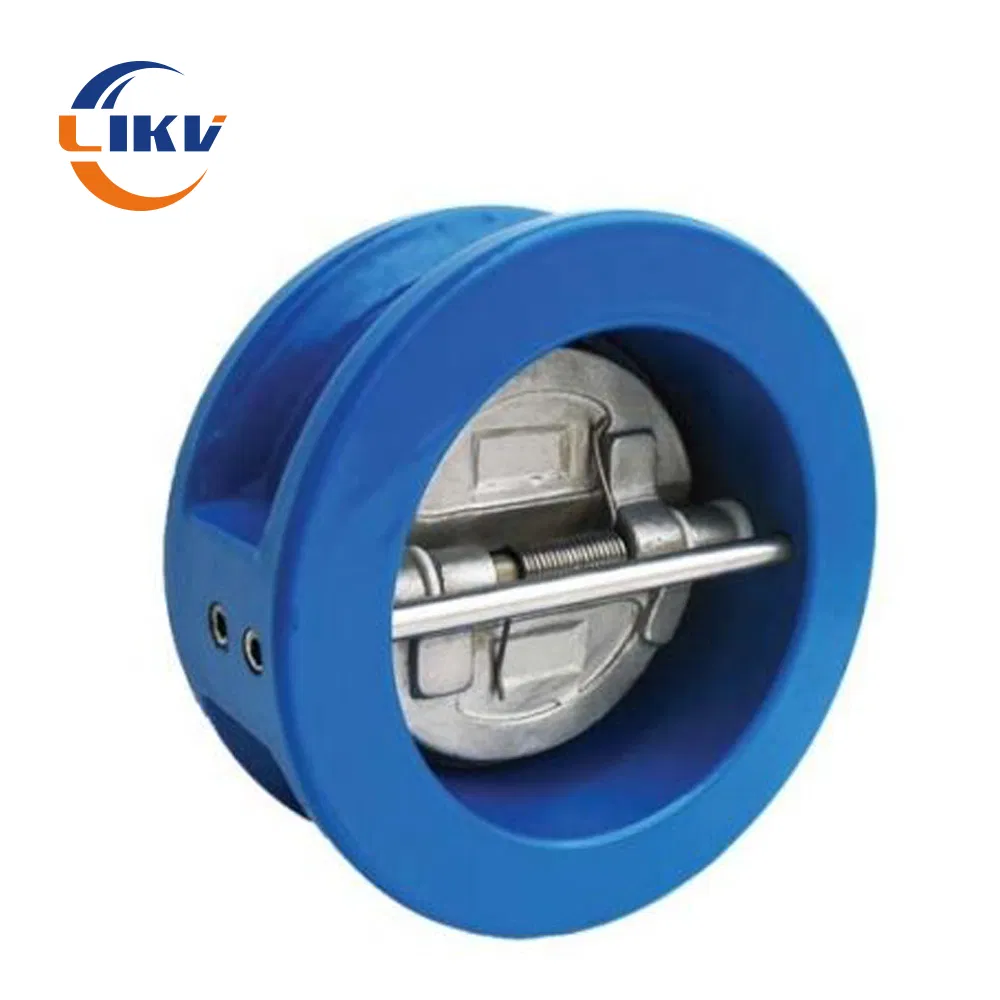

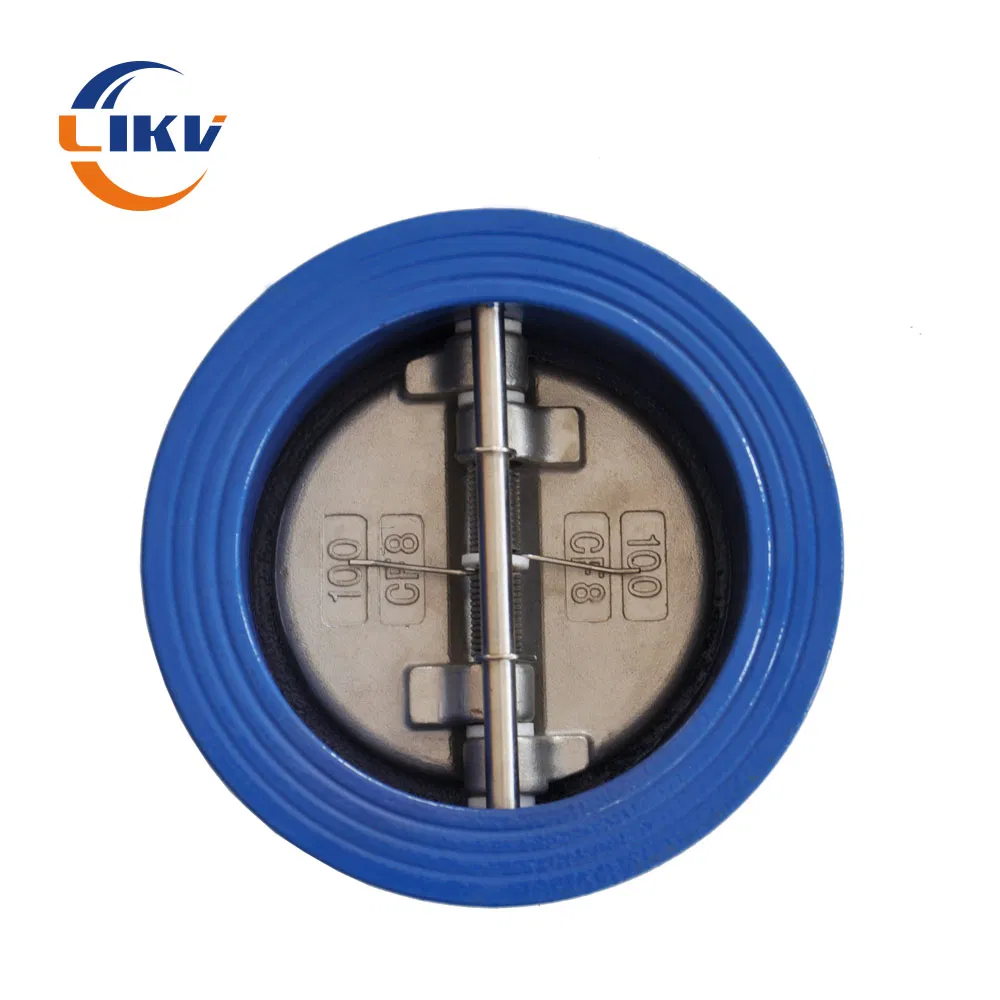

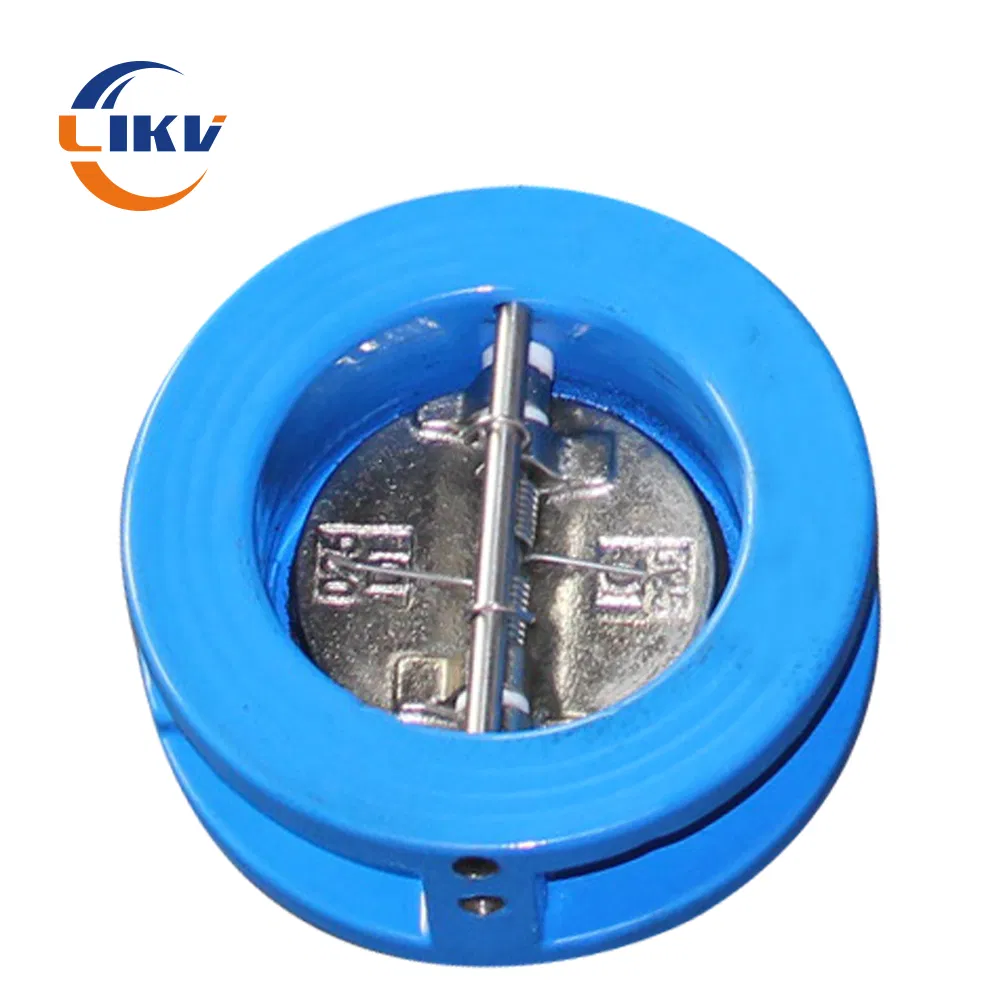

Cast Iron Non Reture Spring Wafer Type Gual Plate DI Flange Connection Sandwich Check Valve With Prices
Technical data
| DN (mm) Nominal diameter | 50(2″)~700(28") | 50(2″)~450(18") | |
| PN(MPa) Nominal pressure | 1.0 | 1.6 | |
| (MPa) Testing pressure | Shell | 1.5 | 2.4 |
| Sealing | 1.1 | 1.76 | |
| °C Suitable temperature | |||
| Suitable mediums | Fresh water .sewage, air, steam, food, medicine, oils, acids, etc. | ||
Meterial of main parts
| Body | Disc | Stem | Rubber gasket | Sping | ||||
| Name | Code | Name | Code | Name | Name | Code | Working temp | Name |
| Cast | Z | Plated ductile Iron | 1 | Stainless steel | EPDM | X3 | -46~+121 Intemittence -50~+150 | Stainless steel |
Ductile Irol | Q | Aluminum bronze | 2 | Neoprene | X4 | -29~+99 Intemittence -35~+113 | ||
| Carbon steel | C | ZG1Cr13Ni9Ti Stainless steel | NBR | X5 | -35~+82 Intemittence -23~+93 | |||
| Stainless steel | P | CF8M Stainless steel | 5 | Neoprene | X7 | -23~+150 | ||
CF8M Stainless steel | 7 | |||||||

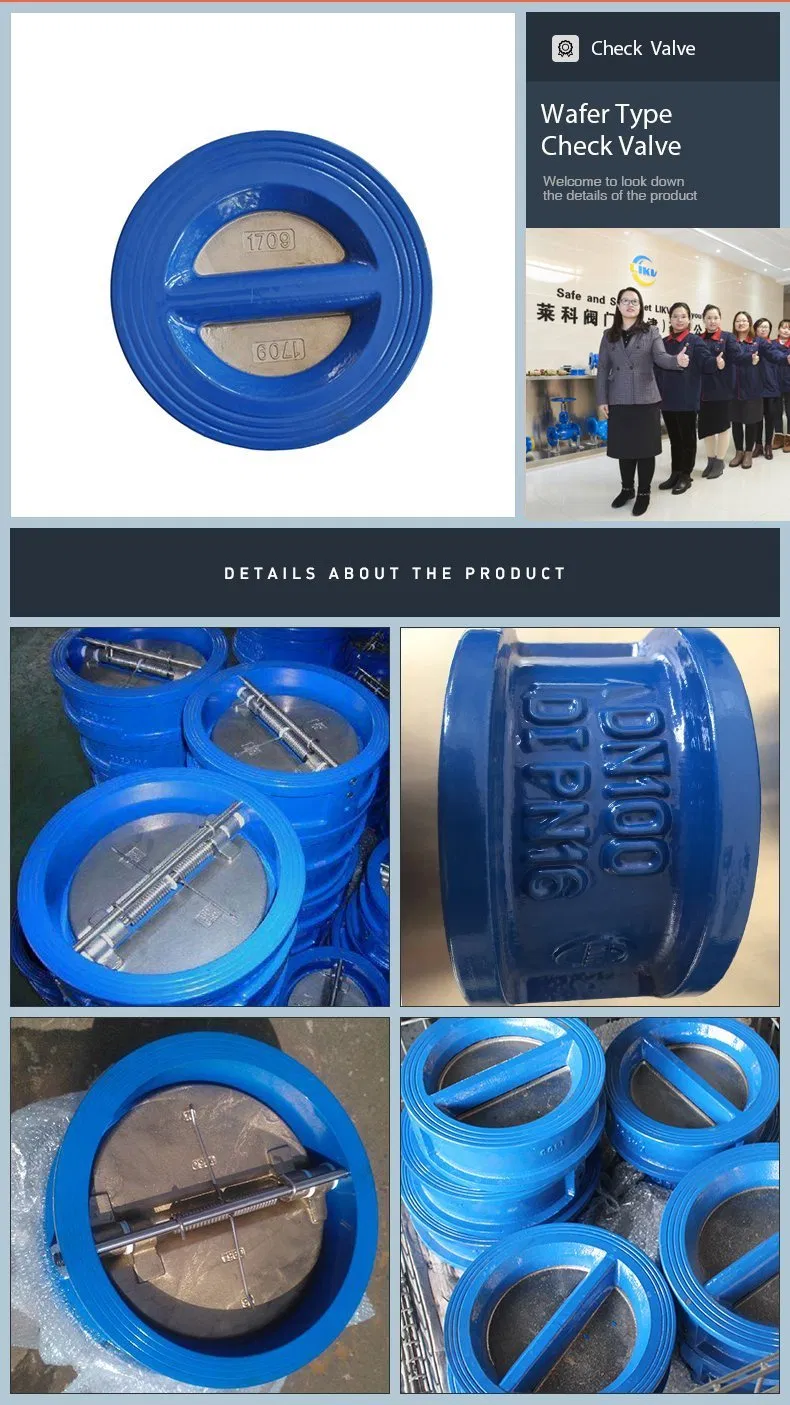

Product details
Qualification certificate

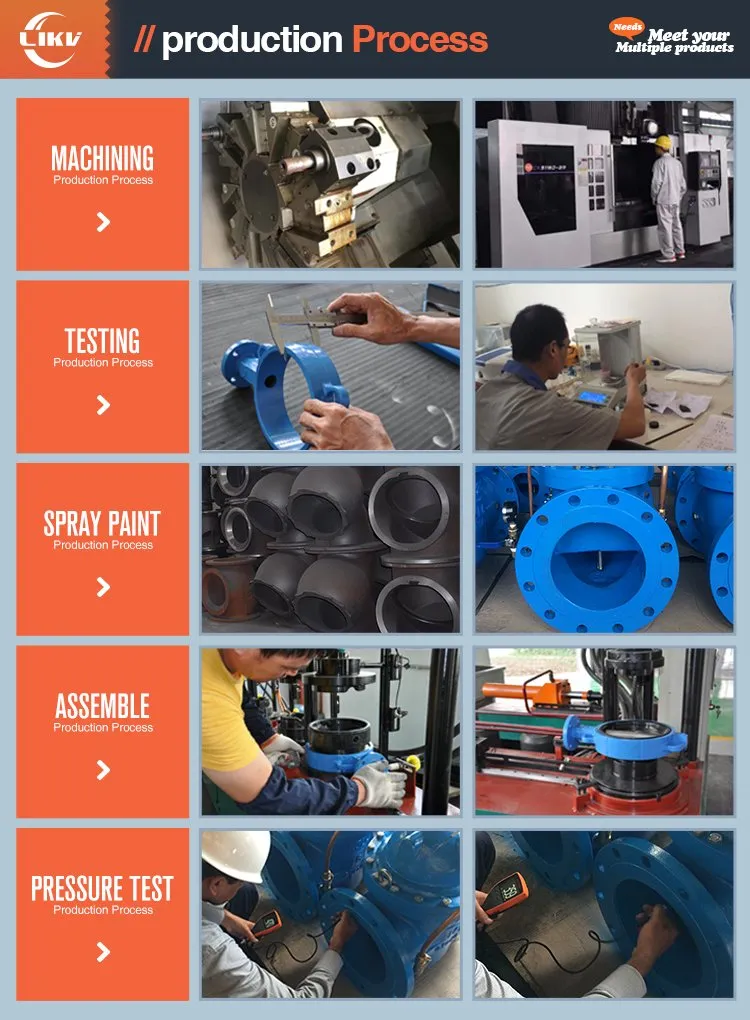

Production process

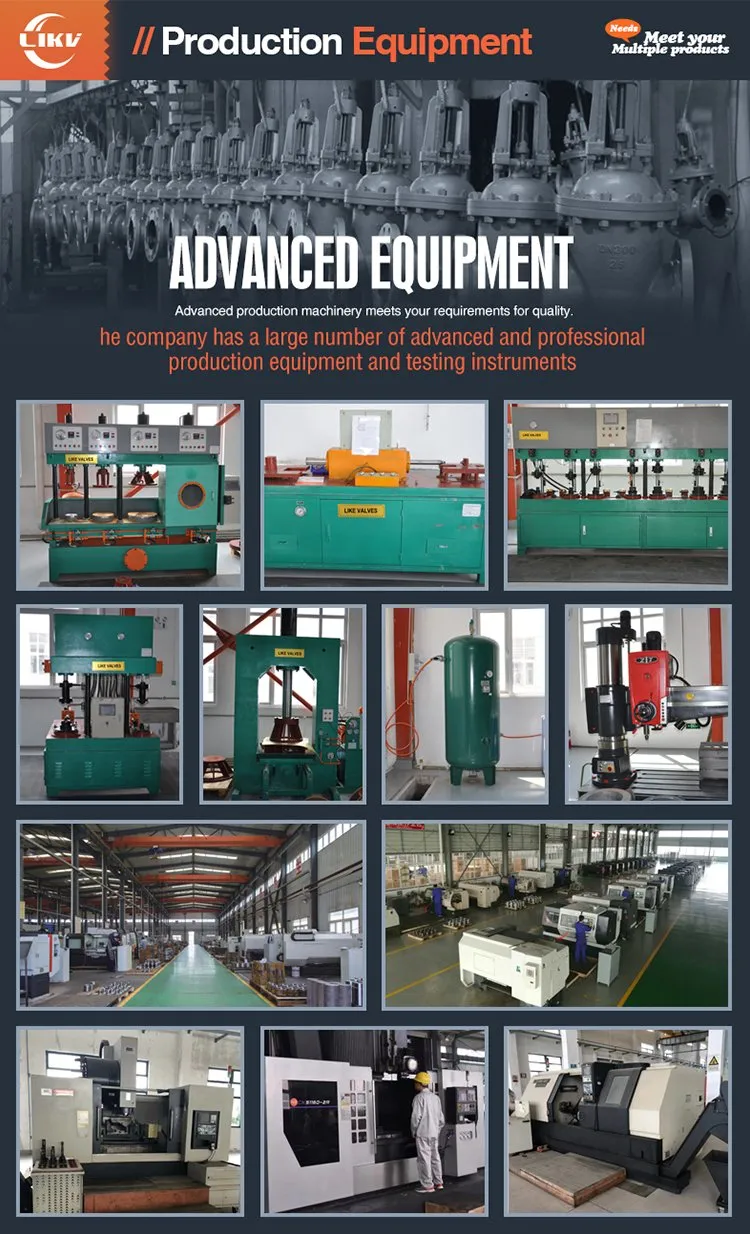

Production equipment
If you want to learn more,please contact with us
