                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve

                                            AEA Cast Steel Swing Check Valve is used to prevent back flow in the line. Flow is in a line through the valve resulting in minimal pressure drop. The disc swings into the open position as the media flows through the line. Back pressure in the line holds the disc in the closed position. Swing check ......

                                            Send Inquiry

                                            Product Description

                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve

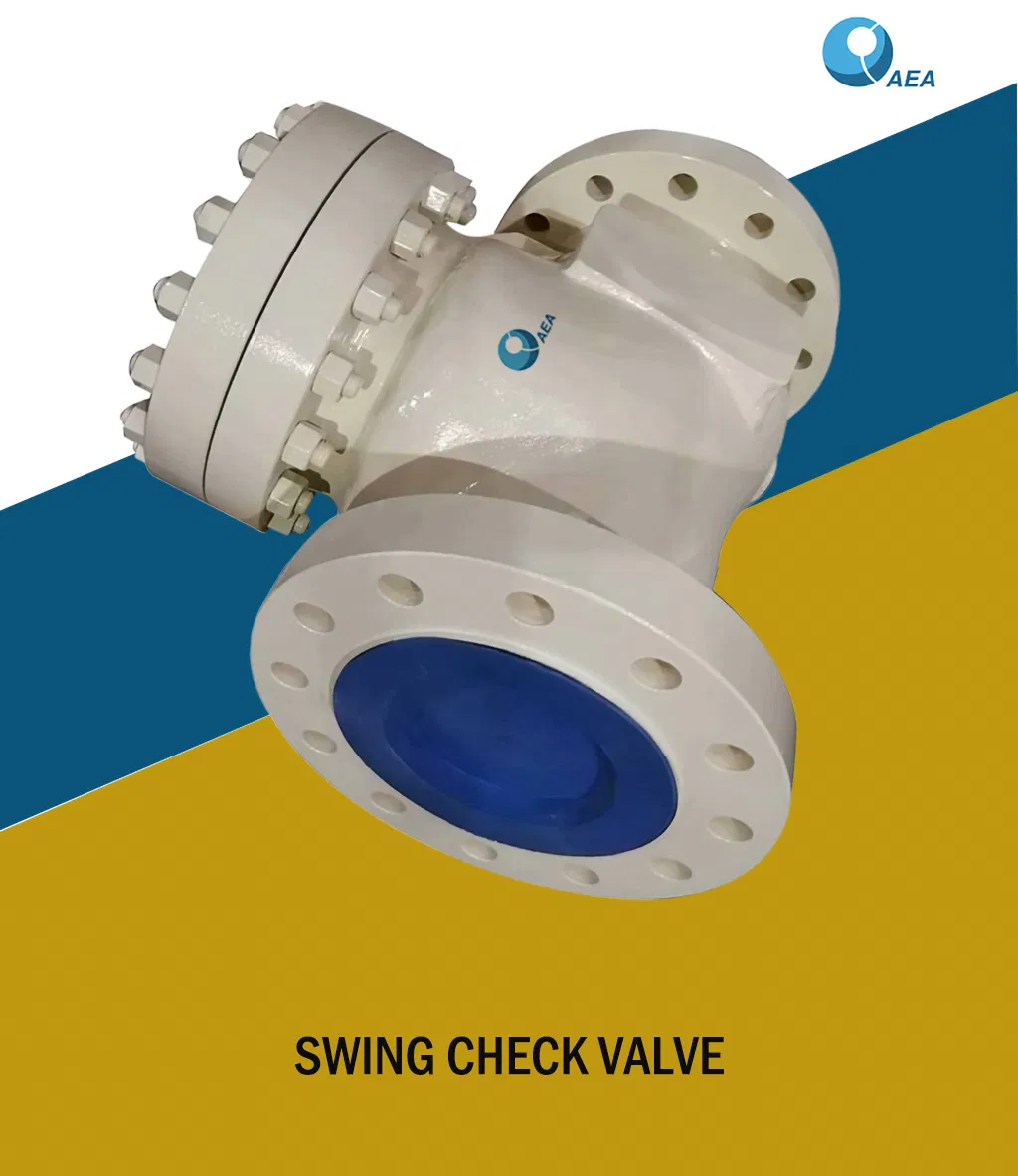

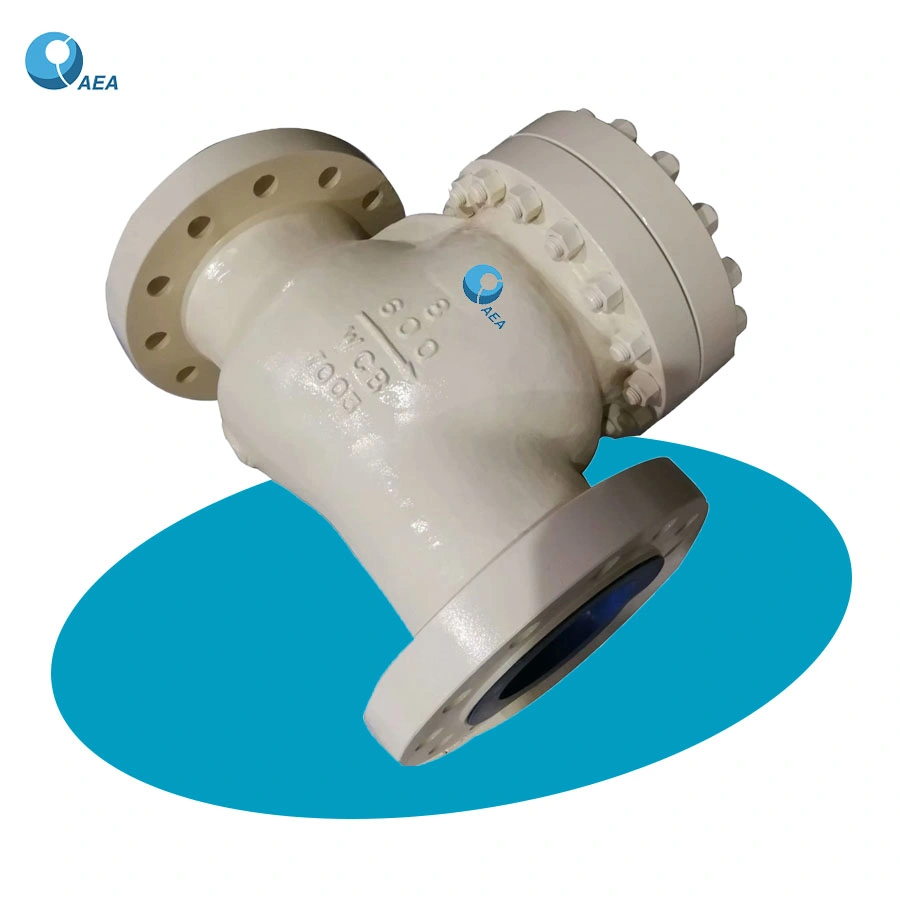

                                            AEA Cast Steel Swing Check Valve is used to prevent back flow in the line. Flow is in a line through the valve resulting in minimal pressure drop. The disc swings into the open position as the media flows through the line. Back pressure in the line holds the disc in the closed position. Swing check valves may be installed in horizontal or vertical lines, but must be installed in proper relation to the media flow as indicated by the flow direction arrow marked on the body.
                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve

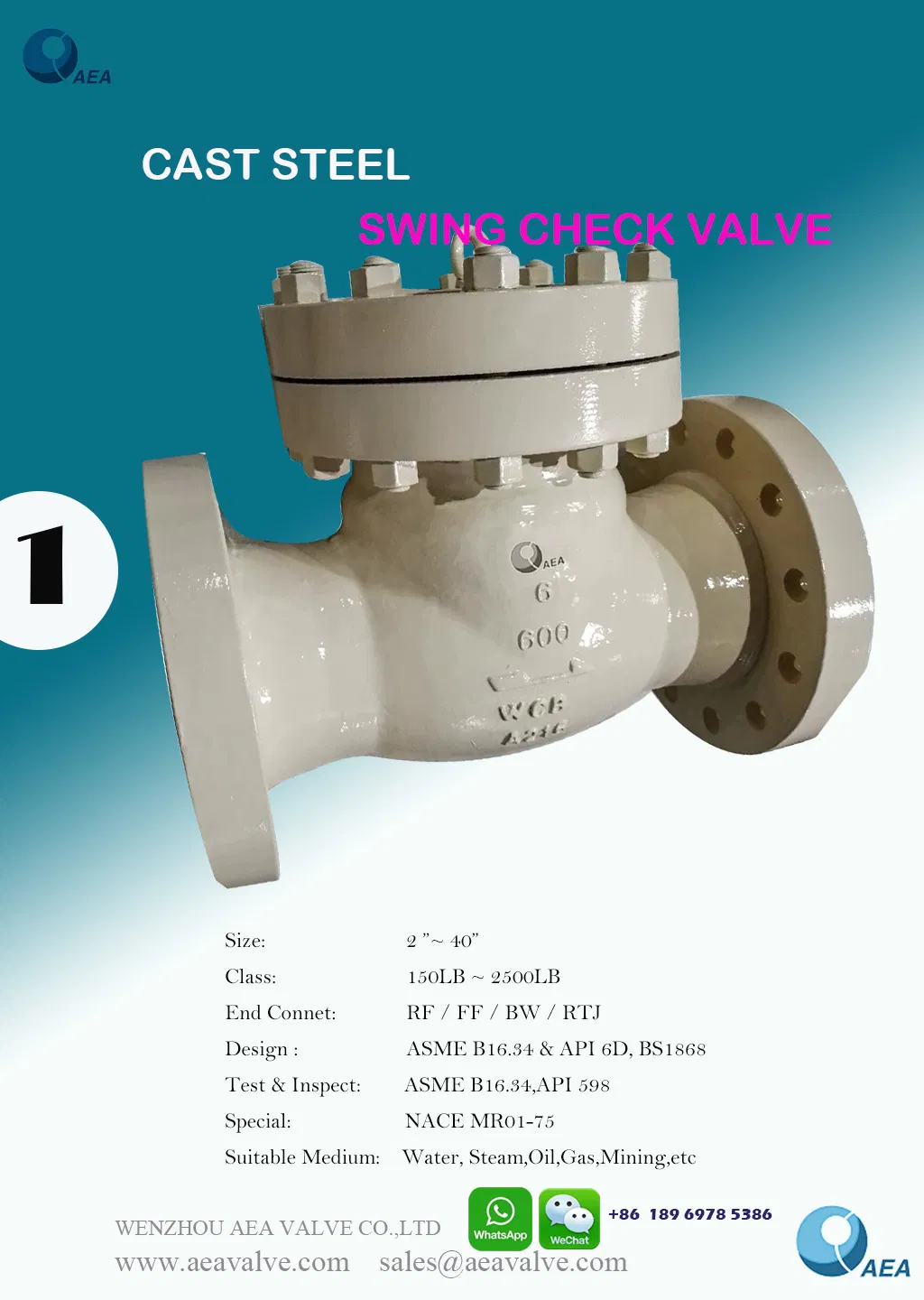

                                            Product Range
                                            -Valve size:
                                            2" ~ 40" (DN50-DN1000)
                                            -Pressure:
                                            ANSI CL150-2500LBS
                                            -Temperature:
                                            -196ºC~ 500ºC
                                            -Body Materials:
                                            Carbon Steel, Stainless Steel, Alloy Steel, Duplex Steel
                                            -Trim (Disc/Stem):
                                            Carbon Steel, Stainless Steel, Duplex Steel, Alloy Steel
                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve

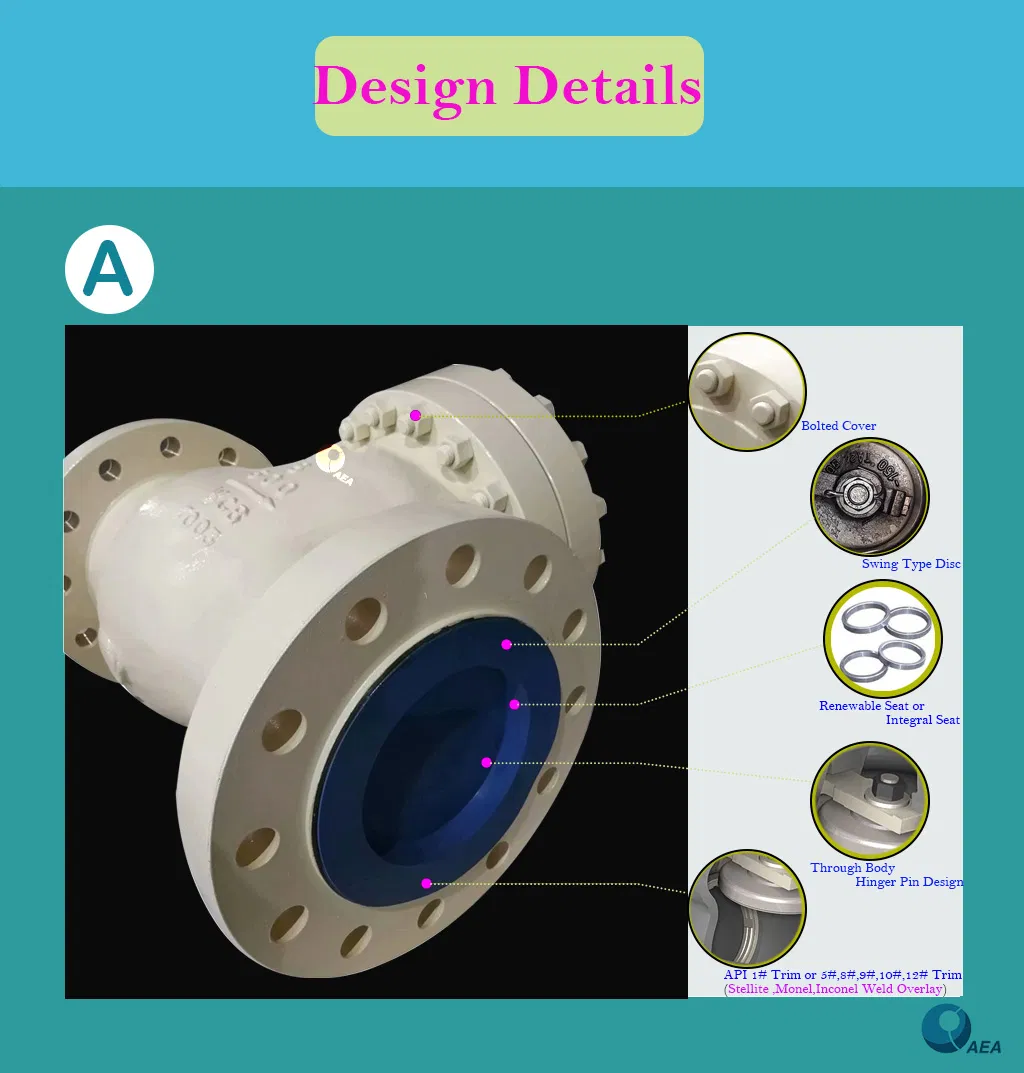

                                            Design Features
                                            Check Valve design complies to BS 1868 and API 594
                                            Offered with API monogram
                                            Fugitive Emissions - Complies with ISO 15848-1 (<50 ppm="" />Compliance to Annex III Module H of Pressure Equipment Directive 2014/68/EU
                                            Check valves successfully tested to Shell 77/300 and witnessed by Shell Inspectors

                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check ValveAPI600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve

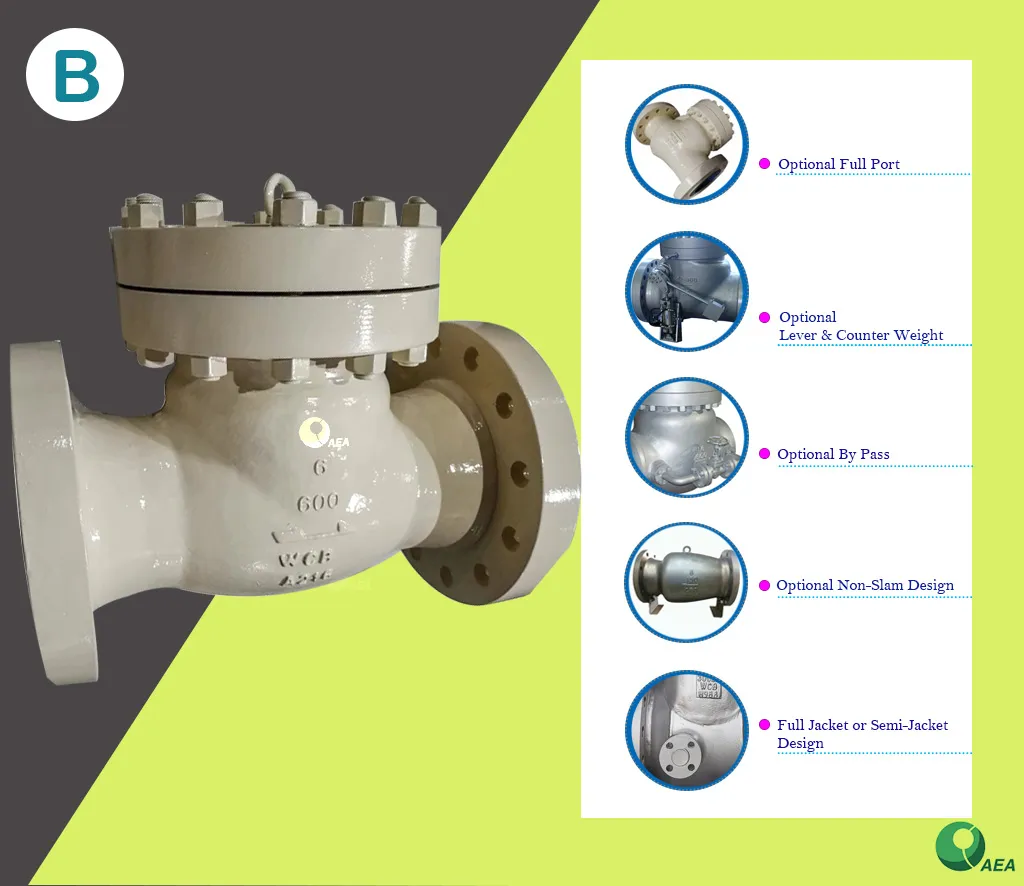

                                            Addition Value:
                                            Internal hinge design, no hole in the body, eliminates leakage path
                                            Inconel overlay/ cladded option available
                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve
                                            Size and Dimensions:
                                            ClassDimensions(mm)
                                            NPS(inch)22-1/23456810121416182024283236
                                            DN(mm)5065801001251502002503003504004505006007008001000
                                            150LBL2032162412923303564956226987878649789781295144817271955
                                            H16517519021524026532036541546049555059065083810161092
                                            300LBL26729231835640044453362271183886497810161346149917272083
                                            H19020522024527029533042048053558561568578588910161143
                                            600LBL2923303564325085596607878388899911092119413971600--
                                            H2102302552953353654205055456006507358009651066--
                                            900LBL368419381457559610737838965102911301219132115492032--
                                            H22524025427936038153355860973676286393910661193--
                                            1500LBL36841947054667370583299111301257138415371664----
                                            H26524030334038043050060578583095010801145----
                                            2500LBL451508578673794914102212701422--------
                                            H285305350410490540620705855--------
                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check ValveAPI600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve
                                            API600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check ValveAPI600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check ValveAPI600 BS1868 Cast Stee API Trim 1 Trim 8 Trim 8 Industrial Non-Return Silence Swing Disc Check Valve

                                            Why Choose us?

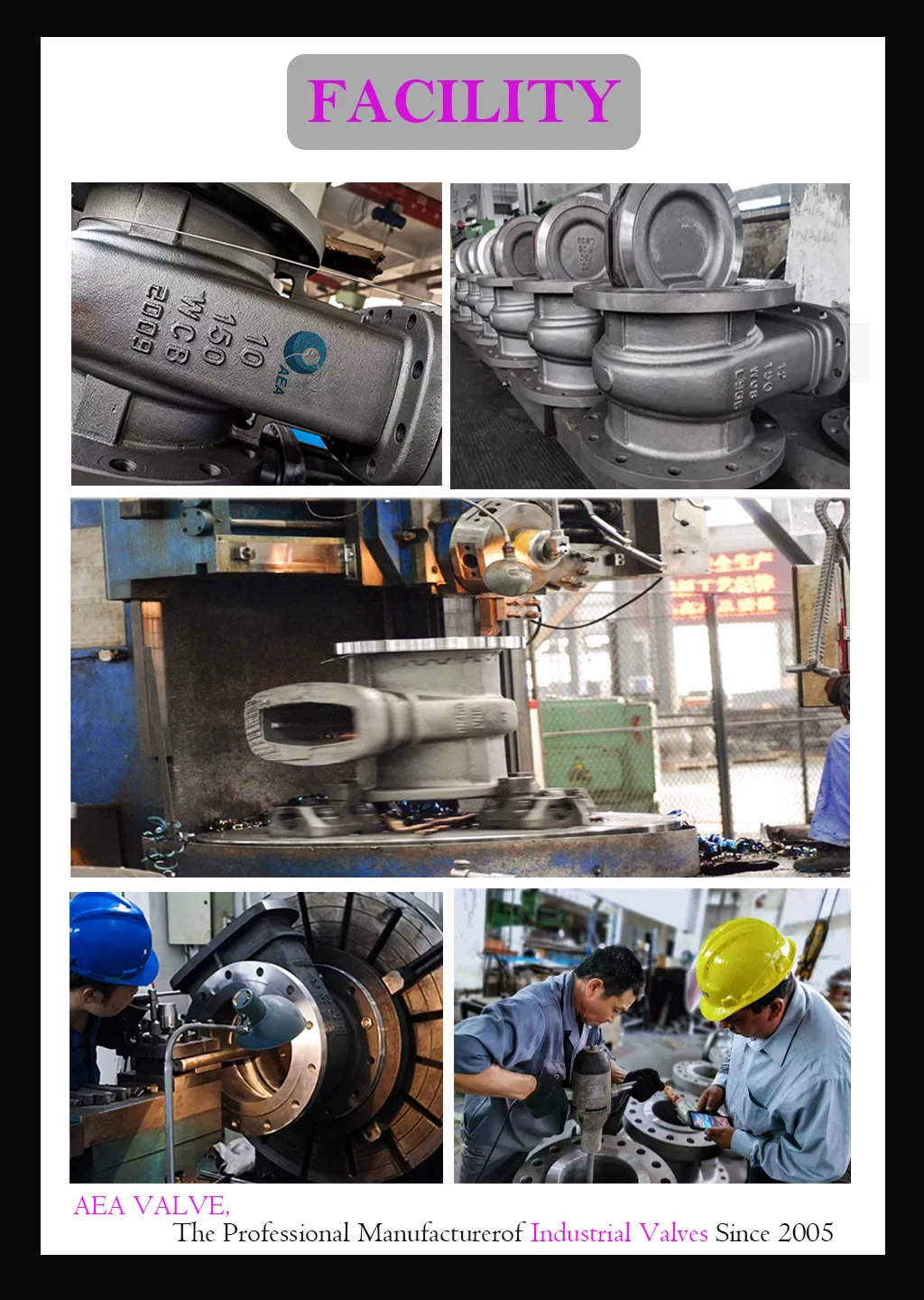

                                            1. Factory:
                                            AEA VALVE, a specialist manufacturer, established since 2008 and professional production of industrial valves over 10 years.
                                            2. Regional Sale:
                                            We provide specialized sales service refers to different kind of region all over the world. Each sales team member is good at the local language and well experienced to the responsible market. For example: Russian, German, Spanish, Japanese, etc.
                                            3. Low MOQ:
                                            Our factory owns the casting company by itself. We are always ready for providing the sample and producing some small orders, in order to meet the business well.
                                            4. OEM or Customize:
                                            OEM Service or Customized size is Available.
                                            5. We can make the products with the client's demand standard or the custom requirement.
                                            6. Complete Solution:
                                            We are always ready to hear from you, be responding to your enquiry immediately. Our trade manager is always online for you.
                                            7. High Quality:
                                            We have strict quality control system and amounts of testing equipments for different kind of valve, such as size, pressure, working environment etc. We are winning the market reputation with the time goes by.
                                            8. Quick Delivery:
                                            We have the large stock for some hot products.
                                            9. Competitive Price:
                                            10. We are the manufacturing company which not only has our own manufacturing workshop, but the casting company as well. We provide the straight factory price and service to our customer.
                                            11. Quality control:
                                            All the products are calibrated with real working condition, and tested before shipping as qualified product.
                                            12. Problem solve:
                                            If you can't solve the problem in your local, please delivery the product to us, we will repair it and then back to you.
                                            13. Integrity: All the warranty and guarantee from us will be put into come true
                                            14.Online Service: any inquiry, please contact with email: . We will reply you within 12 hours.
