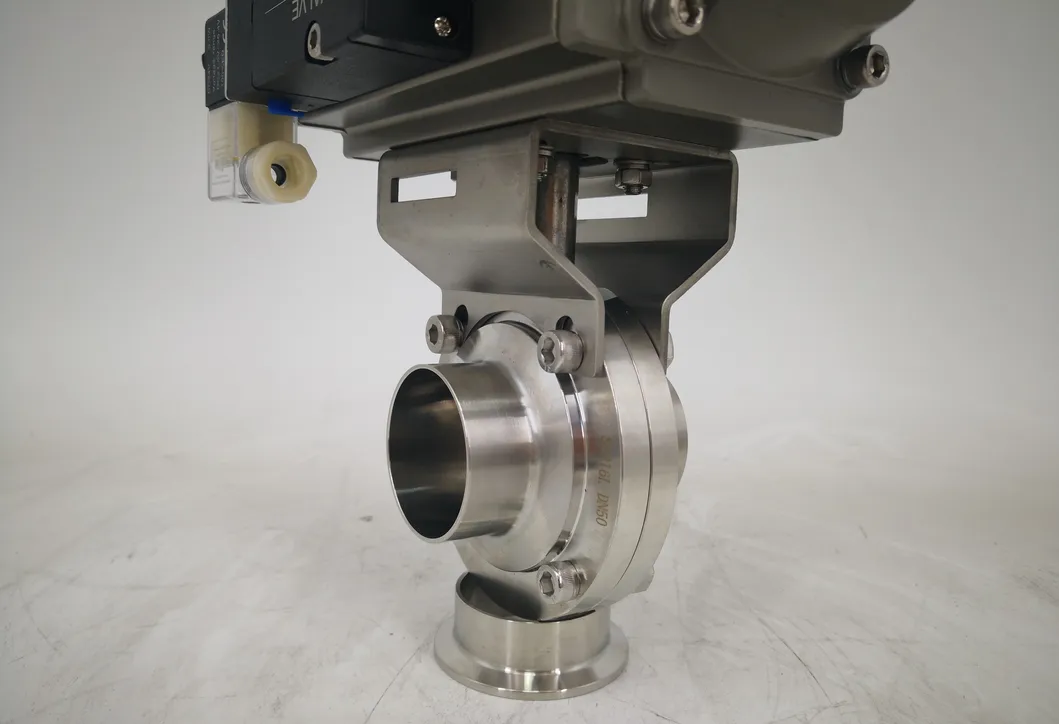

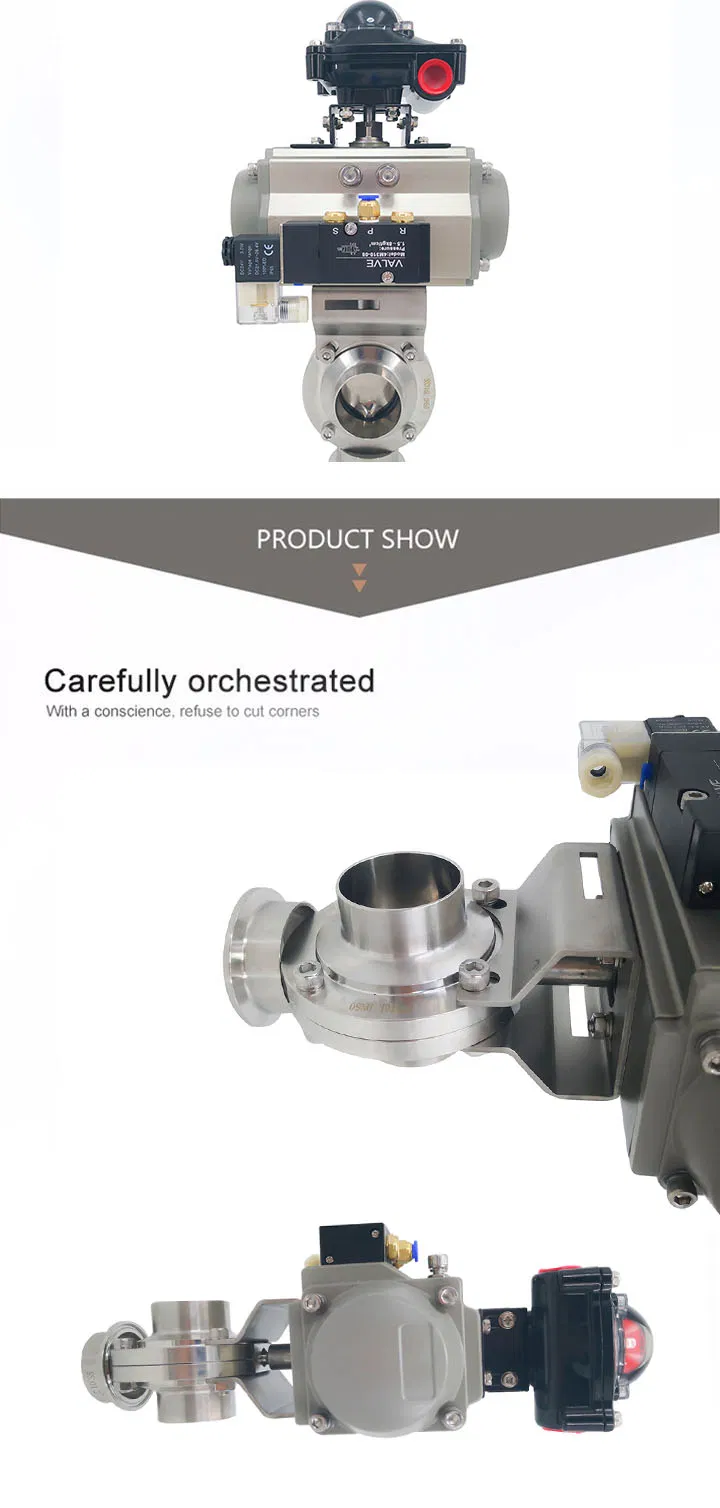

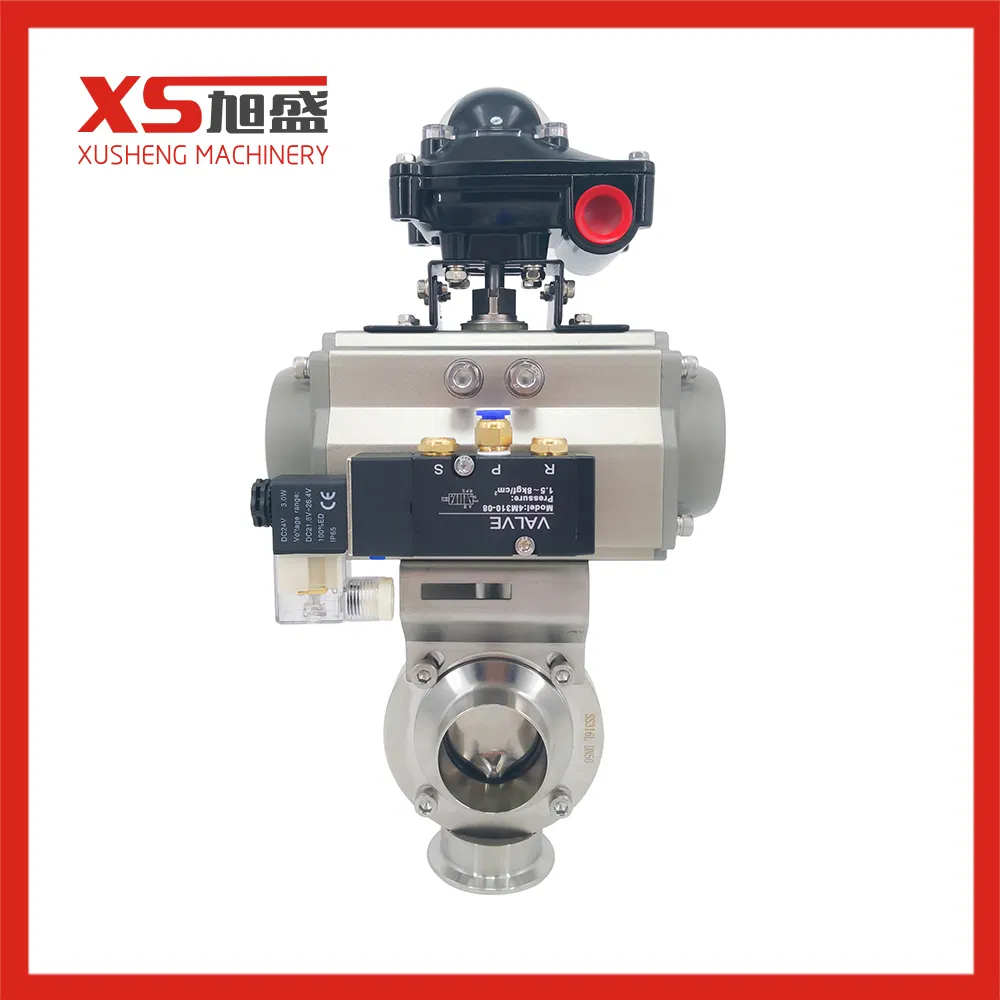

SMS Sanitary Stainless Steel Welding Pneumatic Butterfly Valve with Actuator

Product Description

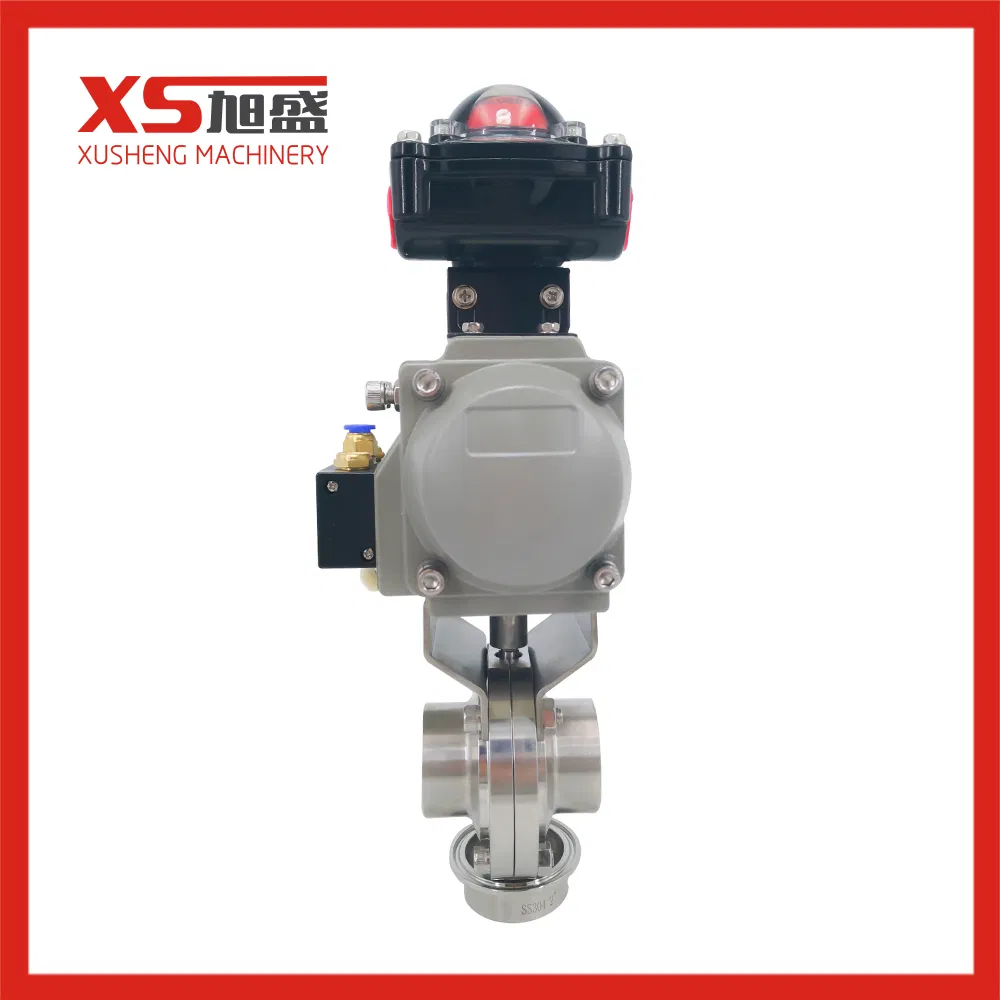

Sanitary Stainless Steel Welding Pneumatic Butterfly Valve with Actuator

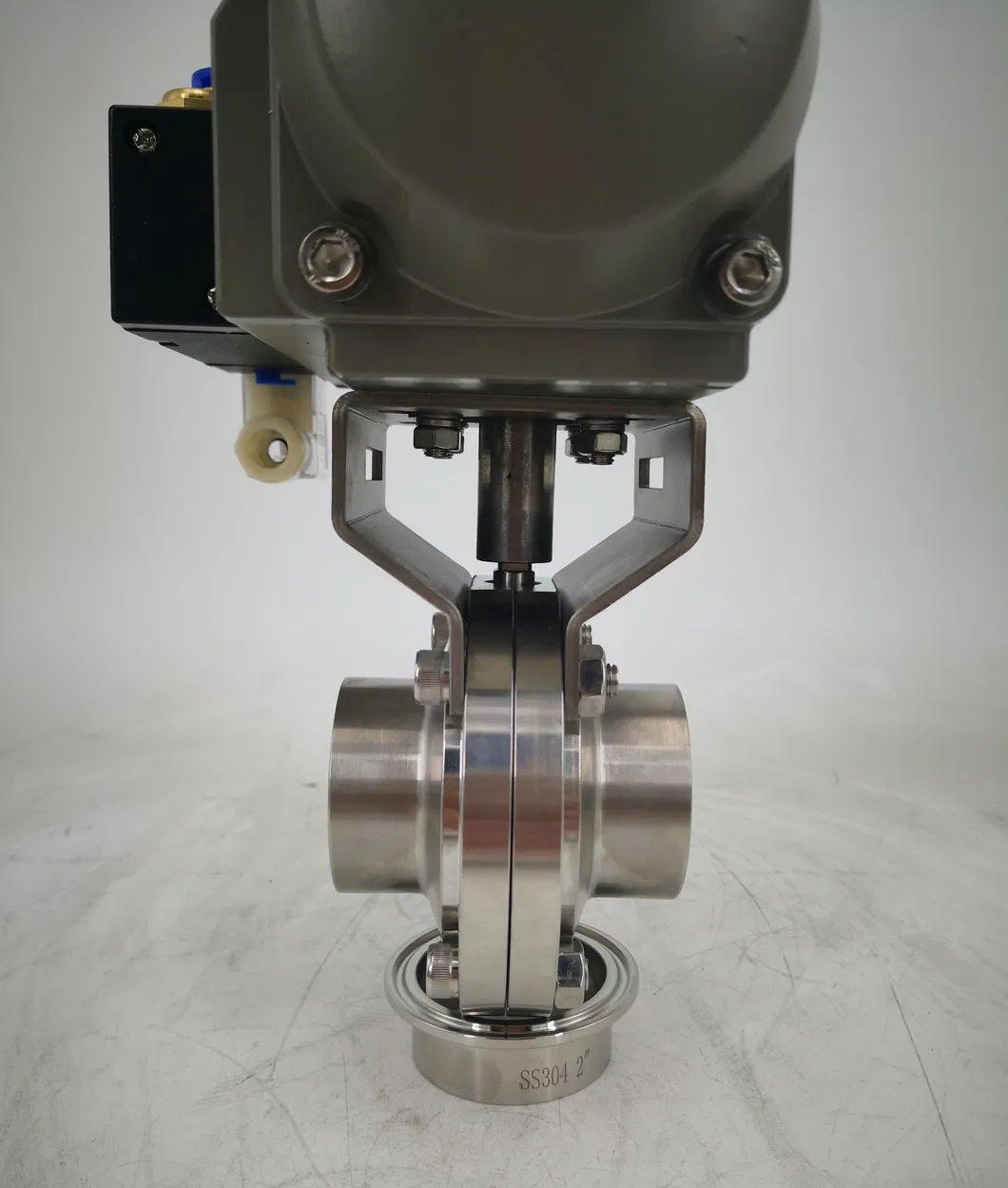

SMS Sanitary Stainless Steel Welding Pneumatic Butterfly Valve with Actuator

Applications:
Butterfly valves, no matter manually or automatically, can be used in most fluid product applications in the food-processing, pharmaceutical and chemical industries.

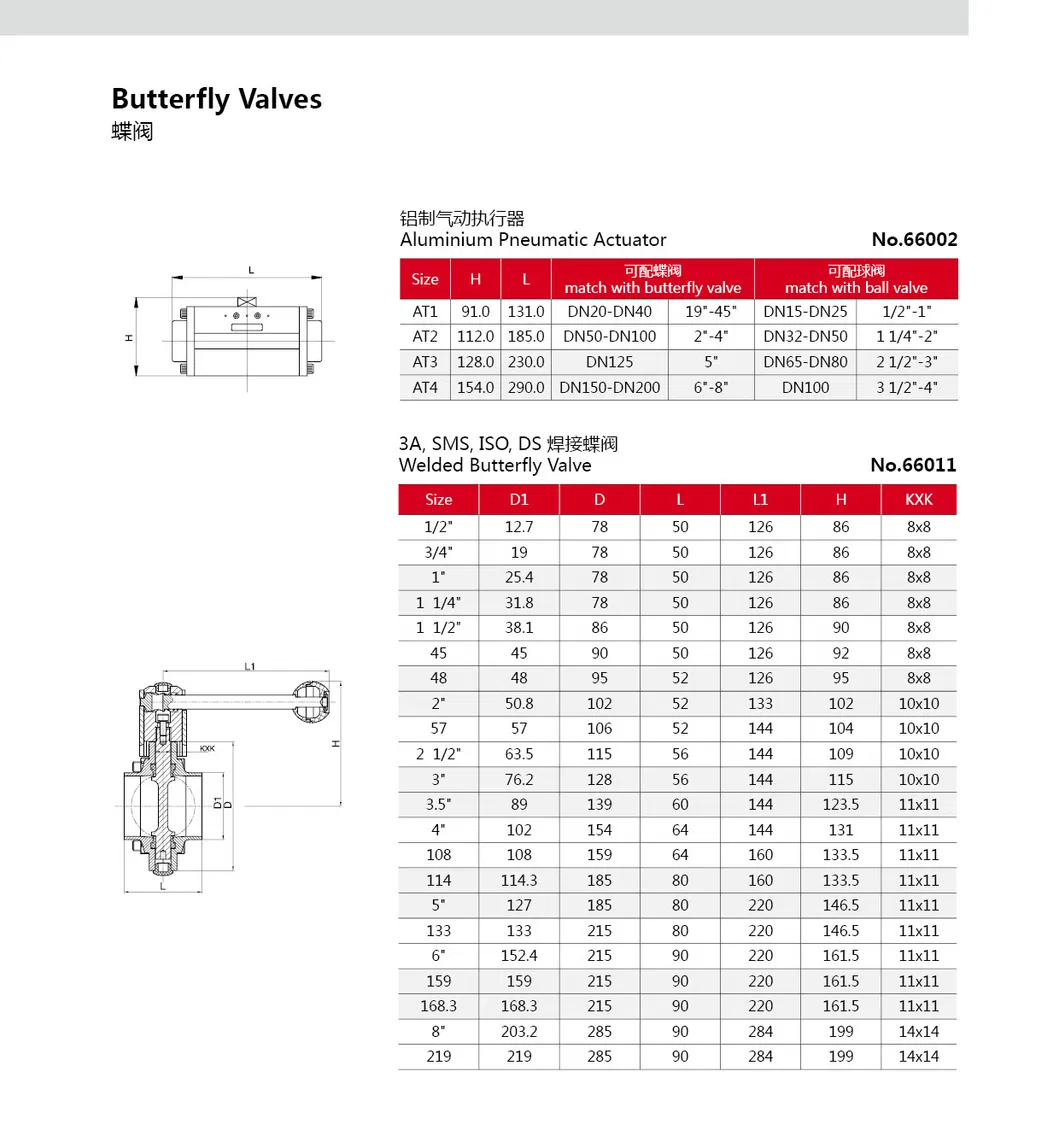

Technical Parameters

Standard	SMS,DIN,ISO,RJT,IDF
Product wetted steel parts	AISI304/AISI316L	Provided with material inspection report
Other steel parts	AISI304
Size	1/2"~6",DN10~DN150
Seal material	EPDM/VMQ/FPM	All seals material comply with
Working pressure	≤10bar(145psi)
Supply pressure for air actuator	5~8(0~116psi)
Working temperature	EPDM:-14~248ºF(-10~120ºC)
	VMQ:-58~356ºF(-50~180ºC)
	FPM:22~446ºF(-30~230ºC)
	Other materials are avaible upon request
Sterilization temperature	302ºF(150ºC,max 20min)
Outside surface treatment	Ra16~32uin(o.4~0.8um)
Inside surface treatment	Ra32~64uin(o.8~1.6um)
Connetion ends	butt-weld,clamped ends,male ends, flange ends
Pneumatic head	Normally closed(NC)-Air to open,spring to close
	Normally open(NO)-Air to close,spring to open
	Air to air(AA)-Air to open,air to close

We also supply other types of valves,such pneumatic butterfly valves,actuated butterfly valves,pneumatic butterfly valves with control head,and ect.

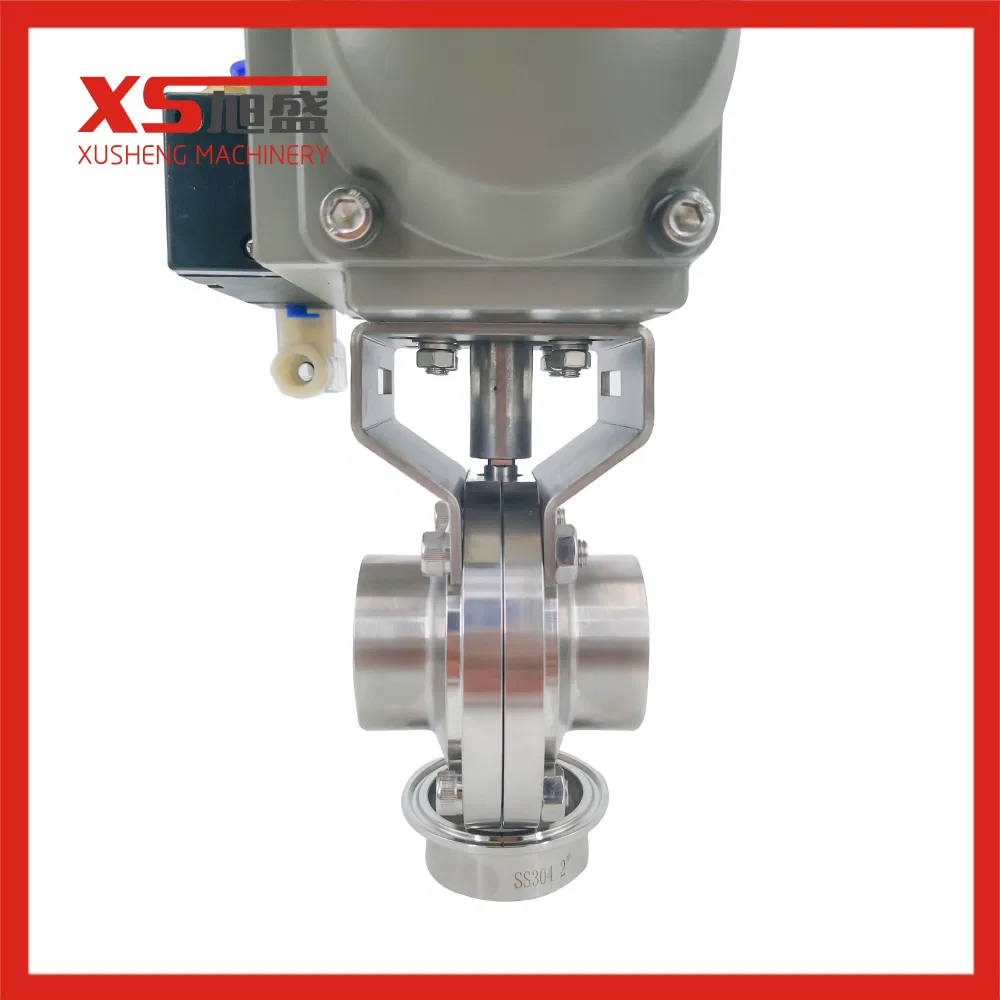

SMS Sanitary Stainless Steel Welding Pneumatic Butterfly Valve with Actuator

SMS Sanitary Stainless Steel Welding Pneumatic Butterfly Valve with Actuator

Our Service

On Samples	Buyer bear the air fee, but this fee will be reduced from order directly
On After Sales	Free replacement if there is any quality problem
On Delivery	Never delay delivery time
On Materials	Ensure material pure
Ensure material pure	Welcome

Welcome to contact us for Butterfly Valve
