Sanitary Stainless Steel SS304/ SS316L Manual & Pneumatic Buttterfly Valve&Pipe Fitting

Application:

Standard Design:
The parts of valve usually include:two pieces body of valve ,disc,gasket of valve disc,gakset, and the entire valve is assemble together withe bolts and nuts,3 piece butterfly valve also include two flanges and two gaskets of flange.

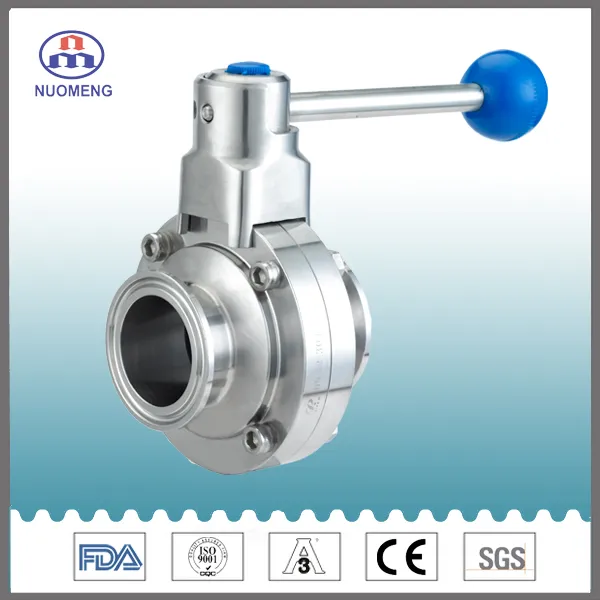

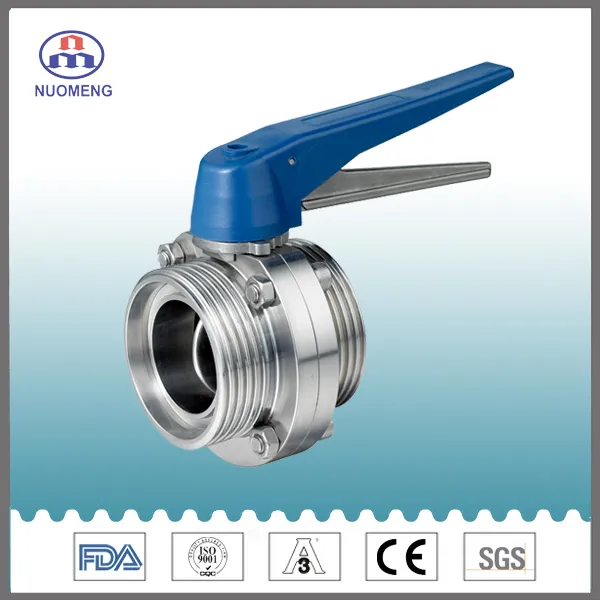

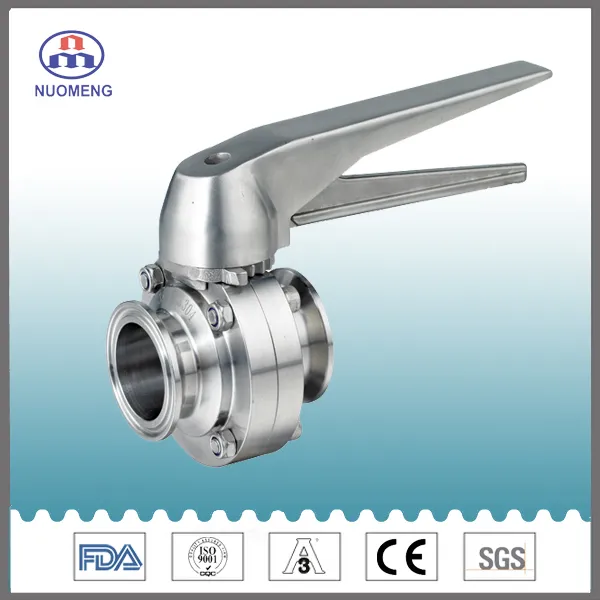

Handle:for the handle of butterlfy valve,total three styles,pulling handle,multi-position stainless steel handle,multi-position plastic handle.
Multi-position handle regulates the valve by 15° in its open or close 12 seats achiening control of medium flow purpose.
Pulling handle regulates the valve through four multi-function positioning,in its open or close four position,also achieves control of medium flow purpose.

Actuator:Three types of peumatci device:closed,opened and closed by two air flues separately.

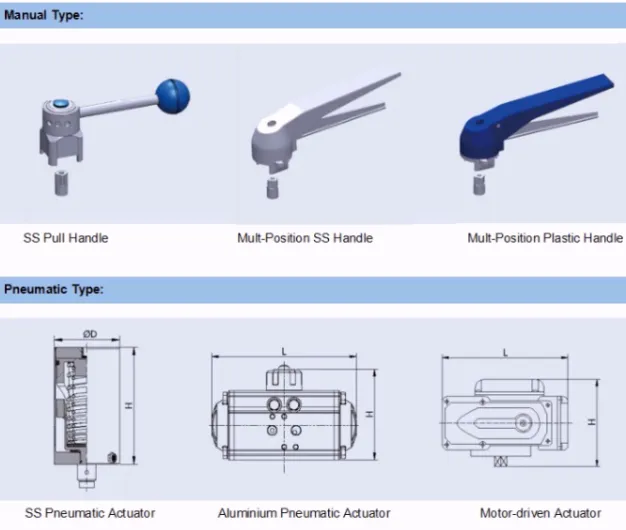

Control set:can match with feedback device,solenoid valve etc,with help to connet with the automatic system and remote control systerm.For actuator,totaly include stainless stell pneumatic actuator,aluminimum pneumatic actuator, motor-driven actuator,the detail ,pls check belwo:

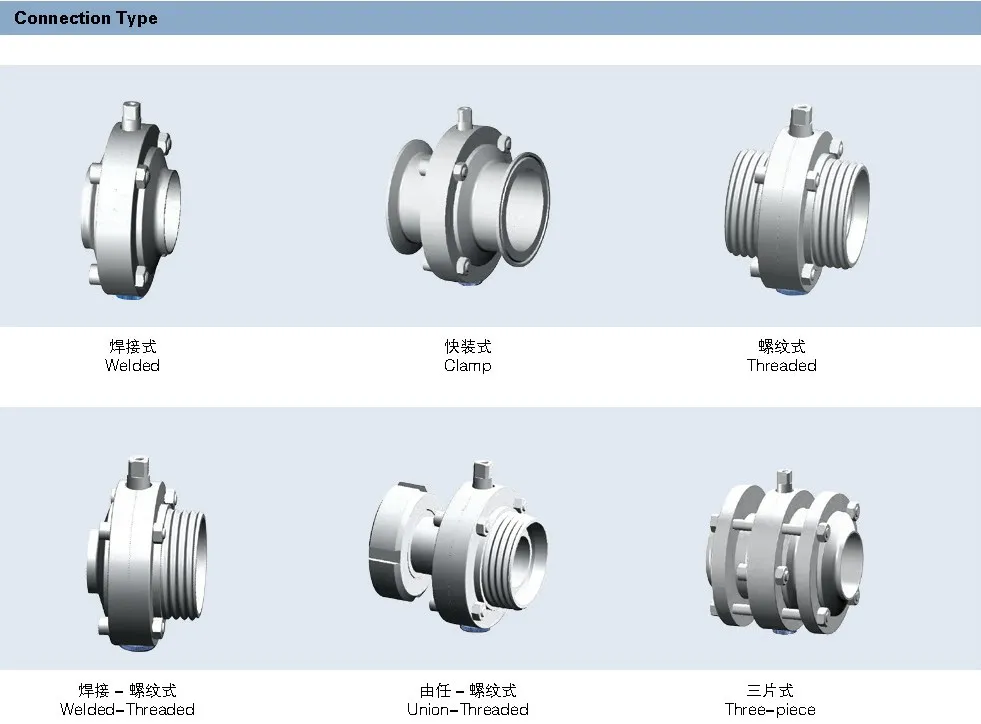

Connection Type:For butterfly valve ,which include welded,clamp,threaded,welded-threaded, union-thread,three-piece,the detail,pls check below pic:

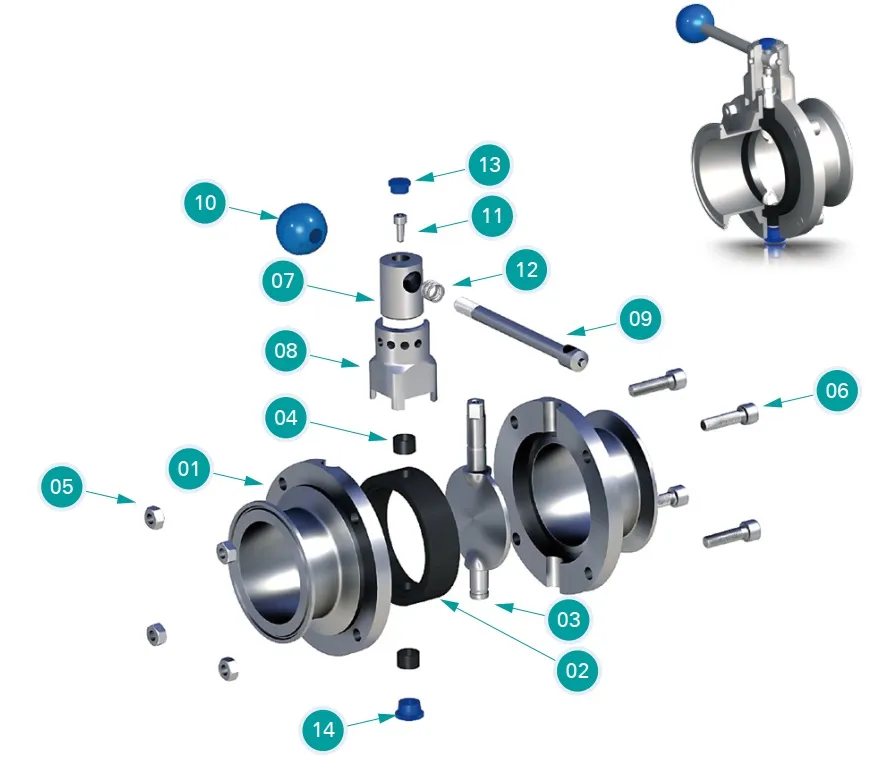

Parts List:

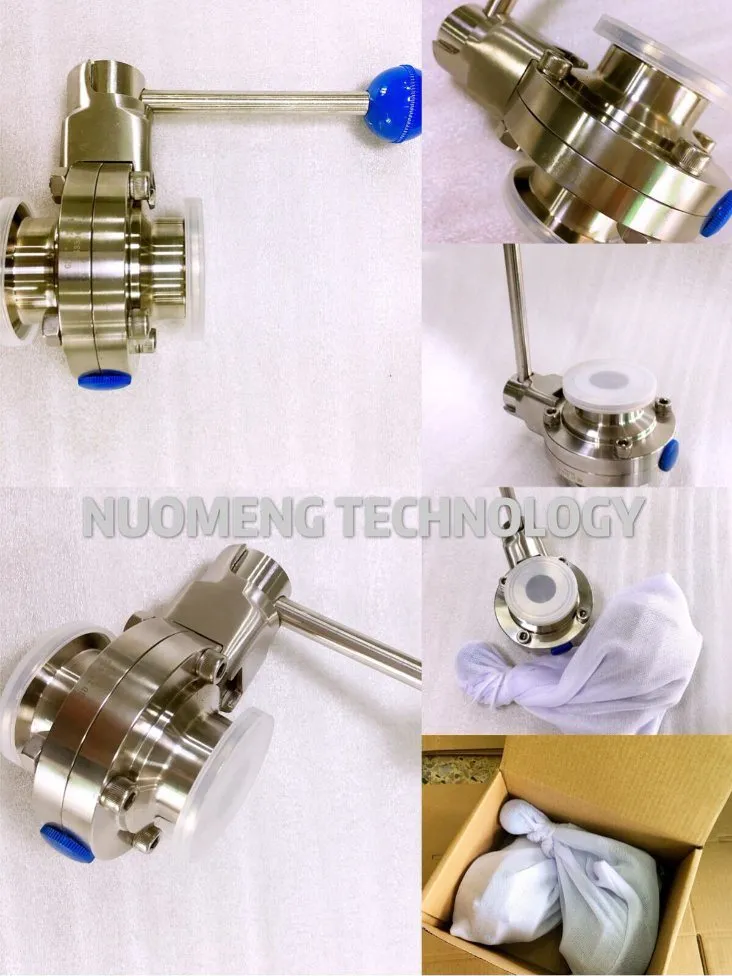

Packing:we usually use exporting  standard packing,and if need,also could make special based on customer's requested

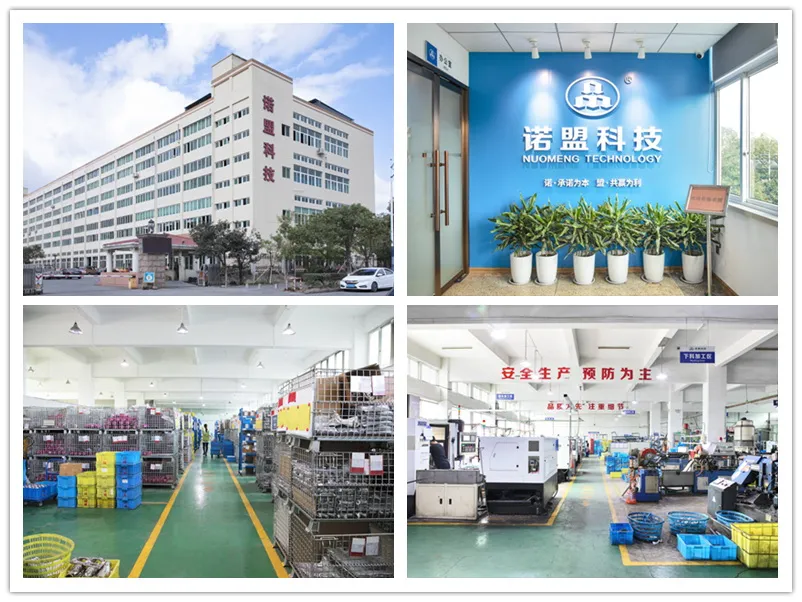

Factory pic:
