Satinless Steel Pneumatic Welding Butterfly Valves with Silicone Gaskes
Product Name:Satinless Steel Pneumatic Welding Butterfly Valves With Silicone GaskesButterfly Valves With Silicone GaskesSatinless Steel Pneumatic Welding Butterfly Valves Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the diff......
Send Inquiry
Product Description
Butterfly Valves With Silicone Gaskes

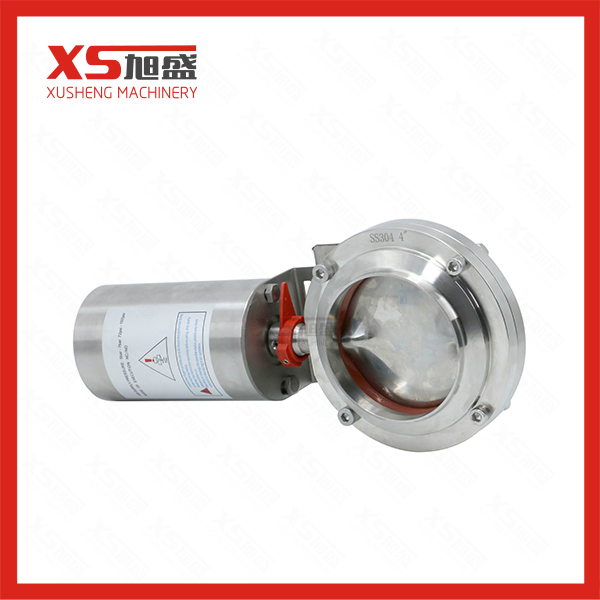

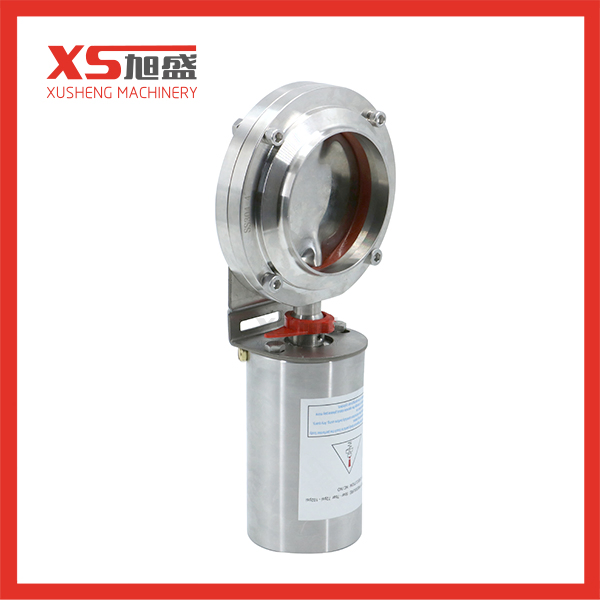

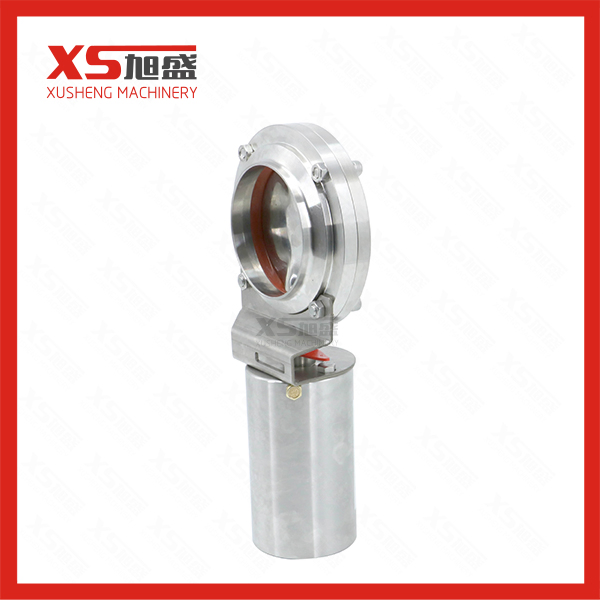

Satinless Steel Pneumatic Welding Butterfly Valves
Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different
system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,
dairy food,fruit juice,pharmacy,biological etc.

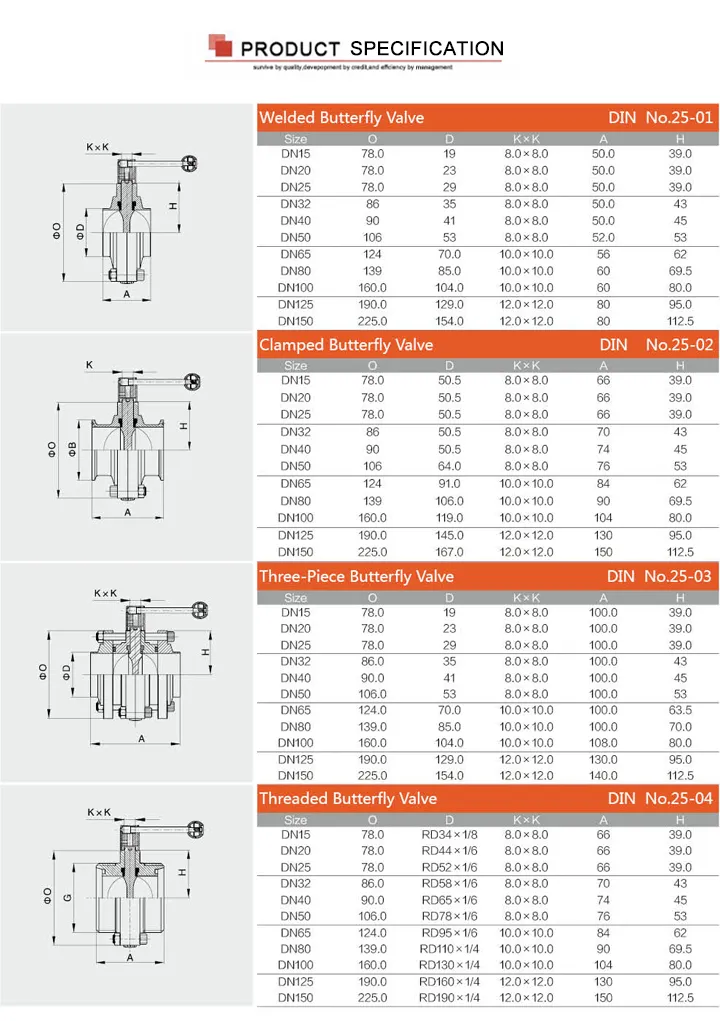

Technical Parameters
| Standard | 3A,SMS,DIN,ISO,RJT,IDF | |
| Product wetted steel parts | AISI304/AISI316L | Provided with material inspection report |
| Other steel parts | AISI304 | |
| Size | 1/2"~6",DN10~DN150 | |
| Seal material | EPDM/VMQ/FPM | All seals material comply with FDA21CFR117.2600 |
| Working pressure | ≤10bar(145psi) | |
| Supply pressure for air actuator | 5~8(0~116psi) | |
| Working temperature | EPDM:-14~248ºF(-10~120ºC) | |
| VMQ:-58~356ºF(-50~180ºC) | ||
| FPM:22~446ºF(-30~230ºC) | ||
| Other materials are avaible upon request | ||
| Sterilization temperature | 302ºF(150ºC,max 20min) | |
| Outside surface treatment | Ra16~32uin(o.4~0.8um) | |
| Inside surface treatment | Ra32~64uin(o.8~1.6um) | |
| Connetion ends | butt-weld,clamped ends,male ends, flange ends | |
| Pneumatic head | Normally closed(NC)-Air to open,spring to close | |
| Normally open(NO)-Air to close,spring to open | ||
| Air to air(AA)-Air to open,air to close | ||
Options
1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5.Control: position sensor, C-top controller, C-top controller (AS-I)
Design Features
1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2.Available in sizes from DN25 / 1" to DN300 / 12"
3.Multiposition handles can be used for valves up to DN100 / 4";
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5.pneumatic actuator and electric actuator are interchangeable.
6.Seals comply with FDA 21CFR 177. 2600.
7.The valve body can be customized with a wide selection of different connections.
Our Service
| On Samples | Buyer bear the air fee, but this fee will be reduced from order directly |
| On After Sales | Free replacement if there is any quality problem |
| On Delivery | Never delay delivery time |
| On Materials | Ensure material pure |
| Ensure material pure | Welcome |

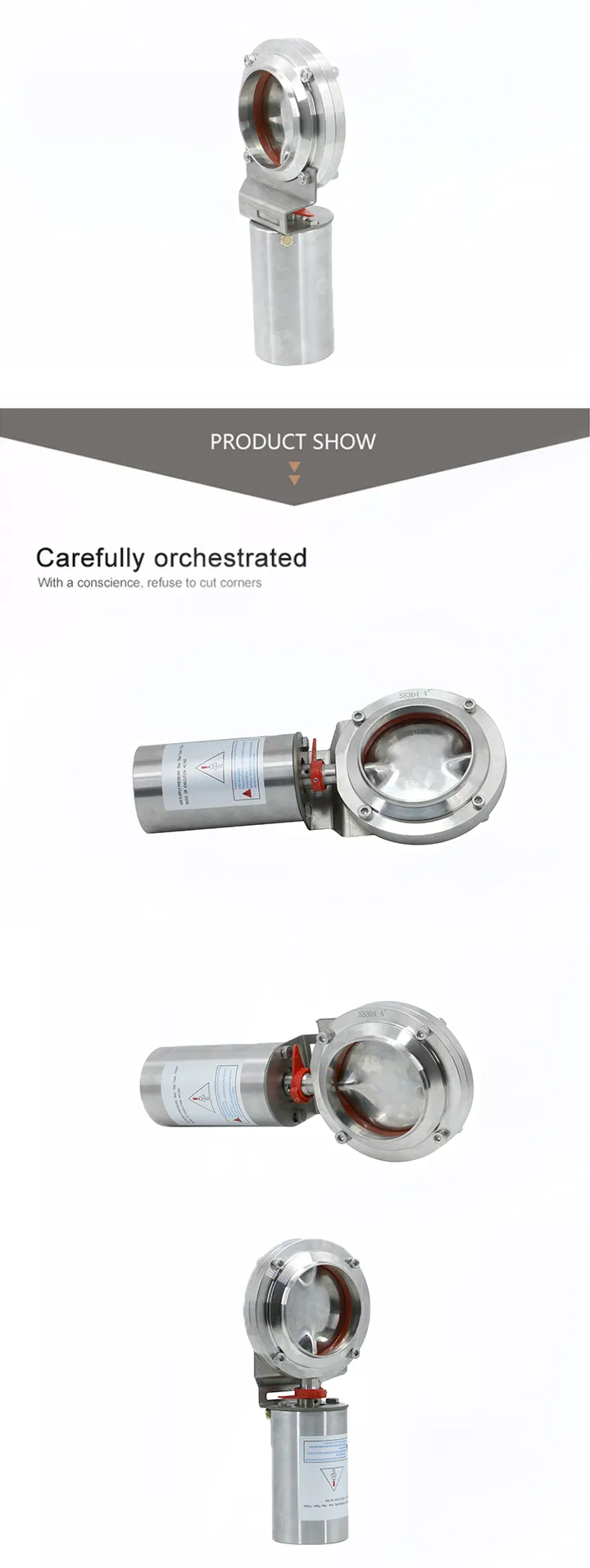

Related Pictures for Stainless Steel Sanitary Butterfly Valve
Packing&Shipping information and pictures of Stainless Steel Sanitary Butterfly Valves
Port: Shanghai Port or Ningbo Port,China
MOQ: 1Set
Supply ability: 5,000 pieces/month
Payment terms: T/T,Western Union, Paypal, L/C
Packaging: Shrink wrapped-in seaworthy wooden cased
Delivery time: depends on quantity
Shipping mode:By sea,by air,by express

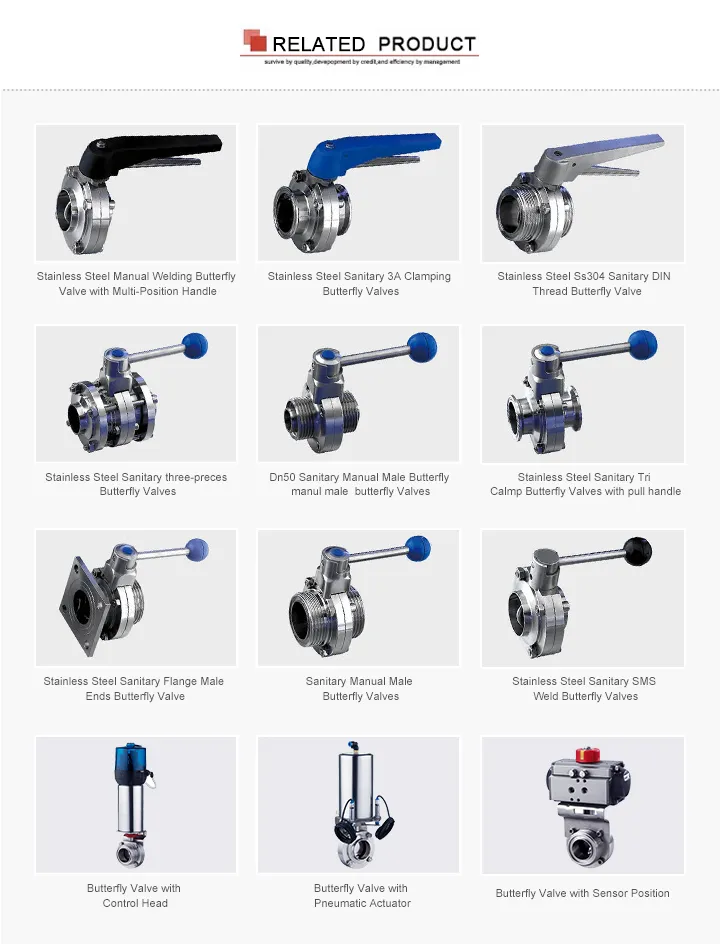

1.Sanitary Valves,such as butterfly valves,check valves,diaphragm valves,ball valves,pneumatic reversal valves,ect.
