Product Description

Sanitary Stainless Steel Butterfly Valve

1)Material of valve: SUS304/SUS316L, AISI304, AISI316L
2)Size: DN20-DN150/1"-6"
3)Standard of valve: DIN, 3A, ISO/IDF, BS/RJTASME/BPE,SMS
4)Material of seal: Silicone/VMQ/EPDM/FPM FDA117.2600
5)Connection mode: Weld/clamp/thread/flange/union
6)Certification: Material inspection report
7)Power: Pulling handle/multi-position plastic handle/multi-position stainless steel handle/electric actuator/pneumatic head
8)Three type of actuator: Normally open(NO), normally closed(NC), Air/Air(A/A)
9)Work principle: This kind of valve can be handled by manual or an electric actuator, and also can be handled by a pneumatic actuator.

10)Medium: Food, beverage, dairy, pharmacy.
11)certification: Metallurgical tests&pressure tests.

As a manufacturer, We can customize and design according to the customer's requirement if the specification is out of our standard.

Don't hesitate to contact us if you need more details or catalogue.

CE CERTIFICATE CAN BE PROVIDED

Sanitary Stainless Steel Butterfly Valve (100101)

Technical Data
Material	Contact with the product components	304/316L(1.4306/1.4404)	Can provide material inspection report
	Materal no contact with the product components	304(1.4301)	Can provide material inspection report

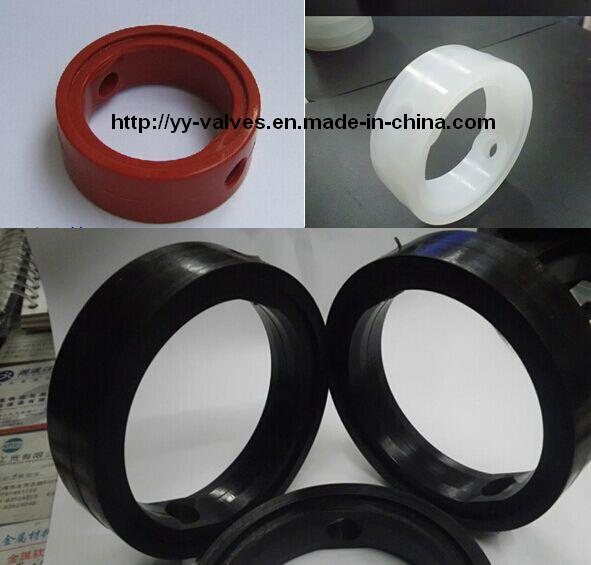

Sealing material	Standard	silicone	Adopt sealing material with all the seal material the FDA 117.2600
	Option	EPDM/FPM	Adopt sealing material with all the seal material the FDA 117.2600
Pressure	Pressure of work	0-10 bar
	Control air pressure	5-8 bar
Temperature	Working temperature	Silicone:(-50~+180ºC) EPDM(-20~+135ºC) FPM(-30~+230ºC)
	sterilization temperature	150ºC(Max 20min)
Surface treatment	Inside surface treatment	Ra≥0.4-0.8μm
	Surface treatment	Ra≥0.8-1.6μm
Connection	The diameter welding	DIN11850-2,DIN11850-1,3A,SMS,ISO,IDF,BS....
	Connection mode:	weld, triclamp,thread,flange,union,nut,etc
Optional driven	Brainpower
	Pneumatic control	Pneumatic head and fixed bracket

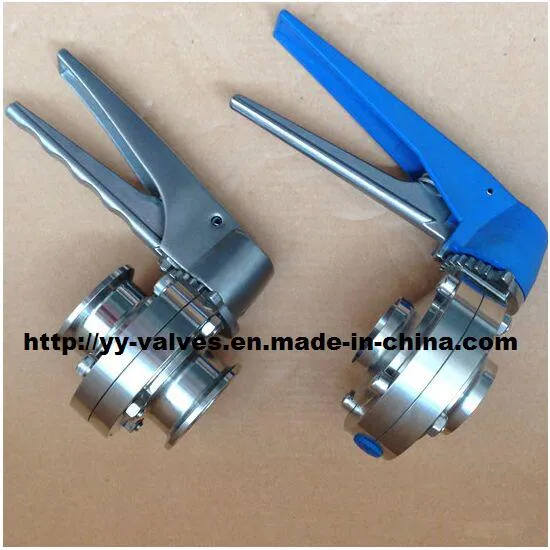

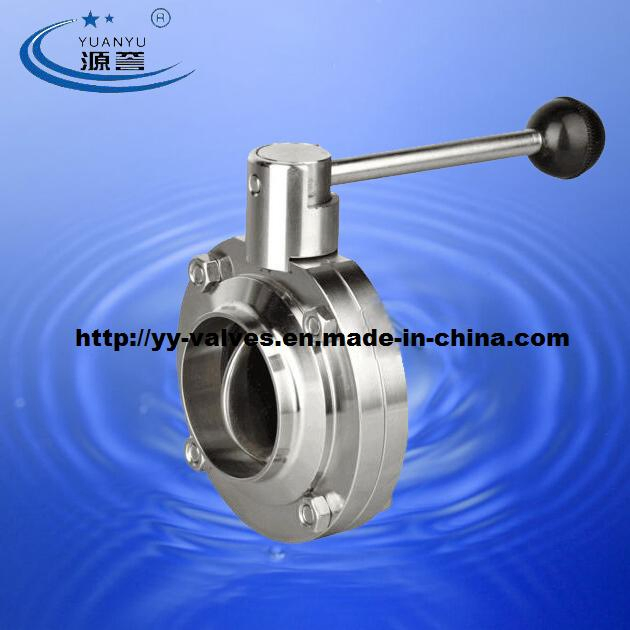

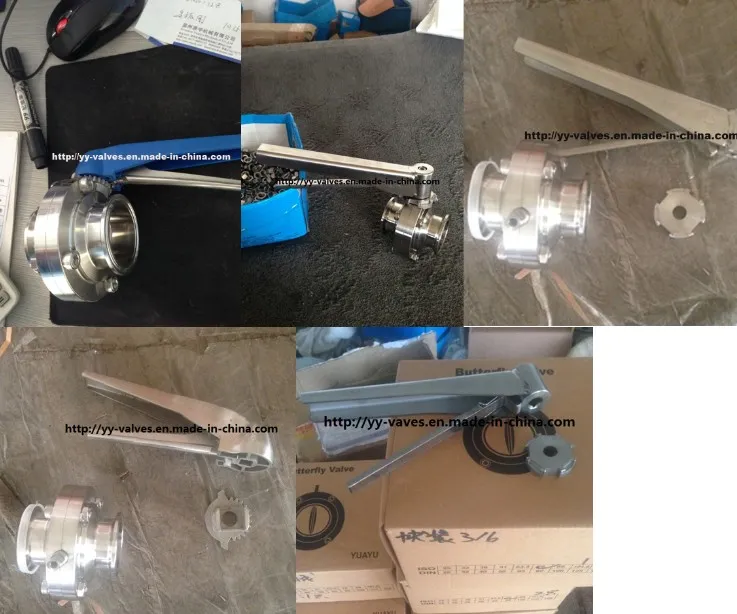

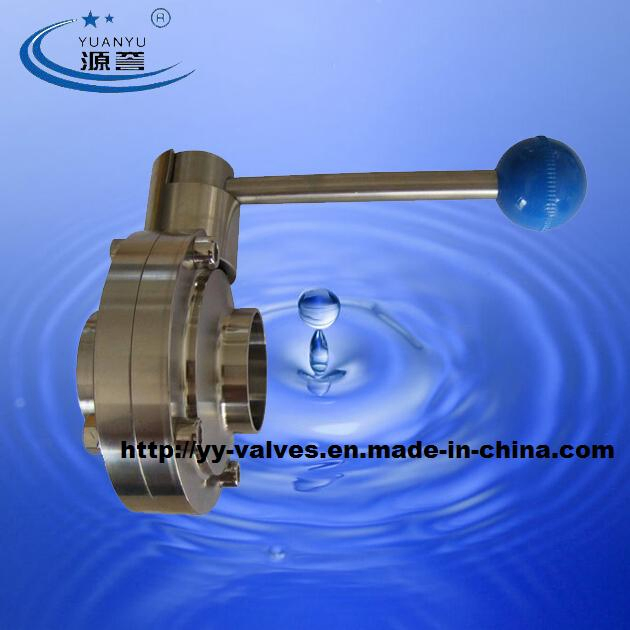

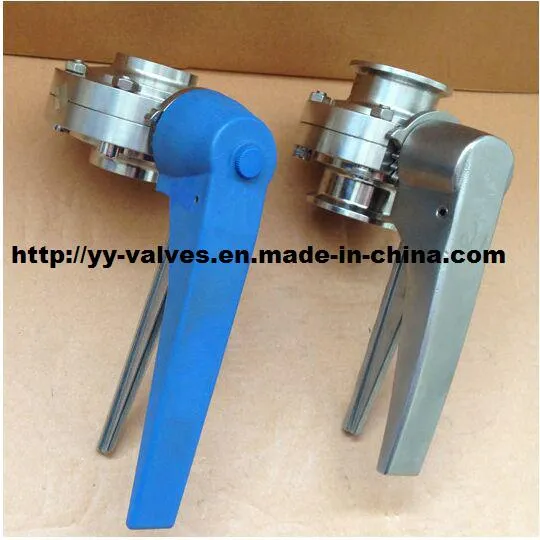

Manual handle mode	pulling handle (round puling handle, square pulling handle)	Multi-position handle(stainless steel&plastic)	American type stainless steel stainless steel multi-position handle
