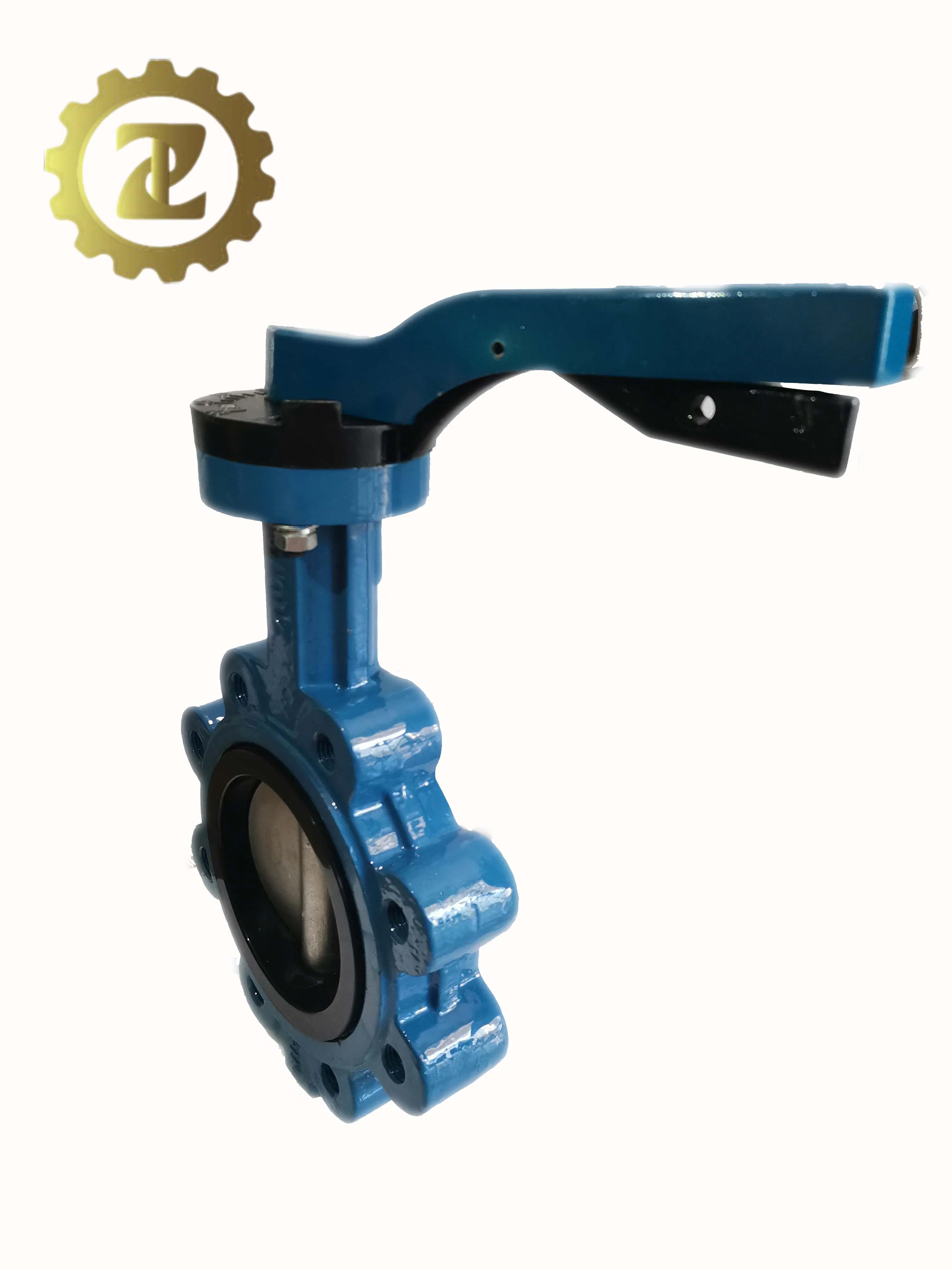

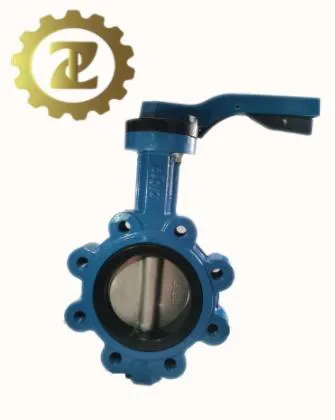

Pn16 Carbon Steel Di Viton Seated Lug Butterfly Valve
PN16 Carbon Steel DI VITON Seated Lug Butterfly ValveJIS: JISF7480 46#LDIN: DIN S52 Some Information About The Wafer Butterfly Valves Of Ours:1. Size: DN50-65; DN80; DN100-6002. Body: Cast iron/Ductile iron/Cast steel;3. Disc: Ductile iron/Stainless steel/Alu......
Send Inquiry
Product Description
JIS: JISF7480 46#L
DIN: DIN S52
Some Information About The Wafer Butterfly Valves Of Ours:
1. Size: DN50-65; DN80; DN100-600
2. Body: Cast iron/Ductile iron/Cast steel;
3. Disc: Ductile iron/Stainless steel/Aluminum Bronze
4. Seat: NBR/ EPDM / PTFE/ VITON

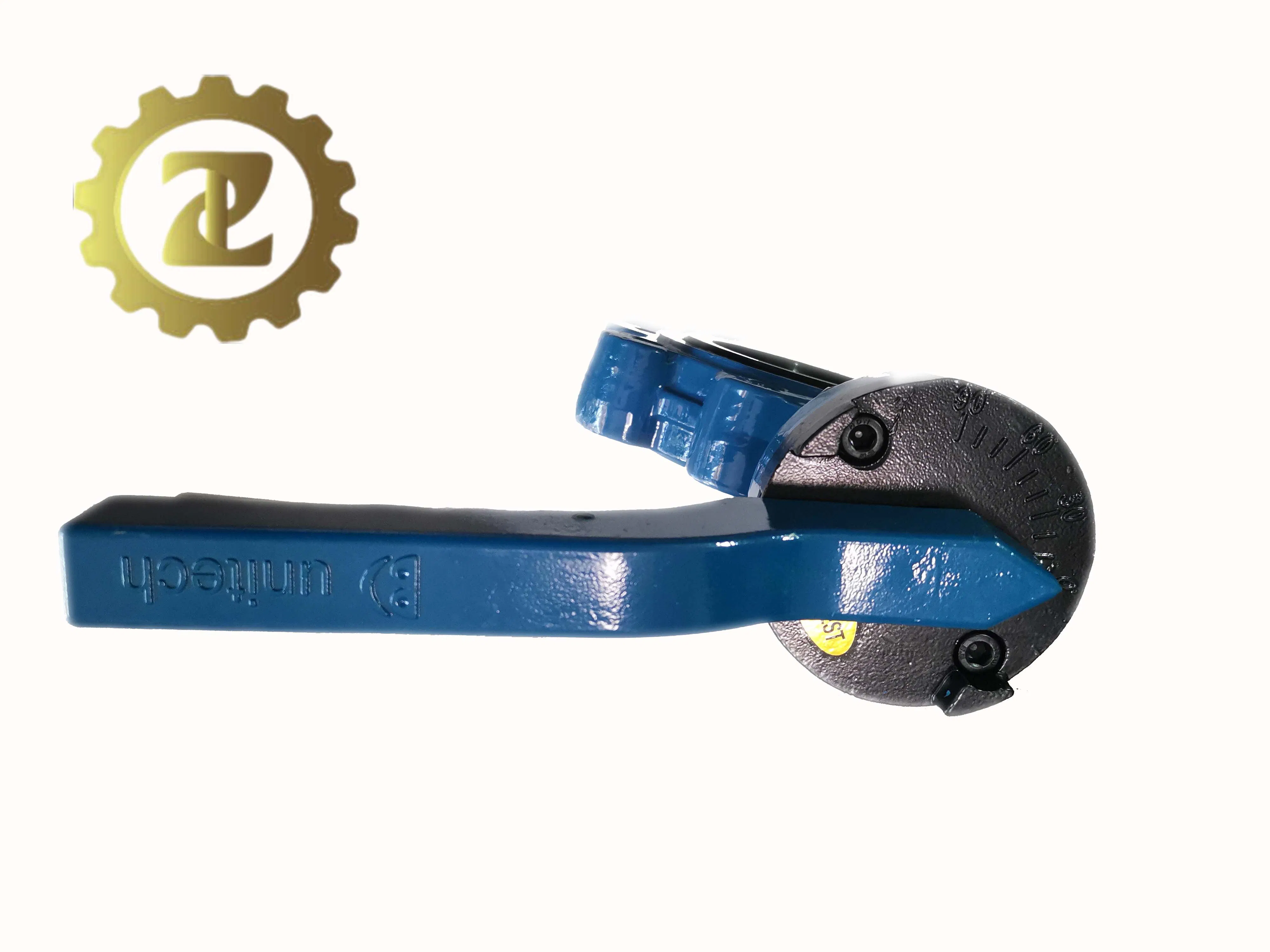

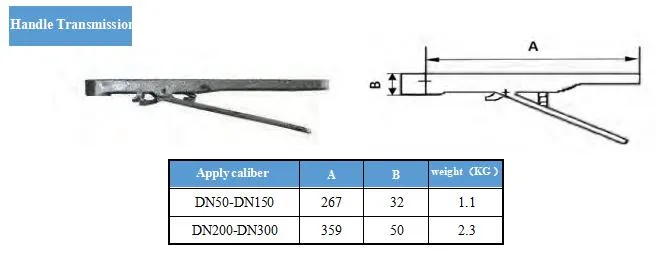

5. Available with lever handles, manual gear operators, and electric or pneumatic actuators.
| Flange connection size | Main material | Type of drive | ||||||
| JIS | DIN | ANSI | BODY | DISC | SEAT | STEM | ||
5K | PN10 | 125LB | FC | FCD/DI | NBR | WCB | Lever Type | Worm Gear |
10K | PN16 | 150LB | FCD/DI | SS | EPDM | SS | Center Handle | Electric Actuator |
SC/WCB | AL-Bronze | PTFE | Pneumatic Actuator | Hydraulic Actuator | ||||
VITON | ||||||||

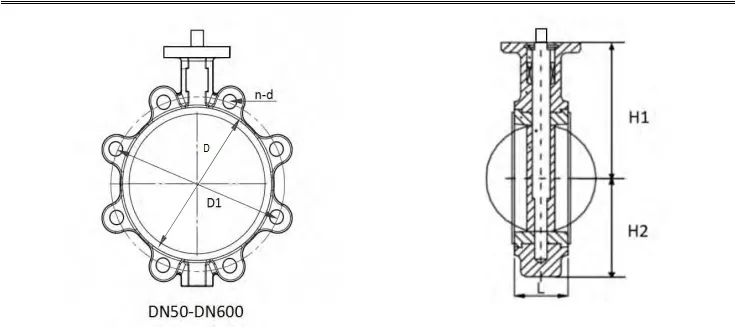

DN | L | D | JIS | DIN | H1 | H2 | ||||||
| 5K | 10K | PN10 | PN16 | |||||||||
| D1 | n-d | D1 | n-d | D1 | n-d | D1 | n-d | |||||
| 50 | 43 | 88 | 105 | 4×M12 | 120 | 4×M16 | 125 | 4×M16 | 125 | 4×M16 | 132 | 97 |
| 65 | 46 | 101 | 130 | 4×M12 | 140 | 4×M16 | 145 | 4×M16 | 145 | 4×M16 | 151 | 112 |
| 80 | 46 | 116 | 145 | 4×M16 | 150 | 8×M16 | 160 | 8×M16 | 160 | 8×M16 | 132 | 97 |
| 100 | 52 | 149 | 165 | 8×M16 | 175 | 8×M16 | 180 | 8×M16 | 180 | 8×M16 | 151 | 112 |
| 125 | 56 | 175 | 200 | 8×M16 | 210 | 8×M20 | 210 | 8×M16 | 210 | 8×M16 | 167 | 123 |
| 150 | 56 | 207 | 230 | 8×M16 | 240 | 8×M20 | 240 | 8×M20 | 240 | 8×M20 | 185 | 135 |
| 200 | 60 | 260 | 280 | 8×M20 | 290 | 12×M20 | 295 | 8×M20 | 295 | 12×M20 | 215 | 168 |
| 250 | 68 | 316 | 345 | 12×M20 | 355 | 12×M22 | 350 | 12×M20 | 355 | 12×M24 | 260 | 205 |
| 300 | 78 | 368 | 390 | 12×M20 | 400 | 16×M22 | 400 | 12×M20 | 410 | 12×M24 | 305 | 240 |
| 350 | 78 | 437 | 435 | 12×M22 | 445 | 16×M22 | 460 | 16×M20 | 470 | 16×M24 | 327 | 268 |
| 400 | 102 | 484 | 495 | 16×M22 | 510 | 16×M24 | 515 | 16×M24 | 525 | 16×M28 | 371 | 310 |
| 450 | 114 | 534 | 555 | 16×M22 | 565 | 20×M24 | 565 | 20×M24 | 585 | 20×M28 | 412 | 338 |
| 500 | 127 | 584 | 605 | 20×M22 | 620 | 20×M24 | 620 | 20×M24 | 650 | 20×M31 | 450 | 368 |
| 600 | 154 | 690 | 715 | 20×M24 | 730 | 20×M30 | 725 | 20×M24 | 770 | 20×M34 | 515 | 430 |
Company Profile:
Tianjin Zhonghui Valve Co., Ltd is an integrity valve manufacturer, which has our own foundry, matching shop, and assembly line, so we can control the overall quality, and guarantee the delivery time.
Our products have met with warm reception based on excellent quality, good shipment, and timely delivery time all over the world. They have been exported to Korea, Japan, Singapore, France, and so on.
Awaiting your consultation and visit!

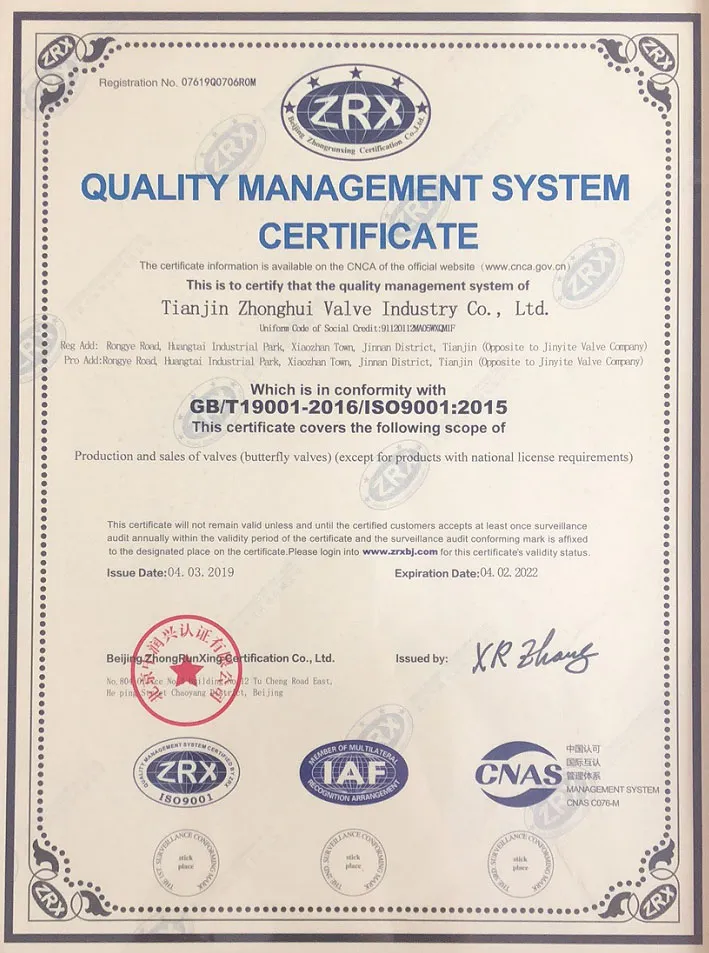

Certifications:
Packing & Logistic:
FAQ:
1. Q: Can I have my own customized product?
A: Yes, you can customize the color, size, package, mark, material, etc.
2. Q: Do you provide a free sample?
A: Yes, we could offer the sample for free but we don't pay the cost of freight.
3. Q: How long is your delivery time?
A: Generally 5~10 days if the goods are in stock, and maybe 15~20 days if there aren't enough, it depends on your quantity.
4. Q: Are you a manufacturer or trading company?
A: We are a valve manufacturer and a trading company as well.
5. Q: Is there any stock in your factory?
A: We stock valves of normal sizes.
6. Q: What are your terms of payment?
7. Payment
T/T, L/C, OA, D/P, D/A
8.Transportation
By DHL, UPS, EMS, FedEx, SF, by Air, by Sea.
9. Q: How do I contact you?
A: You can contact us using TM( TradeMessenger ), cell phone, Email, etc.
10. Q: What's your product range?
A: We can produce the butterfly valve, gate valve, check valve, air vent head, hose valve, globe valve by ISO/ANSI/ANME/DIN/JIS/ EN//BS standard.
11. Q: Which countries do you export to?
A: We export directly to the vast majority of countries in the world.
12. Q: What certificates will you provide?
A: We can provide CE/ ISO.
As an experienced manufacturer, you can rest assured of the quality and service!
