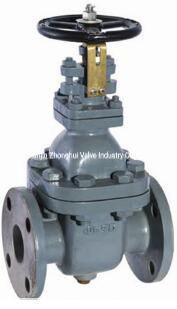

FC 10K JISF 7364 Marine Cast Iron Gate Valve
| 1. The product design and manufacture meet the requirements of foreign advanced standards, with reliable sealing and excellent performance. |
| 2. Compact and reasonable structure design, beautiful appearance. |

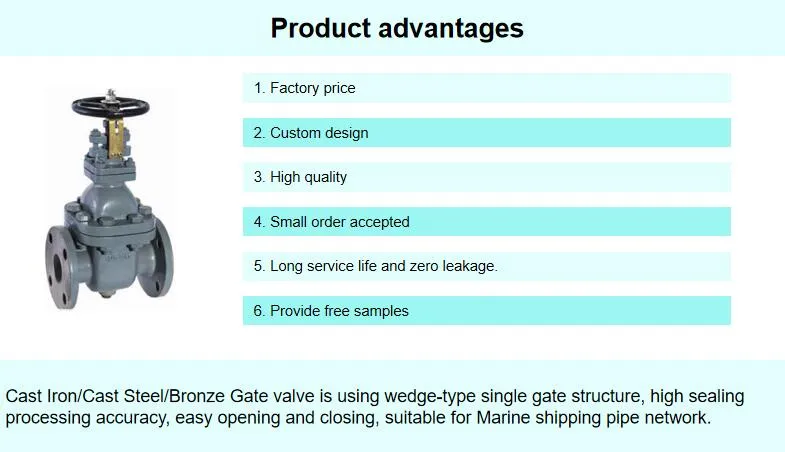

| 3. Using wedge-type single gate structure, high sealing processing accuracy, easy opening and closing. |
| 4. Valve body materials are complete in variety, and packing and gaskets are reasonably selected according to actual working conditions or user requirements, which can be applied to various pressure, temperature and medium working conditions. |
| 5. Adopt a variety of domestic and foreign pipe flange standards and flange sealing surface types to meet various engineering needs and user requirements of the marine shipping industry. |
| Standards & Specifications |
| Design & Manufacture | FC: JISF7363/7364/F7366/F7369 WCB: JISF7363C/JISF7366 |
| Face to Face | FC: JISF7363/7364/F7366/F7369 WCB: JISF7363C/JISF7366 |
| Flange drilling | FC: JISF7363/7364/F7366/F7369 WCB: JISF7363C/JISF7366 |
| Working Pressure(KG) | 5K/10K/16K |
| Sealing Pressure(KG) | 7.7/15.4/24.2 |
| Body Pressure(KG) | 10.5/21/33 |
| Working Temperature | NBR(0~70ºC) |
| EPDM(0~120ºC) |
| Bronze(0~400ºC) |
| Operating mode | Hand wheel, Gear box, Pneumatic, Electric, Hydraulic actuators |
| Applicable medium | Water, oils, Chemicals, Foodstuff, Medicament, Gas etc. |
| Application field | Water supply and drainage, Water conservancy projects, Building project, Food and beverage, Chemical industry, Petroleum industry, Dry powder and Gas plants etc . |
|
| Size & Material |
| Size Range | DN50-300 |
| Flange connection size | JIS | 5K/10K/16K |
| Main material | Body | Cast iron, Cast Steel, Bronze |
| Gate | Stainless steel, Bronze |
| Bonnect | Cast iron, Ductile iron, Cast steel |
| O-ring seals | NBR,EPDM |
| Thrust bearings | Bronze |
| Wedge disc | Cast iron, Cast Steel, Bronze |
| Bolt | Carbon Steel, Alloy Steel |
| Seals | NBR,EPDM |
| Stem | Stainless steel, Bronze |
| Gland | Ductile Iron, cast steel |
| Dust Cover | PTFE |
| Hand wheel | Cast iron, Ductile Iron |

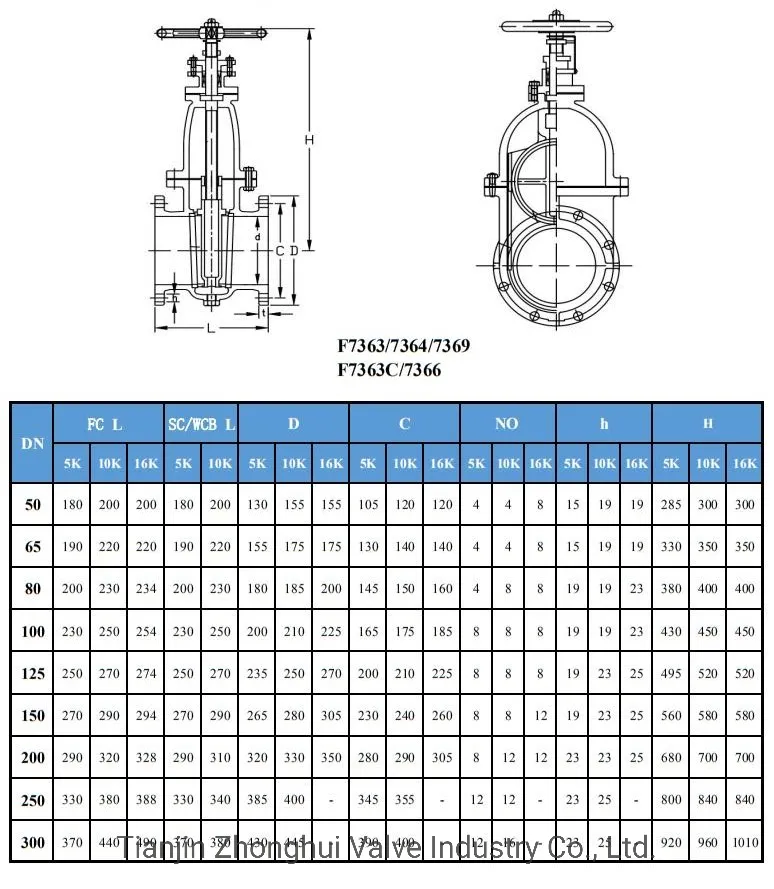

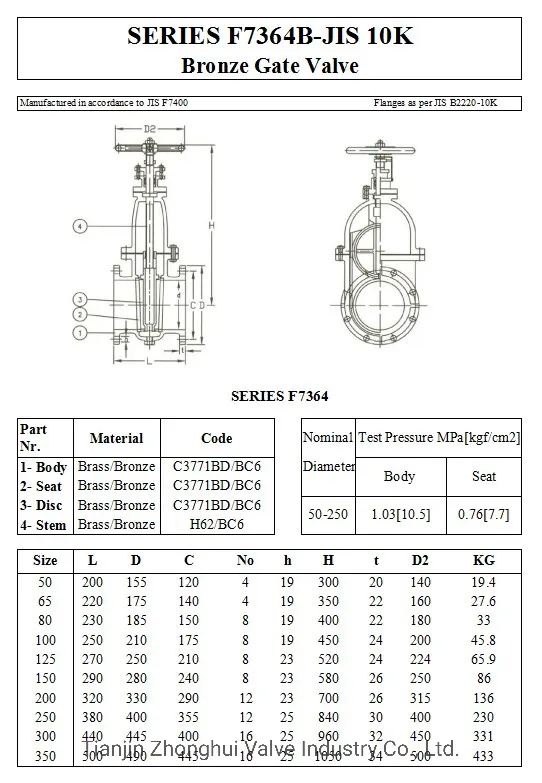

| Marine Gate Valve drawings & Dimensions |
| Tianjin zhonghui Valve Industry Co.,Ltd is an integrity valve manufacturer, which has its own foundry, matching shop, and assembly line. As a result, we can control the overall quality by ourselves and guarantee delivery time. Our main products are gate valve, butterfly valve, check valve and control valve. Also, we can provide valve parts, including valve body, disc, seat, stem and spare parts. Our butterfly valve satisfies to the international standard like GB, ANSI/API, DIN as well as client's special specifications. The butterfly valves have met with warm reception based on excellent quality, good shipment and timely delivery time all over the world. We have been exported to Korea, Japan, Singapore, France and so on. We await your consultation and visit. |
|
|
|
|
|
|
| Certifications: CE & ISO9001 |
FAQ
1.Can I have a sample order for valve?
A: Definitely Yes.We welcome sample order to test and check quality. Mixed samples are acceptable.
2. Can you OEM or ODM?
A:Yes, we have a great research & development team. The products can be made according to your request.Please send us high resolutionimages,your logo and other materials needed . We will send you finished files for confirmation.
3. Can you provide the relevant documentation and certificate?
A:Yes, we can provide you with the documentation and certificate you need ,IS09001:2000 international quality system certification,(CE)certification of the European Community, Det Norske Veritas (DNV) factory certification, Lloyd's Register (LR) factory certification, China Classification Society (CCS) quality system certification and the FM and UL certification of the US, Bureau Veritas(BV) ,American Bureau of Shipping(ABS) etc.Of course we can also provide you the test Report; Certificate of Material Analysis; Certificate of Origin; and other export documents which required.
4.How to proceed an order for valve?
A: Step1 let me know your requirements or application. Step 2 We quote according to your requirements or our suggestions. Step 3 Customer confirms the samples and places deposit for formal order. Step 4 We arrange the prodution.
5.What is your terms of delivery?
A: We accepte EXW,FOB,CIF,etc. You can choose the one which is the most convenient for you.

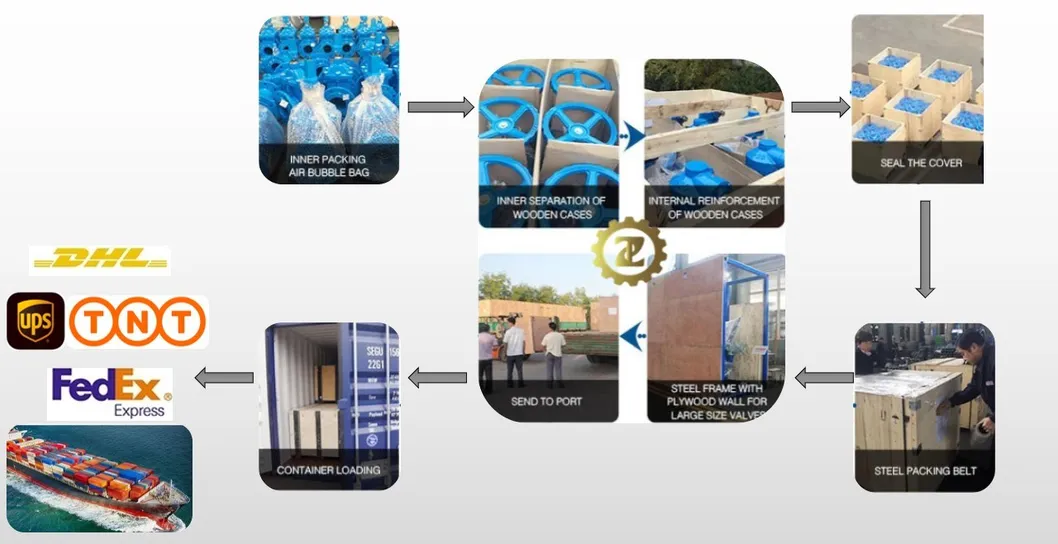

6.What's the package and how do you ship the goods?
A: Usually is wood pallet as your requst. We usually ship by sea.Airline shipping is also optional.
7. How to deal with after sales?

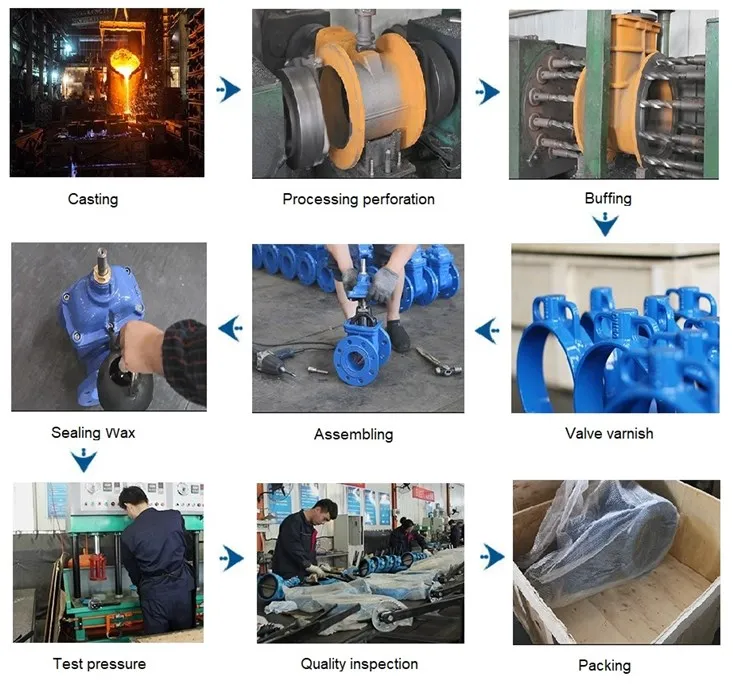

A: warranty time : 12 months from the shipment ; and we will be responsible for all the quality problems. Quality control : High quality mold./Raw materials control/Production process quality control/Final inspection/Water testing (no leaking).
