Product Description

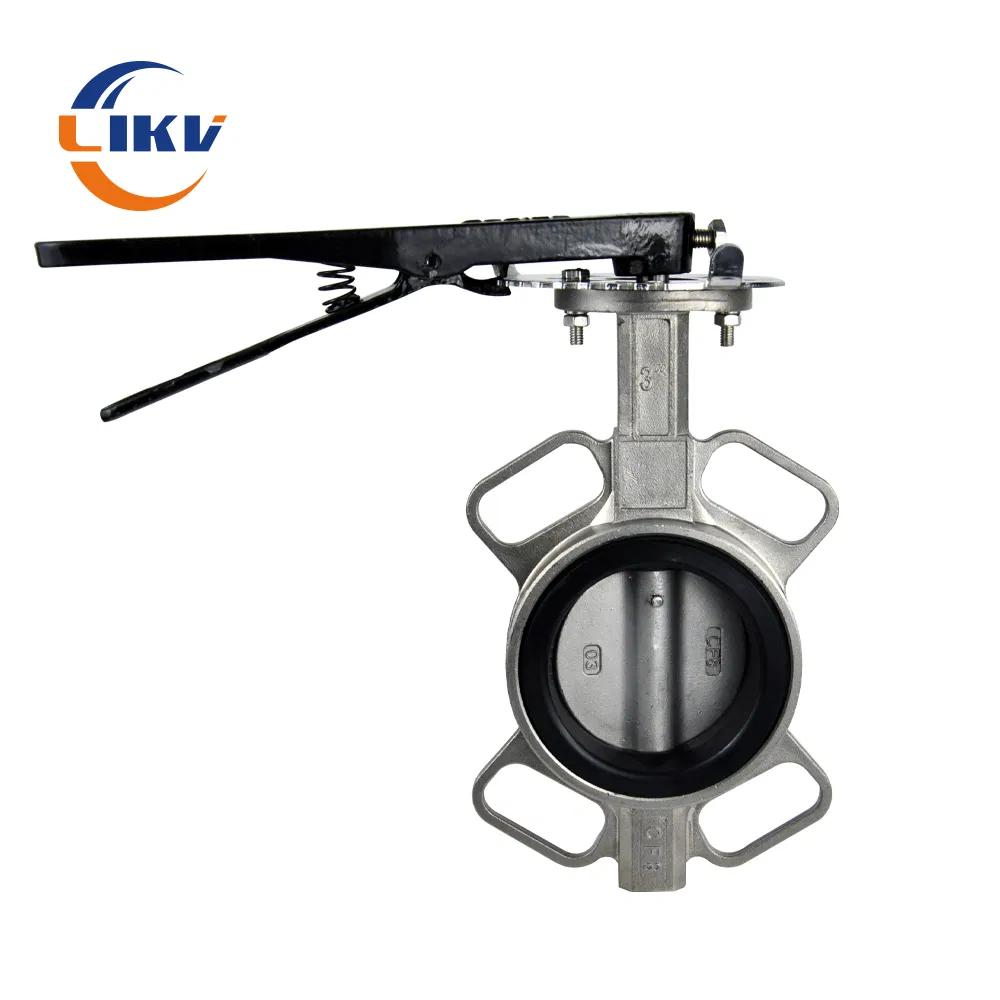

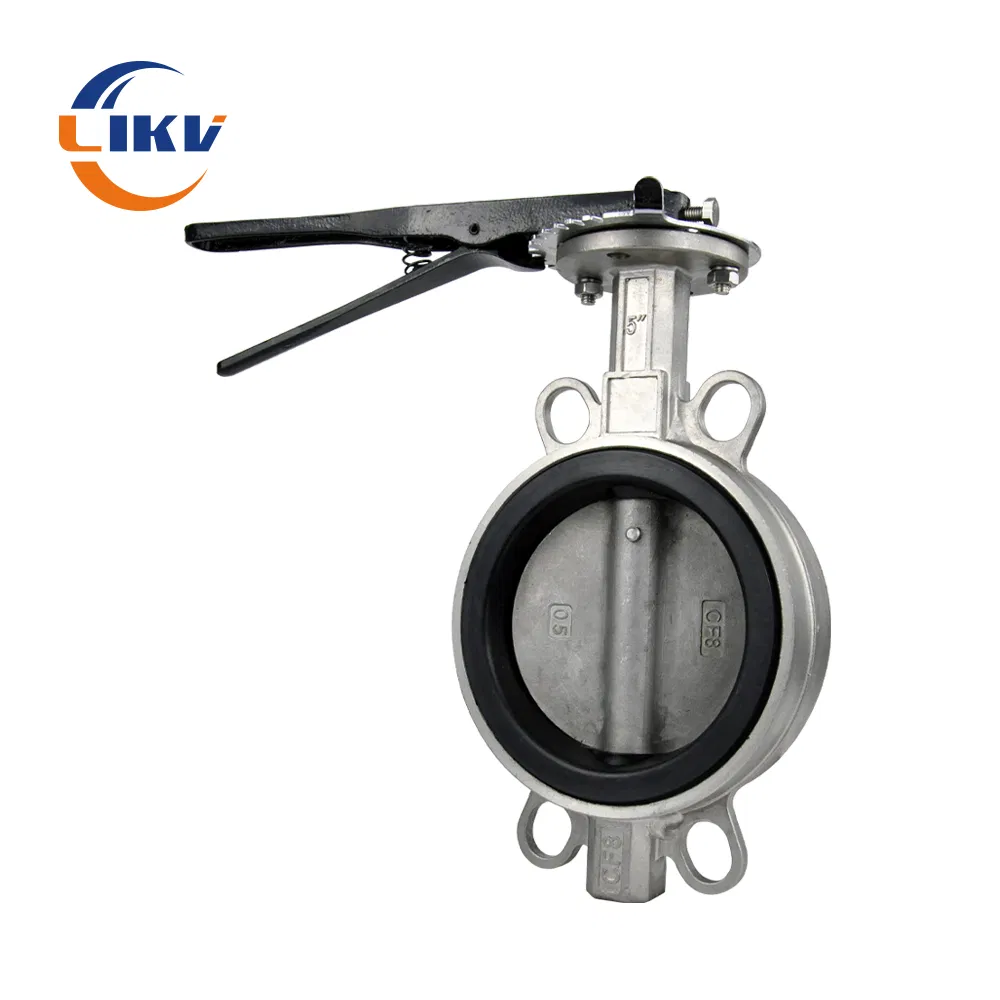

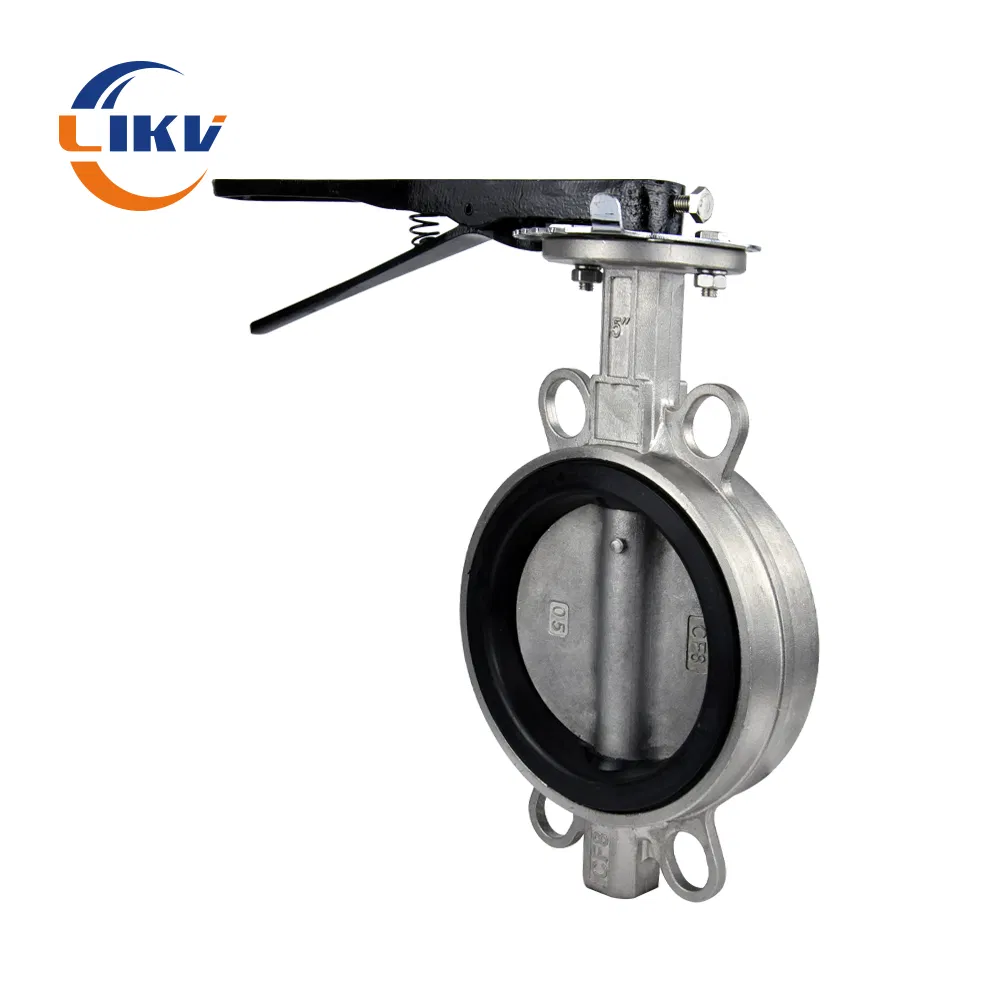

Epoxy Resin sprayed Blue PN6 DN25 DN500 Butterfly Valve With Handle

Pressure and temperature

Working pressure	PN10, PN16, CL150, JIS 5K/10K
Testing pressure	Shell: 1.5 times rated pressure Seat: 1.1 times rated pressure
Working temperature	-10 °C to 80°C (NBR) -10 °C to 120°C (EPDM) -10 °C to 150°C (PTFE)
Suitable media	water, oil and gas

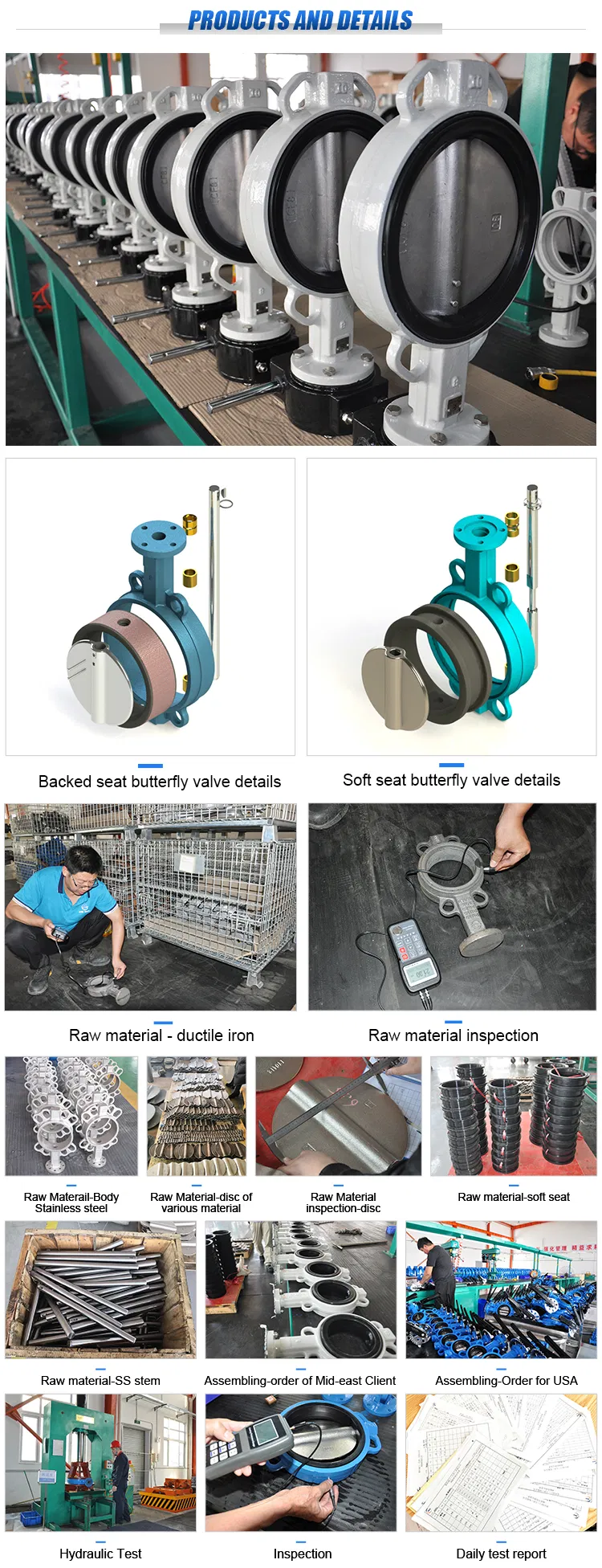

Product detail

Parts	Material
Body	Cast iron, Ductile iron, Carbon steel, Stainless steel.
Seat	EPDM, NBR, VITON, PTFE
Disc	Nickel ductile iron, AI bronze, Stainless steel, Carbon steel, Nylon
Stem	Carbon steel, Stainless steel
Bushing	PTFE
"O" ring	PTFE
Pin	Stainless steel
Key	Stainless steel

Standard

Design Standard	EN 593, MSS SP67, API 609, BS5155
Inspection & Test	API 598, ISO 5208, EN 12266
End Standard	ANSI: B16.1 CL 125LB; B16.5 CL 150LB; B16.47 150LB. AS: 2129 Table D & E BS 10 Table D & E DIN: 2501: PN6, PN10 & PN16 EN: 1092: PN6, PN10 & PN16 ISO 2531: PN6, PN10 & PN16 ISO 7005: PN6, PN10 & PN16 KS: B 1511 / JIS B 2210 5K & 10K MSS: SP44 CL. 150LB AWWAC207 SABS: 1123 Table 1000/3 & Table 1600/3
Face to Face	ISO 5752, EN 558, MSS SP67, API 609 and DIN3202
Top Flange	ISO 5211

Epoxy Resin Sprayed Blue Pn6 DN25 DN500 Butterfly Valve with Handle

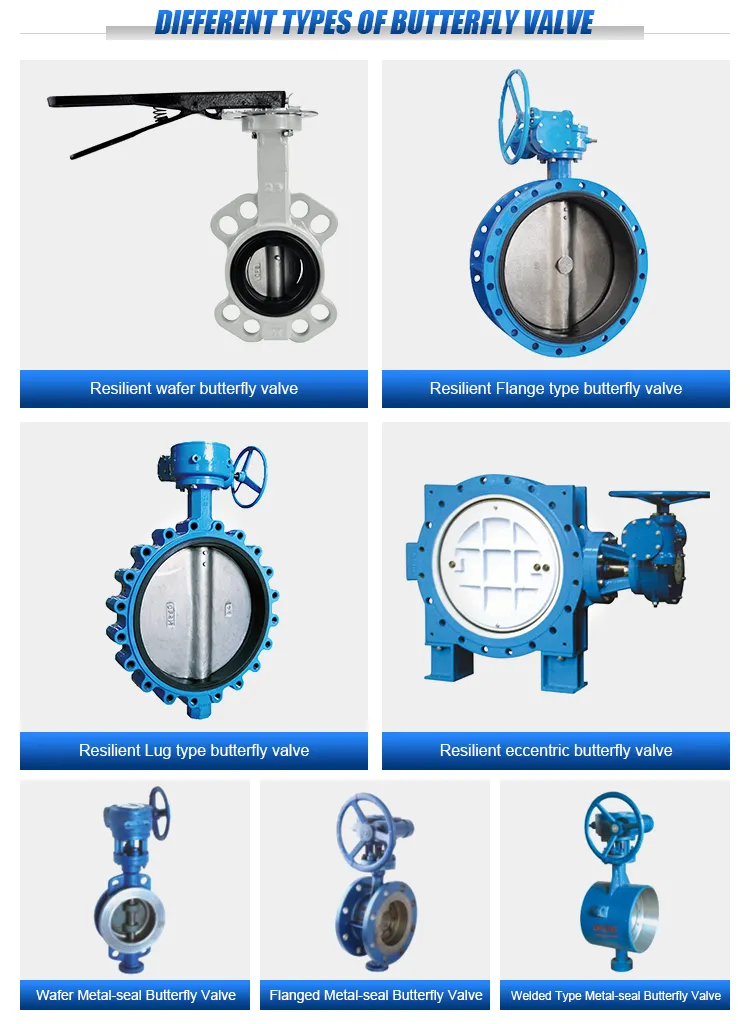

Different Types of Butterfly Valve

We can produce various types of butterfly valves according to your requirement and drawings.

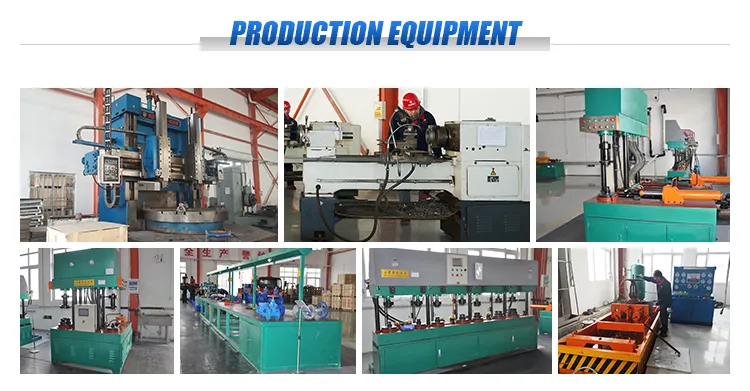

Production Equipment

Packing & Delivery

Company Profile

LIKE VALVE (TIANJIN) Co., Ltd locates in Tianjin-next to the largest sea port in North -Tianjin seaport; with more than 20 years experienced managing, manufacturing and quality control team; make efforts to produce high level quality valves of China.

Like valve has design research and development, manufacturing, marketing and aftersale services. We have the independent R&D center, advanced manufacturing technology and strictly implement the relevant international standards.

With advanced engineering design approaches, well-developed manufacturing equipment, testing verification facilities and strict QC as per ISO9001 certificate system, we "Like Valve" ensure that each part in every product we supply is in high quality and performance.

We specialize in in water valves: such as butterfly valve, gate valve, check valve, Hydraulic control valve, strainers, WRAS certified material avaiable; and oil and gas valves such as: gate valve, globe valve, ball valve, check valve, strainers etc, with API 6D certificate; also and other series products. We also customize valves in different materials, pressure, size and other products, according to customers requirement.

"Like Valve" products have exported to more than 18 countries: such as USA, Argentina, Brazil, Russia, Spain, UAE, Morroco, India, Bangladesh etc; widely used in water supply and drainage, construction, electricity, oil and gas pipe, petrochemical, metallurgical and other industries. Product ingenuity, high quality and reasonable price, trusted by the user.

Epoxy Resin Sprayed Blue Pn6 DN25 DN500 Butterfly Valve with Handle

Epoxy Resin Sprayed Blue Pn6 DN25 DN500 Butterfly Valve with Handle

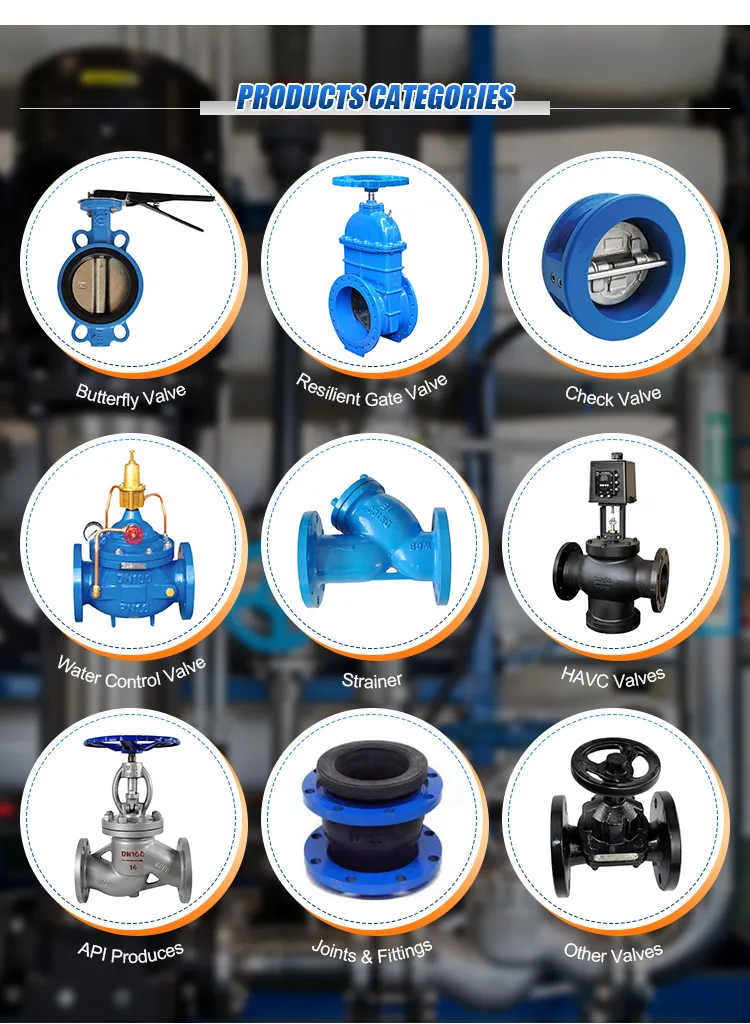

Products Categories

FAQ

Q1: What certificates can you offer?
A:ISO,CE,API 6D,WRAS

Q2: Do you accept OEM?
A:Yes

Q3: Can i get a sample?
A:Yes, of course.

Q4:What is your MOQ?
A:1 pcs acceptable, more discount for larger quantity.

Q5:If all products will do test?
A:Sure, our products is tested piece by piece before delivery, no sampling test.

Q6: What is the payment term.
A:T/T, L/C, Credit Card, or other by discussion

Q7: What is delivery time?
A:Common standard commonly material valves in 7-20 days according to quantity

Q8: What is the warranty?
A:Standard valves warranty: one year after delivery.
