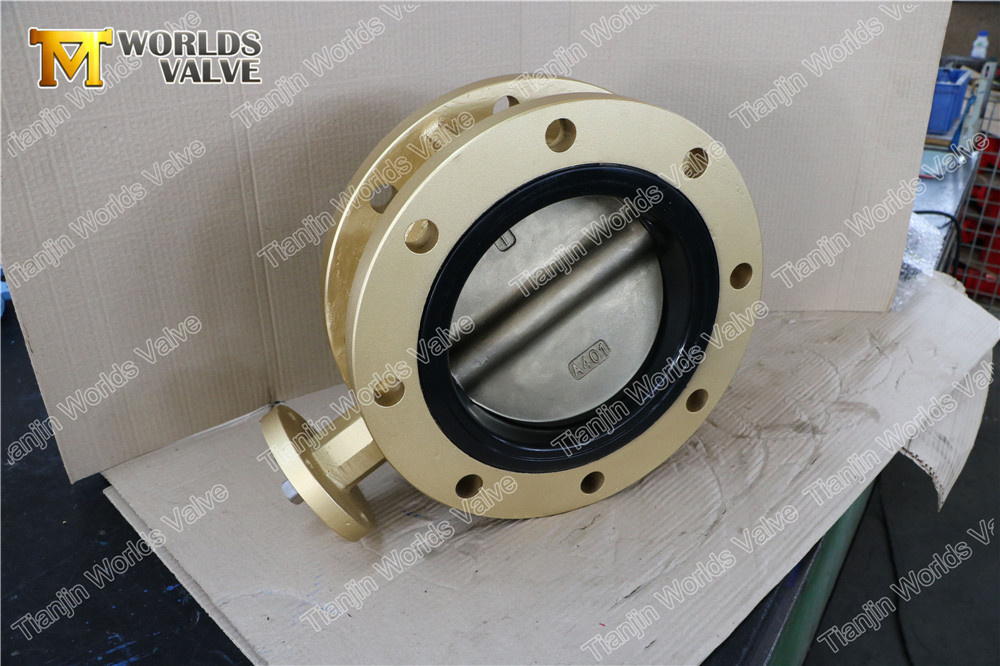

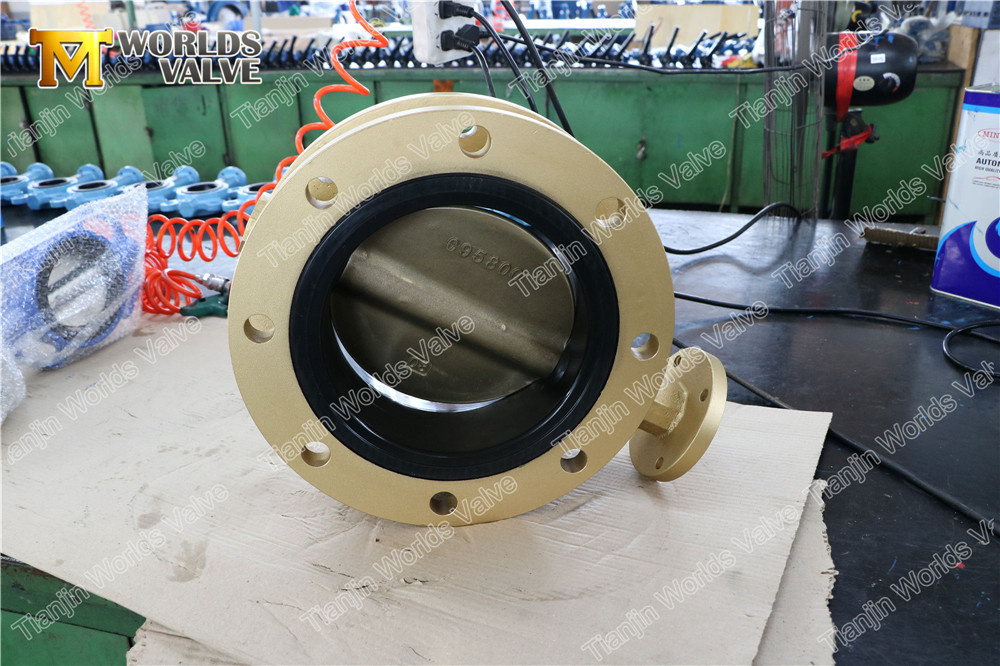

Ali Bronze C95400 C95800 C95500 Double Flanged Rubber Seated Butterfly Valve with No Disc Pin Design for Sea Water
Product Feature: Resilient seated butterfly valve is a Double Flanged design which can be used for dead-end service. This butterfly valve series has many of the design features and benefits , such as high Cv ratings, minimum parts exposed to the line media, greater reliability and a proven r......
Send Inquiry
Product Description
Product Feature:
Resilient seated butterfly valve is a Double Flanged design which can be used for dead-end service. This butterfly valve series has many of the design features and benefits , such as high Cv ratings, minimum parts exposed to the line media, greater reliability and a proven record of long service life. A major design advantage of this valve product lines is international compatibility.
Material :
Technical Parameters:
**COMPANY INTRODUCTION
**Company Goal : OEM service for world-famous valve brand
**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc

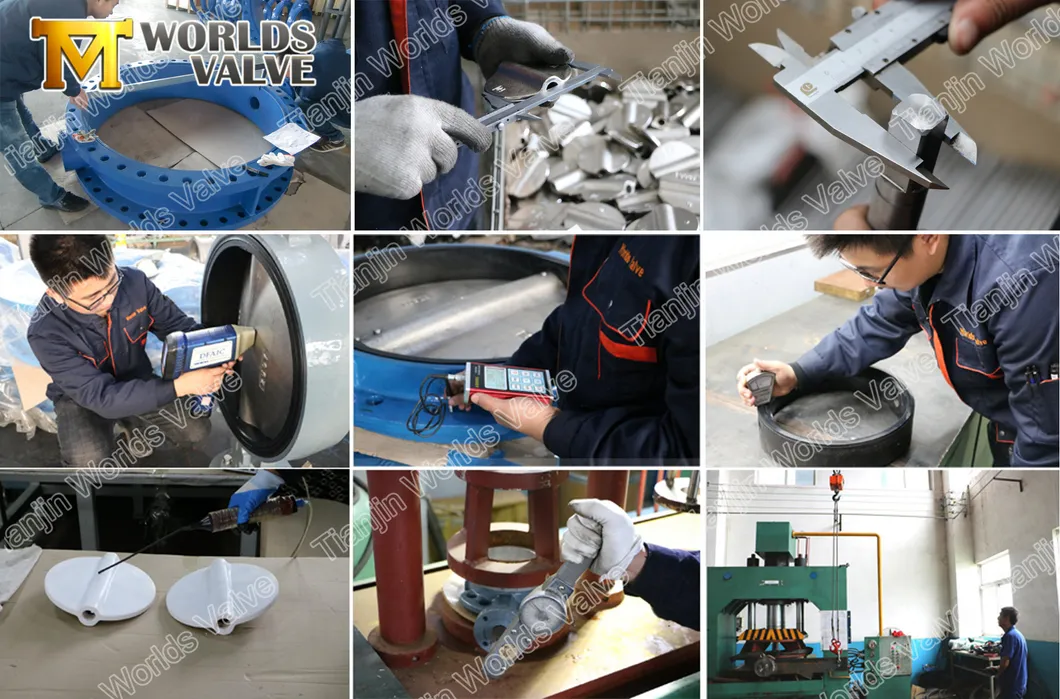

**Dimension Measurement &Inspection
**Assembly Workshop
**Packaging
**Certificates -- CE ISO WRAS ACS certificates
Resilient seated butterfly valve is a Double Flanged design which can be used for dead-end service. This butterfly valve series has many of the design features and benefits , such as high Cv ratings, minimum parts exposed to the line media, greater reliability and a proven record of long service life. A major design advantage of this valve product lines is international compatibility.

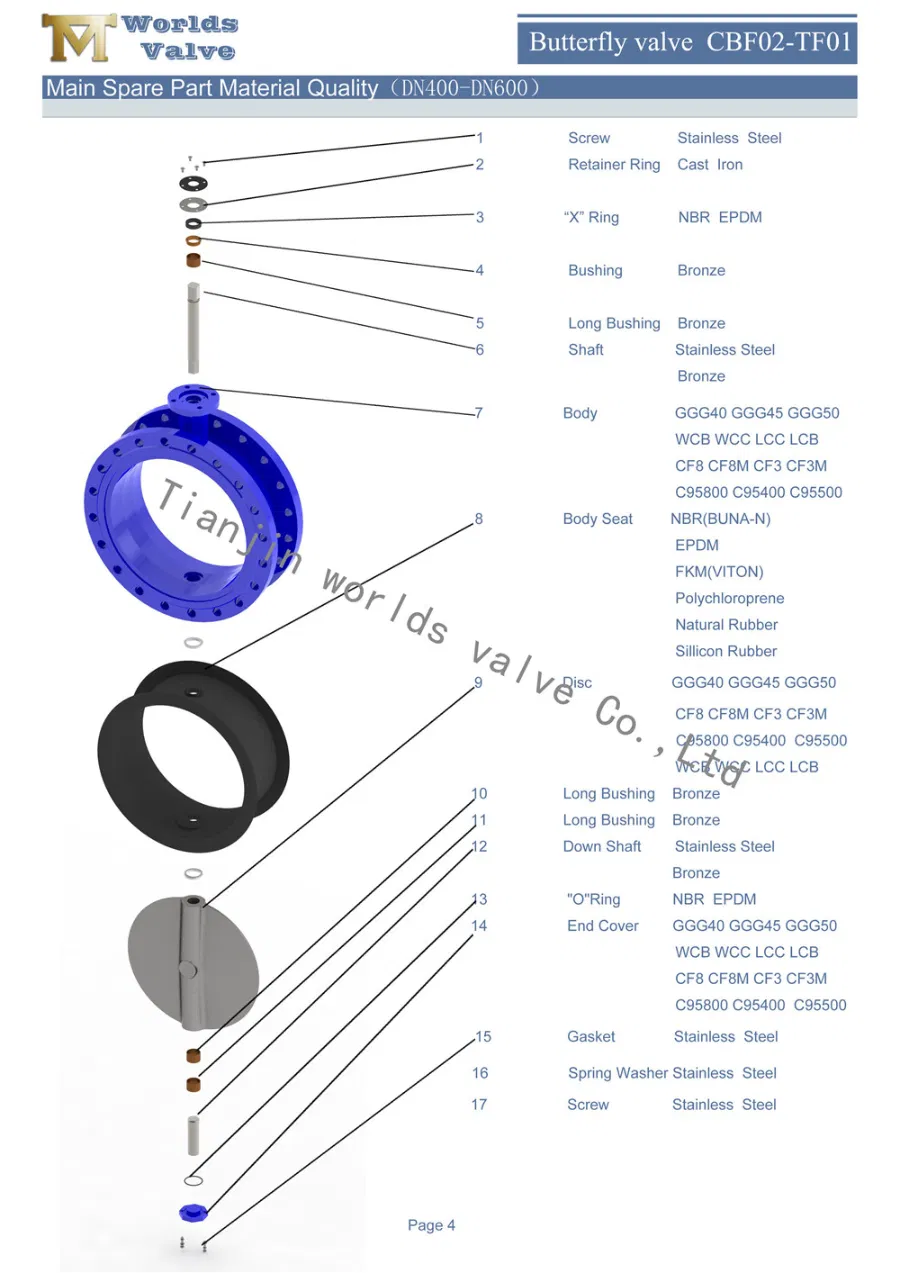

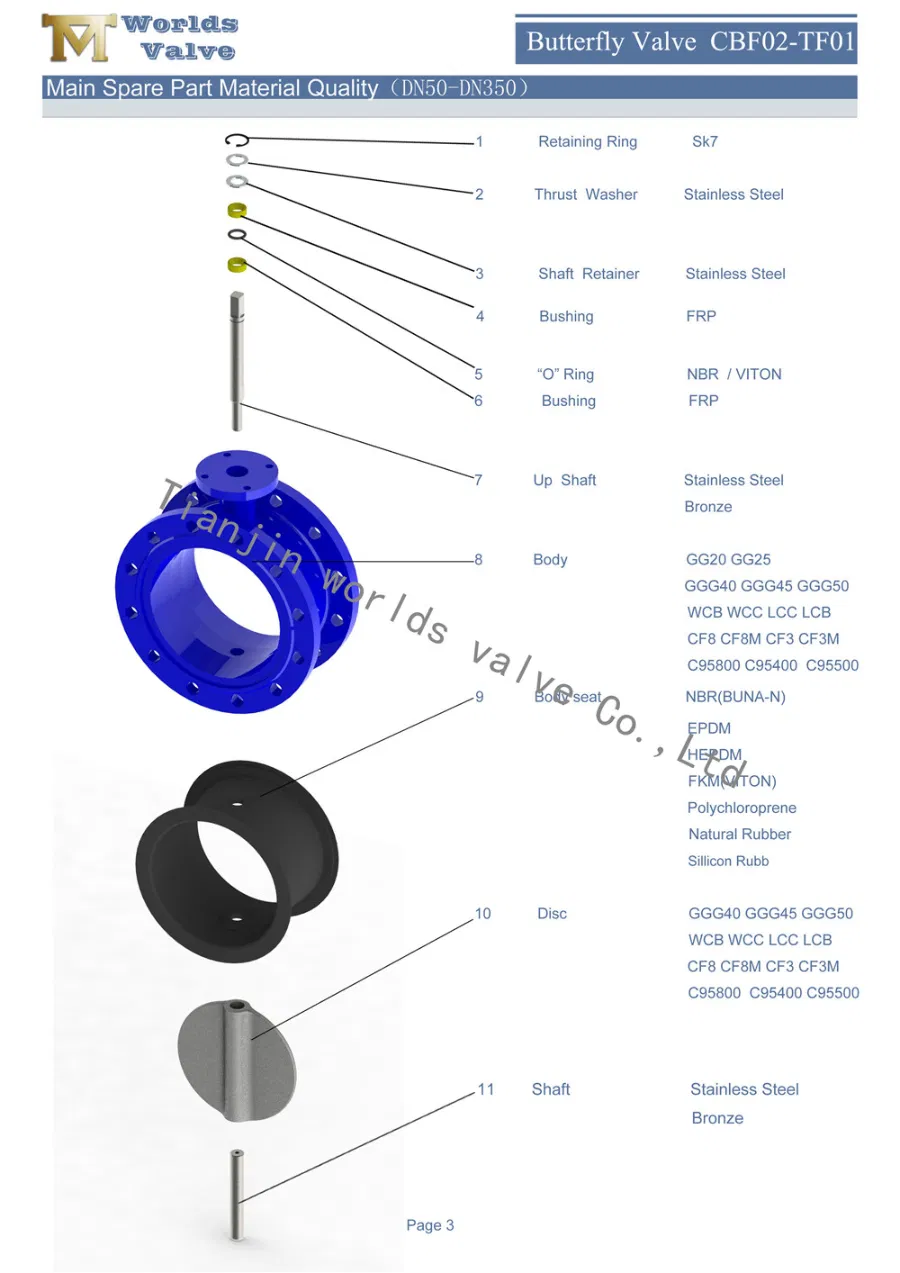

Material :
| BODY | CI, DI, WCB, WCC, LCB, LCC, CF8, CF8M, CF3, CF3M, C95400, C95800, SAF2205, SAF2507, F51, 1.4529^^ |
| DISC | CF8, 304, CF3, 304L CF8M, 316, CF3M, 316L, SAF2205, SAF2507, F51, 1.4529, C95400, C95500, C95800, MONEL^.. |
| SEAT | BUNA-N, NBR, EPDM, HYPALON, NEOPRENE, VITON, FKM, PTFE, RPTFE, TEFLON, NATURAL RUBBER^^ |
| STEM | F410, F420, F430, F431, F304, F316, MONEL 400, MONEL K500^^ |

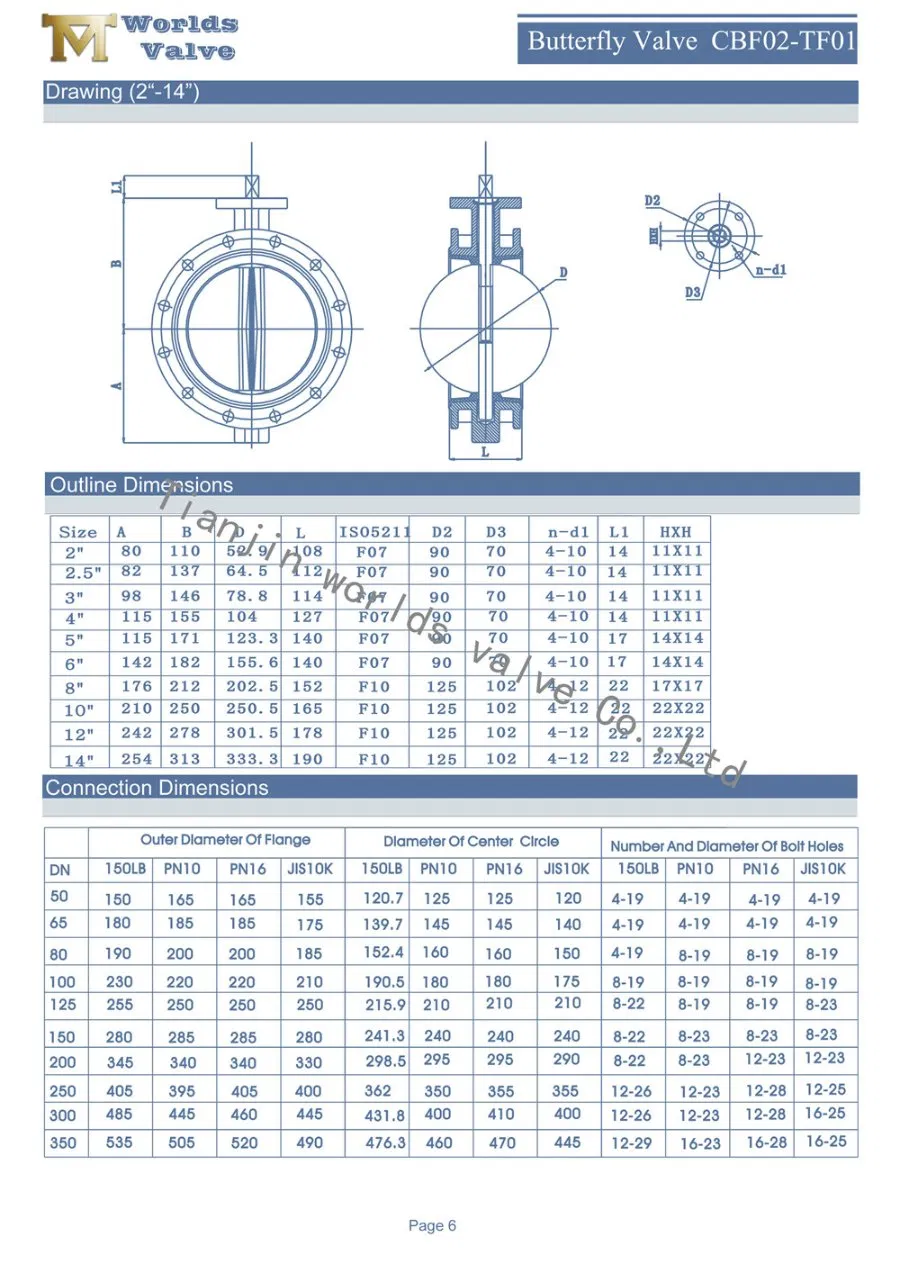

Technical Parameters:
| Size | DN32-DN600 | DN650-DN3000 |
| Working pressure | 16Bar | 10Bar |
| Shell | 24Bar | 15Bar |
| Seal(Air) | 6Bar | 6Bar |
| Operating Temperature | -40ºC~+160ºC | |
| Operating Environment | Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water | |
| Driving method | Hand Lever Worm Gear Electric Pneumatic | |

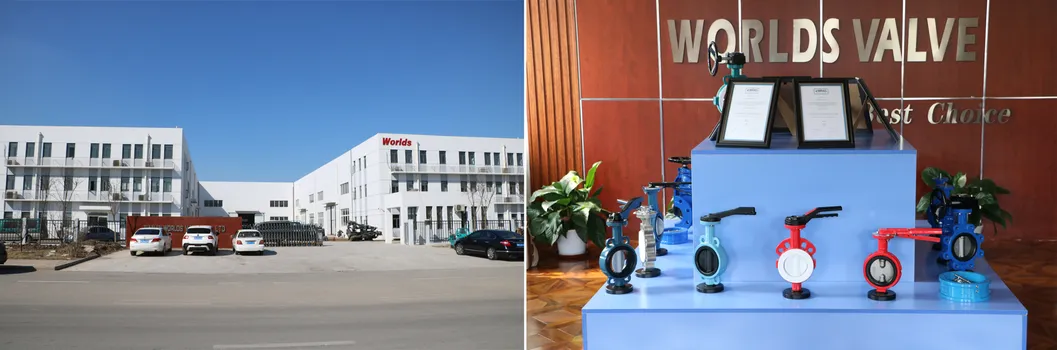

**COMPANY INTRODUCTION
**Company Goal : OEM service for world-famous valve brand

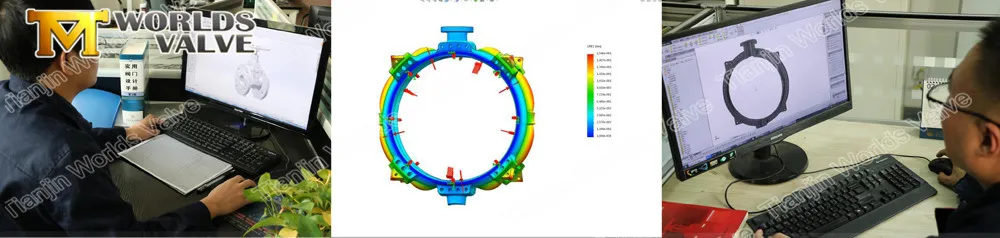

**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
**Dimension Measurement &Inspection

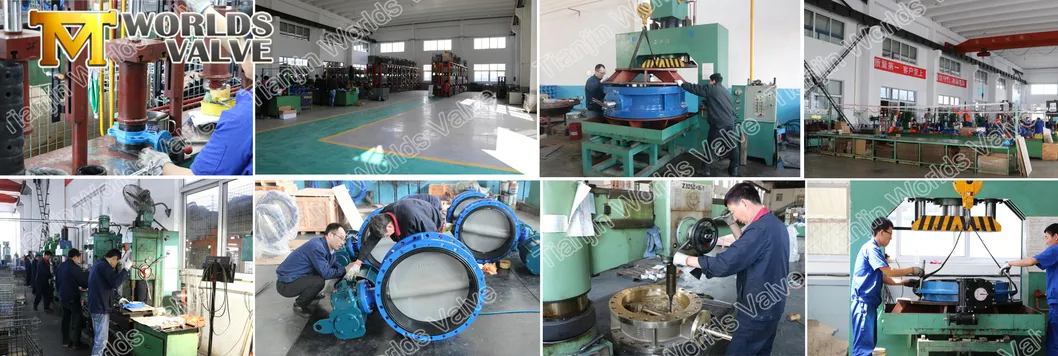

**Assembly Workshop

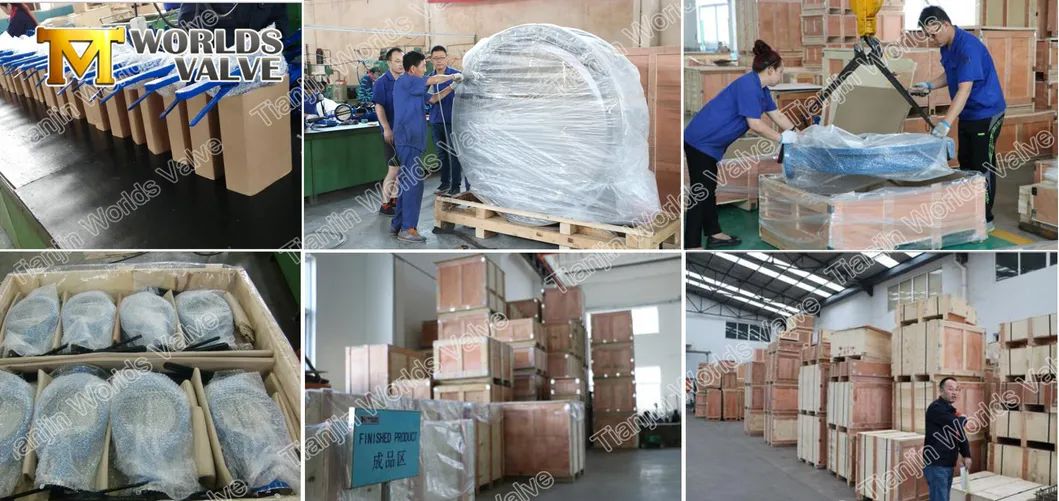

**Packaging

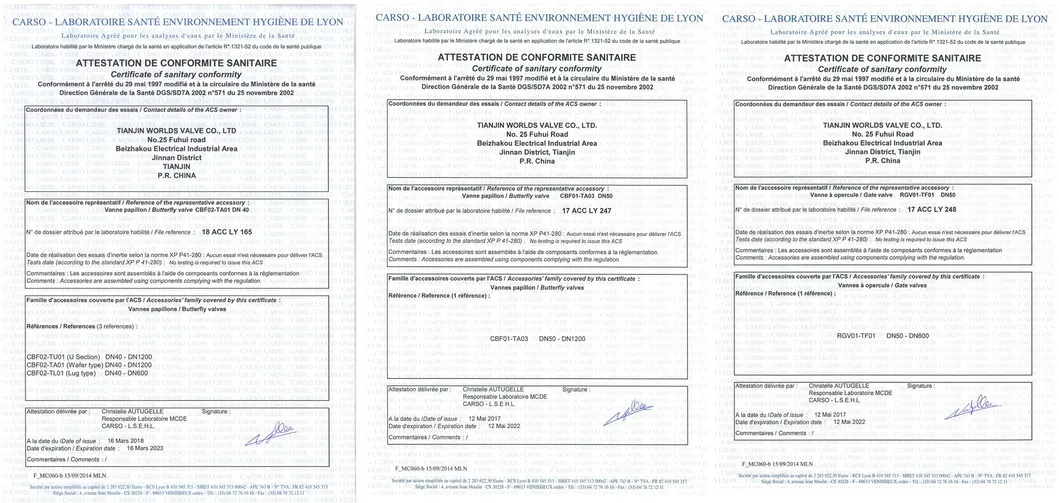

**Certificates -- CE ISO WRAS ACS certificates
