Product Description

Product Feature:
100% bi-directional tight shut-off.
Installation without restriction in direction of flow.
Reduced weight and overall dimensions.
Low pressure loss and reduced energy costs.
High Kv / Cv values.
Easy to clean and disinfect for potable water systems etc.
Self cleaning ( no residue will be trapped ).
Good resistance to corrosion.

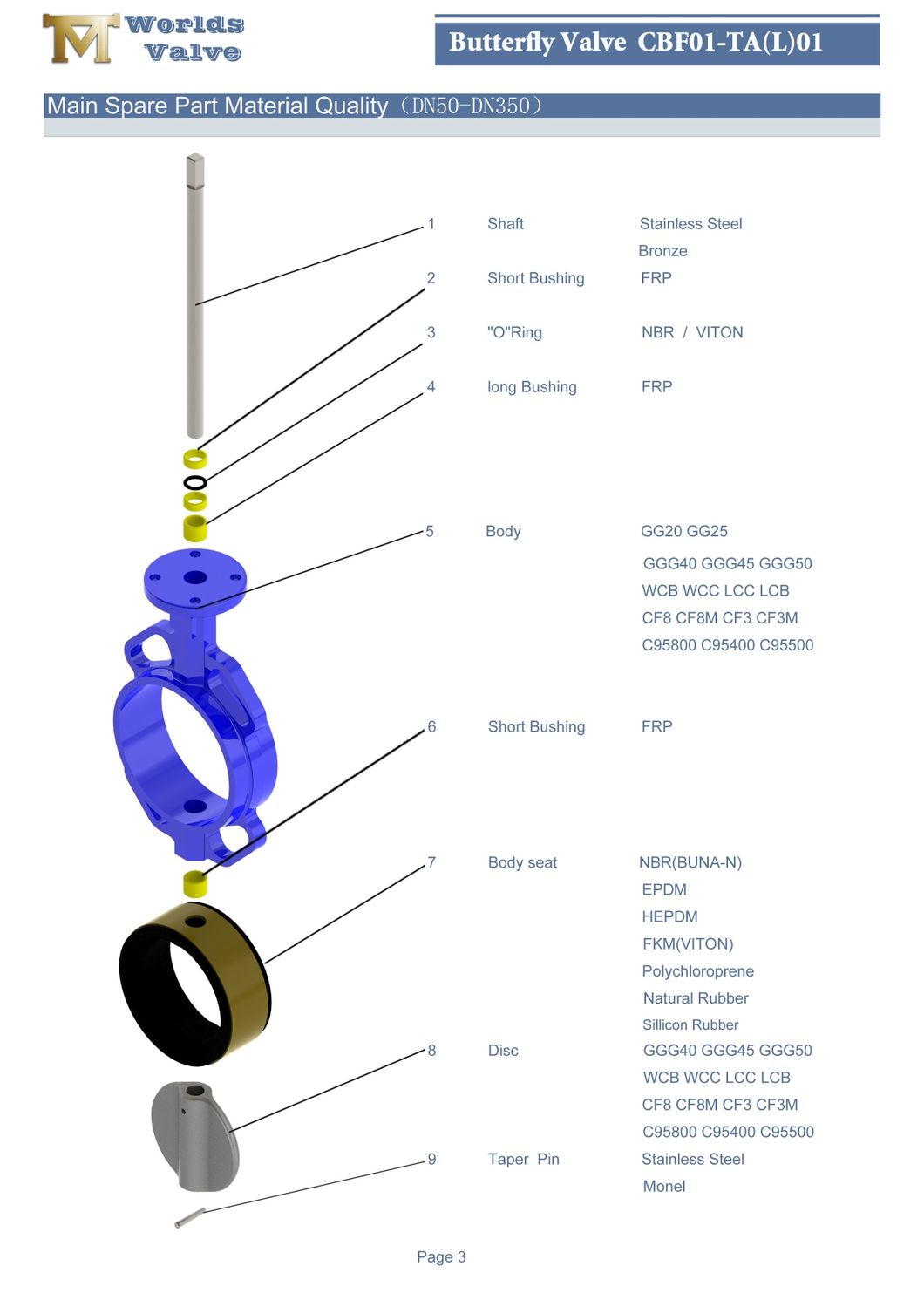

Main Material:

Name	Material
Body	Cast Iron Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Disc	Ductile Iron Carbon Steel Stainless Steel AL-Bronze
Shaft	Stainless Steel Monel K500
Seat	BUNA NBR EPDM VITON PTFE HEPDM Neoprene Hypalon Natural rubber

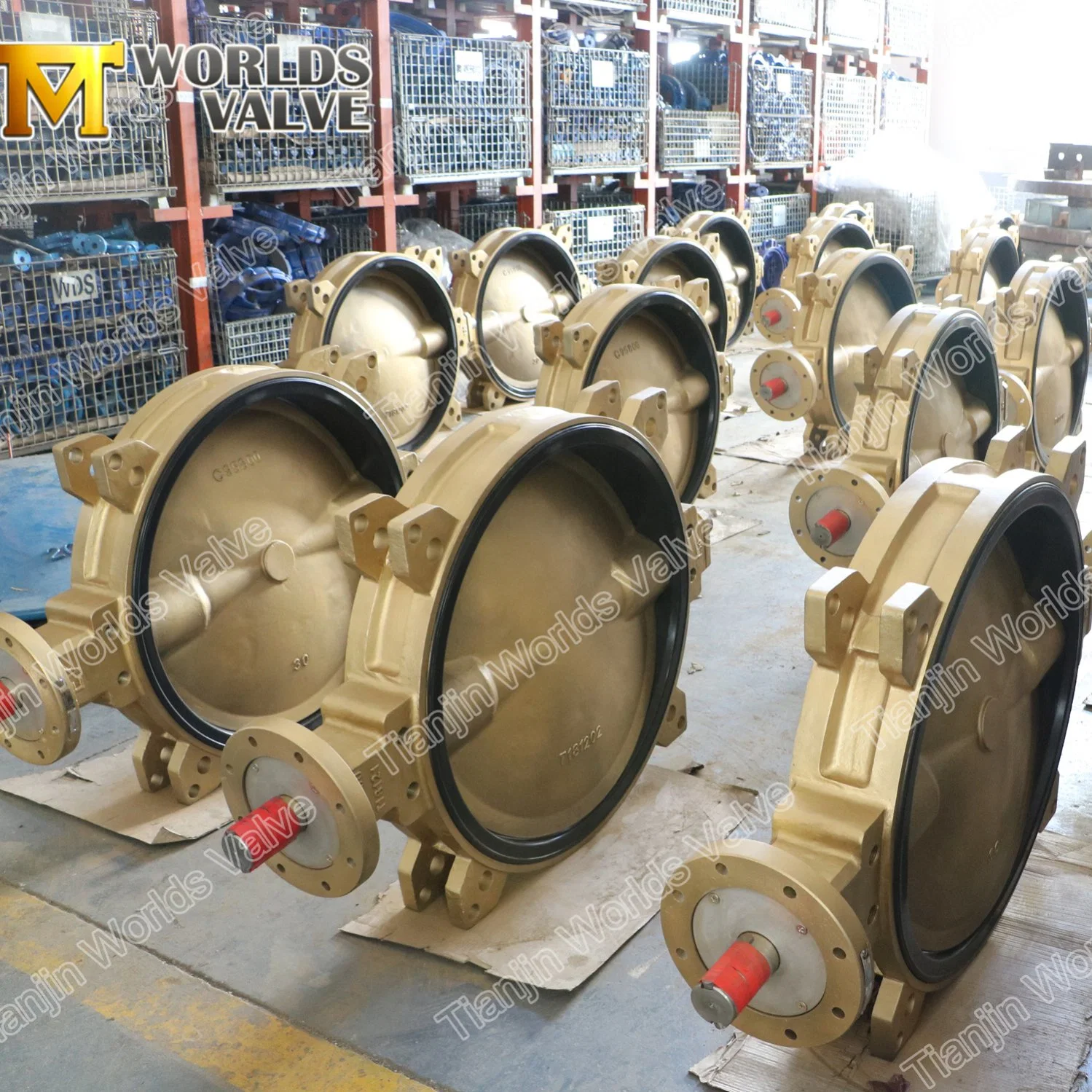

Ab2 B62 C6300 C95400 C95800 Aluminum Bronze Brass Nickel Butterfly Valves ABS Rina Dnv Lr Lloyd′s Register Approved

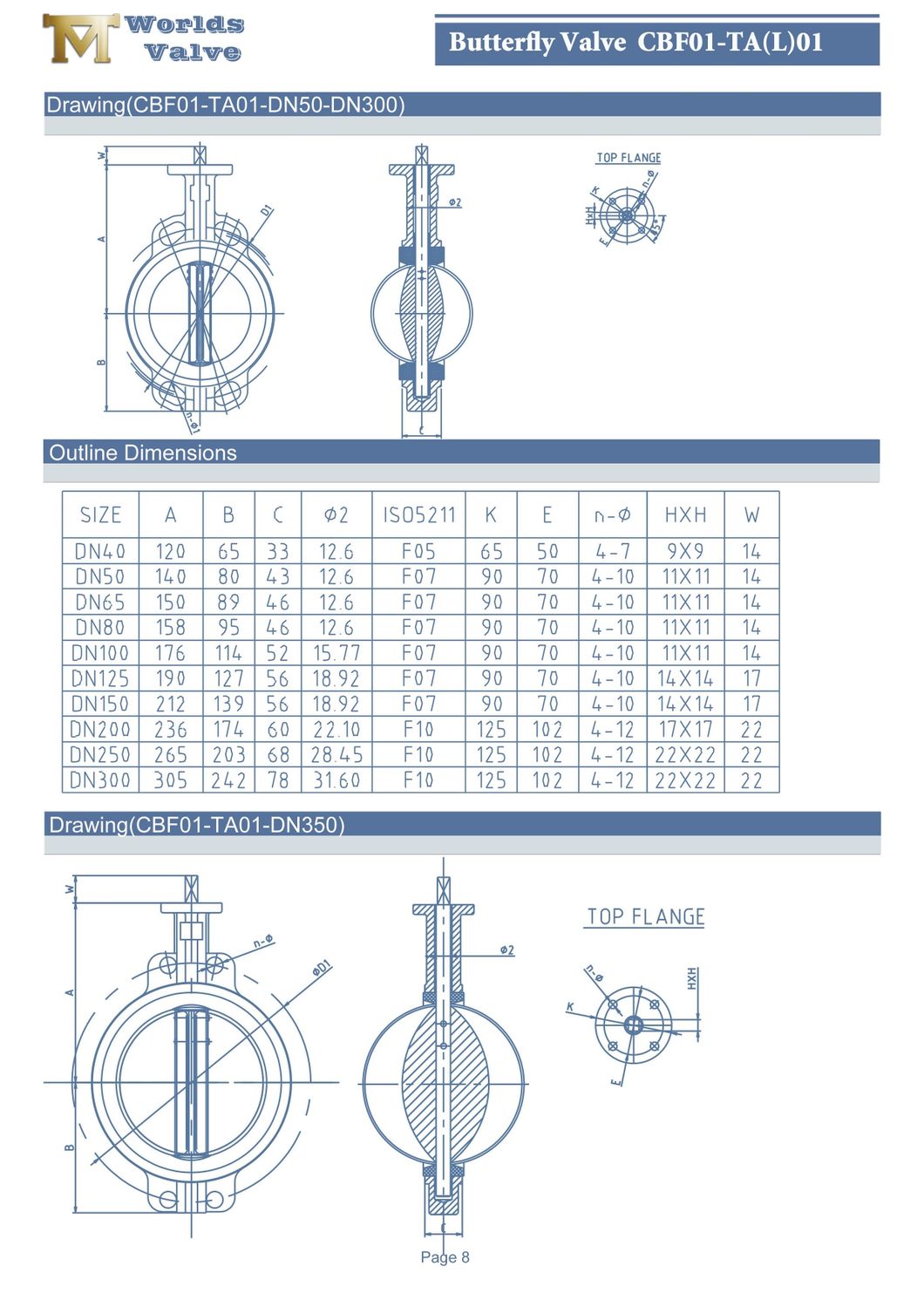

Technical Parameters:

Size	DN32-DN600	DN650-DN2000
Working pressure	16Bar	10Bar
Shell	24Bar	15Bar
Seal(Air)	6Bar	6Bar
Operating Temperature	-45ºC~+150ºC
Operating Environment	Ballast and bilge system Chemical processing Desalination plants Drilling rigs Drinking water Dry powder Food and beverage Gas plants HAVC Mining industry Paper industry Sand handling Seawater Sugar industry Thermo technical water treatment Waste water
Driving method	Hand Lever Worm Gear Electric Pneumatic

Packaging & Delivery:
Packaging Detail: Bubble pack for each valve&Plywood cases. Or as per the request of customers.
Delivery Detail:According to quantity , normally 30 days after order

Application:
1. These products are mainly used for pipeline flow, pressure and temperature control of various industrial automation productiong, for example: Electricity, petrifaction, metallurgy, environmental protection, energy management, fir-fighting systems.
2. Simultaneously they have good fluid control properties, and can operate simply.
3. They are not only widely used in general industries as petroleum, coal gas, chemical engineering, water treatment, but also used in the cooling water system of thermal power plant.

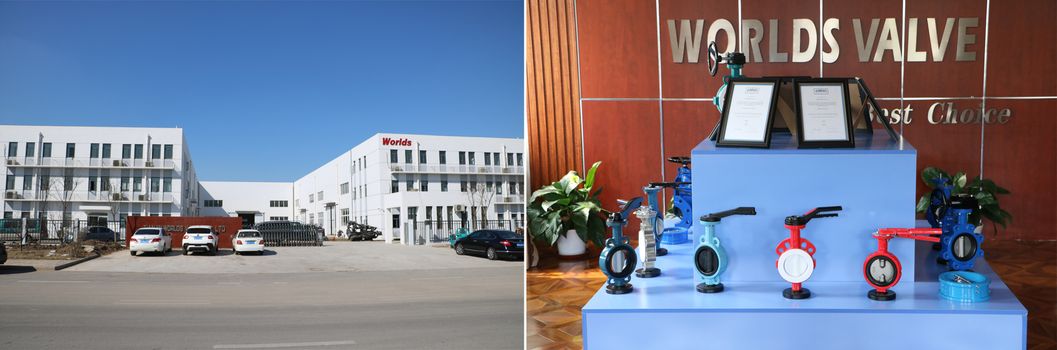

**COMPANY INTRODUCTION
Ab2 B62 C6300 C95400 C95800 Aluminum Bronze Brass Nickel Butterfly Valves ABS Rina Dnv Lr Lloyd′s Register Approved

**Company Goal : OEM service for world-famous valve brand.
Ab2 B62 C6300 C95400 C95800 Aluminum Bronze Brass Nickel Butterfly Valves ABS Rina Dnv Lr Lloyd′s Register Approved

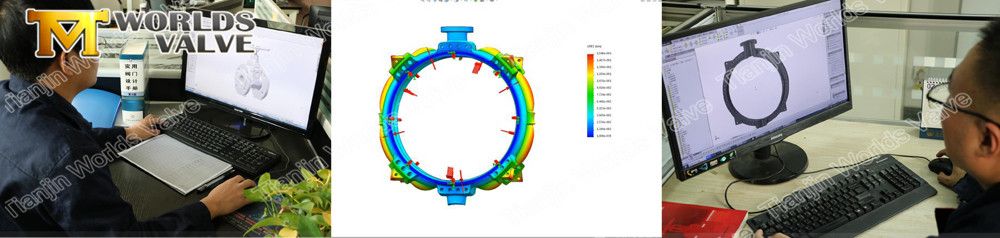

**Design & Development ability -- SolidWorks, Pro / E, AutoCAD etc
Ab2 B62 C6300 C95400 C95800 Aluminum Bronze Brass Nickel Butterfly Valves ABS Rina Dnv Lr Lloyd′s Register Approved

Dimension Measurement &Inspection
Ab2 B62 C6300 C95400 C95800 Aluminum Bronze Brass Nickel Butterfly Valves ABS Rina Dnv Lr Lloyd′s Register Approved

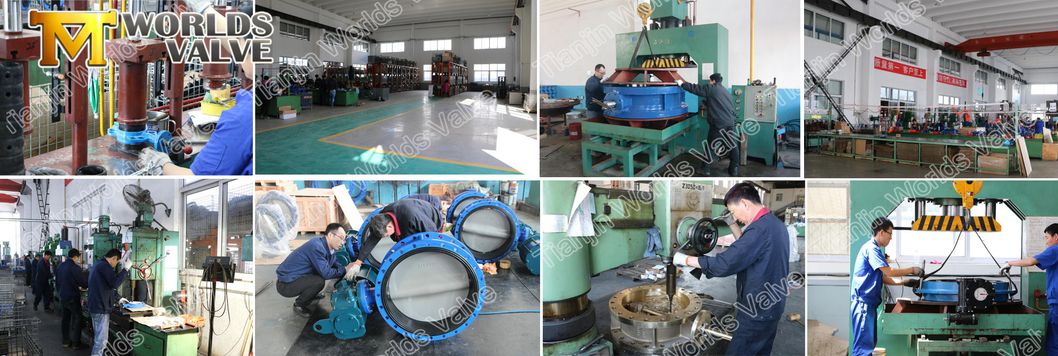

Assembly Workshop
Ab2 B62 C6300 C95400 C95800 Aluminum Bronze Brass Nickel Butterfly Valves ABS Rina Dnv Lr Lloyd′s Register Approved

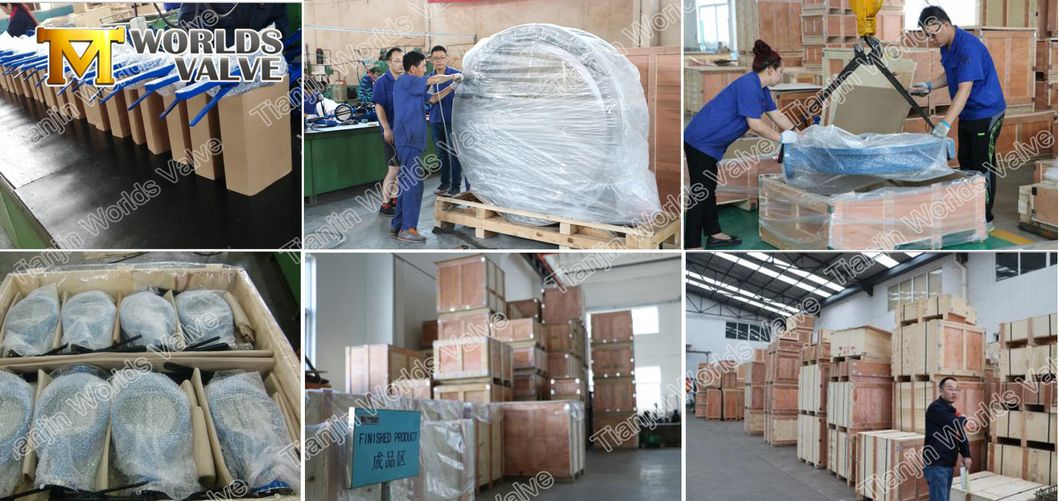

Packaging

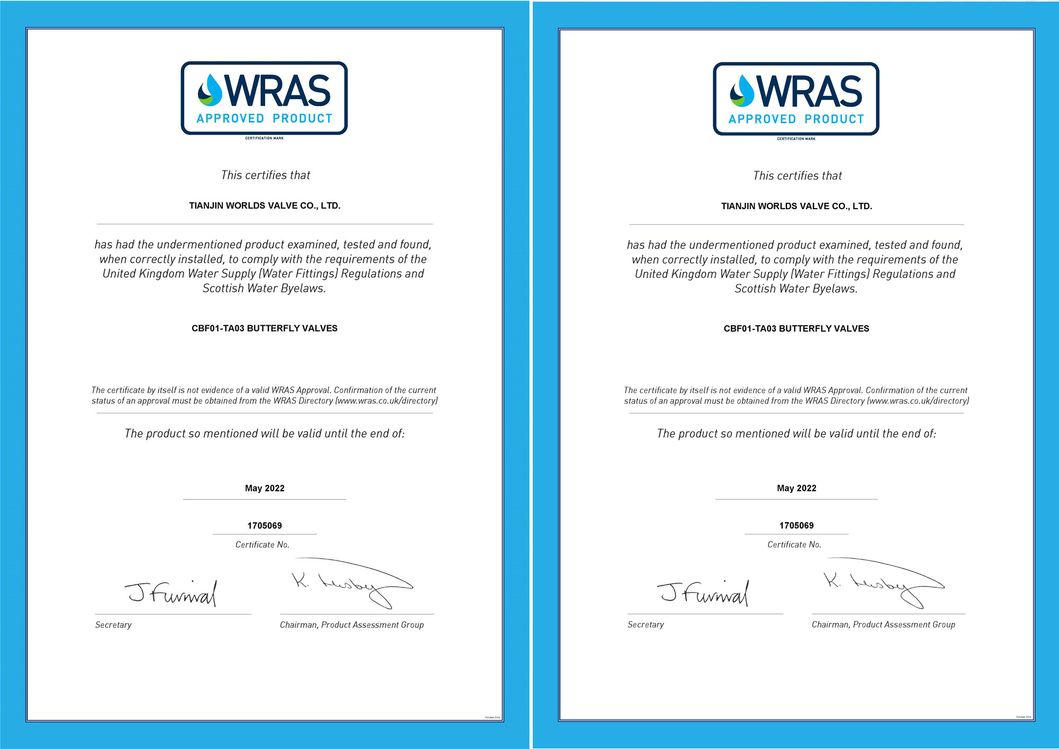

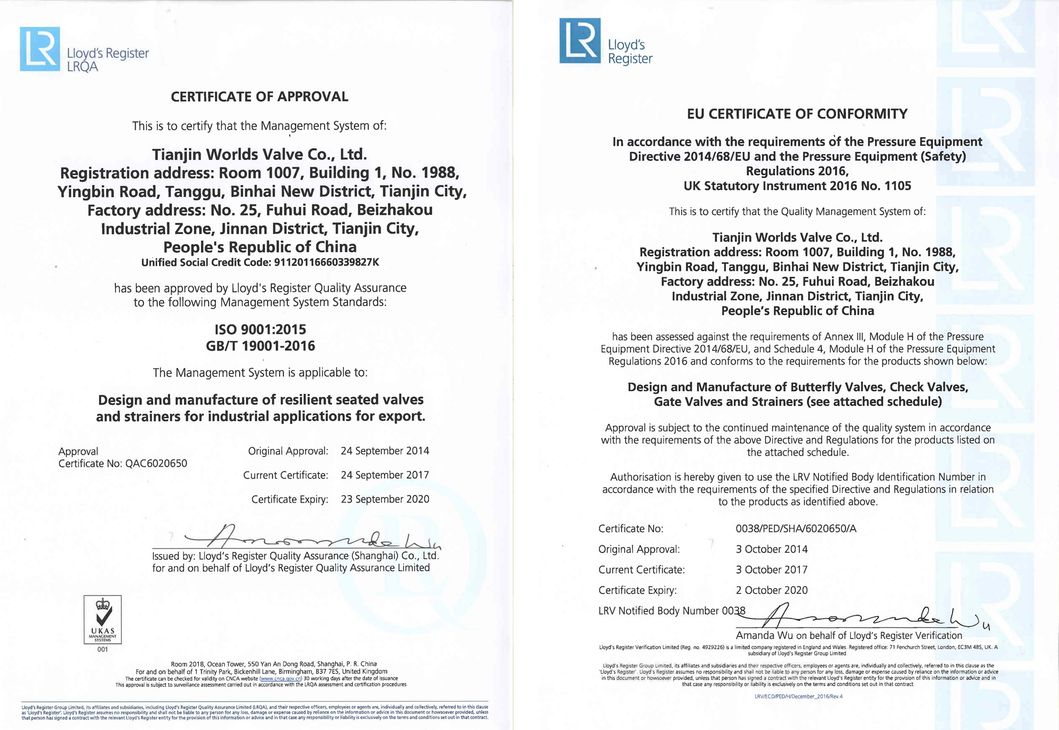

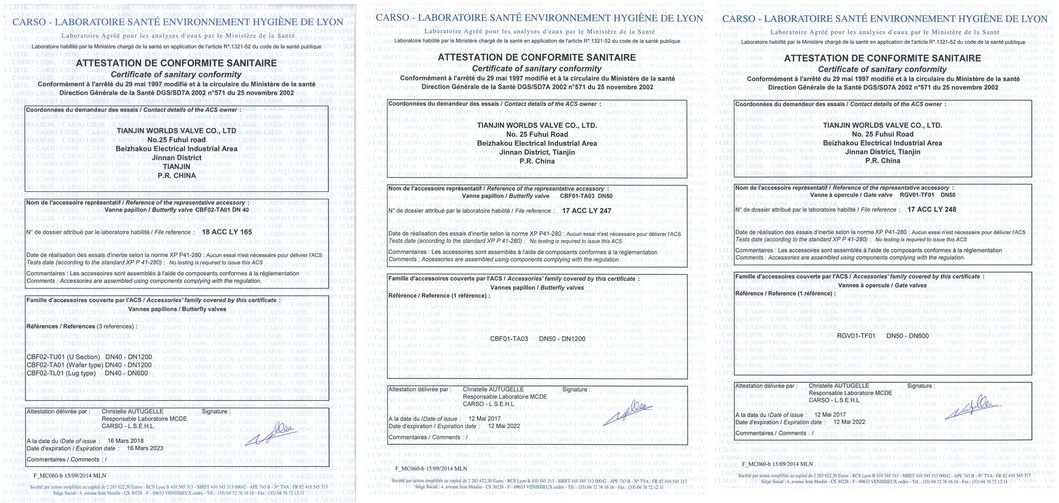

Certificates -- CE ISO WRAS ACS certificates
