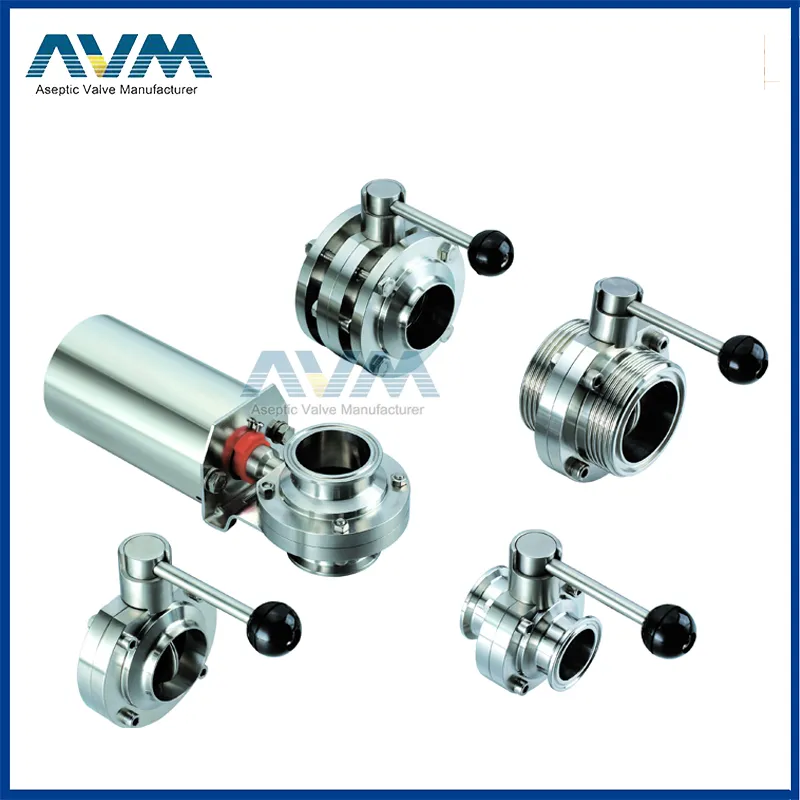

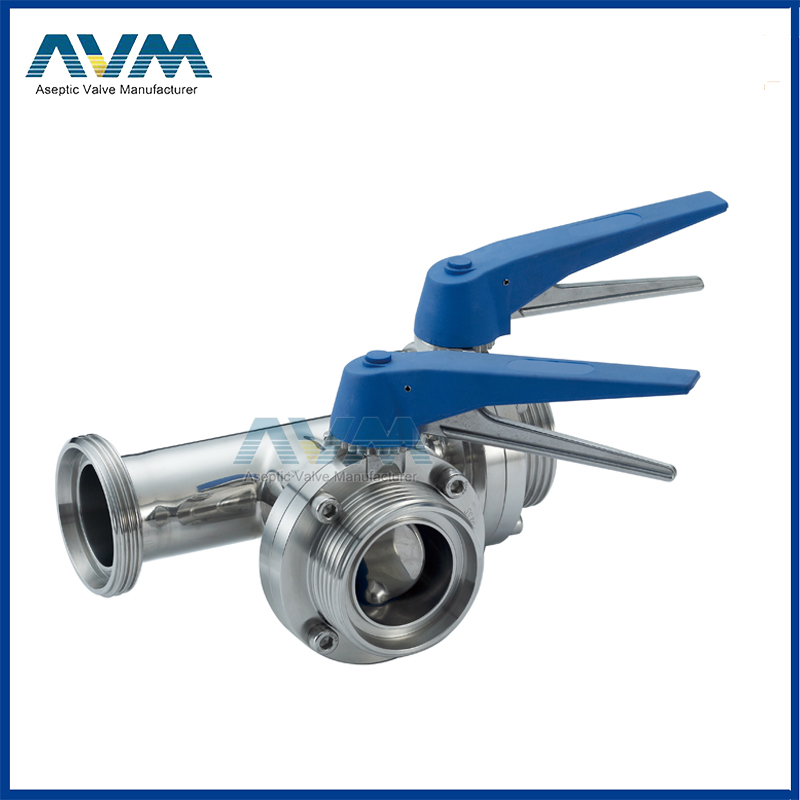

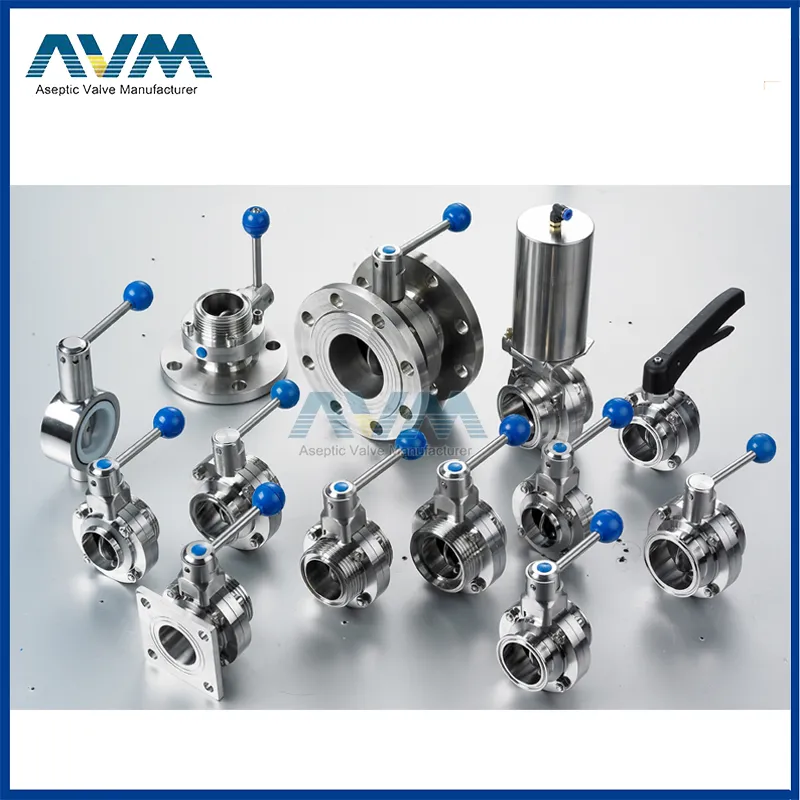

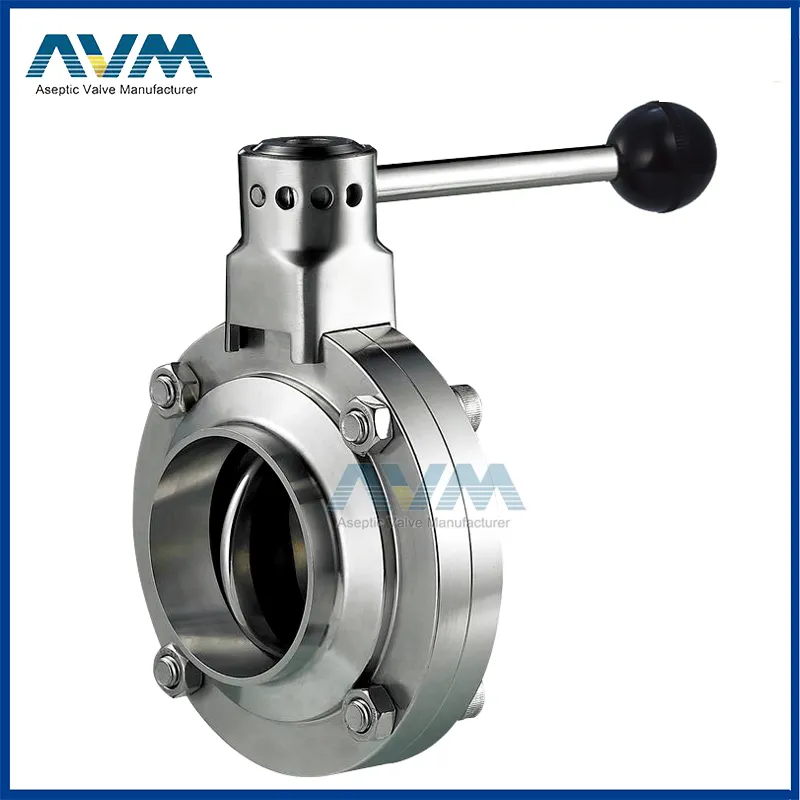

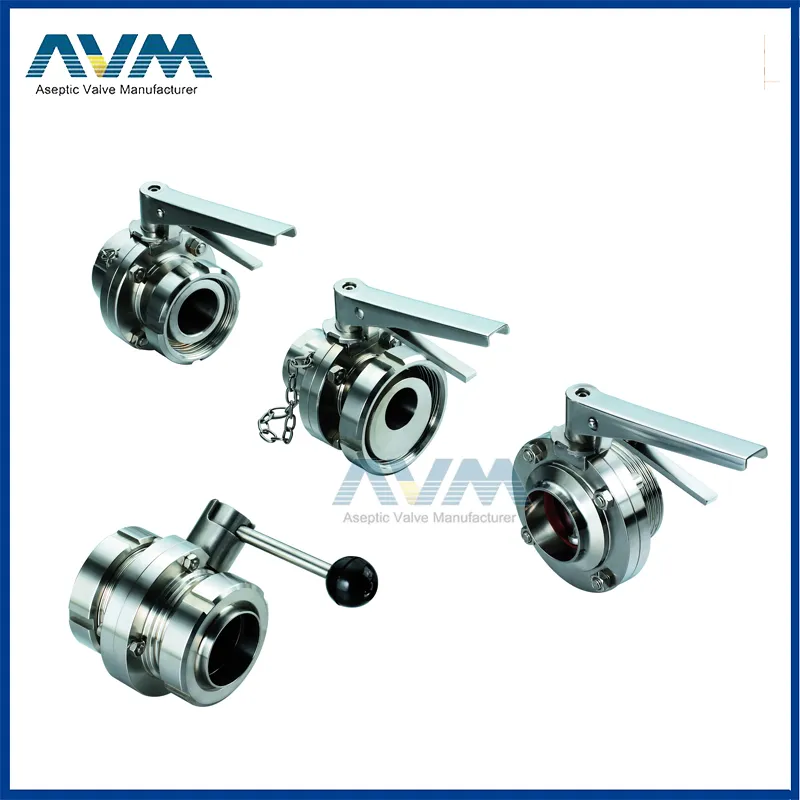

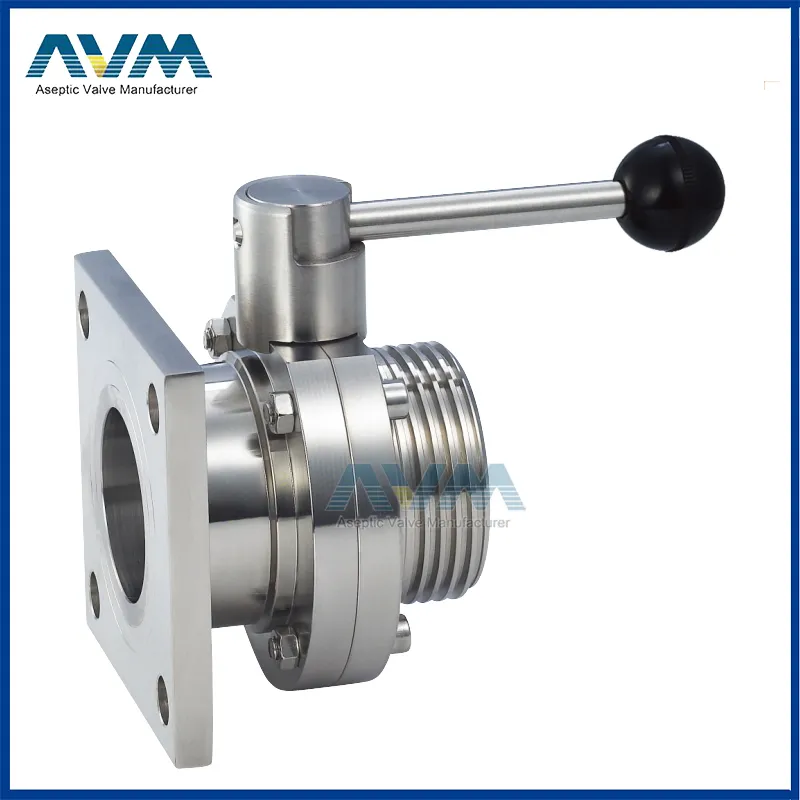

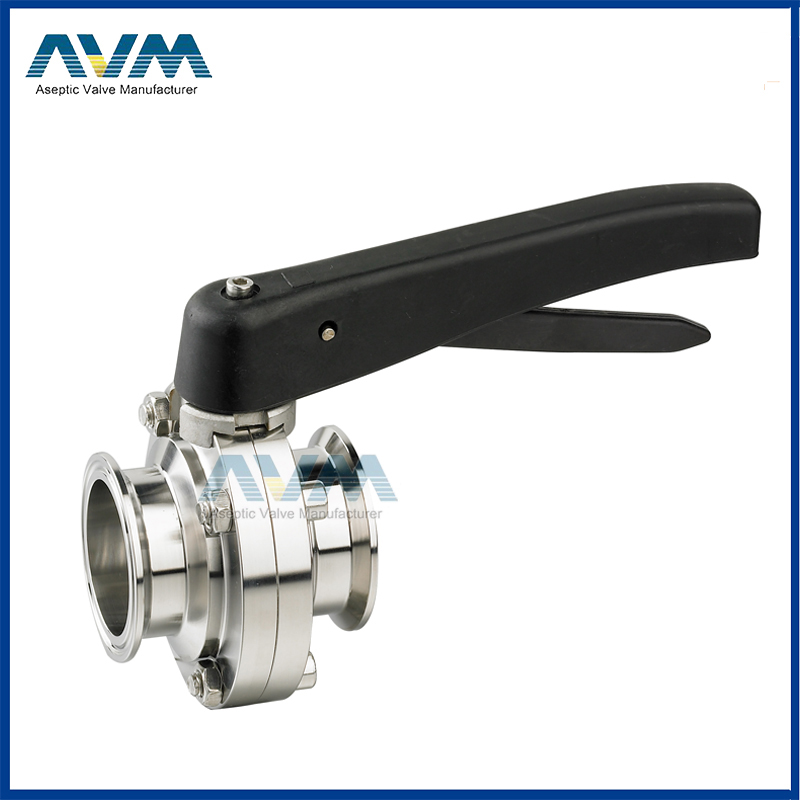

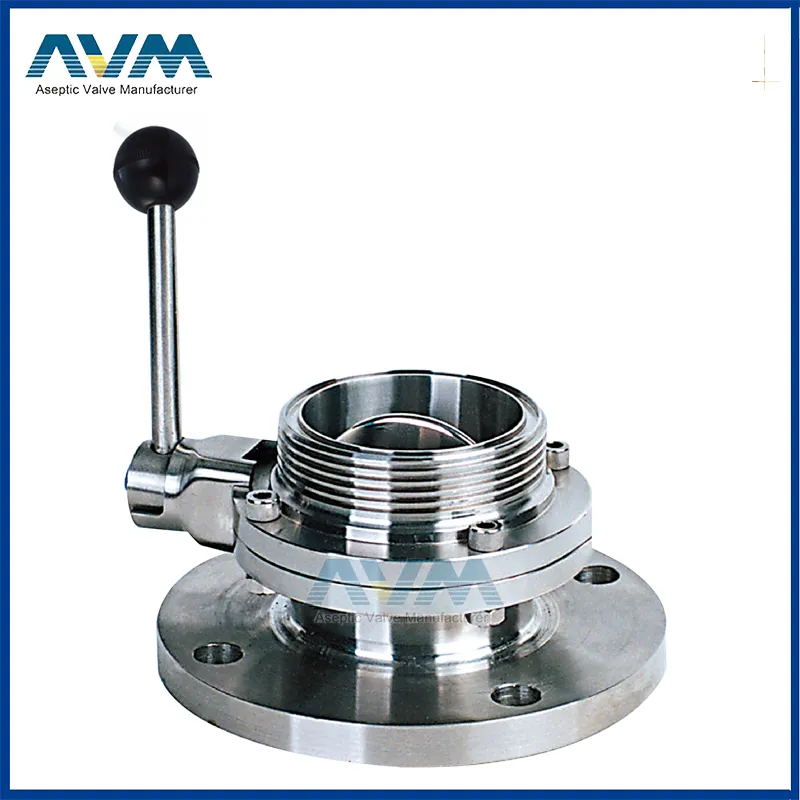

1.5" Stainless Steel Food Grade Sanitary Plastic Handle Butterfly Valve

Product Name:Stainless Steel SS304 Sanitary Hygienic Ball&Check&Butterfly Valve




Butterfly valves can be actuated either manually or pneumatically. There is a wide range of manual controls to meet the different system requirements. Pneumatic controls can be horizontal and vertical, single-, double-effect, and modulating. They can be fitted with control tops and proximity It is widely applied to many fileds,such as beer,beverage,dairy food,fruit juice,pharmacy,biological etc.

Technical Parameters

Options
Options
1.The seat and gasket can be NBR (Nitrile), VMQ (Silicone) or Viton (FPM) all complying with FDA 21CFR177.2600.
2. End connection can be butt-welded, sanitary clamp, threaded, flanged, I-line or others upon request.
3.Handle: 3-position pull handle; multi-position handle in either pure stainless steel or with plastic cover.
4.Actuator: pneumatic stainless steel actuator (vertical type), pneumatic aluminum actuator (horizontal type), electric actuator.
5.Control: position sensor, C-top controller, C-top controller (AS-I)

Design Features
1.Various standards can be provided: DIN, 3A, SMS, ISO / IDF, BS / RJT, and ASME / BPE.
2.Available in sizes from DN25 / 1" to DN300 / 12"
3.Multiposition handles can be used for valves up to DN100 / 4";
4.Pull handles can be used for valves from DN25 / 1" to DN300 / 12"
Manual handle,
5.pneumatic actuator and electric actuator are interchangeable.
6.Seals comply with FDA 21CFR 177. 2600.
7.The valve body can be customized with a wide selection of different connections.



Our products are widely applied to dairy,food,beer,beverage,chemical indsutry of equipment,and cosmetic industries.All technical aspects have reached the international leading levels and are in conformance with GMP requirements. Provide process design,machinery manufacturing,installation,technical training.


Our Service



Zhejiang Aomi Fluid Equipment Co., Ltd. is a professional manufacturer in high-level of hygiene demanding flow lines. It specializes in manufacturing high-precision stainless steel sanitary pumps, valves and unions, pipe fittings and tank accessories. Products are widely used in food, pharmaceutical, beverage, wine, dairy, cosmetics, bio-tech industries. 16 Years of research for quality improvement and product enhancement,sale of Zehjiang Aomi is expanding all over the world and expanding itself continuously,Zhejiang Aomi has become able to offer complete range of products according to various international norms such as DIN, SMS, 3A, IDF, RJT, ISO  BS, Mâcon  and so as to fulfil customers'requirement globally. Zhejiang Aomi has passed ISO9001 international quality system certification and CE. Zhejiang Aomi introduces advanced CNC equipment LG MAZAK and Korean brand CNC machining center. Zhejiang Aomi insists on the concept of "Quality first,Prestige important",a well-trained and dedicated team including engineers,technicians and other employees,this allows us to offer customers quality products,competitive price and prompt delivery time.

Other Products We Manufacture:

Please contact us now
