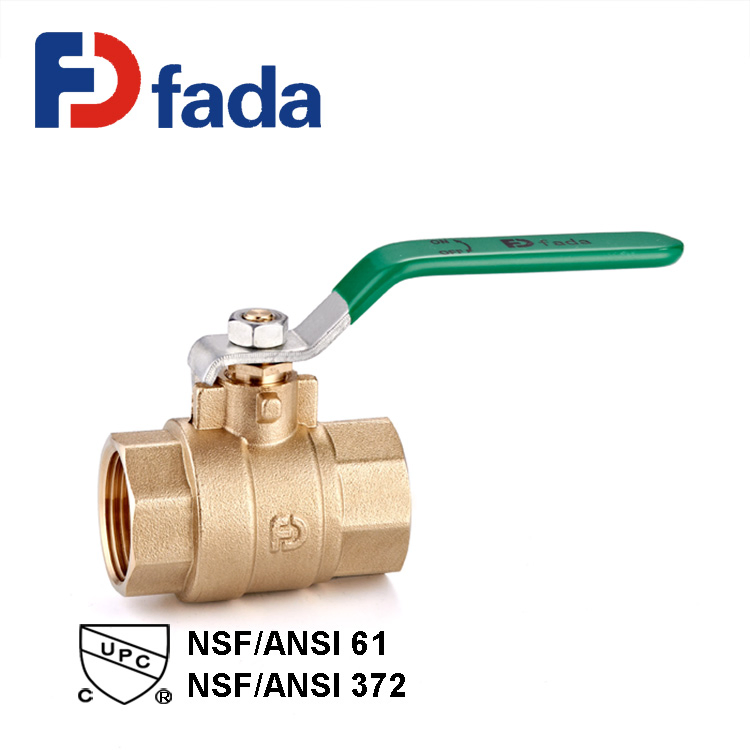

China Upc Lead-Free Fnpt Full Port Ball Valve, Threaded End

Product Description

Product Introduction

Lead Free Forged Brass Thread Ball Valve has a lever handle and blowout-proof stem design. With threaded connections on both ends, hollow ball for lighter weight and longer seat life. The ball Valve includes a full port for maximum flow and minimum pressure drops. Each valve has a full forged brass body that provides excellent corrosion resistance. The valve is designed for residential and commercial use on water air, steam, oil or gas.

Product Specification

Upc Lead-Free Fnpt Full Port Ball Valve, Threaded End

Item No.	Size	Certification	Application
V703001	1/2"	UPC NSF/ANSI 61 NSF/ANSI 372	Gas/Water Supply
V703002	3/4"
V703003	1"
V703004	1-1/2"
V703005	1-3/4"
V703006	2"

NO.	Part	Materials
1	Body	C46500/C69300
2	Ball	304 Stainless Steel
3	Stem	Galvanize Steel +PVC
4	Nut	201 Stainless Steel

Installation for Threaded End Valves

Pipe connections to be threaded into these valves should be clean and free o foreign material or metal shavings. PTFE pipe tape is recommended for use as the pipe joint sealant. Two wrenches must be used when making up pipe joints to these valves. Apply one wrench on the valve body joint. Typical wrench make-up is 1-1/2" turns after installing the pipe hand-tight.

Advantages of brass ball valves

*Fluid resistance of this type of valve is very low in fact the full bore valve has practically no resistance at all.
*The brass ball valve has less weight and a simple structure which makes it very easy to operate and repair.
*The seal and ball of the valve are close to each other which makes the valve very reliable and it does not erode easily with the working medium
*It is very useful where regular application and rapid opening and closing is required
*The mounting direction does not limit the flow direction of medium and it is very casual.

Frequently Asked Questions

Q: What is NSF/ANSI 61, Drinking Water System Components?
A: The standard establishes minimum requirements for the chemical contaminants and impurities that are indirectly imparted to drinking water from products, components, and materials used in drinking water system. It is intended to cover specific materials or products that come in contact with drinking water, drinking water treatment chemicals, or both.

Q: What is the minimum order quantity?
A: Normally 2000pcs/item. Trial orders and further requests can be negotiated.

Q: What is the delivery time?
A: It is usually 35-45 days for OEM. Maximum 60 days after receiving the relevant payment.

Q: What is the payment term?
A: 30% paid in advance, the balance 70% paid against the copy of the Bill.

Q: Can I do make a OEM order?
A: We can supply different styles. Our products can be customized.

Q: How does your factory do regarding the quality control?
A: "Quality is priority." Our team always attach great importance to quality controlling from the very beginning to the very end.

Q: If I want to visit your company and factory, which is the nearest airport?
A: The nearest one is Luqiao Airport. It is about half an hour car drive from airport to our factory. Wenzhou airport is also available which is about two and a half hours car to our factory.

About us
Taizhou Bada Valve Co.,Ltd is a leading supplier of valves, fittings for water supply, gas, sanitation, cooling/heating, as well as plant plumbing in commercial, industrial and residential markets. Serving a global marketplace, Fada operates 2 manufacturing plants in Zhejiang and Jiangxi, China. With 30 years manufacturing history, Fada rigidly carries the international Quality Management System of ISO 9001 standards. And insisting on a everyday progress by striving for higher quality and a better service.
