Stainless Steel Low Temperature Subsea Ball Valve Maximum working pressure: 20,000 psig (1,379 bar) Working temperature: 0°F to 250°F (-18°C to 121°C) Maximum water depth: 13,800 ft (4,200 meters) One-piece, trunnion mounted style, stem design eliminates shear failur......
Send Inquiry
Product Description

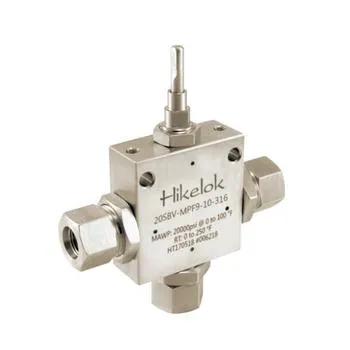

Stainless Steel Low Temperature Subsea Ball Valve
Maximum working pressure: 20,000 psig (1,379 bar)
Working temperature: 0°F to 250°F (-18°C to 121°C)
Maximum water depth: 13,800 ft (4,200 meters)
One-piece, trunnion mounted style, stem design eliminates shear failure found in two-piece designs.
Re-torqueable seat glands for longer seat life.
PEEK seats which offer excellent resistance to chemicals, heat, and wear/abrasion.
Full-port flow path minimizes pressure drop.

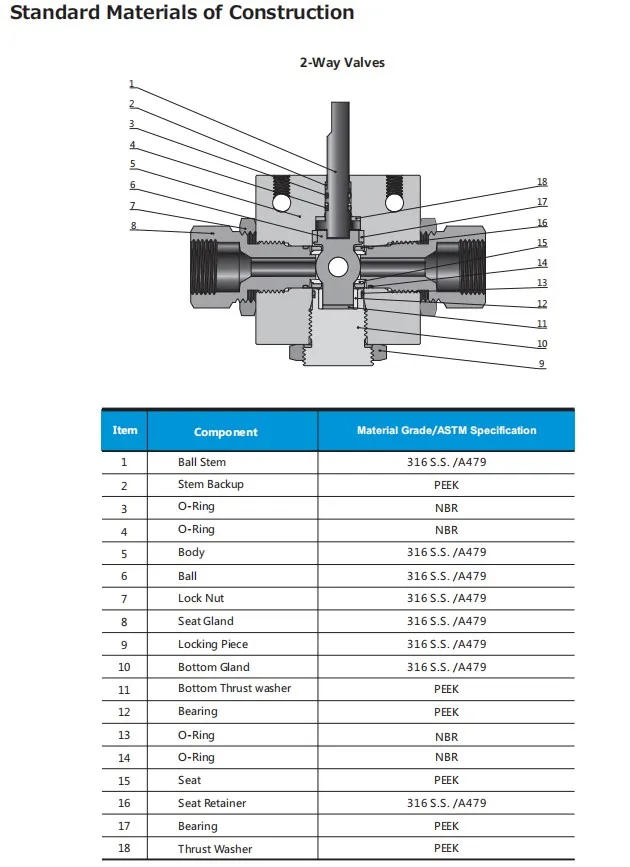

316 cold worked stainless steel construction.
Low friction pressure assisted graphite filled PTFE stem seal increases cycle life.
Wide selection of tube and pipe end fittings available.
Available to NACE MR-01-75.
Product packaging
Packing: according to the weight , length, specification of the goods.,Hikelok Products
will package goods by plastic bag ,box, carton, woodencase and so on
Testing: for all the out-going products, Hikelok will do hydraulic leakage testing ,
then pakage them, and Hikelok can supply the testing reports if you need
Company introduce
Introduction of Hikelok® Brand
1.Established time: in 2011
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .
2.Experience/Advantage:focused on precision fluid fittings and valves for more than 10 years.We enjoy a good reputation in the foreign business .
3.Product's style is similar to well-known brand Swagelok ®and Parker ®.
4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,
4.Products introduction:the main products of hikelok include ball valves,needle valves,instrument manifolds,bellows valves,
check valves,twin ferrules series tube fittings,instrument pipe fittings,weld fittings and other kinds of instrumentation valves and fittings.
5.Body materials: stainless steel,alloy steel, brass,special alloy and carbon steel
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields
6.Standard products:ANSI,ASME,ASTM,API,MSS,ISO,EN,GB,JB,HG ect.
7.Application:widely used in power generation,petroleum,petrochemical,natural gas, semiconductor,laboratory,shipbuilding, steel,chemical industry and other fields
8.Certificate:ISO9001 ,2015;ISO14001;ISO45001;ABS;CE
Certifications
CE; ABS; ISO9001; ISO 14001; ISO 45001.
CE; ABS; ISO9001; ISO 14001; ISO 45001.
Our Services
From quote to delivery, we can provide the detailed support you need:
1. CAD drawing
2. P&ID
3. Component selection
4. Bill of material
5. Professional services such as bending and welding
6. Testing to guarantee the system
7. Professional packaging and delivery
8. Give you solution within 24 hours
1. CAD drawing
2. P&ID
3. Component selection
4. Bill of material
5. Professional services such as bending and welding
6. Testing to guarantee the system
7. Professional packaging and delivery
8. Give you solution within 24 hours
