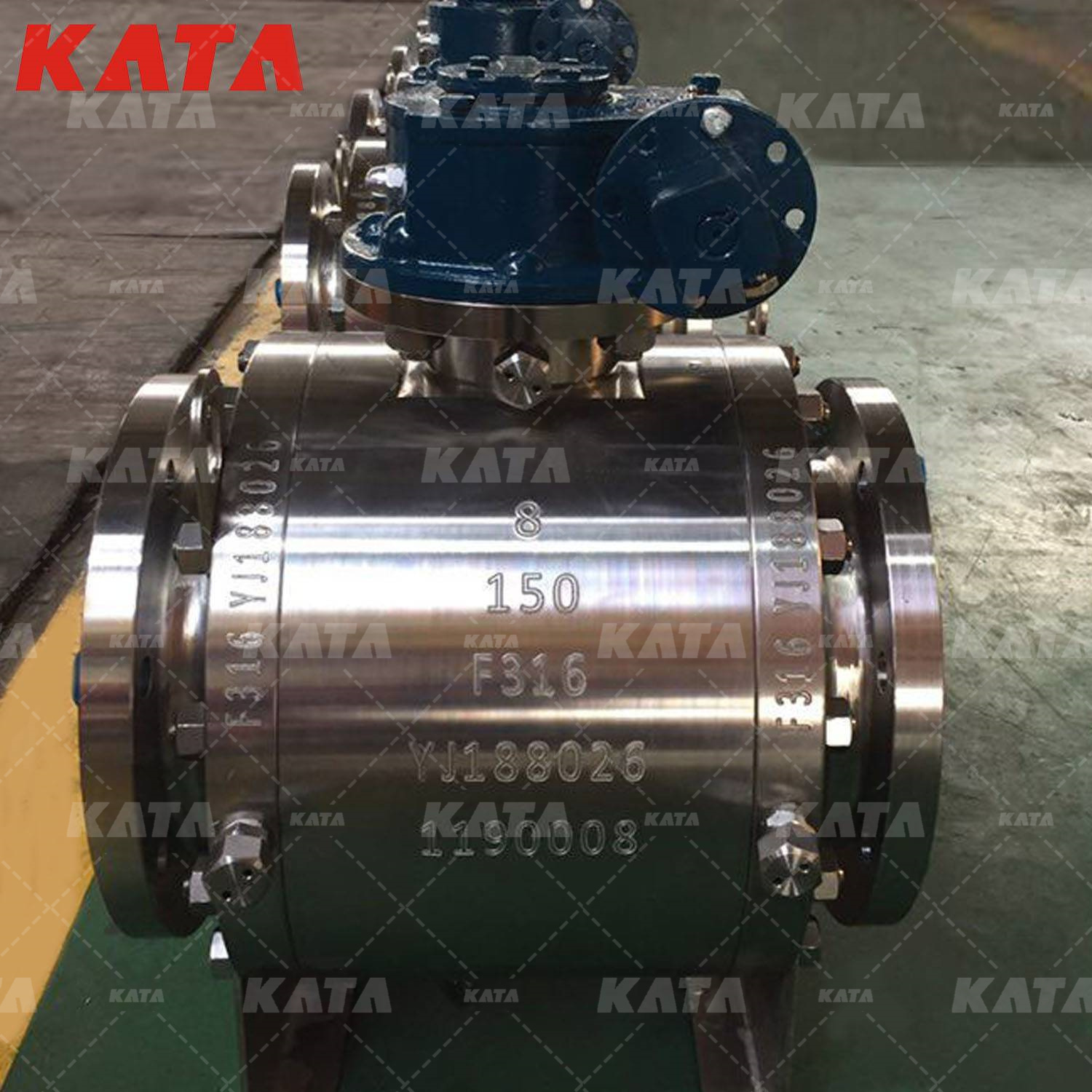

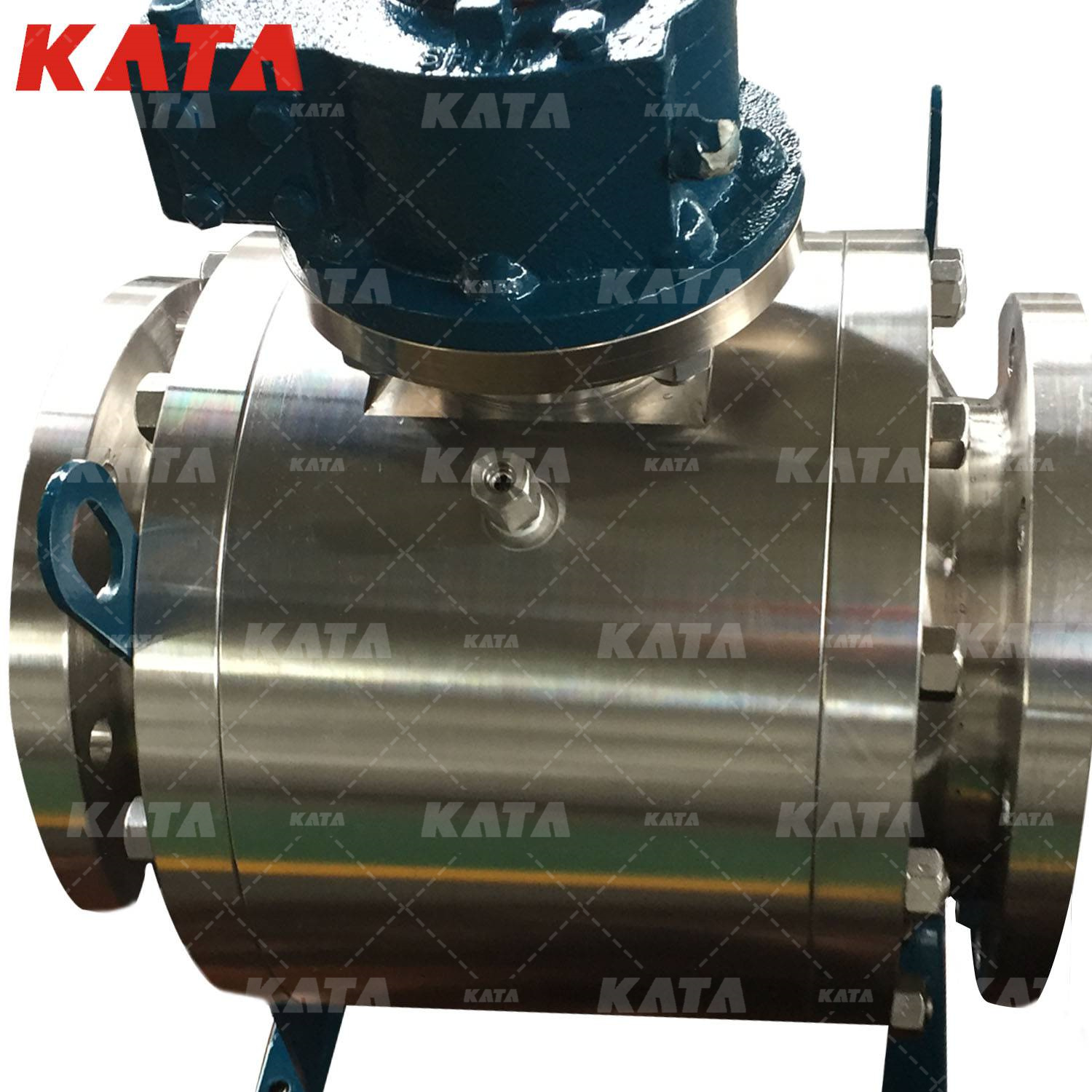

Trunnion Mounted Three Piece Ball Valve 8" 1500lb Forged Stainless Steel

Trunnion mounted three piece ball Valve 8" 1500lb forged stainless steel

1. Construction
Three Piece Forged Steel Ball Valve
Split Body
Bolted Bonnet
Fire Safe Design
Anti-static Design
Blow-out proof stem
Design standard: API6D
Flanged Ends to ASME B16.5
Testing according to API 598
Marking: as per MSS SP-25

2. Normal Size Range
DN50~DN1400, 2"~56"

3. Normal Pressure Rating
PN10~PN420, CLASS150~2500

4. Main Part & Materials


KATA Forged Steel Line are available in types of Two Piece Split Body, Three Piece Bolted Body. The forging material can ensure sufficient rigidity and strength under maximum rated operation pressure. Without inherent law of cast . Enough wall thickness of separate body and adaptation of high strength tie bolts are convenient for valve maintenance and sufficient to bear the stress of pipe. The internal parts of valve are carefully designed and selected to ensure reliability under all kinds of work conditions. All KATA trunnion mounted forged ball valves are designed and manufactured to the most updated international standards API 6D, ASME B16 . 34 , BS 5351 or equivalents. With standard features of Fire Safe, Anti-static and Stem Blow-out Proof, double block& bleed.

With all advantages of trunnion mounted ball valves, KATA ball valves are all designed with reasonable dimensions and outlook. It's size ranges from 2" to 56", with pressure rating from class 150 to class 2500. From 6'' and above, it's all designed with support plate structure instead of trunnion mounted. This design can greatly reduce the torque and external leakage point of the valve, ensuring that the drain valve at valve bottom is installed directly below the valve, so that residue can be completely drained when the valve works to clear the pipe.


Kaitai Valve Group is headquartered at Shanghai China, occupying over 35 thousands square meters. The registration capital of the whole Group comes to RMB 11321 Millons. With an experience of about 30 years in manufacturing all kinds of valves, Kaitai specializes in disigning, making and marketing valves for all industries. Its products range from Ball, Buttesfly, Gate, Globe, Check, Plug valves to Marine valves and other valves; nominal size from 1/2" to 48"(DN 15 to DN 1200) nominal pressure form 150 Lb to 2500Lb(PN1.0Mpa to PN42.0Mpa); materals cover WCB.. WCC. WC6. WC9, CF8, CF3, CF3M,LCB,LCC. SS304,SS316,SS304L,SS316L, F11, F22, LF2, F51, etc.The products are widely used in the fields of petroleum, chemical metallurgy, power, fuel gas, city pipeline networks and so on. Certificated with ISO9001. API6D.CE/PED and etc.. Kaitai has developed excellent quality control and management system.
Kaitai has a series of modern machines and equipments such as vertical lathes, drill press, milling lathe, grinding machine, other general machine tools and physical & chemical analysis & experiment devices. Also it has developed a well-trained and dedicated team including engineers, technicians and other employees. This allows us to offer customers quality products, competitive prices and prompt deliveries. We always work hard to improve our existing products and pursue new ideas and ways to stay ahead of the ever changing market.


1. Q: Are you a trader or manufacturer?
    A: We are an industrial valve manufacturer since 1989. Our manufacturer scope covers ball valves, gate valves, globe valves, check                          valves, plug valves, butterfly valves, safety valves,bellows valve, needle valves & knife gate valves etc, and we also have good partners in               Worm Gear, Electrical Actuator and Pneumatic Actuator,which mean we could offer one-stop valve solutions for you.

2. Q: What kind of certification do you have?
    A:  We have API 6D, API600, API602, API609, API 607&API 6FA, ISO9001, ISO14001, OHSAS18001, CE&PED, SIL,and ISO15848 certification.

3. Q: How long is your delivery time?
    A: Generally it is about 45~60 days. For some urgent order, delivery can be made within 30days if there are raw material stock.

4. Q: Do you provide samples?
    A:  Yes, samples are available upon request.

5. Q: What about OEM products?
    A: We accept OEM orders and put great value on keeping our customers satisfied by providing quality products with competitive prices and                     excellent service.

6. Q: Can you produce the products according to customer's special requirements and drawings?
    A: Yes, customization can be made as per specific case.

7. Q: How long is your guarantee period?
     A: Generally 12 months after installation or 18 months after shipment, whichever comes first.

Welcome to come to us at any time  if you have any valve needs! We will respond to you within 0-24 hours.
