China Stainless Steel Spring-Loaded Seals Max 20000 Psig Subsea Ball Valves for Diver Rov Operation

Product Description

Stainless steel spring-loaded seals max 20000 psig subsea ball valves for diver ROV operation

Product Description

Body Material	SS316 / SS316L / SS304 / SS304L / Brass / Alloy
Flow Pattern	2 way, 3 way,4 way
Connection Size	3/16" to 1"
Connection Type	Female NPT
Cleaning Process	Standard industrial cleaning and packaging(cp-01)
Delivery/Production Time	1-3 working days for in stock; 2-5 working weeks for out of stock products.

Stainless Steel Spring-Loaded Seals Max 20000 Psig Subsea Ball Valves for Diver Rov Operation

Easy mounting for ROv, diver or remote actuation
Maximum working pressure up to 20,000 psig (1379 bar)
Independent spring-loaded seals for full differential pressure
Externally sealed design for depths to 15,000 feet (4572 meters)
Double barrier o-rings to prevent the ingress of seawater
Maximum working pressure up to 20,000 psig (1379 bar)

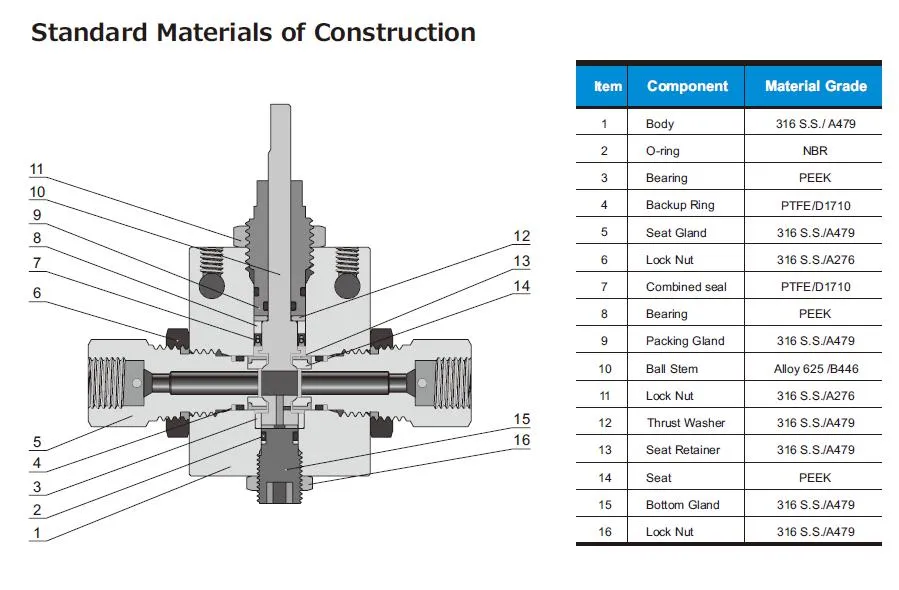

316 cold worked stainless steel with PEEK seats are standard
A variety of seal materials are available
Special alloys available for extreme service
2-way(On-Off),3-way (Switching), 4-way (Crossover) models for service
Connection sizes from 3/16" to 1"
Available to NACE MRO175.

Certificate

Our product have passed many strictly tests, so we have many certifications, such as ISO 9001, ISO 14001, ISO 45001, ISO 15500,ABS, PED, F1387,CE,TUV etc. To make sure the products can be up to standard and meet customers requirement.

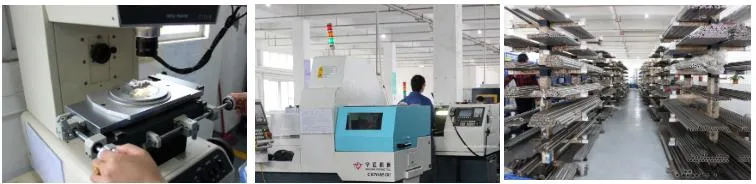

Company & Factory

Stainless Steel Spring-Loaded Seals Max 20000 Psig Subsea Ball Valves for Diver Rov Operation

Sailuoke Fluid Equipment Inc. Hikelok is our registered trademark.Sailuoke Fluid Equipment Inc is manufacturer of instrument valves and fittings from China. Our products include needle valves, ball valves, instrument manifolds, bellows valves, check valves, twin ferrule tube fittings, instrument pipe fittings, weld fitting, VCR fittings, ultrahigh pressure/Purity valves and fittings, subsea valves etc.

Through decades development, our products have won good sales in domestic market, and we have exported products to many countries, like American,Europe,Middle East,Southeast Asia,and have won good reputation among our end users and agent.
Stainless Steel Spring-Loaded Seals Max 20000 Psig Subsea Ball Valves for Diver Rov Operation

FAQ

Q: Are you trading company or manufacturer ?

A: We are manufacturer, we had been produced valves and fittings for more than 17 years. So we have advantage in price. We also supply OEM. Welcome to visit our factory in SiChuan.

Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample. You need to pay for it and the freight cost.

Q:How to think our product?
A:the similar quality and style like swagelok®. Hikelok products can interchange and intermix with swagelok. Same quality but with more cheaper price

Exhibition

Stainless Steel Spring-Loaded Seals Max 20000 Psig Subsea Ball Valves for Diver Rov Operation
