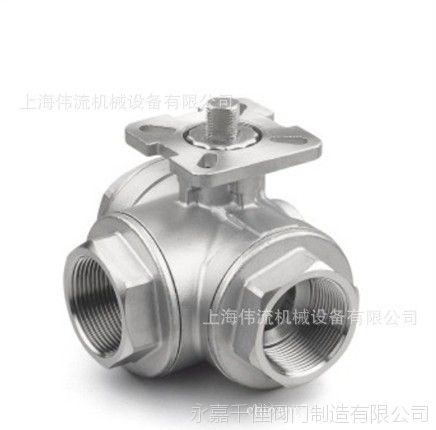

Stainless Steel Pneumatic Flange Tee/Three Way Internal Thread Ball Valve

Product Description

Electric Tee/ Three Way Internal Thread Ball Valve

Summary:
Q44F/Q45F high platform three way / Tee ball valve is available in type T and type L. The T shape can make three orthogonal pipelines connect with each other and cut off the third channel to play the role of diversion and confluence. L type can only connect two pipelines which are orthogonal to each other. It can't keep the third pipeline connected to each other at the same time.

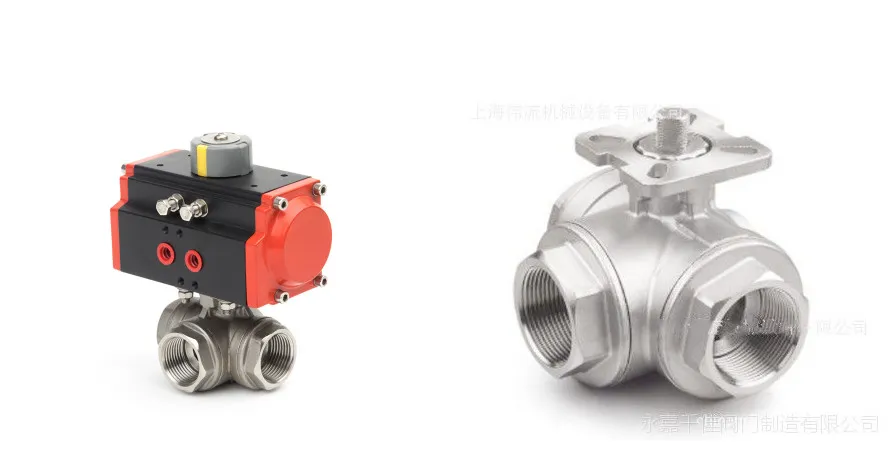

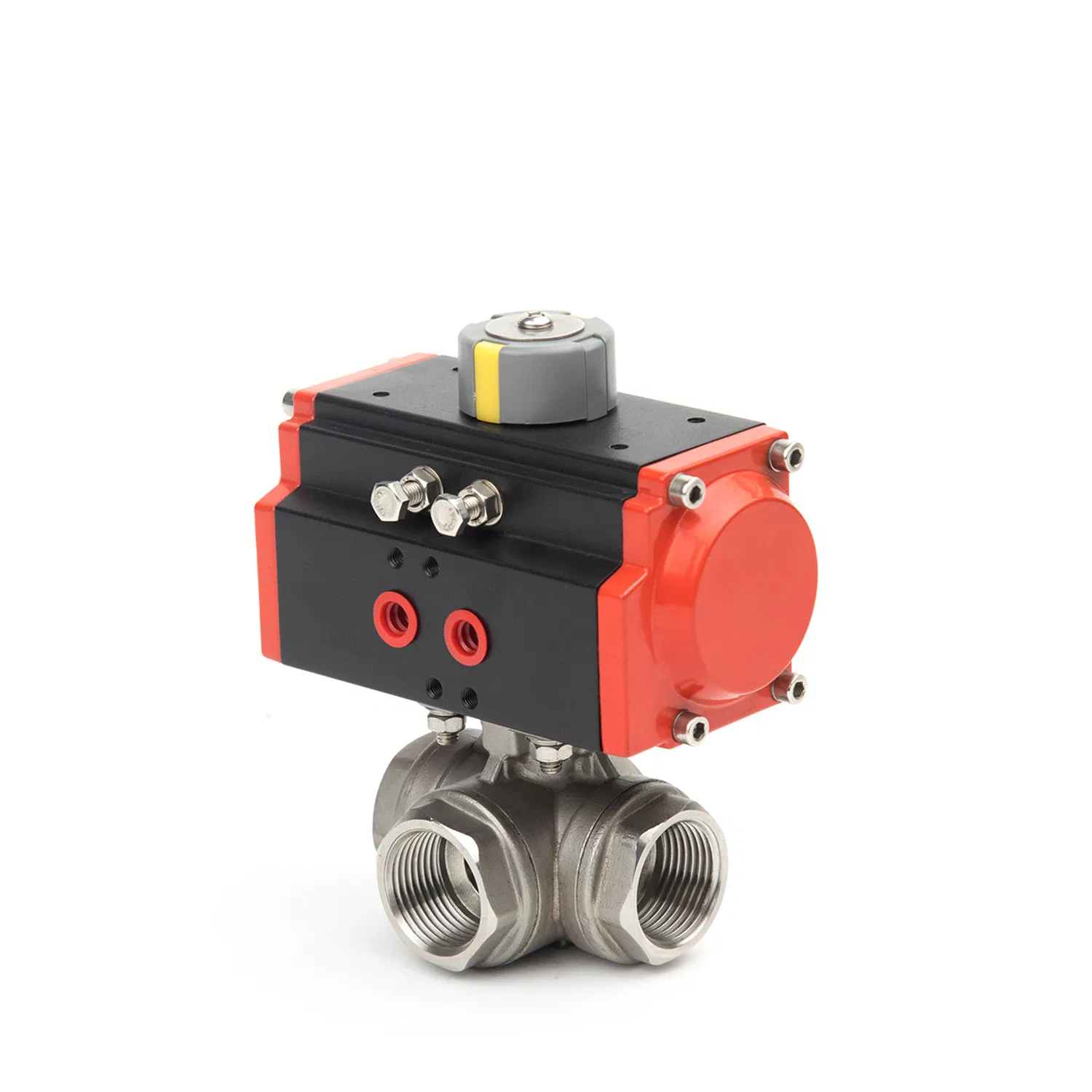

Stainless Steel Pneumatic Flange Tee/Three Way Internal Thread Ball Valve

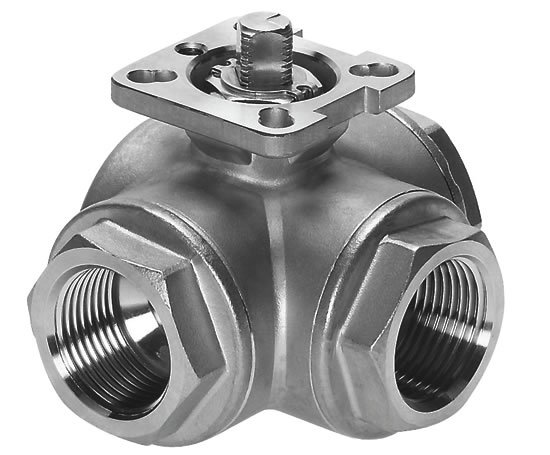

Stainless Steel Pneumatic Flange Tee/Three Way Internal Thread Ball Valve

Specification
Product's Name	High Platform Three Way / Tee Ball Valve
Model	Q14F/Q15F
Nominal Diameter	DN15~DN50
Nominal Pressure	1.6Mpa~6.4Mpa/1000WOG (2.5MPa)
Structure Type	Ball Type
Connection Type	Flange, internal thread
Working Temperature	≤350ºC (-20~232ºC~350ºC)
Action Manner	Manual, electric, pneumatic
Body Material	Cast steel, stainless steel
Design Standard	Chinese Standard; ANSI; JIS; DIN
Application Media	Water, oil, gas, liquid
Spring Type	G.NPT.BSPT.BSP.DIN259/2999
Q14F Threaded three way stainless steel ball valve suitable medium	Water, oil, gas and some corrosive liquids (W. O. G)

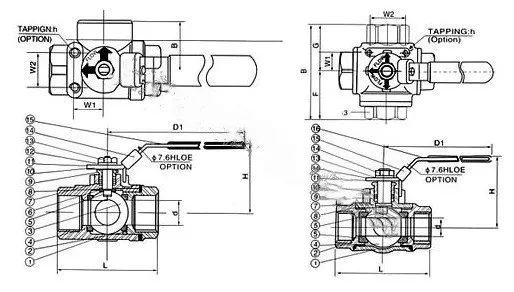

Structure Drawing

Material of Main Parts
No	Parts Name	Material
1	Boay	CF8M; CF8
2	Bonnet	CF8M; CF8
3	Ball	CF8M; CF8
4	Seat	PTFE
5	Stem	CF8M; CF8
6	Packing	PTFE
7	Gasket	PTFE
8	Gland nut	CF8M; CF8
9	Handle	CF8M; CF8
10	Direction board	Aluminum
11	Nut	CF8M; CF8
12	Locking devices	CF8M; CF8
13	Leather sheath	Plastic

	Design Features
	1. Double 0-ring third weight stem seal design.
	2. Valve stem explosion-proof device design.
	3. Large laminates limit deformation space design.
	4. Its platform design conforms to IS05211 standard.
	5. Multilayer packing TA-luft VDI2400 stem seal zero leakage design.
	6. Double butterfly shaped shrapnel assembly abusive design.
	7. Seat fire resistant design.
	8. Design of the device for the invisible positioning lock.
	9. Anti-static device design.

Product Features

1. Three-way ball valve any pass can be used as the entrance without leakage, and can be made into L-type or T-type channel according to the working condition, make the installation more convenient.

2. Inspection and maintenance can be carried out without removing the whole valve body after the pressure relief of the system.

3.Three-way ball valve is divided into L-type and T-type, in the flow direction of the medium to switch, can make the two mutually perpendicular channels connected; T - type is suitable for sub - flow, confluence or flow direction switching.

4.The two seat sealing three-way ball valve structure is compact, beautiful appearance, good sealing performance, it can achieve the medium flow of the pipeline to switch, but also can make each other vertical two channels connected or closed

5.1 Flange end: GB/T9113, ASME B16.5, JIS B2212, DIN 2543-2545
5.2 Explosion proof shaft/flow reduction
5.3 Precision casting
5.4 Management ISO 5211 platform
5.5 Padlock device
5.6 Four seats
5.7 L port or T ports used 360 ° rotating handles

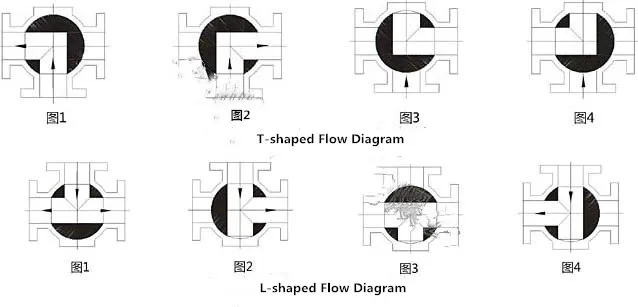

Schematic of type selection
Stainless Steel Pneumatic Flange Tee/Three Way Internal Thread Ball Valve

Main Dimensions-----(Q14F)High Platform Three-way Ball Valve (L-type)

SIZE	d	L	H	D1	B	W1	W2	h	WT(g)
1/2″	12.7	64	53	97	32.0	22.4	35.0	10-24UNC	530
3/4″	16.0	76	63	126	38.0	22.4	35.0	10-24UNC	700
1″	20.0	87	66	126	43.5	22.4	35.0	10-24UNC	980
11/4″	25.0	96	81	145	48.0	22.4	35.0	10-24UNC	1950
11/2″	32.0	114	83	145	57.0	25.4	38.1	1/4-20UNC	2950
2″	38.1	142	96	204	71.0	25.4	38.1	1/4-20UNC	4450

Main Dimensions-----(Q14F)High Platform Three-way Ball Valve (T-type)

SIZE	d	L	H	D1	B	F	G	W1	W2	h	WT(g)
1/2″	12.7	75	59	126	71.0	335	375	22.4	35.0	10-24UNC	550
3/4″	16	85	64	126	81.5	390	425	22.4	35.0	10-24UNC	725
1″	20	100	80	145	102.0	505	515	22.4	35.0	10-24UNC	1000
11/4″	25	115	90	145	108.5	510	575	25.4	38.1	10-24UNC	2000
11/2″	32	125	96	204	121.0	580	630	25.4	38.1	1/4-20UNC	3000
2″	38.1	148	106	204	138.5	655	730	25.4	38.1	1/4-20UNC	4650

Company Introduction
Zhitai Valve Co., Ltd is a member of Valve Association of Longwan District, is located in Longwan Central Industrial Zone, Wenzhou City. It'a professional technology company integrated with development, manufacturing, sales, and after-sales services of valve actuators and and self-controlled valves. Presently, our main products include: pneumatic actuators, pneumatic valves and pneumatic control valves; electric actuators, electeic valves and eletric control valves; automatic control products. Our products are widely applied in natural gas, electricity, petroleum, chemical, metallurgical, construction, pharmacy, paper, printing and dying. Zhitai series actuators and valves are the best choice for automatic fluid control engineering and equipment manufacturing. We sincerely welcome customers from home and abrode to visit us for supervision, communication and cooperation. It's a great honor for us to cooperate with you.
