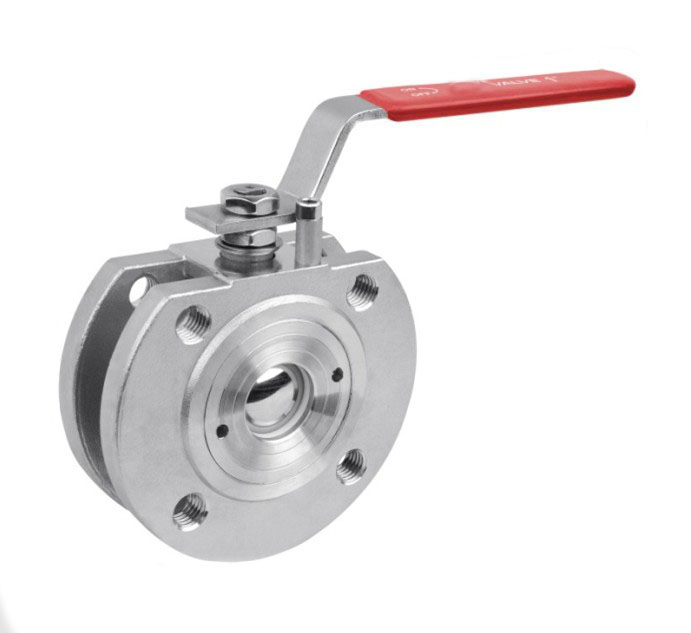

Stainless Steel Flanged Ball Valve, 1PC Body
Investment Castings For Body and CapMounting Pad: ISO5211Flange ends: DIN 2543Pressure Rating: PN16Material: CF8, CF8M, SF3M, WCBPressure Test: API598Size: 1/2"- 4" Body: Stainless s......
Send Inquiry
Product Description
Investment Castings For Body and Cap
Mounting Pad: ISO5211
Flange ends: DIN 2543
Pressure Rating: PN16
Material: CF8, CF8M, SF3M, WCB
Pressure Test: API598
Size: 1/2"- 4"
Body: Stainless steel CF8, CF8M;
Stem: Stainless Steel AISI304/316
Ball: Stainless steel CF8, CF8M;
Ball seat: PTFE;
Stem Packing: PTFE
Bolt, Nut, Washer: Stainless steel AISI304/316;
Handle: Stainless steel AISI304;
Handle Sleeve: Plastic;
Lock Device: Stainless steel AISI304
