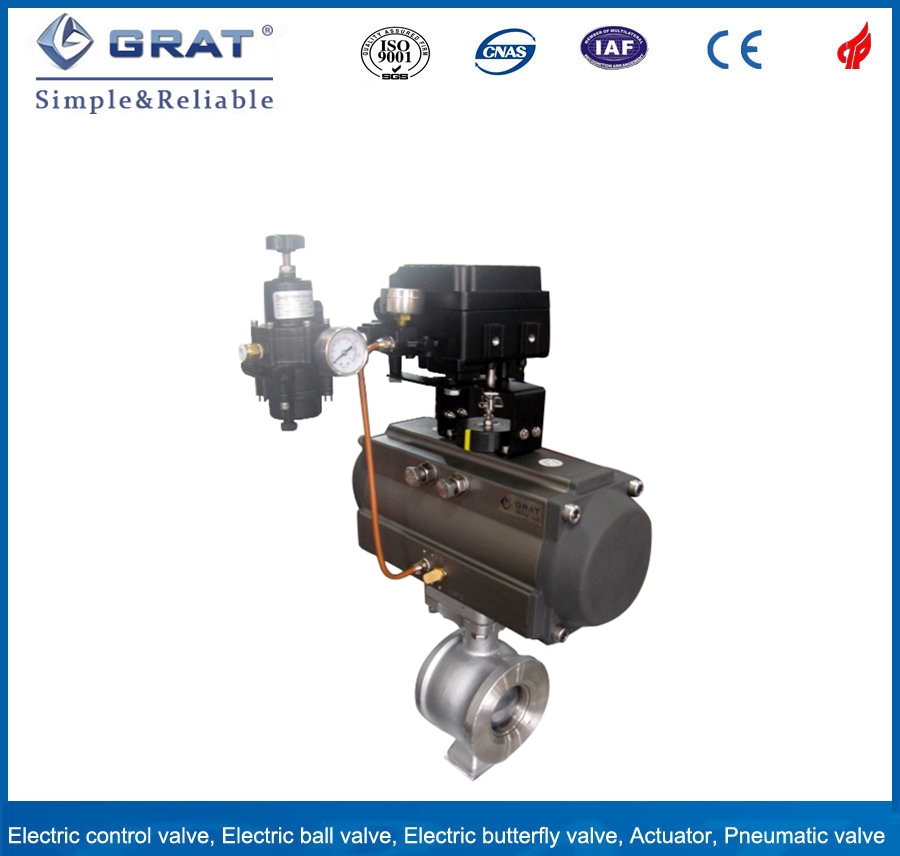

Sanitary Wafer Pneumatic Ball Valve
Sanitary Wafer Pneumatic Ball ValveProduct descriptionPneumatic stainless steel ball valve has small volume to be suitable for an small installation space in air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments and smoke sampling.The paramet......
Send Inquiry
Product Description
Product description
Pneumatic stainless steel ball valve has small volume to be suitable for an small installation space in air conditioning system, fire fighting system, water treatment system, pipeline purging, analytical instruments and smoke sampling.
The parameters
| Air supply | 0.4~0.7MPa |
| Valve size | DN15-DN50 |
| Medium Temp | -10°C-+200°C |
| Ambient Temp | -10°C-+60°C |
| Operating pressure | PN1.6MPa |
| Action mode | Switch to cut off |
| Flow characteristics | Quick switch |
| Body connections | Inside thread |
| Body material | CF8, CF8M(SUS304/SUS316) |
| Ball valve seal | Fluorine rubber |
| Brake material | Casting aluminum alloy |
| Applicable medium | Neutral gas and liquid |
| Applicable industries | Analysis instrument system, quick switch pipeline |
| Protection level | IP67 |
| Installation mode | Any direction(prefer to the level and inclined installation to prolong service life) |

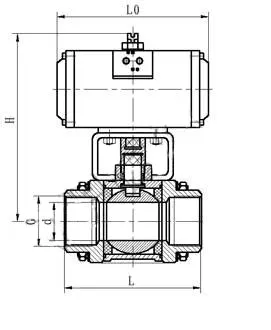

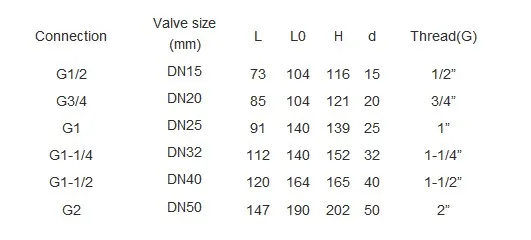

Figure and connection size
Packing&Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case.
2.Transportation:by sea,by air,by train.
Our Services
1.Professional consultation
2.24 hours response after sale.
3.One year warranty.
4.Safe packing for shipment.
5.Welcome sample order.
Company Introduction
Wuhan Grat Control Valve is a professional valve manufacturer established in 2005.It is specialized in researching and developing various automatic valves for industrial automation and on-site implimentation products.
In 10 year development,Grat has obtained 9 patents like small flow control valve and potentiometer position device,and do business with more than 1000 companies all over the world.Some of them are world famous enterprises such as Dunham-bush,Grundfos,Johnson control and Hitachi,ect.
According to ISO9001:2008 quality management system,Grat strictly controls the product quality and the whole production process.In 2015,Grat got CE certificates and passed successfully EMC tests and CNAS 100000 times lifetime tests.
With the ERP and CRM systems applied in management,they enhance the resource and information level and improve the ability of customer relationship.High quality and good service are our advantages to win the market.
Certificates & Test reports

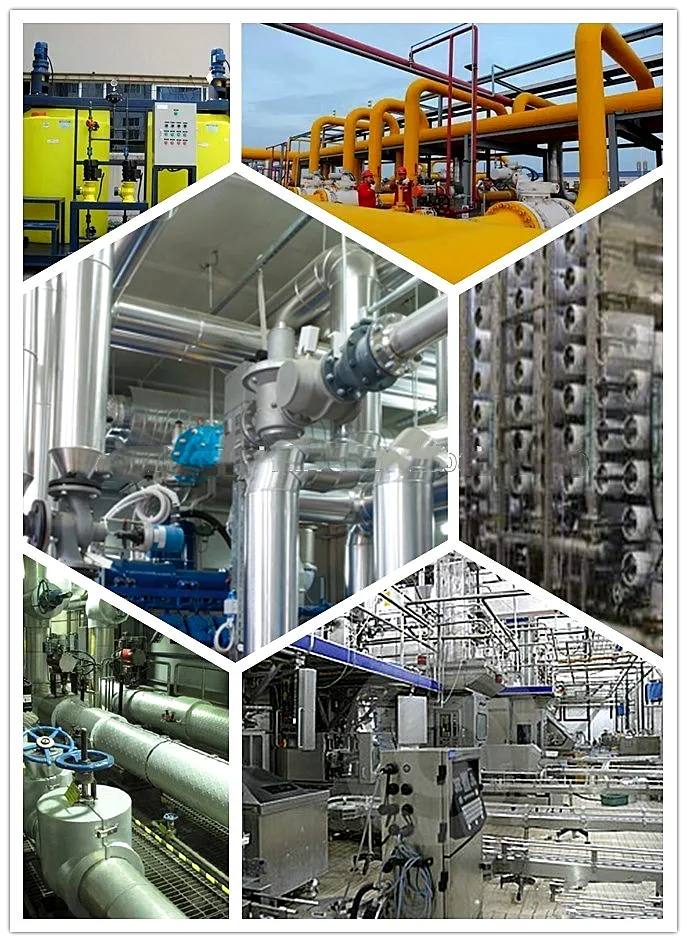

Application
