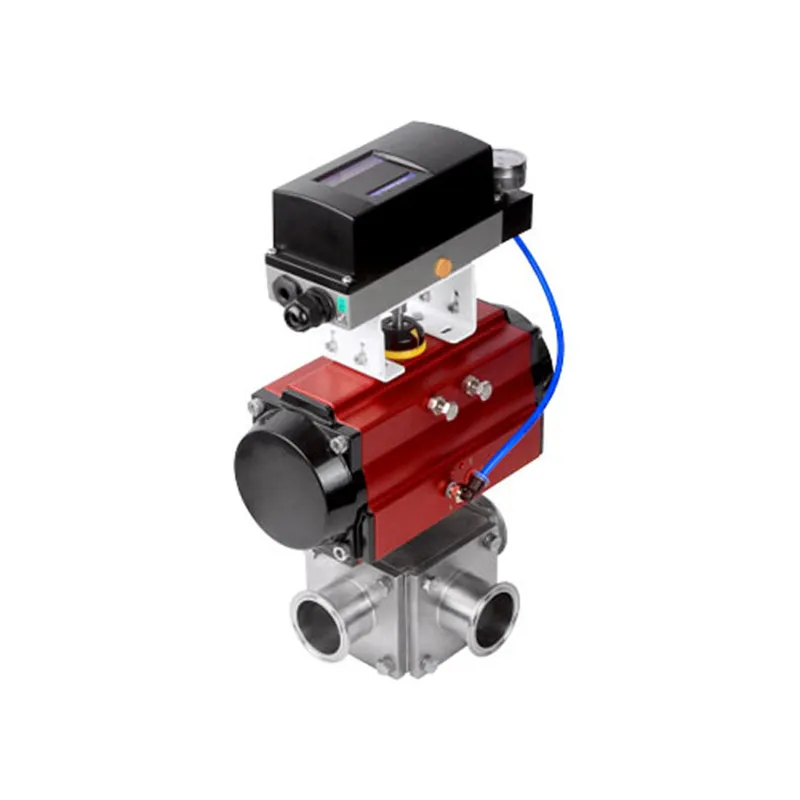

Sanitary Stainless Steel 316L Three Way Ball Valve with Positioner 1891
Sanitary Stainless Steel 316L Three Way Ball Valve with Positioner 1891Applications:The hygienic design of the valve is widely used in the field of food procesing, beverages, fruit juices, wine, biopharmaceutical and vary flexible body combinations. For example, L-port or T-port can be interchangeab......
Send Inquiry
Product Description
Sanitary Stainless Steel 316L Three Way Ball Valve with Positioner 1891
★★Applications:
The hygienic design of the valve is widely used in the field of food procesing, beverages, fruit juices, wine, biopharmaceutical and vary flexible body combinations. For example, L-port or T-port can be interchangeable on-site Inlet, outlet to be any combination of changes can guarantee dead angle, no retention.

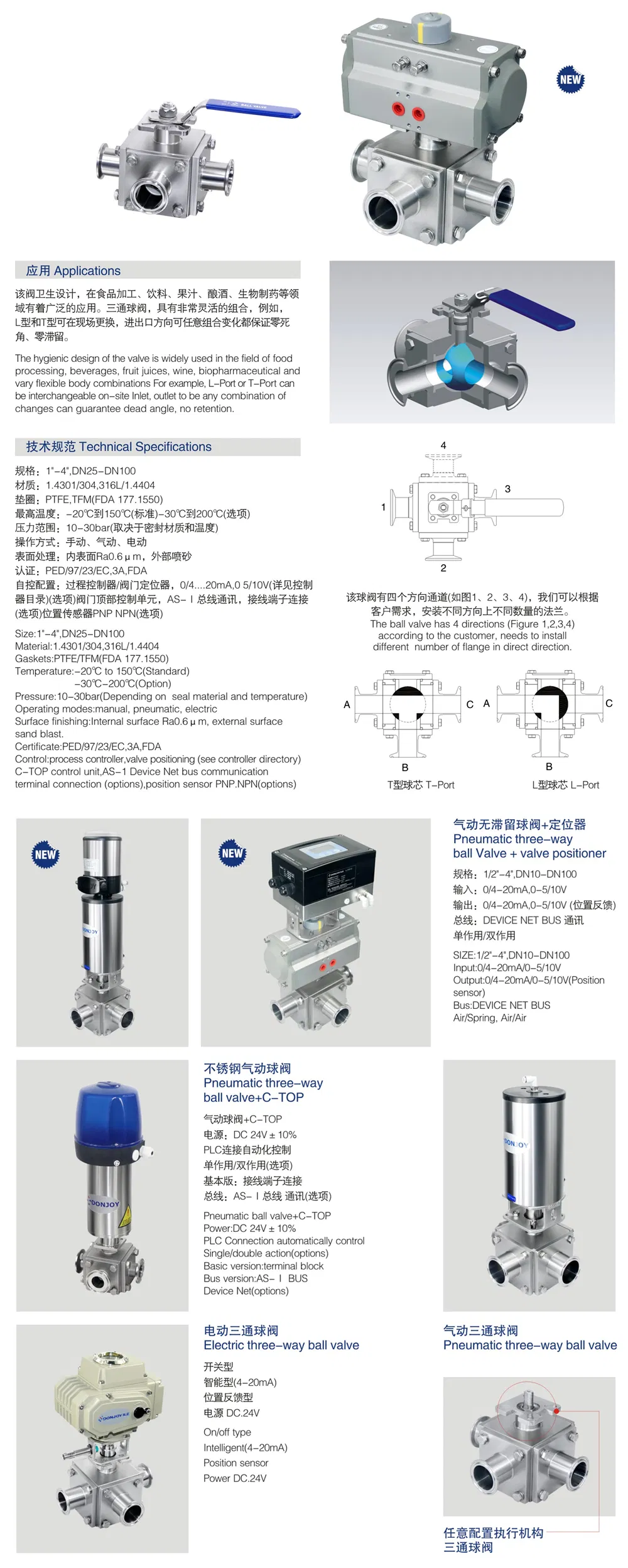

★★Technical specifications:
★★Applications:
The hygienic design of the valve is widely used in the field of food procesing, beverages, fruit juices, wine, biopharmaceutical and vary flexible body combinations. For example, L-port or T-port can be interchangeable on-site Inlet, outlet to be any combination of changes can guarantee dead angle, no retention.
★★Technical specifications:
| Item: | Sanitary Stainless Steel Three Way T Type Pneumatic Ball Valve |
| Size: | 1INCH~6INCH, DN25-DN150 |
| Material: | 1.4401/304, 1.4404/316L |
| Gasket: | PTFE, TFM (FDA177.2600) |
| Temperature: | -20ºC to 150ºC (standard) -30ºC to 200ºC (option) |
| Pressure: | 10-30 bar (Depending on seal material and temperature) |
| Operating modes: | With manual handle, With stainless steel vertical pneumatic actuator, With aluminium horizontal pneumatic actuator, With electric actuator(option) |
| Surface finishing: | internal surface 0.6μm, external surface: sandblast |
| Certificate: | PED/97/23/EC, 3A,FDA |
| Control: | process controller, valve positioning, C-TOP control unit, AS-I Device Net bus communication terminal connection 9 optins 0, position sensor PNP. NPN (options) |
| Packaging details: | Plywood case or customerized. Or as per the request of customers |
