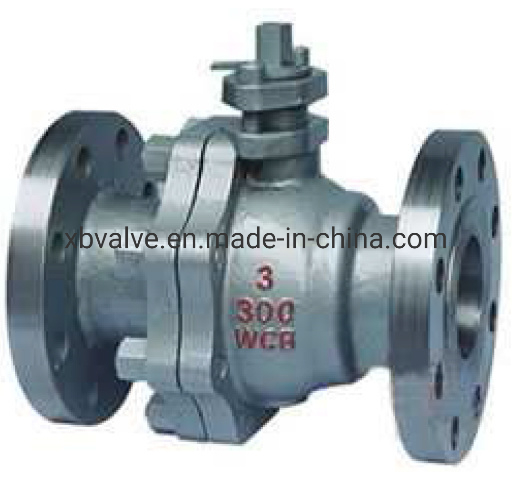

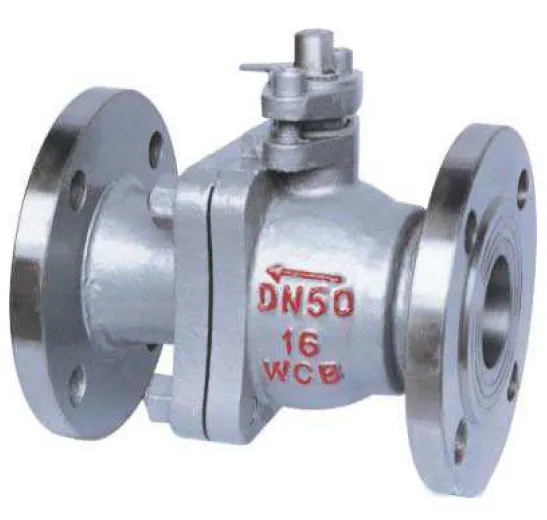

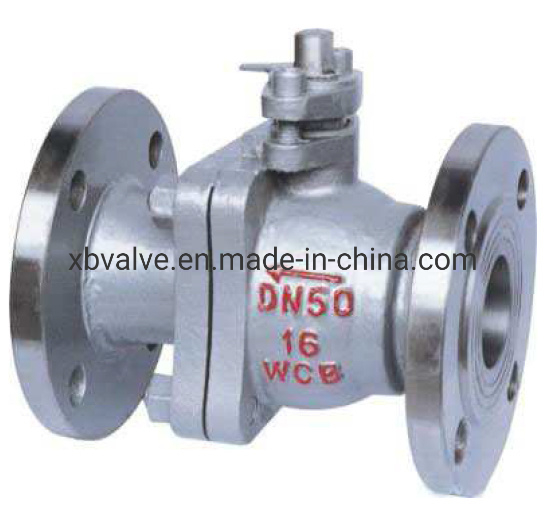

Pn10 Pn16 2-PC Cast Steel Ball Valve
2-pc Cast Steel Ball Valve, PN16 Cast Steel Ball ValveSpecificationsBall valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance. 070-2 cast iron gate valve rising stemApplication:Product name :PN16 2-PC CAST STEEL BALL VALVEProduct specification :1/2&q......
Send Inquiry
Product Description
2-pc Cast Steel Ball Valve, PN16 Cast Steel Ball Valve
Specifications
Ball valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance. 070-2 cast iron gate valve rising stem
Application:
Dimension:
Machining Process

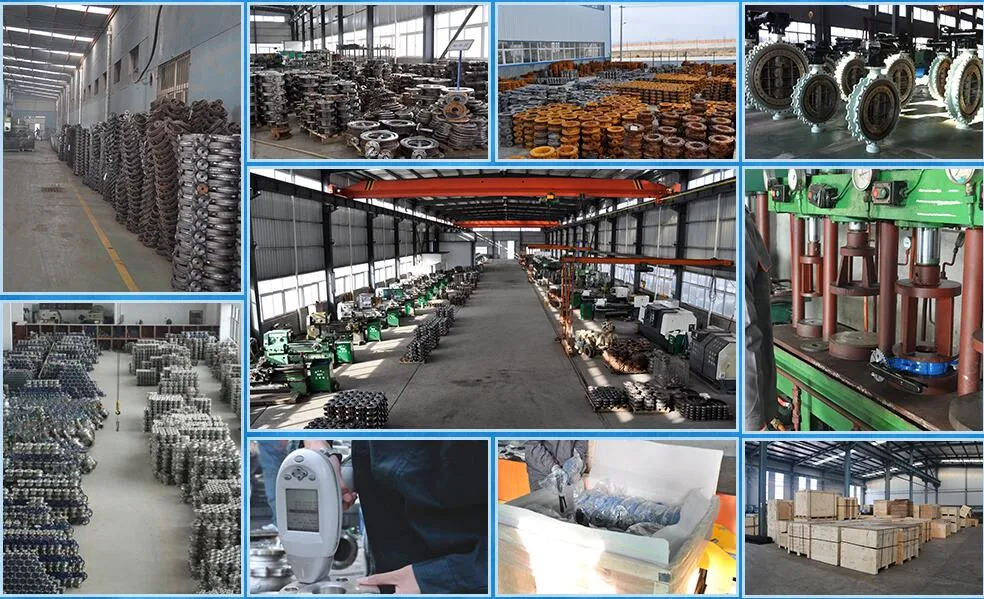

Work Shop
Shipment and packing , transport
Other Porducts
Why Choose US
We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.
We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
Contact to this supplier
Specifications
Ball valve Products flexible from open to shut, no obstruction, connection strong, good sealing performance. 070-2 cast iron gate valve rising stem
Application:
Product name :PN16 2-PC CAST STEEL BALL VALVE
Product specification :1/2" ~ 8"
Face to face:DIN3202 F4/F5
End flange size :DIN2633
Design standard:ANSI16.34
Nominal pressure :150LB
Test standard:API598
| Main Part Materials | ||||
| No. | Part Name | Materials | ||
| 1 | Body | 1.0819 | 1.4308 | 1.4408 |
| 2 | Cap | 1.0619 | 1.4306 | 1.4406 |
| 3 | Ball | SS304 | SS304 | SS316 |
| 4 | Seat | PTFE | ||
| 5 | Stem | SS304 | SS304 | SS316 |
| 6 | Gasket | PTFE | ||
| 7 | Thrust Washer | PTFE | ||
| 8 | Packing | PTFE | ||
| 9 | Gland | SS304 | ||
| 10 | Handle | SS304 | ||
| 11 | Stem Nut | SS304 | ||
| 12 | Bolt | ASTM 194-B8 | ||

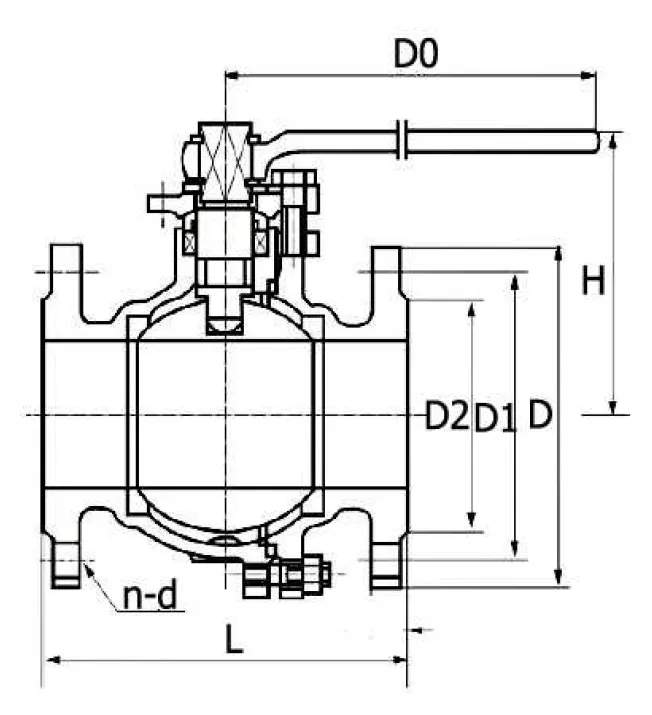

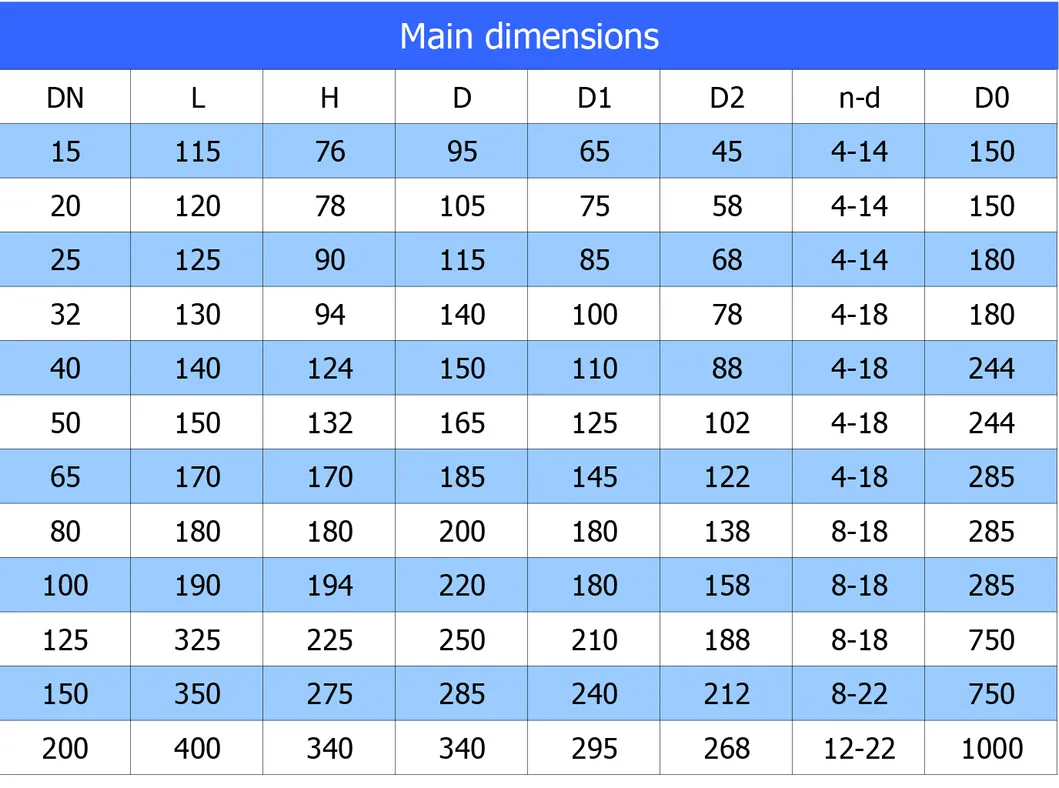

Dimension:
Machining Process
Work Shop
Shipment and packing , transport

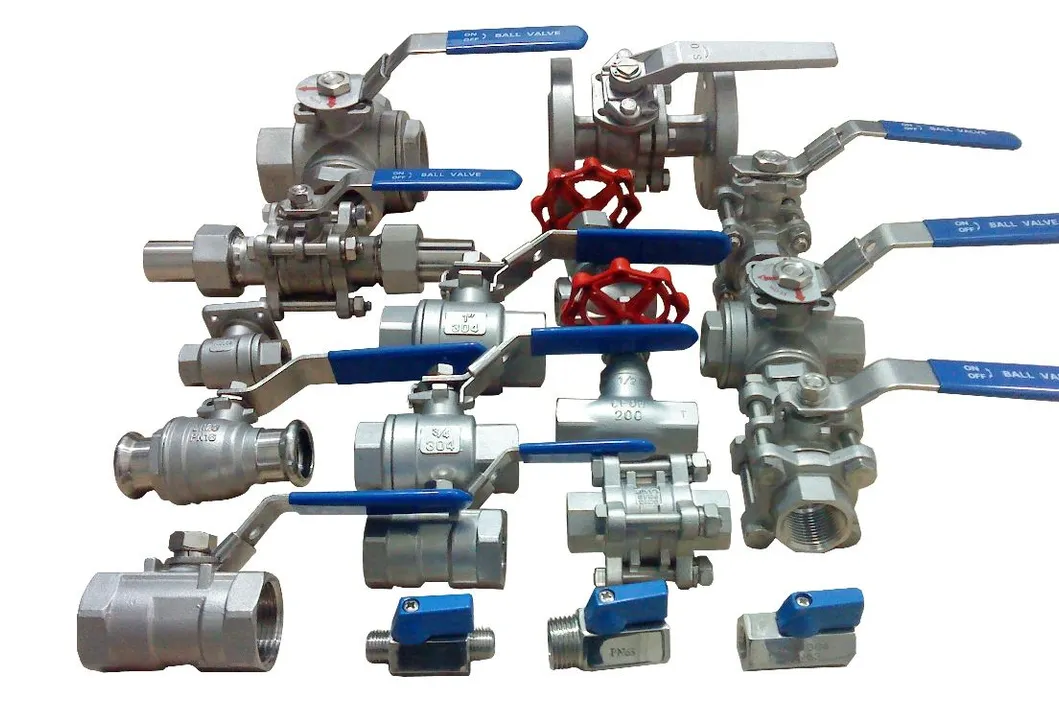

Other Porducts
Why Choose US
We control the material of PTFE(Teflon) and stainless steel wires per customer's request.
Some are from Japan and Taiwan, some are from China local. Only choose high quality material.
We test leakage of each roll before braiding, then we cut 300mm and crimp it to test
burst pressure after brading.
We use CNC Lathes Machine for end fittings production. Machine system, knife and inspection
tools are all imported from Japan.
We use Techmaflex Crimping Machine which is imported from France. This machine has
accurate and stable performance for crimping because it is produced for PTFE hose crimping only.
Contact to this supplier
