                                            Nace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball Valve

                                            AEA Forged Steel Trunnion Mounted Ball ValveSize2" to 60" (50 mm to 1500 mm)ASME ClassClass 150 to 2500Design StandardAPI 6DStandards:Trunnion-mounted Ball Valve design complies to API 6DValves offered with API 6D monogramWide portfolio of Side-entry and Top-entry designsFugitive emissions......

                                            Send Inquiry

                                            Product Description

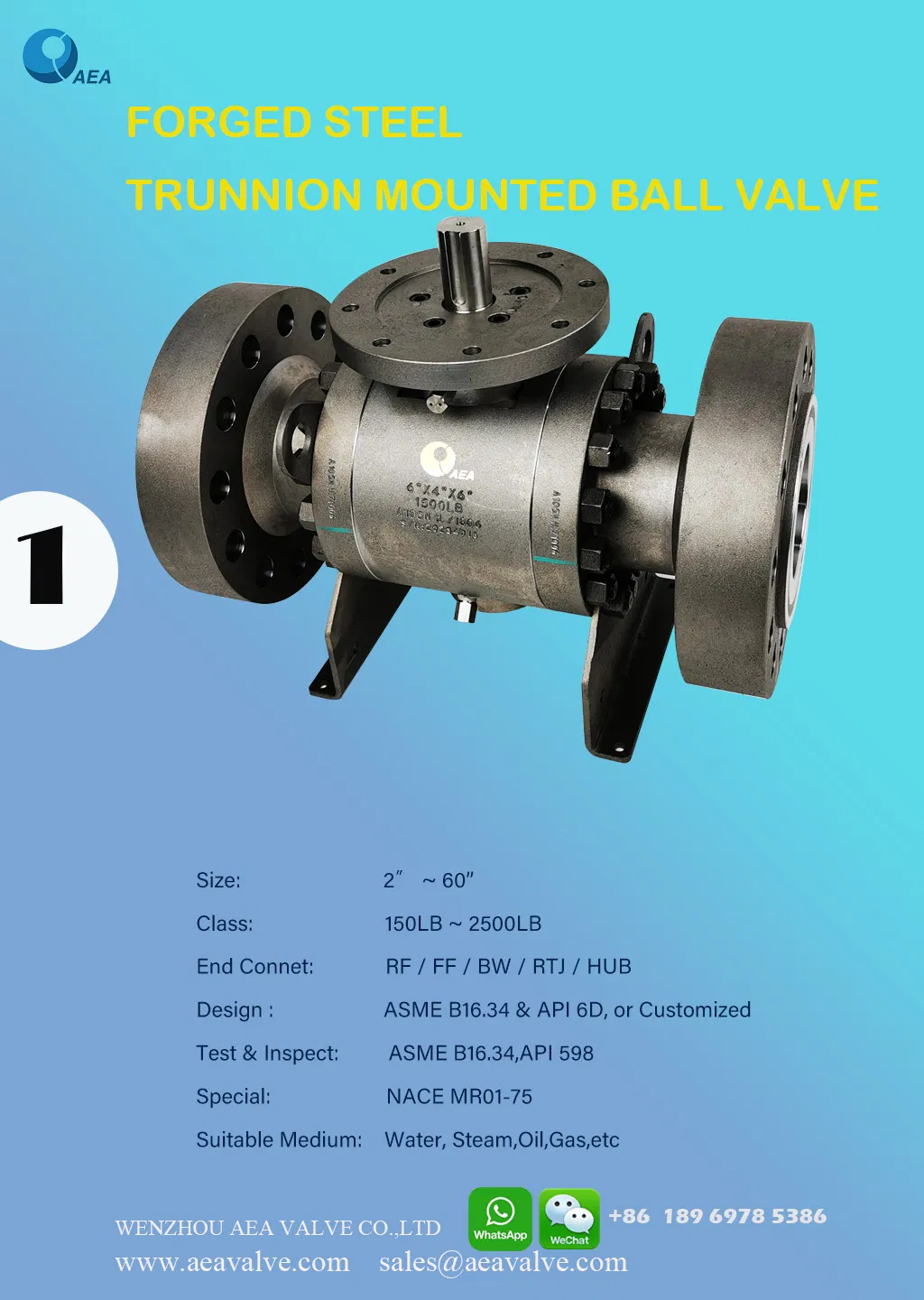

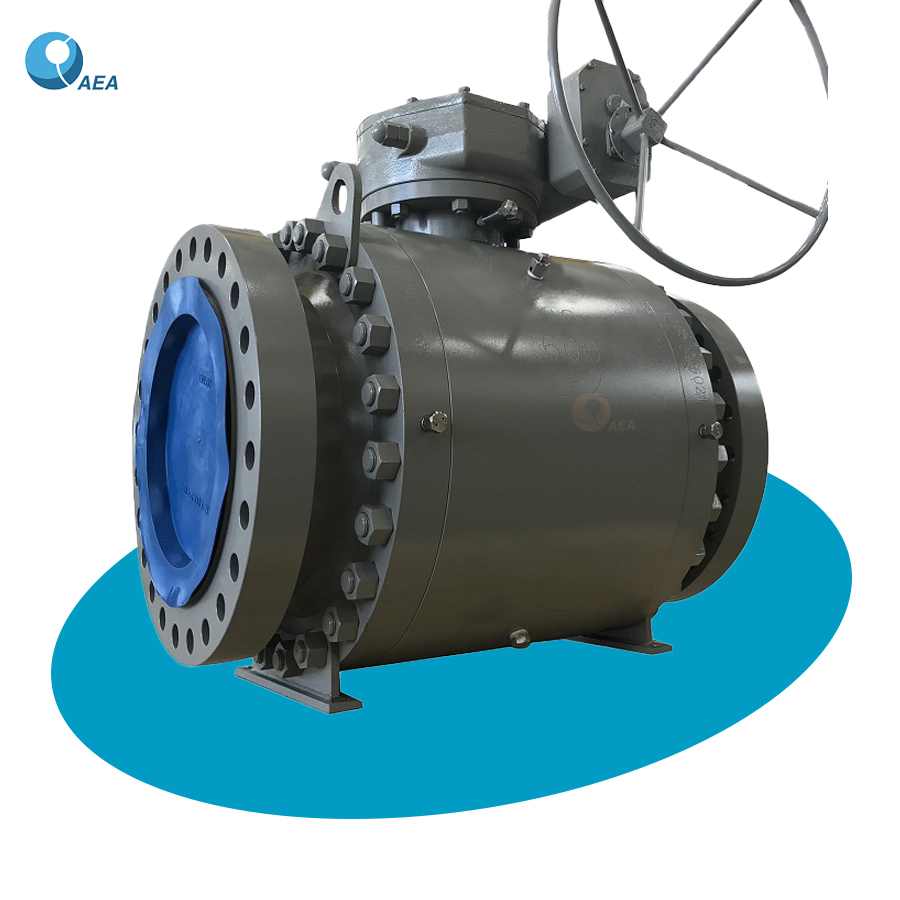

                                            AEA Forged Steel Trunnion Mounted Ball Valve

                                            Nace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball Valve
                                            Size2" to 60" (50 mm to 1500 mm)
                                            ASME ClassClass 150 to 2500
                                            Design StandardAPI 6D

                                            Standards:

                                            • Trunnion-mounted Ball Valve design complies to API 6D
                                            • Valves offered with API 6D monogram
                                            • Wide portfolio of Side-entry and Top-entry designs
                                            • Fugitive emissions - Soft and Metal seated valves complies to ISO 15848-1, Class AH and BH
                                            • Stem seal configurations tested to API 622 at Yarmouth Research labs, Maine, USA
                                            • Firesafe design - Tested to API 607 and API 6FA
                                            • CE Marking - Meets requirements of Pressure Equipment Directive 2014/68/EU, Annexure III, Module H
                                            • PED Module B1 Design examination certificate (certified by DNV) available
                                            • Atex - Meets requirements of Atex Directive 94/9/EC (ATEX), category 2 non-electrical equipment
                                            • SIL3 - Safety Integrity Level SIL 3 certification to IEC 61508, certified by Exida/ TUV
                                            • Valves successfully tested to Shell Design Evaluation Test, Procedure 77/300 for temperature -29 to 150 degree C (O rings) and -50 to 150 degree C (Lip seals)

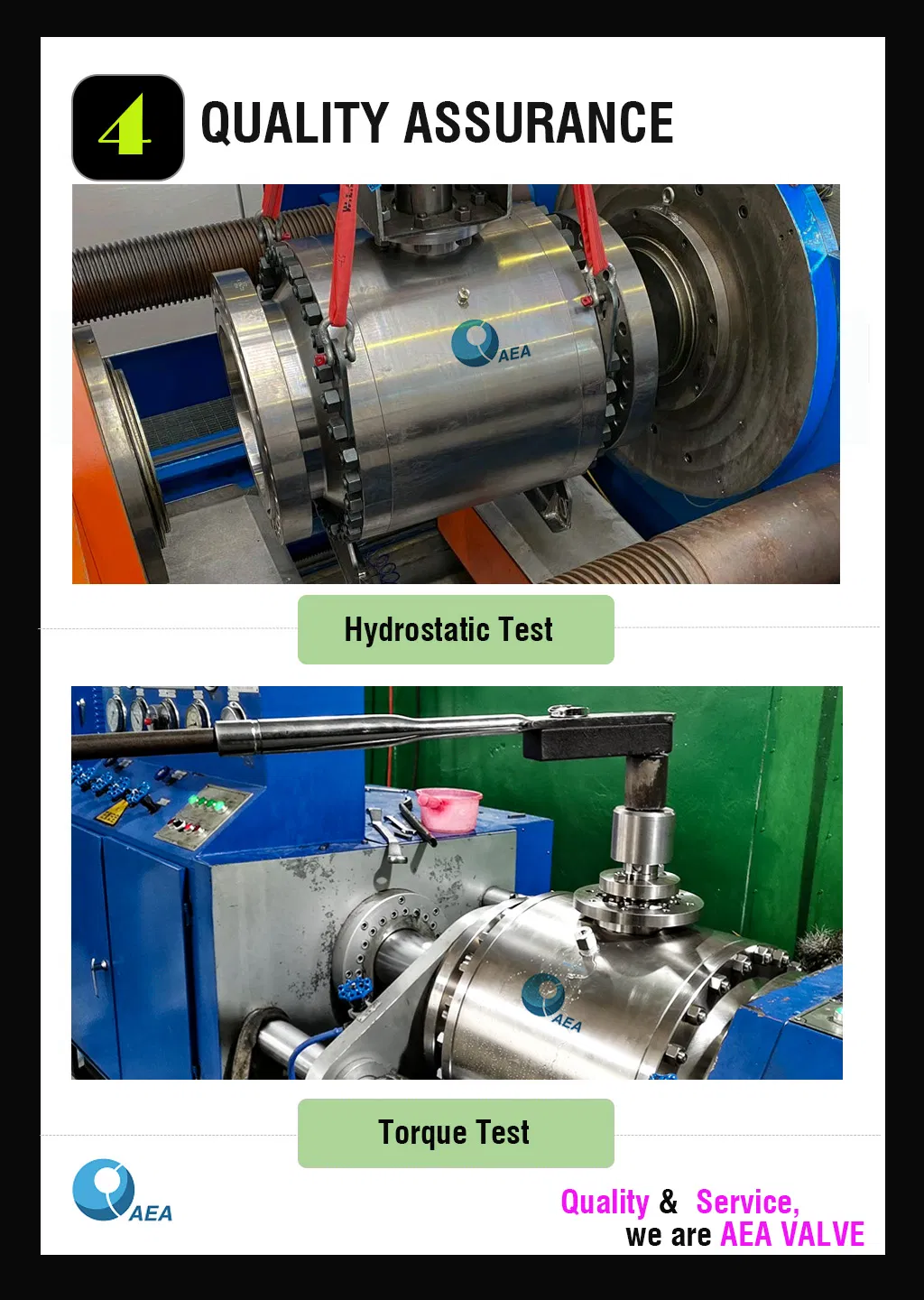

                                            • Pneumatic shell test conducted at 1.1 times rated pressure to check shell integrity, when required

                                            Features that Add Value:

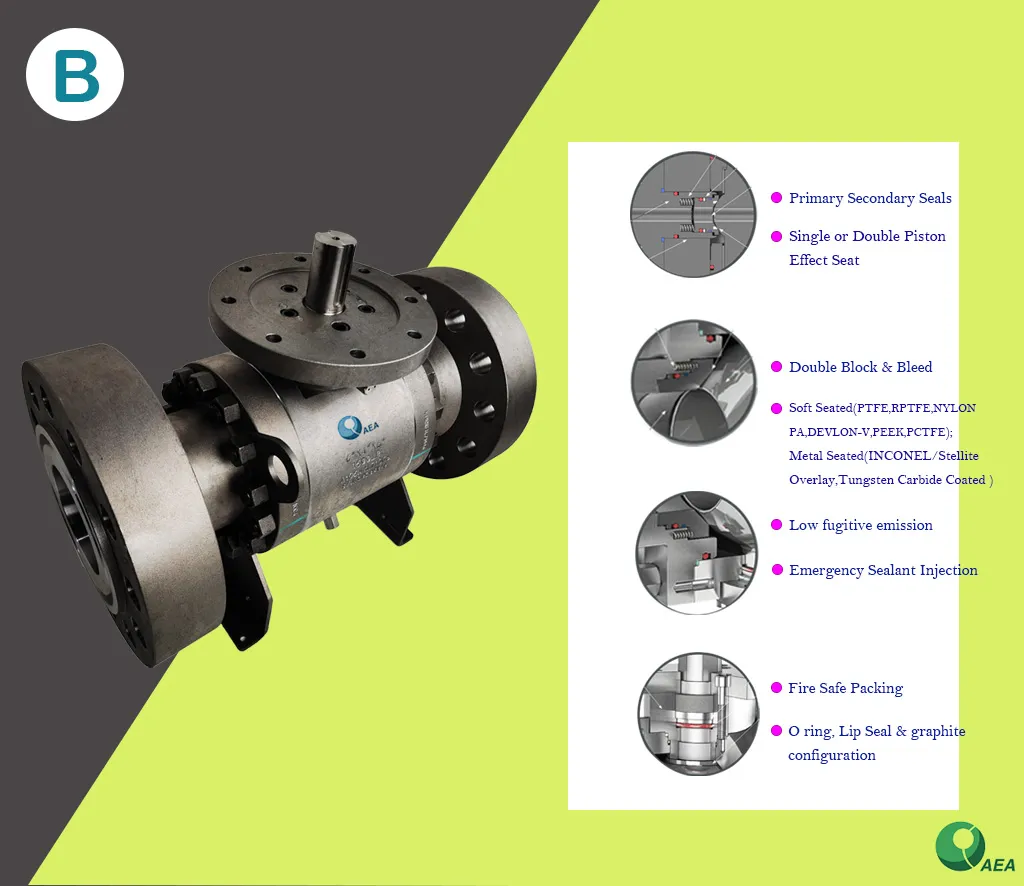

                                            • Double block and bleed (DBB) feature - Valves are designed and tested for automatic cavity relief

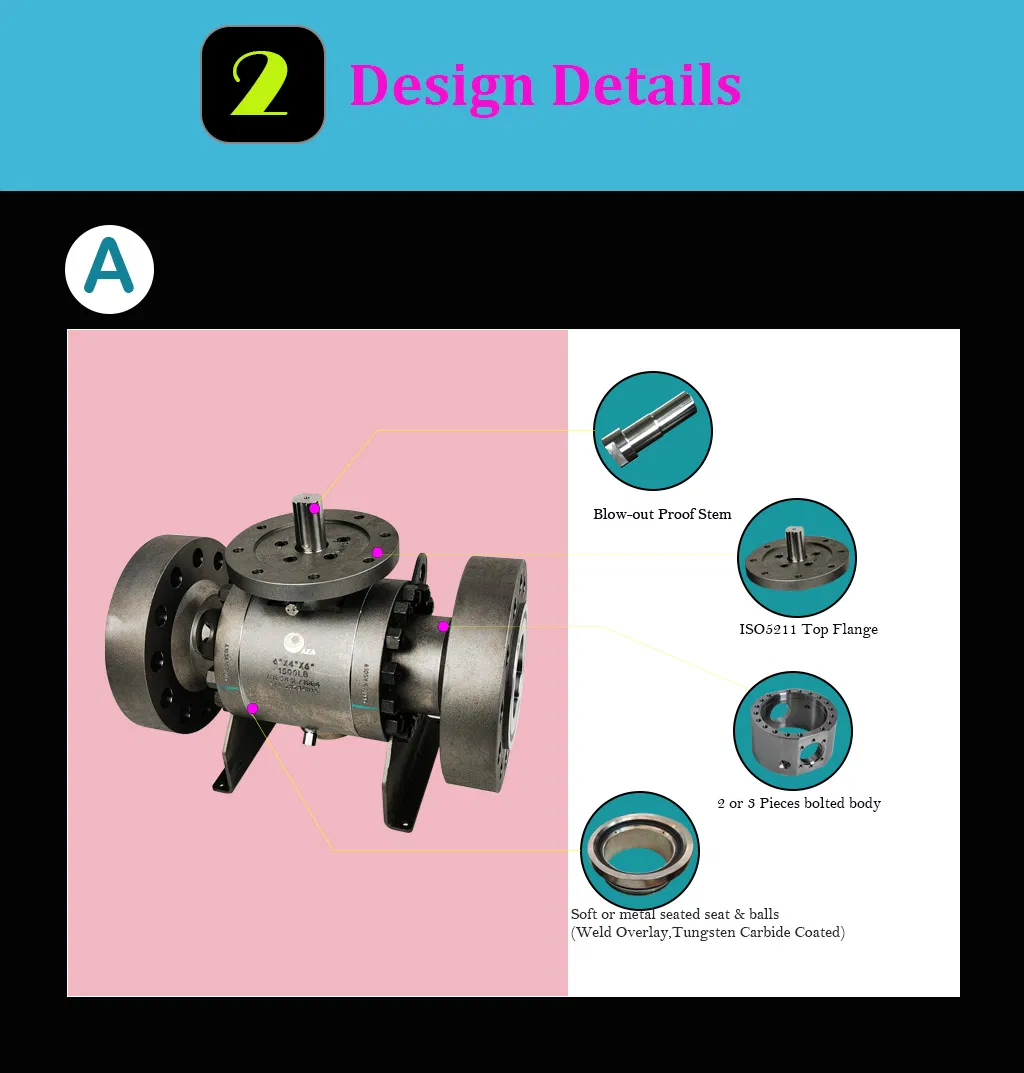

                                            • Anti-blowout stem design
                                            • Coil springs used for consistent seat loading and lower operating torque
                                            • Lip seals provided for low temperature services
                                            • 2/3 stage Stem and 2 stage Body Joint sealing system; Primary O ring and Secondary graphite (in 3 stage stem, thrust washer is primary)

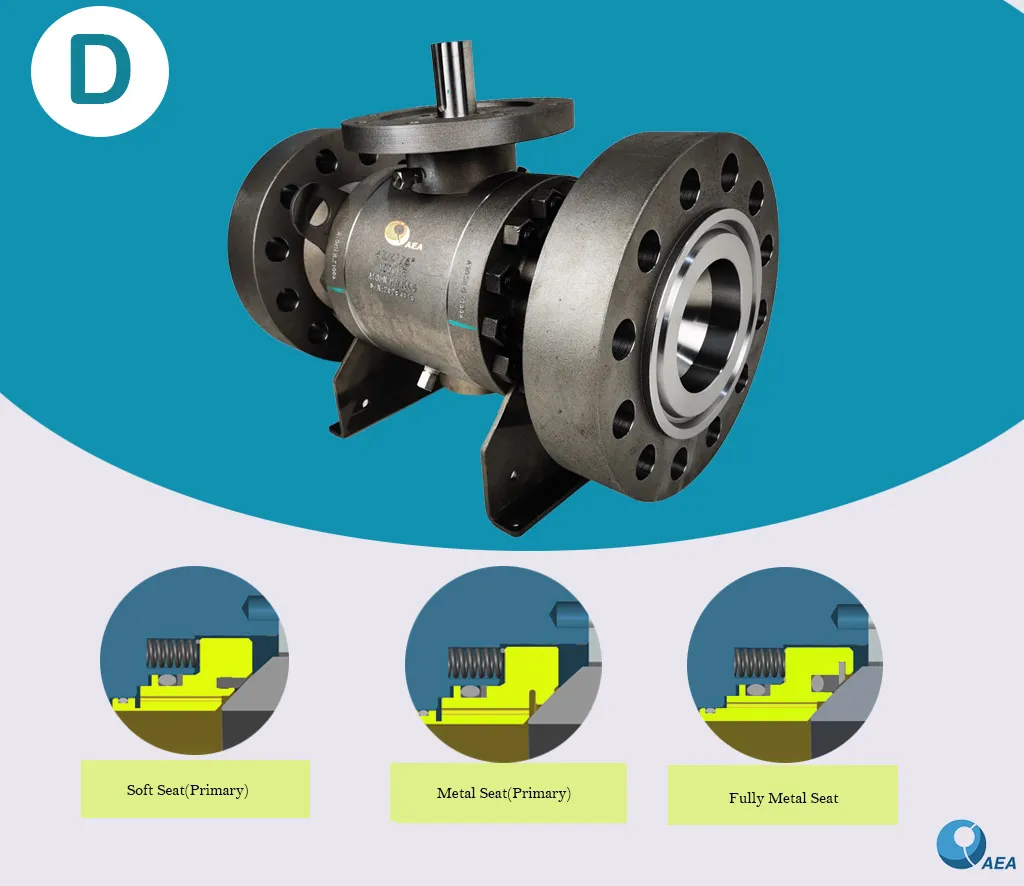

                                            • Where tight shut off is required, Double piston effect (DPE) seats provided for redundancy in sealing

                                            Versatile Solutions:

                                            • Wide portfolio of Side-entry and Top-entry designs
                                            • Options: Buried service, Cryogenic
                                            • Offered with Electric, Pneumatic and Hydraulic Actuators
                                            • In-house Tests Capabilities - Cryogenic Test, Pipe Bending Test, Vacuum Test and Fast Closure Test
                                            Trunnion-mounted Ball Valves Special Features:
                                            Accessibility to all the valve internals from the top
                                            In-line valve maintenance, without disassembling the valve from the pipeline
                                            Reduces maintenance downtime
                                            Body cover joint not exposed to pipeline stresses
                                            Nace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball ValveNace Mr0175 API 6D Bolted Body Reduced Full Bore Side Entry Soft Rptfe Devlon Peek Seat Insert Flanged Connection Trunnion Support Ball Valve

                                            Trunnion-mounted Ball Valves - Top-entry Design Special Features: Accessibility to all the valve internals from the top In-line valve maintenance, without disassembling the valve from the pipeline Reduces maintenance downtime Body cover joint not exposed to pipeline stressesValves - Top-entry Design

                                            Special Features:

                                            • Accessibility to all the valve internals from the top
                                            • In-line valve maintenance, without disassembling the valve from the pipeline
                                            • Reduces maintenance downtime
                                            • Body cover joint not exposed to pipeline stresses

                                            Trunnion-mounted Ball Valves - Top-entry Design

                                            Special Features:

                                            • Accessibility to all the valve internals from the top
                                            • In-line valve maintenance, without disassembling the valve from the pipeline
                                            • Reduces maintenance downtime
                                            • Body cover joint not exposed to pipeline stresses
