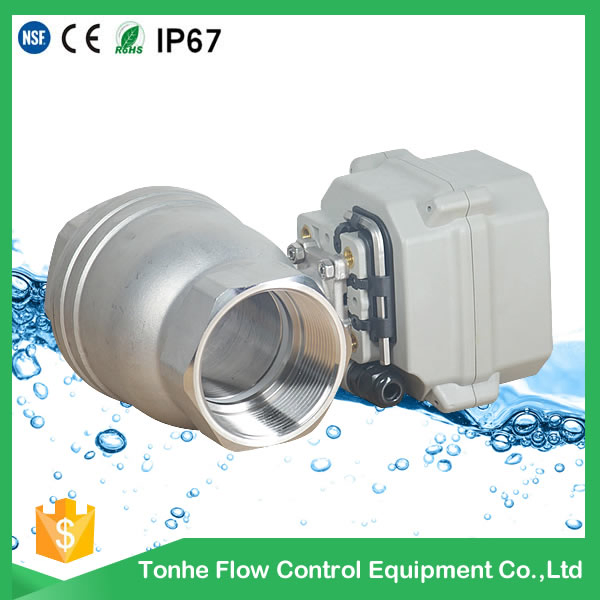

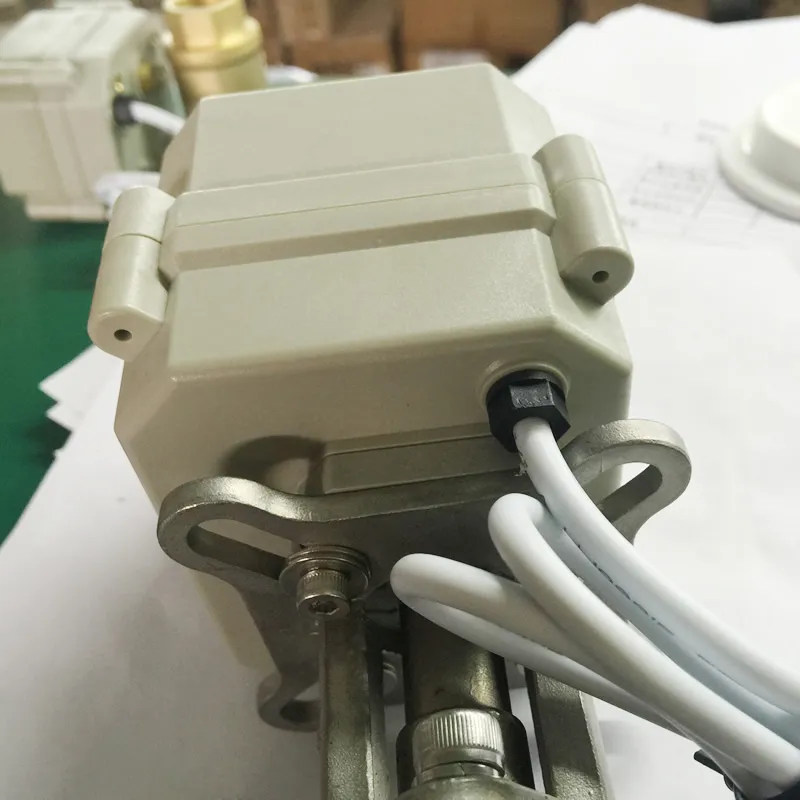

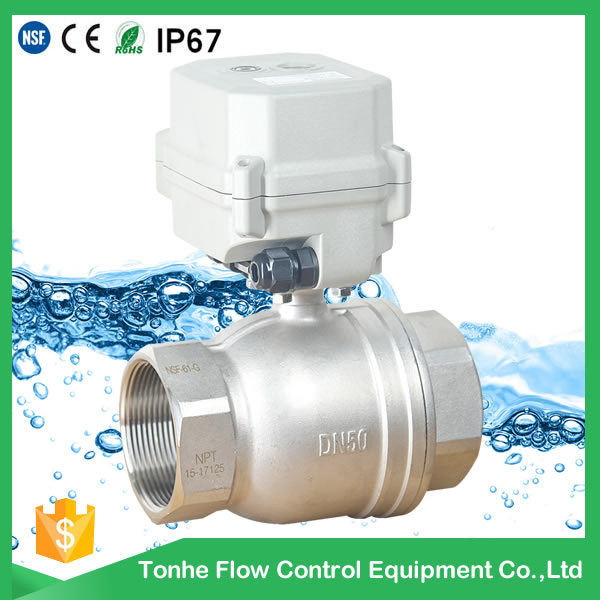

ISO5211 A150-T50-S2-B 2 Way Motorized Water Ball Valve with Manual Override

Product Description

2 way motorized control ball valve for water treatment, different wiring control, DC12V/24V/AC/DC110V-230V, IP67,CE,NSF61, 1.5 Mpa

Design feature:
1Metal gear design, high accuracy output torque, especially for multi-channel scaling system.
2 Small size, compact structure.
3 A variety of control methods, either to accept remote valve position control signal, but also the feedback Signal in place for computer intelligence unit testing.
4 Good sealing performance

For occasions:
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, smallscale industrial automation equipment, environ-metal protection.
ISO5211 A150-T50-S2-B 2 Way Motorized Water Ball Valve with Manual Override

ISO5211 A150-T50-S2-B 2 Way Motorized Water Ball Valve with Manual Override

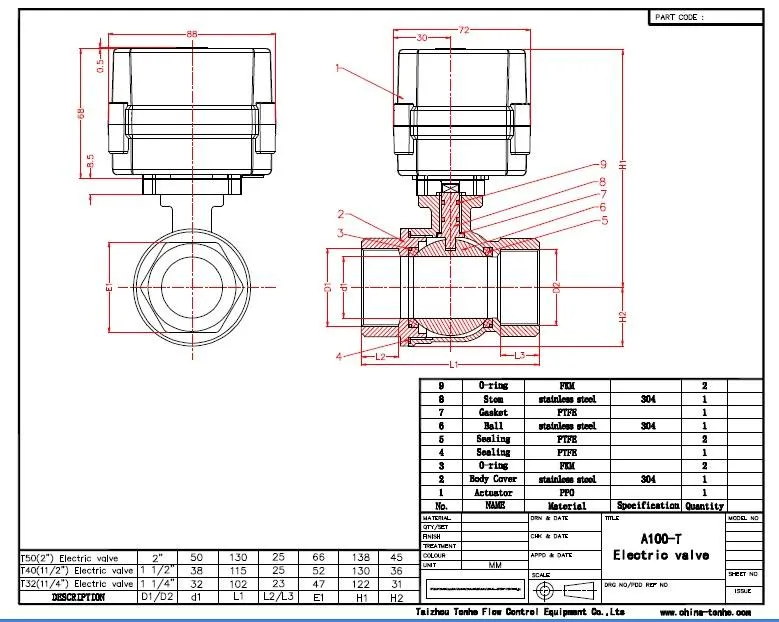

Technical Parameters

Valve size	NPT/BSP 1 1/4" 1 1/2" 2" (Optional )
Connection standard	ISO5211 F03,F04,F05
Output axis specification	male square or Female octagonal
Maximum working pressure	1.0MPa
Circulation medium	Fluid, air
Rated voltage	DC12V DC24V AC/DC9-24V DC9-35V AC110-230V (Optional )
Wiring diagram	CR201 CR202 CR303 CR305 CR501 CR502 CR703 CR705(Optional)
Working current	≤500mA
Open/close time	≤15S
Life time	70000 times(testing pressure is 0.4MPa, medium is water)
Valve body material	SS304 SS316 (Optional)
Actuator material	Engineering Plastics PPO
Sealing material	FKM & PTFE
Actuator rotation	90°
Torque force	15 N.m
Cable Length	0.5m ,1.5m ((Optional)
Environment temperature	-15ºC~60ºC
Liquid temperature	2ºC~90ºC
Manual operation	Yes
Open/close indicator	Yes
Protection class	IP67

TONHEV is a manufacture in China specilized in mini motorized shut off ball valve (1/4"~2'').And valve actuator which are approved CE certification and SS valve approved NSF61 international certification.

we buy a PICC insurance for our products in 2016. I belive they are more reliable and guaranteed for your customer or the user.
Our company also approved SGS ISO9001 in 2013 .

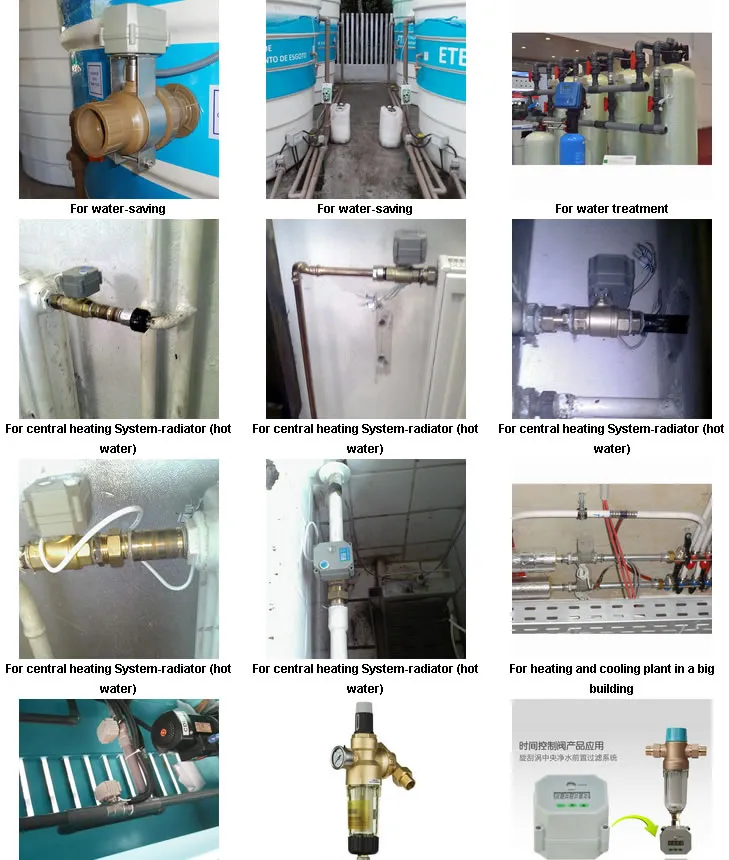

Application
1 IC card water meter, heat meter.
2 Air-conditioning fan coil, fire sprinkler.
3 Solar energy drain valve, high efficiency water-saving.
4 Automatic control systems, university water system, smallscale industrial automation equipment, environ-Metal protection.

A150-T50-S2-B 2 Way Dn50 2

Pls confirm the above different versions of actuators
When you inquiry the valve, pls confirm the detail technical data :
1, valve size , materail
2, working voltage
3, wire control
4, valve manual override & indicator ( yes or no)
5, actuator cable length

OUR SERVIC
Pre-sale service
1.We have full stock and can deliver within short time.
2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
1. We will count cheapest shipping cost and make invoice to you at once.
2. Check quality again, then send out to you at 1-2 working day after your payment
3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service
1.We are very glad that customers give us some suggestion for price and products.
2.If you have any question,please contact us freely by E-mail or Telephone.

When you put orer , pls confirm below valve info , then Nadine will give you a reasonable price .
valve size :
material :
working voltage :
wire control :
