Industrial Usage 3 Way Type Thread Ball Valve for Water Oil Gas

Product Description

Industrial Usage 3 Way Type Thread Ball Valve for Water Oil Gas

Dimension List
NPS d L H W
1/4" 10 72 58 100
3/8" 10 72 58 100
1/2" 12.5 72 58 130
3/4" 16 88 65 130
1" 20 104 78 165
1-1/4" 25 120 85 165
1-1/2" 32 130 96 190
2" 38 156 105 190

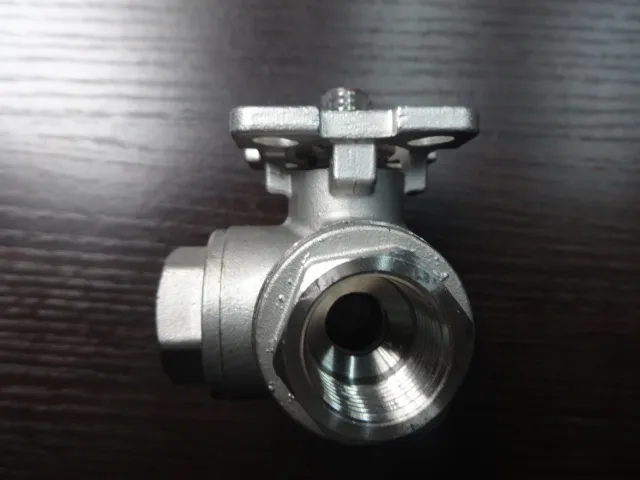

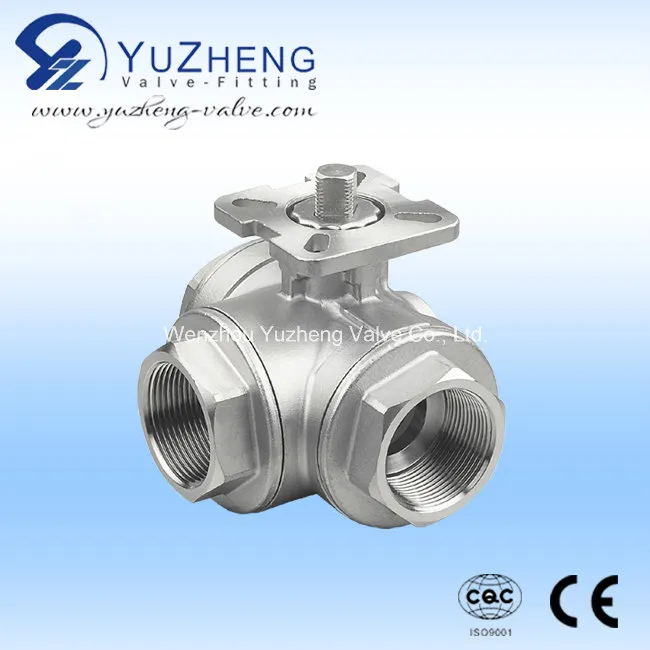

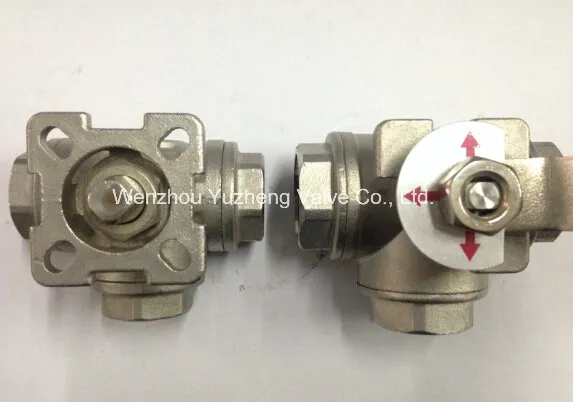

Product name	3 Way Ball Valve L Type With Mounting Pad ISO5211
1)Material	SS201 SS304, 304L, 316, 316L
2)Size	1/4''-4''&DN6-DN100
3)Certificate	ISO9001: 2000,CE
4)Working pressure	1000psi(6.4MPa)
5)Connection Ends	Threaded (F/F,M/F), Butt welded, Socket welded (BW, SW).
6)Suitable medium	Water, gas, air and some corrosive liquid
7)Temperature Range	-20-300 degree C
8)Investment	casting body and cap
9)Sealing	PTFE, RPTFE, PPL
10)stem	SS201,SS304,SS316 Adjustable stem packing,
11)Locking	option
Our advantage	Survival by quality and development by credibility. Quality first, customer upmost !
	100% leakage tested at 100 psi air under water
	Blow-out proof stem, ball are made of ss316 or customer request
	Pure Teflon seals and seats
	Can do OEM products
Shipment
Delivery time	usual 20 days around and can negotiate as per order qty
Shipping port	Ningbo, Shanghai
Term of Payment	30% TT deposit, the balance is paid before shipping the goods
Package detail	inner CTN, ourside ply-wooden case
MOQ	10 PCS/size
Gurantee Period	18 monthes
Capacity to produce	100, 000 PCS/week

Industrial Usage 3 Way Type Thread Ball Valve for Water Oil Gas

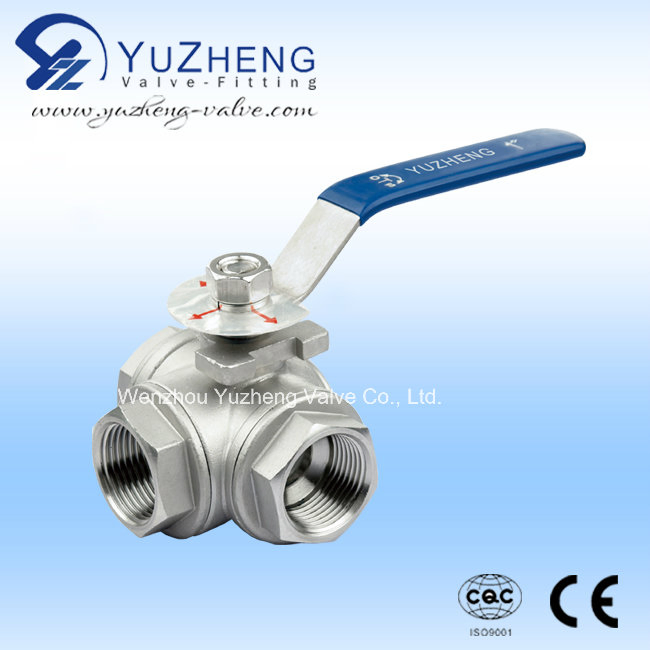

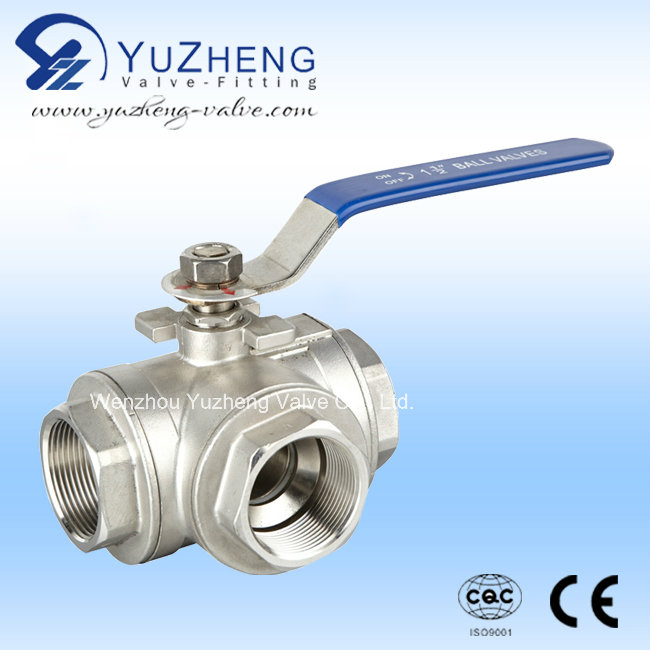

3 Way Ball Valve L type Without mounting pad ISO5211 Industrial Usage 3 Way Type Thread Ball Valve for Water Oil Gas

Brief description:
1) Size: 1/2~2"
2) Working pressure: 1.6-6.4mPa
3) Temperature range: -20° C ~ 232° C ~ 350° C
4) Suitable medium: Water, oil, air, some corrosive liquid
5) Thread type: ZG. G, NPT, BSPT, BSP, DIN259/2999
6) Ball have T type and L type
7) We can also manufacture similar products according to your special requirements

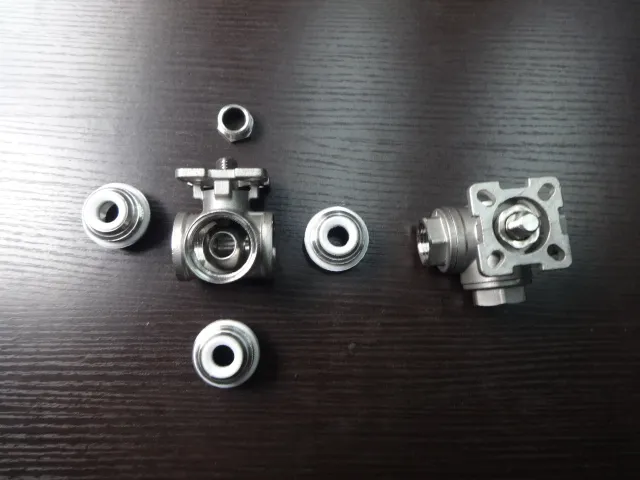

Material List:
NO Part Name Material
1 Body CF8M
2 Cap CF8M
3 Joint Gasket PTFE
4 Seat PTFE
5 Ball SS316
6 Stem SS316
7 Thrust washer PTFE
8 Packing PTFE
9 Gland SS304
10 Nut A2-70
11 Crown washer SS304
12 Handle SS304
13 Scutcheon AL
14 Spring washer SS304

Industrial Usage 3 Way Type Thread Ball Valve for Water Oil Gas

FAQ:

1 Are you a factory or trading company?
We are a factory specialized in manufacturing valves and fitting over 10 years.
And we have got the verification of compliance for ball valve from ECM and ISO9001 certificate of manufacturing and processing of valves and fittings.

2 Where are the main markets for your products?
We hope to make business with companies from all over the world. And for now, our valves and fittings have been exported to especially in North America, South America, South Asia, Europe and Middle East.

3 Do you have a minimum quantity of the products?
No, we will build business with you with even 1pc. We believe this cooperation will be a long-term relationship for our high quality, competitive price and good after-sale service.

4 Are samples available to be sent with free?
It depends on what product you need. There are hundreds of products we sell. You can contact us for particular answer.

5 Can you print our Logo on the valves?
Yes, we can totally produce products according to your this kind special request, even manufacture it based on your drawing.

6 What is your lead time?
It's around 30 days normally. If we have the products in stock, it will be about 15days

7 How can I check your factory situation while it's difficult for me to come to China?

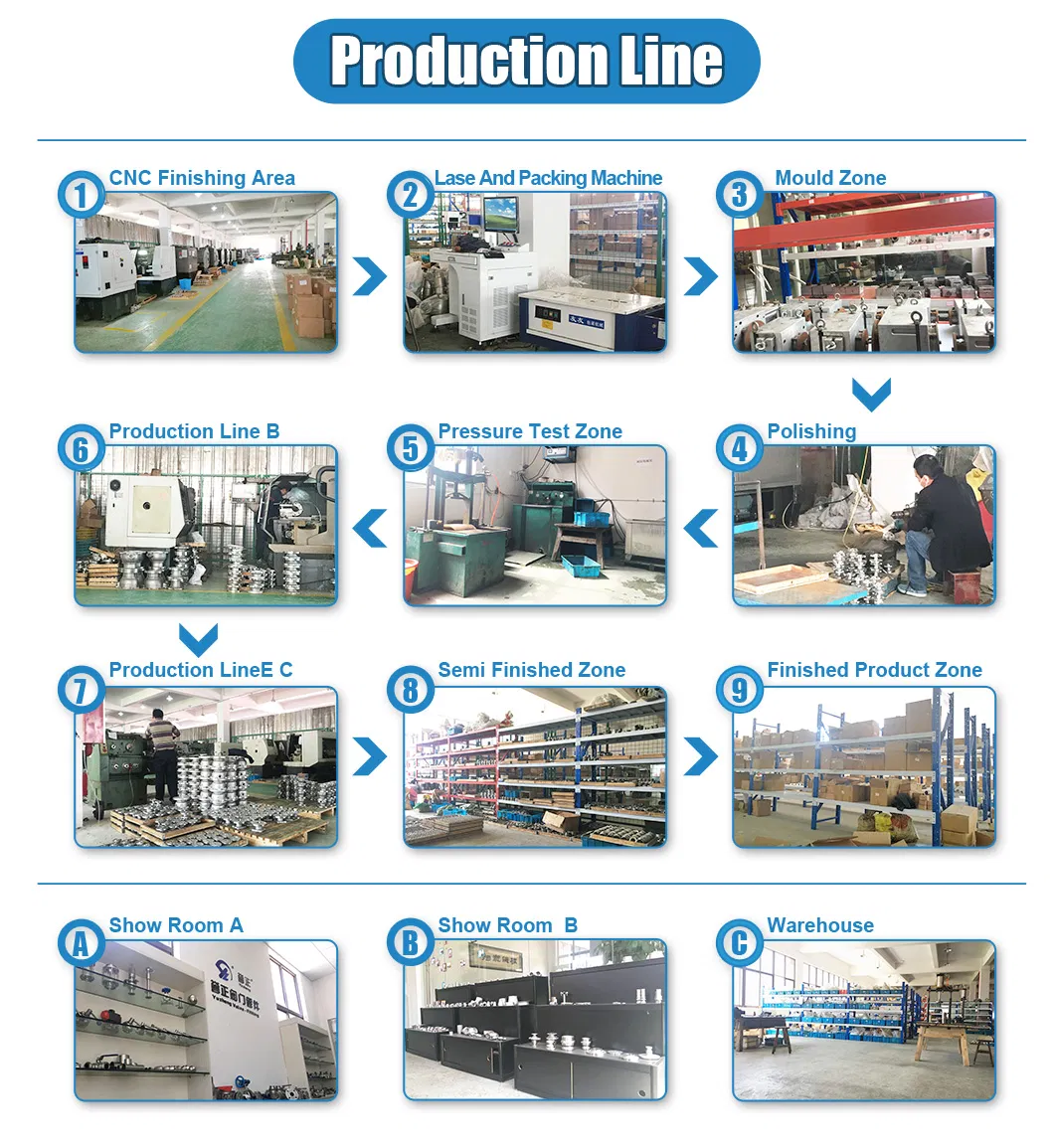

We have photos and videos on our website and face book, It shows every step of the manufacturing.
We also have a showroom in CA, USA. If you have time, you can take a look.

8 How can you guarantee the quality of products?

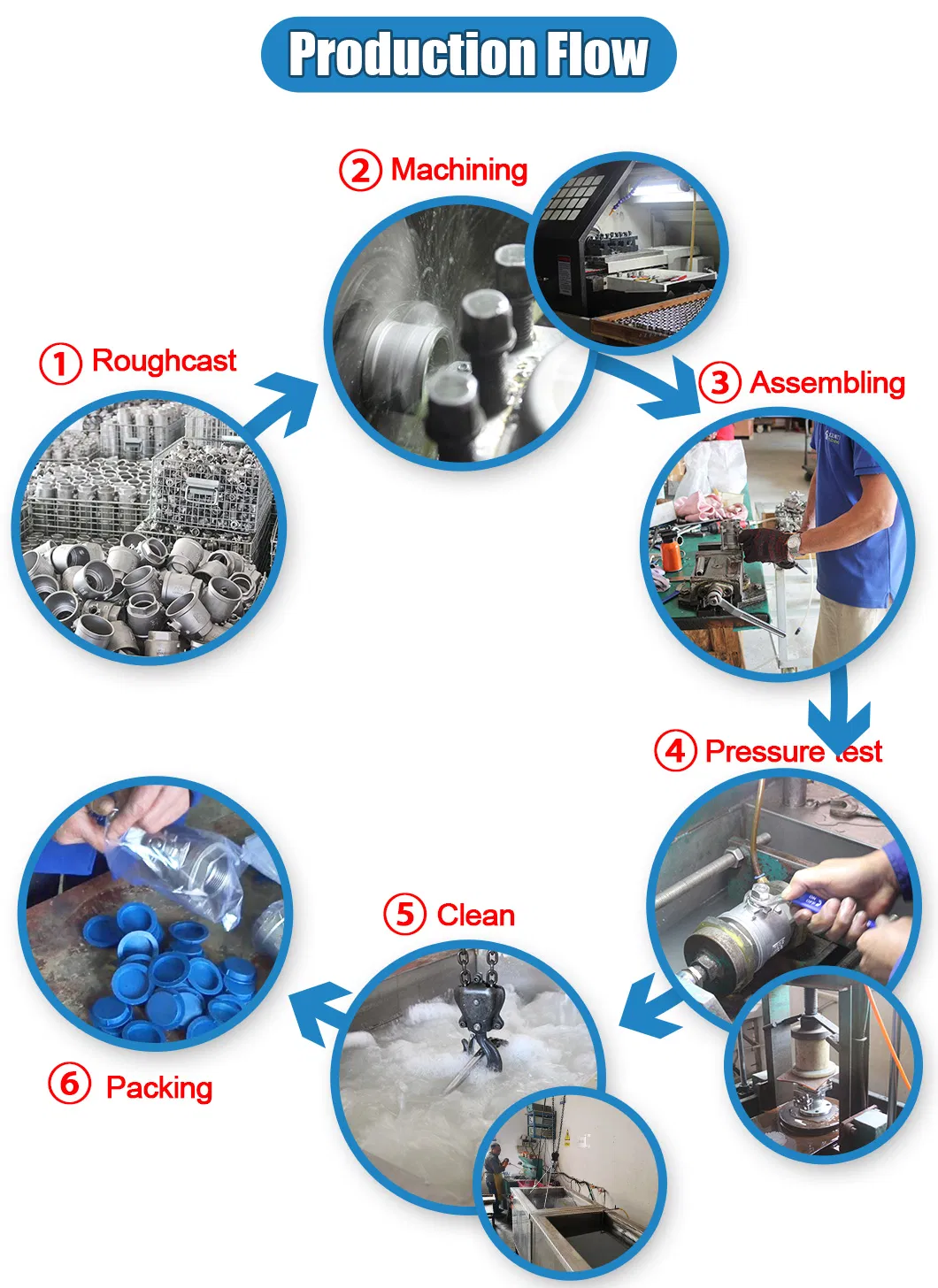

First of all, we have the numerical control device to manufacture products accurately. Then our quality inspectors will test products one by one to make sure every valve or fitting we sell is qualified.

9 How long is the quality guarantee period?
We supply 6 to 12 months for quality guarantee according to customers' using frequency.

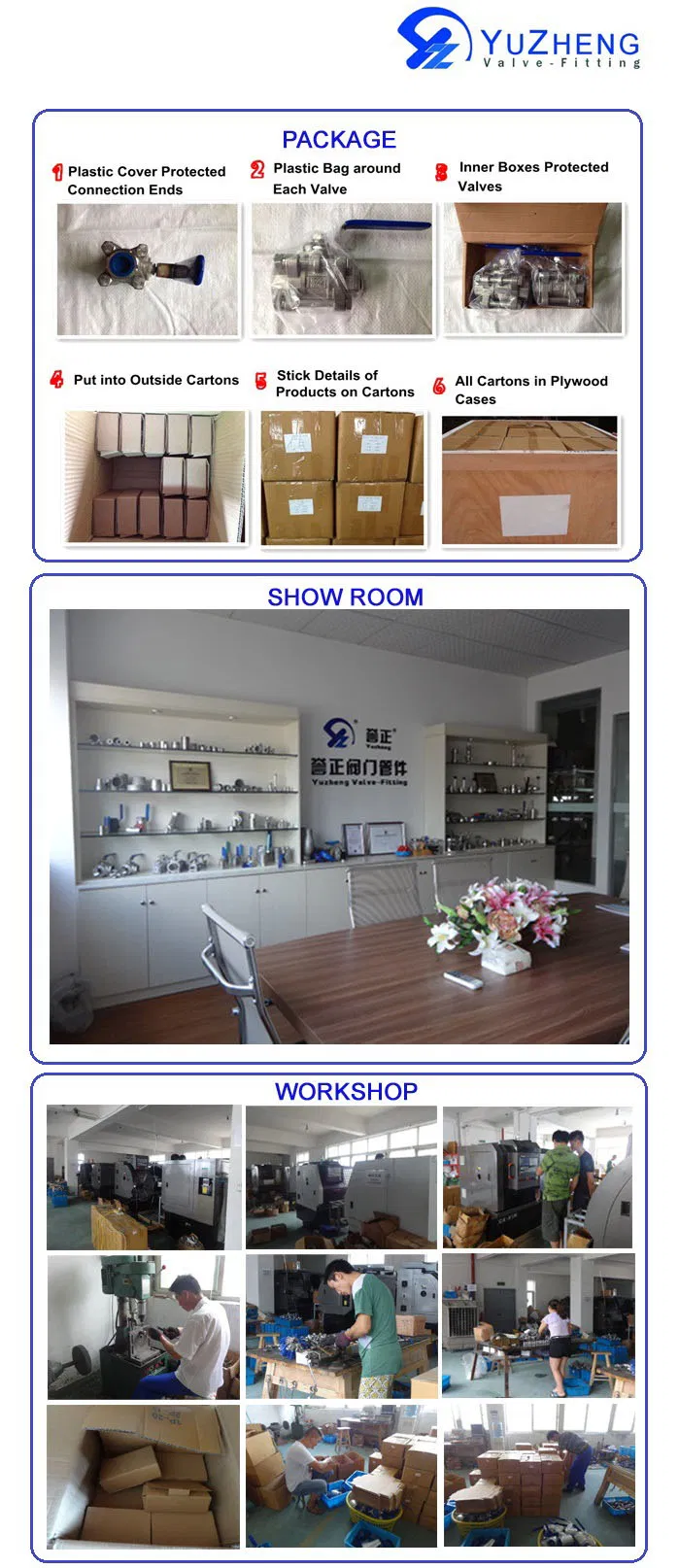

10 How do you pack?
1.Plastic bags→2.Paper box→3.Cartons→4.Plywood Case
