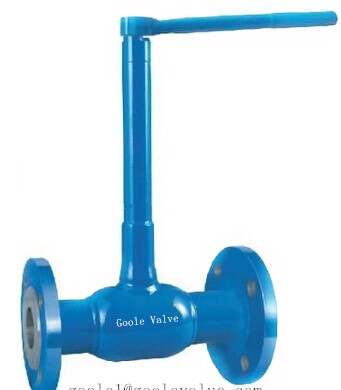

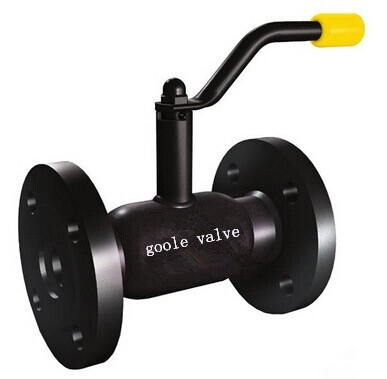

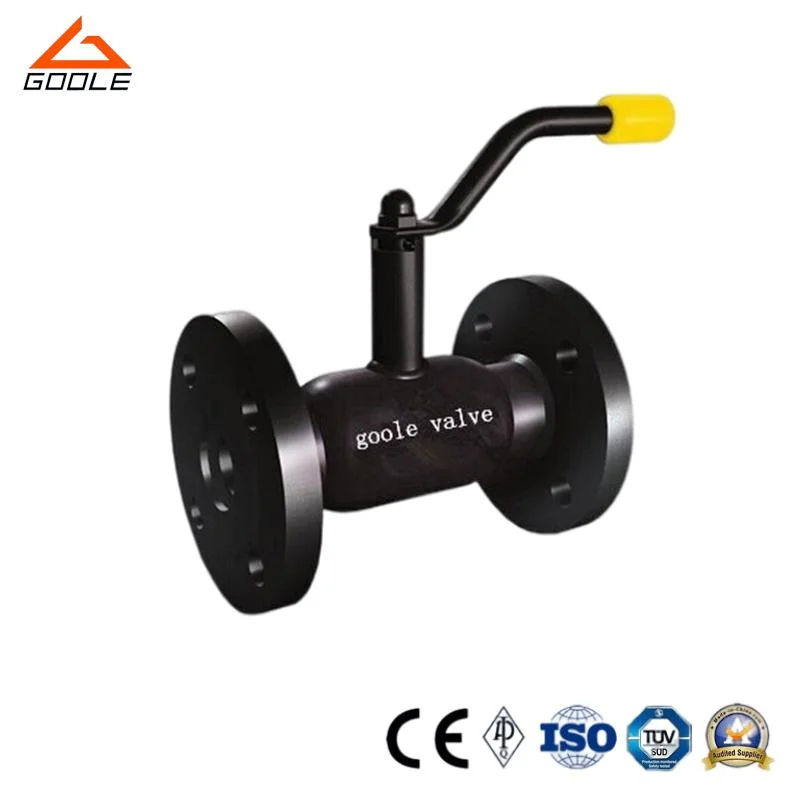

Full Welded Ball Valve
Flange fully welded ball valve specification.Pressure class: Class150-2,500, PN 10-420 Diameter range: DN 15~ 1400 (1/2"~56") temperature: -50ºC~280ºCConnecting type: flangeBall: floating ball or trunnion mountedApplicable medium : water,gas,oil, etc.Driving means: manual......
Send Inquiry
Product Description
Flange fully welded ball valve specification.Pressure class: Class150-2,500, PN 10-420
Diameter range: DN 15~ 1400 (1/2"~56")
temperature: -50ºC~280ºC
Connecting type: flange
Ball: floating ball or trunnion mounted
Applicable medium : water,gas,oil, etc.
Driving means: manual, gearboxes, electric, pneumatic, hydraulic, etc.
Available Material:SS,CS, A105,A216,CF8,CF8M, LCB, LCC, etc.
( Selected at clients'request )
Flange fully welded ball valve Standards compliance.
Design and Manufacture: API 608
Face to face(end to end): ASME/ANSI B16.10
Flanged connection: ASME/ANSI B16.5
Pressure Rating: ANSI B16.34
Fire-safe: API 607,API 6FA
Test and inspection: API 6D, API598
Flange fully welded ball valve design features.
1. Fully welded body
2. Metal or soft seated
3. Full or reduce bore

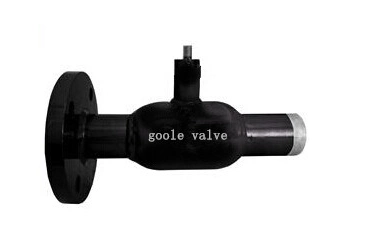

4. Flanged or welded ends
5. Anti blow out stem
6. Self lubricated bearing
7. Fire protection
8. Anti-static device
Flange fully welded ball valve design benefits.
1. the ball valve design includes an electric conductive connection between the internal parts of the ball valve and the body, providing the anti-static function.
2. Long cycle life, Low torques, Locking devices optional.
3. Welded Body Construction eliminates body flanges, reduces potential leak paths and increases resistance to pipeline stresses. Also beneficial in fugitive emission and vacuum applications.
4. Double Body Sealing ensures positive body joint sealing against pipeline stresses. Also beneficial in fugitive emission and vacuum applications.
5. Self Relieving seats for body cavity pressure relief.
6. Fully enclosed spiral wound graphite filled stainless body gasket.
7. Emergency Seat and Stem sealant injection systems offered on most valves.
8. Valves with extended stems, valves for underground applications etc.
