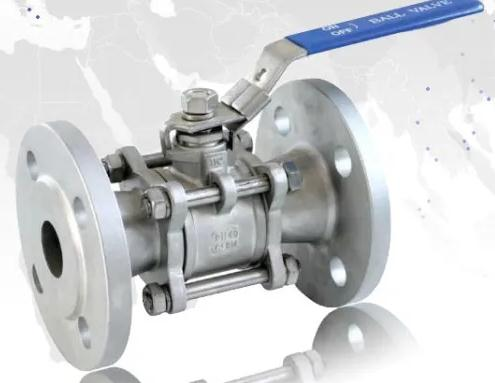

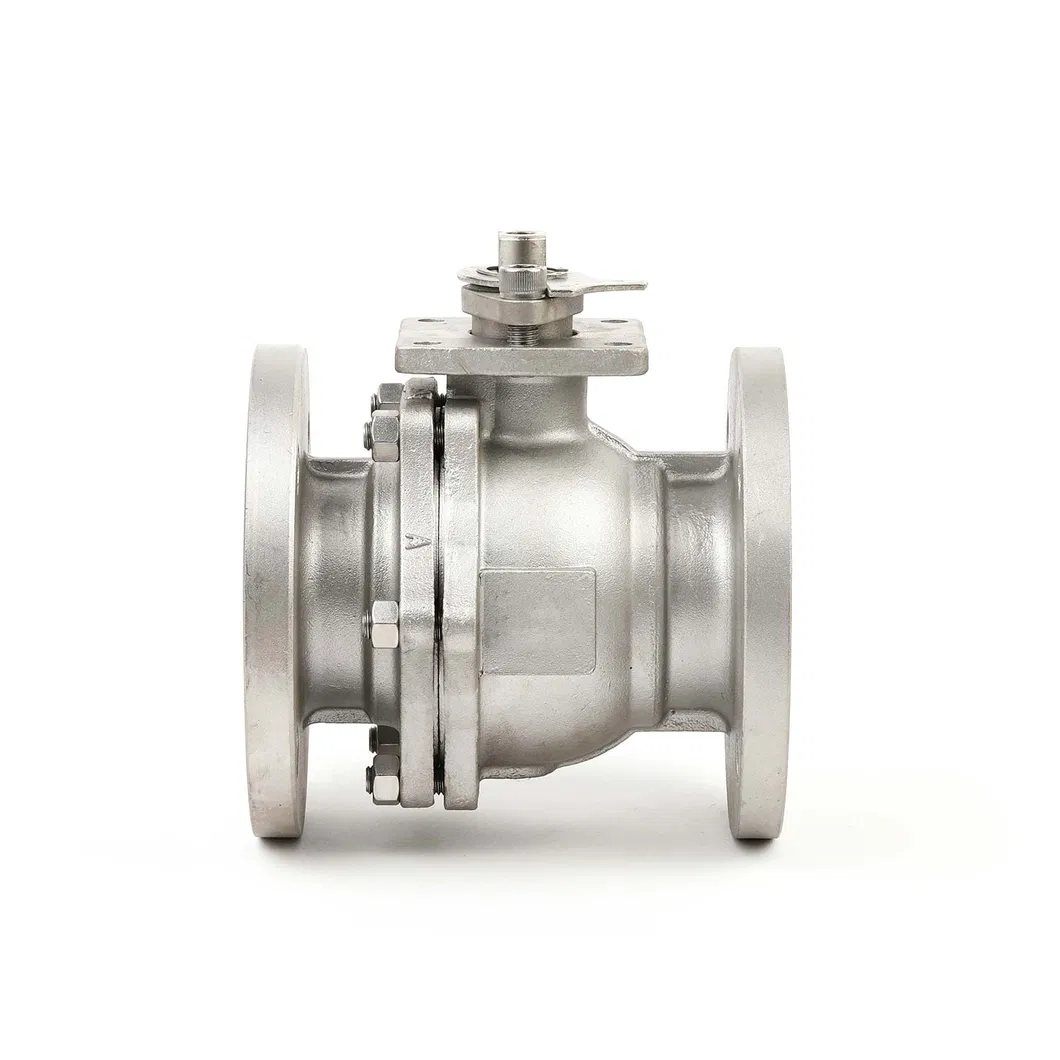

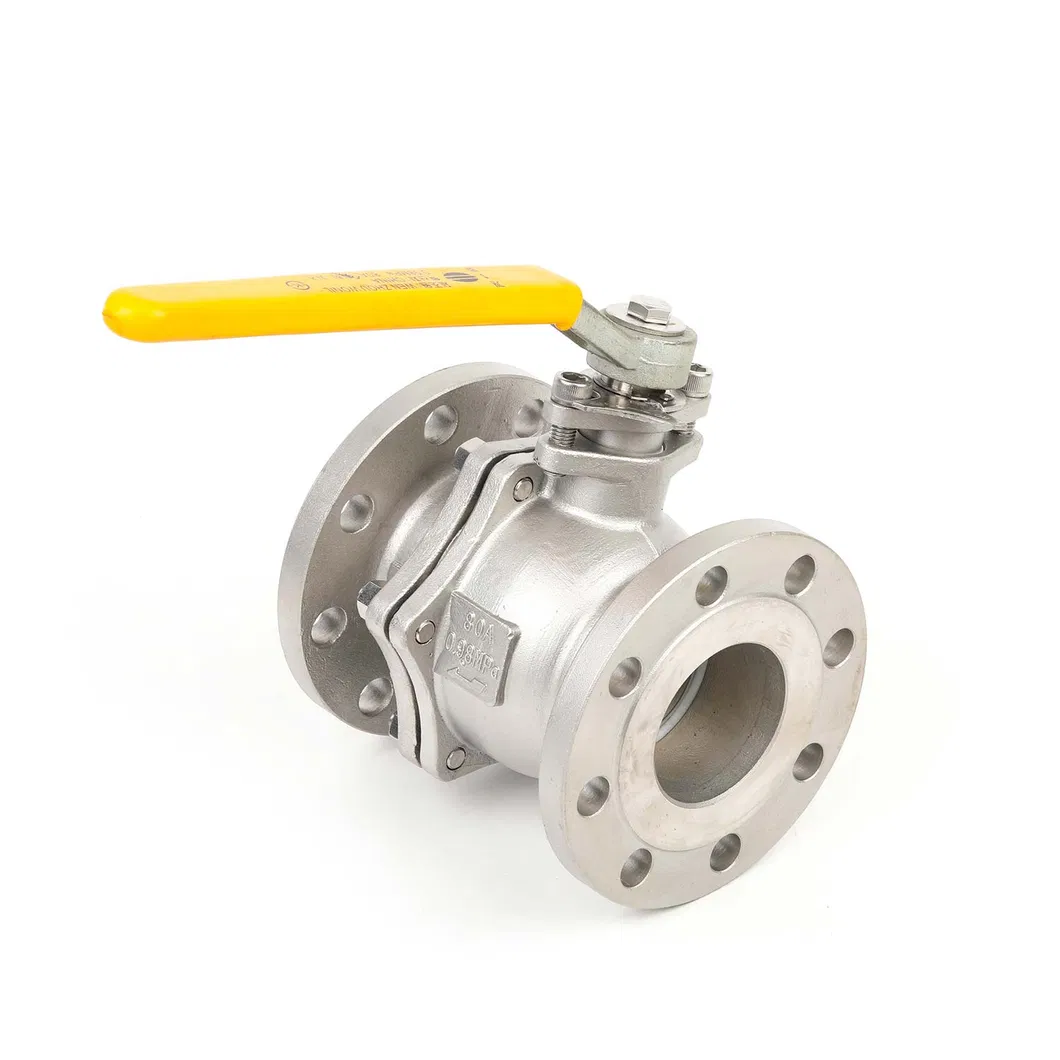

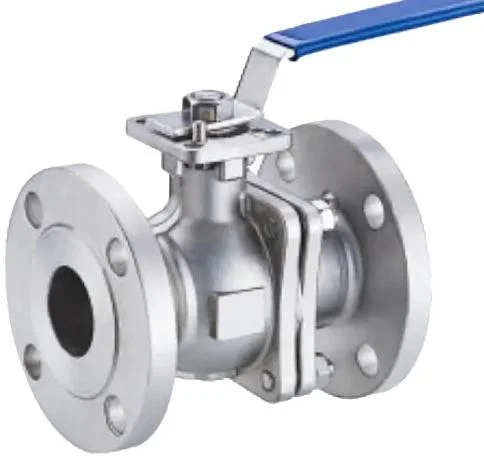

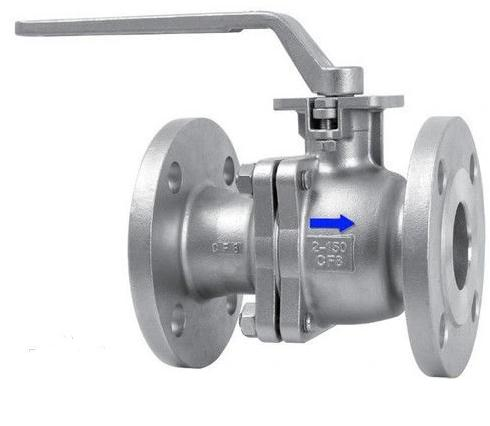

Flanged SS304 SS316 SS316L Ball Valve

Basic Info.

Model NO.
Q41F-16P
Structure
Floating Ball Valve
Type
Floating Ball Valve
Function
Blow-Down Valve, Relief Valve, Atmospheric Valve, Bypass-Valve, Shut off&Adjusting Valve
Temperature
Normal Temperature
Standard
JIS, ANSI, API
Application
Industrial Usage, Water Industrial Usage, Household Usage
Rating
150lb/300lb/10k/20k
Size
1/2"~20"
Handle Material
Stainless Steel
Trademark
NSUN/OEM
Transport Package
Plywood Case
Specification
1/2"-20"
Origin
China
HS Code
8481804090

Product Description

Customer Question & Answer

API ANSI CF8 CF8M Carbon Steel Wcb Stainless Steel 2PC Teflon PTFE Seat Flange Ball Valve Gate Globe Check Valve Manufacturer

A ball valve is a form of quarter-turn valve which uses a hollow or Solid, perforated and floating ball to control flow through it.It is open when the ball's hole is in line with the flow and closed when it is pivoted 90-degrees by the valve handle. Ball Valve handle lies flat in alignment with the flow when open, and is perpendicular to it when closed, making for easy visual confirmation of the valve's status.

Our ball valves are made in Stainless steel&Carbon Steel,so Stainless steel ball valve&Carbon Steel Ball Valve is most widely used in many industry.

Our stainless steel ball valves are durable, performing well after many cycles, and reliable, closing securely even after long periods of disuse. These ball valve qualities make them an excellent choice for shutoff applications, where ball valve are often preferred to gates and globe valves.The Stainless steel ball valves&Carbon Steel Ball Valve are easy of operation, repair, and versatility lend it to extensive industrial use, supporting pressures up to 1000 bar and temperatures up to 752°F (500°C), depending on design and materials used. Sizes typically range from 0.2 to 48 inches (0.5 cm to 121 cm).

Ball Valve are design&made as per API608,API6D,ANSI16.34.As a leading ANSI&JIS stainless steel ball valve manufacturer in china,our ball valve test&inspection are very strictly from Valve raw materials,semi-productino maching to Completed Products pressure seal test.Our ball valve performance a high quality.




Design Rating:API608
Face to Face: AMSE B16.10
Flanged Ends: ASME B16.5
Inspection& Testing:API 598
SIZE:1/2"  - 24"
Material: CF8/CF8M/CF3/CF3M/LCB/WCB, LCB, WC6, WC9, C12, C5
Operated by: Manul operated Ball Valve, Gear, Worm Operated Ball Valve,Pneumatic Actuator operated ball valve, hydraulic and Electric actuator operated ball valve.

1). Sizes: 1/2" - 20"
2). Rating: 150LB/300LB/600LB or  10K/20K/30K
3). Material: CF8, CF8M, CF3, CF3M, A216 WCB, A105
4)Handle material: Stainless steel/Cast Iron
5). End Connection: RF, FF
6). Operation: Handle Lever, Gear, Pneumatic, hydraulic and Electric actuator.
7). Application: Industrial UsageOperated
8)Design Rating: API608
9)Face to face:ASME B16.10
10)Flanged Ends:ASME B16.5
11)Inspection&Testing:API598




FAQ
Q1: We are interested in your products?
A1: In order to recommend you suitable products, please provide detail information, like size, material, pressure, model.
Q2: Is the requirement for MOQ?
A2: We have no MOQ requirements.We accept samples orders to show our high quality valve to customers.
Q3: How about the warranty?
A3: The warranty time is 18 months after leaving our factory. We can repair or change because of the quality problems.
Q4: Payment
A4: Mainly T/T, Western Union & PayPal are applicable for us. Payment Term: 30% prepayment, 70% balance paid before shipping or against copy of BL.
Q5: Can you manufacture different standards valves according to customer requirements?
A5: Yes. We can manufacture API,DIN,GOST,JIS standards for different pressure & temperature & size according to different needs.
If you want to know more about our products, please contact freely. We will patiently answer your all questions.
