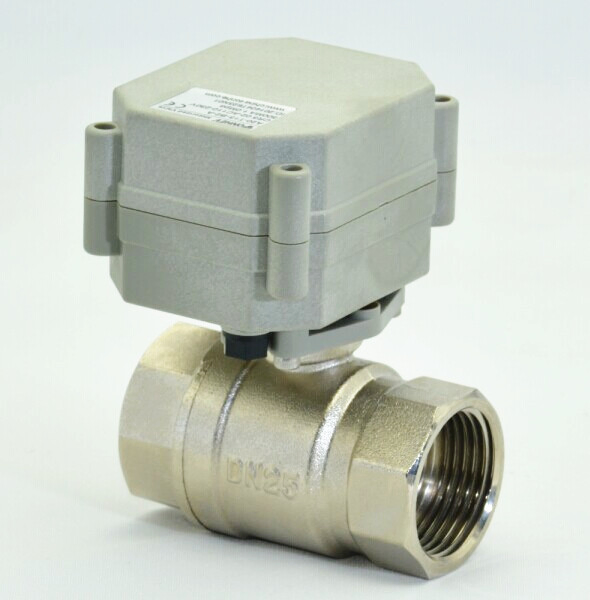

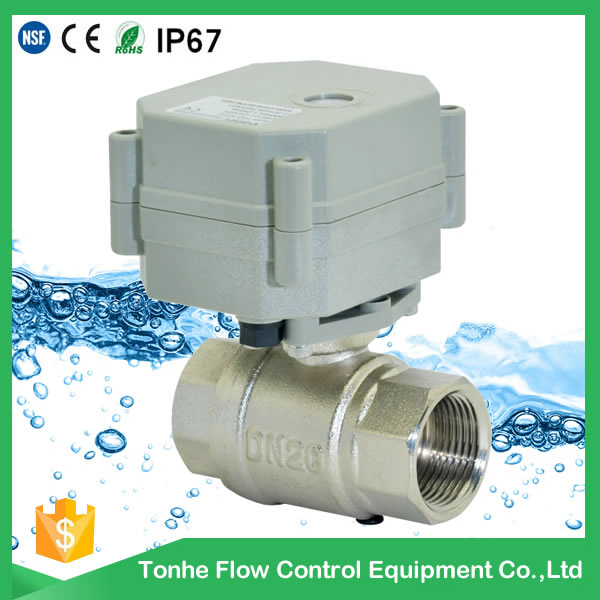

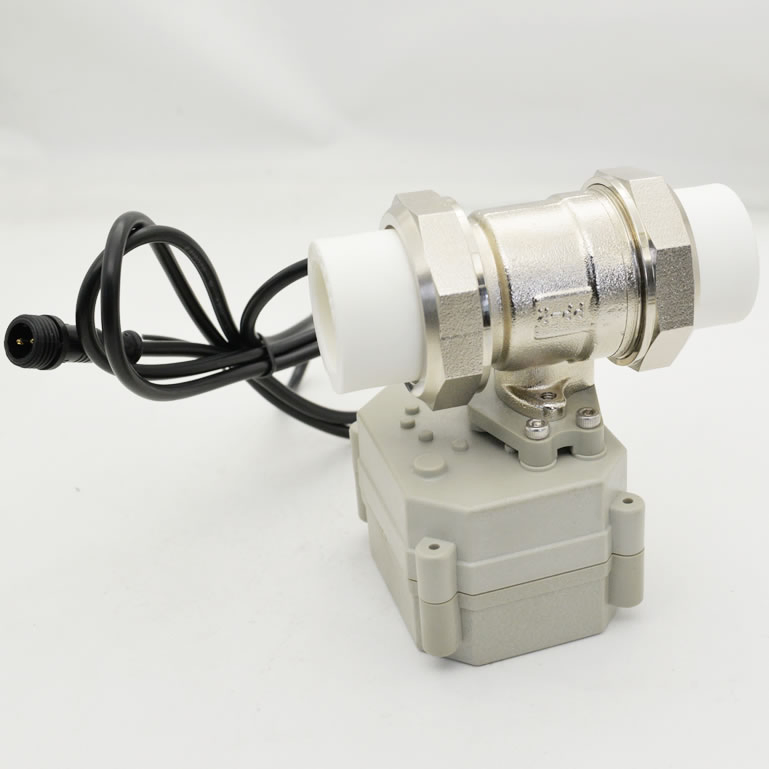

Factory Direct Sale 2 Way Electric Motorized Nickel Plated Brass Ball Valve for Small-Scale Sewage (T25-N2-A)
Detailed parametersFeature:Small but powerfulEasily to installFull gear metal boxMoistureproof and long working lifeProduct sizeNPT/BSP 1/4'', NPT/BSP 3/8'', NPT/BSP 1/2", NPT/BSP 3/4", NPT/BSP 1", NPT/BSP 11 /4'' (Optional)Maximum working pressure1.0MPaCircula......
Send Inquiry
Product Description
Detailed parameters
Feature:
Small but powerful
Easily to install

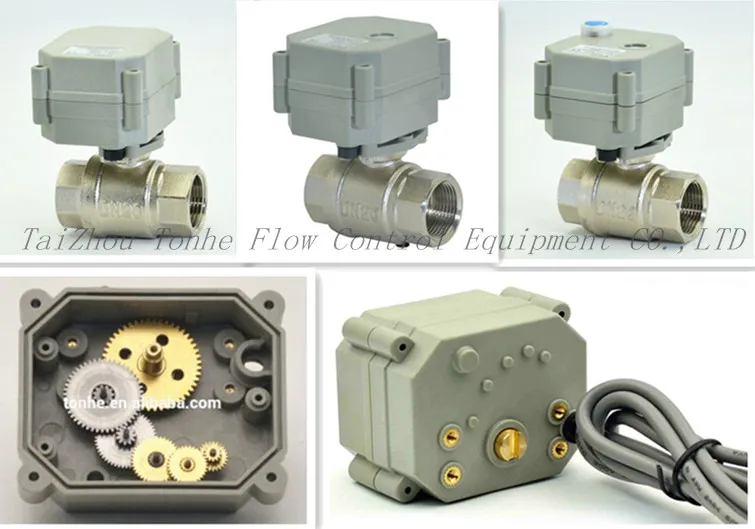

Full gear metal box
Moistureproof and long working life

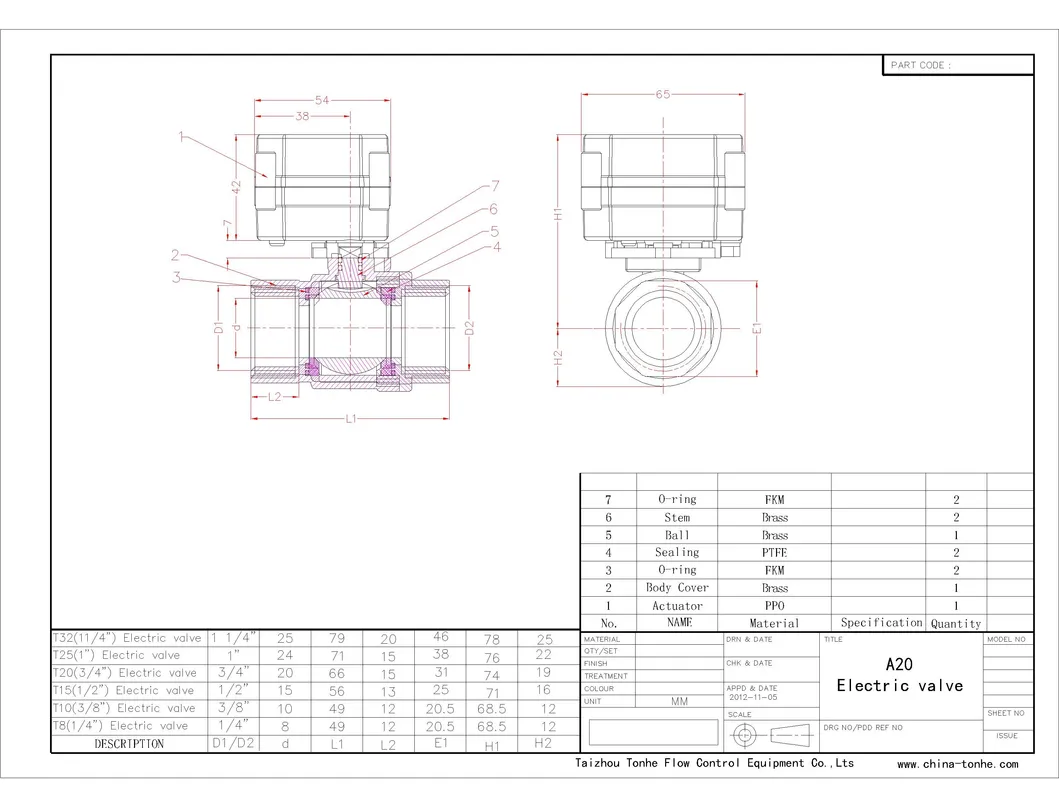

| Product size | NPT/BSP 1/4'', NPT/BSP 3/8'', NPT/BSP 1/2", NPT/BSP 3/4", NPT/BSP 1", NPT/BSP 11 /4'' (Optional) |
| Maximum working pressure | 1.0MPa |
| Circulation medium | Fluid, Air |
| Rated voltage | DC5V, DC12V, DC24, DC/AC9-35V,AC110V-230V (Optional) |
| Wiring control methods | CR2-01, CR3-01, CR3-02, CR3-03, CR3-04, CR5-01, CR7-01, CR7-02, CR7-03 (Optional) |
| Working current | ≤500MA |
| Open/close time | ≤5 S |
| Life time | 70,000 times |
| Valve Body material | Brass, Nickel plated Brass, 304 Stainless steel (Optional) |
| Actuator material | Engineering Plastics |
| Sealing material | EPDM & PTFE |
| Actuator rotation | 90° |
| Max. torque force | 2 Nm |
| Cable Length | 0.5m, 1.5m (Optional) |
| Environment temperature | -15 ~ 50 degrees celsius |
| Liquid temperature | 2 ~ 90 degrees celsius |
| Manual override | No ( Optional ) |
| Indicator | No ( Optional ) |
| Protection class | IP67 |
Business philosophy
-- Sincerity , Quality assurance, Create
-- Good Customer service

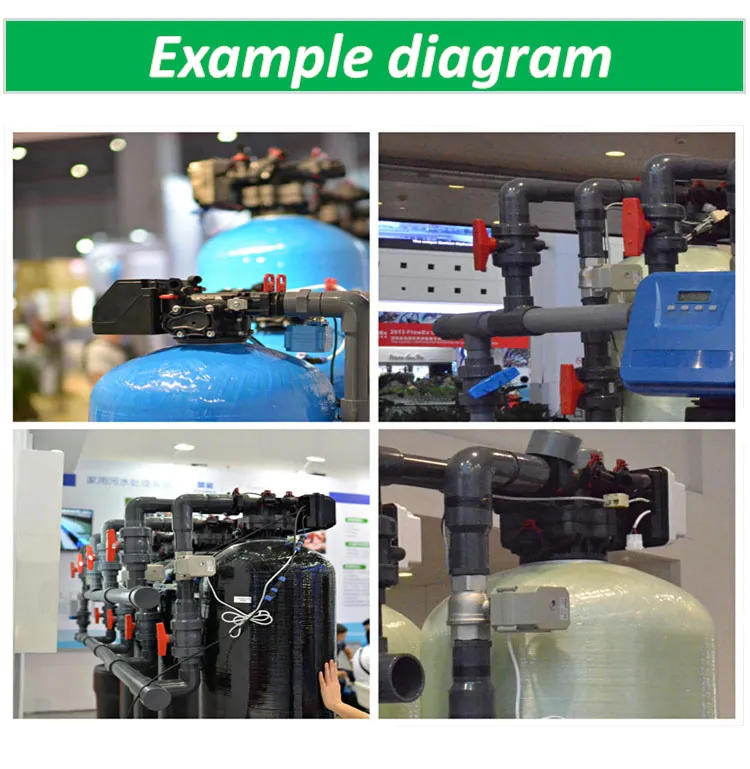

Water meter , water leak detection system and water treatment etc equipment
HAV and fire works. Automatic drain system
Irrigation ect small control equipment
Business Steps:
When you inquiry the product , pls confirm below technical info:
1. valve size , material ,
2. working voltage
3. wiring control method
4. cable length
FAQ
Q. what is your payment term?
A: Paypal and T/T , payment in advance or 50% down payment, pay off before shipment.
Q: Can I get samples from your factory?
A: Yes,you can order some samples for test.Usually 3 to 7 days.We shipping it as your require,like TNT,UPS,
FedEX and so on.
Q: what is your main market?
A: North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe
Q: How about your products and company approved?
A: Our products are approved CE, NSF61, Rohs, protection class IP67, Our company also approved SGS ISO9001 since 2013.
Q: If products have some quality problem, how would you deal with?
A: One year warranty, Lifetime technical service .We will responsible for all the quality problems, and buy PICC insurance for our products in 2016.
