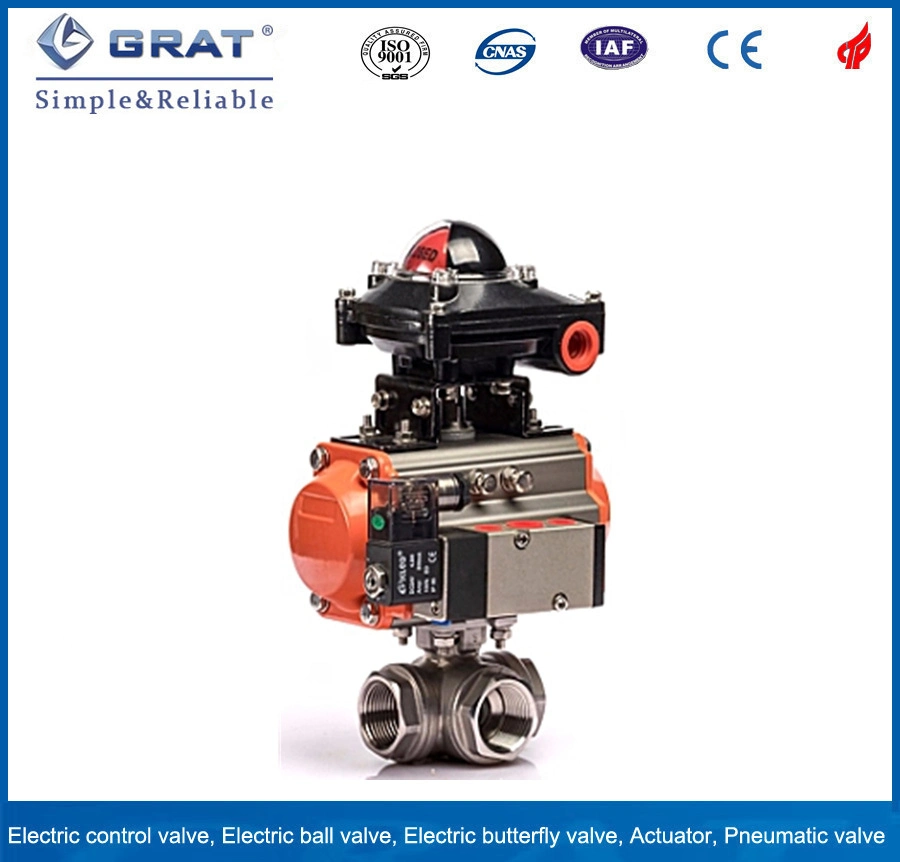

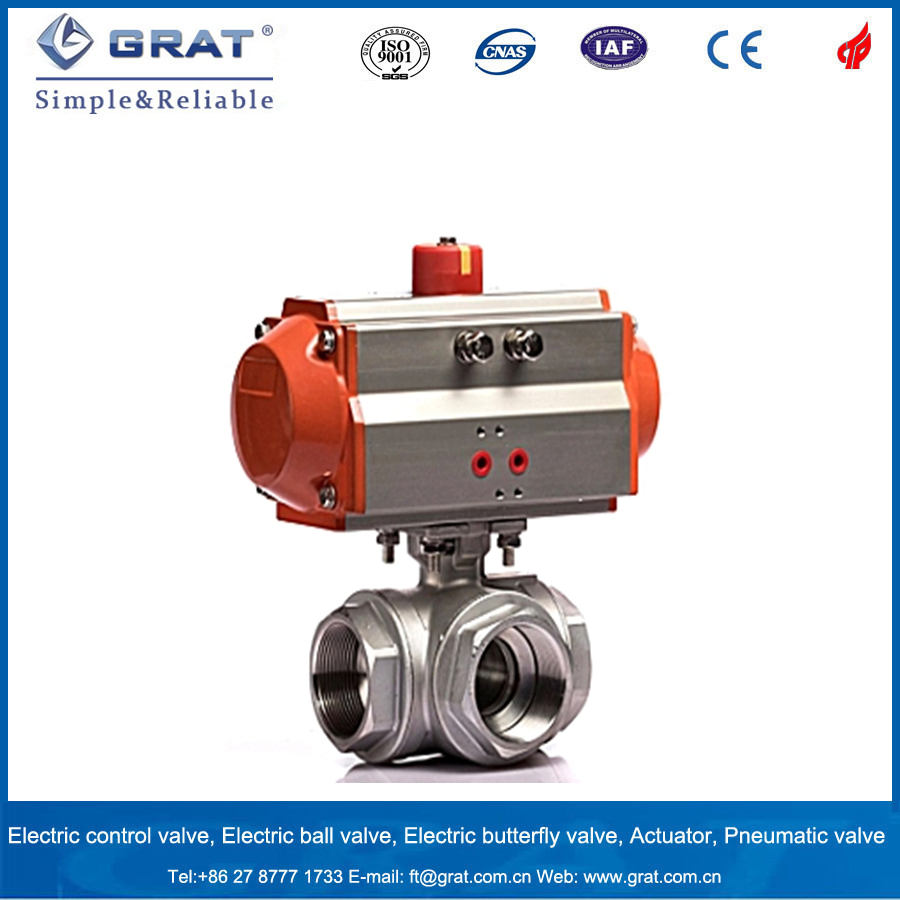

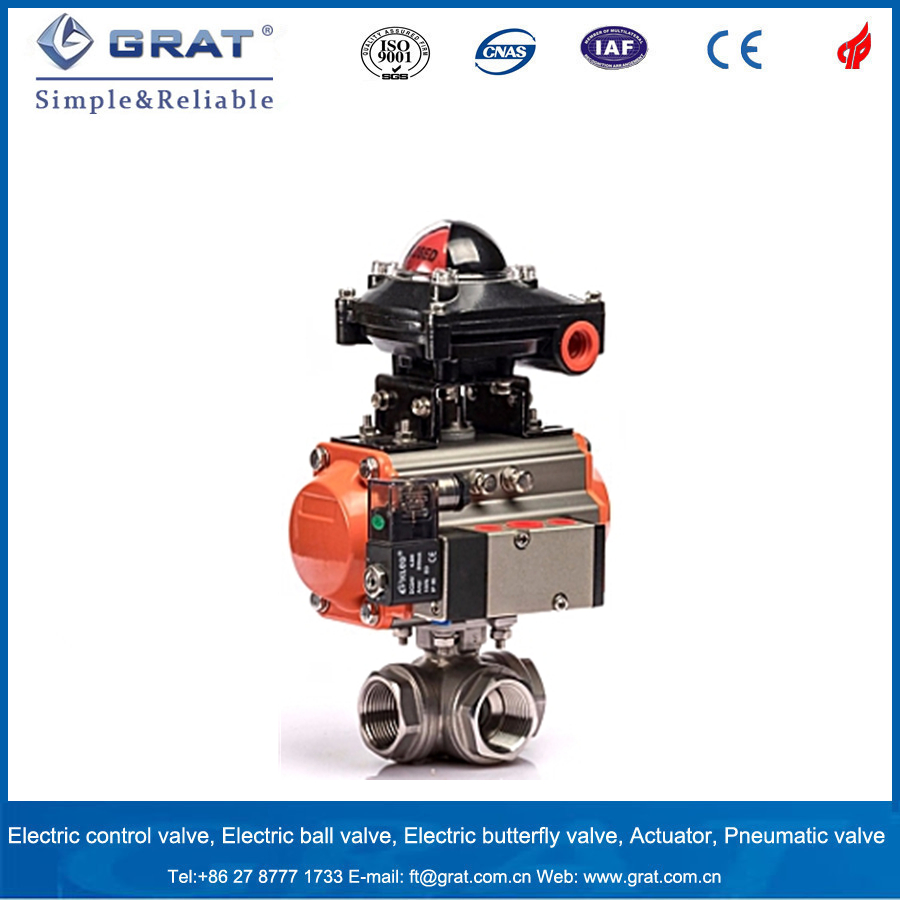

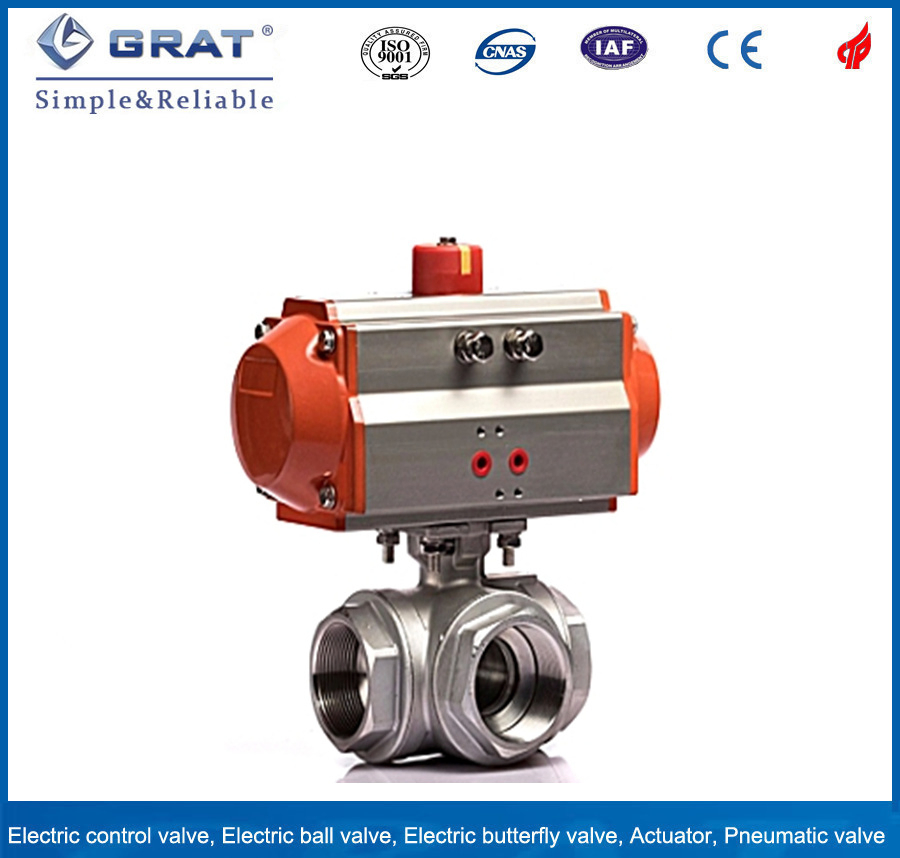

Dn40 Pneumatic Operated Stainless Steel 3 Way Control Valve
DN40 Pneumatic Operated Stainless Steel 3 Way Control ValveProduct descriptionPneumatic 3 way control valve is specially suitable for the small installation space to cover many services of air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instru......
Send Inquiry
Product Description
Product description
Pneumatic 3 way control valve is specially suitable for the small installation space to cover many services of air conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, smoke sampling.
1.Specification
| Power supply | Compressing Air (0.4~0.7Mpa) |
| Valve size | DN15~50 |
| Medium Temp | 0°C-95°C |
| Ambient Temp | -30°C~+60°C |
| Operating pressure | PN16 |
| Action mode | Switch to cut off,0-90°gyration |
| Body connections | Inside thread |
| Body material | SUS304,SUS316 |
| Seal material | PTFE,EPDM |
| Actuator material | Casting Aluminum alloy |
| Applicable working condition | Air-conditioning system, fire-extinguishing system, water treatment system, pipeline purging, analytical instruments, and smoke sampling |
| Installation mode | in any angle. (Prefer to horizontal or inclined installation to extend the service life.) |

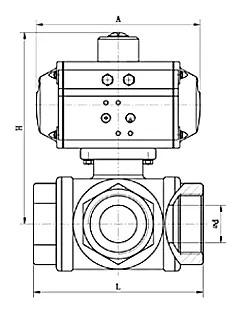

2.Figure and connection size
| Size | ød | L | A | H |
| DN15 | 10 | 71 | 146 | 115 |
| DN20 | 15 | 83 | 146 | 135 |
| DN25 | 18 | 90 | 163 | 155 |
| DN32 | 25 | 127 | 241 | 180 |
| DN40 | 32 | 136 | 241 | 195 |
| DN50 | 40 | 153 | 252 | 220 |
Packing&Shipping
1.Packing: inner with bubble wrap,outer with cardboard box and wooden case
2.Transportation:by sea,by air,by train
Our Services
1.Professional consultation
2.24 hours response after sale
3.One year warranty
4.Safe packing for shipment
5.Welcome sample order
Company Introduction
Wuhan Grat Control Valve is a professional valve manufacturer established in 2005.It is specialized in researching and developing various automatic valves for industrial automation and on-site implimentation products.
In 10 year development,Grat has obtained 9 patents like small flow control valve and potentiometer position device,and do business with more than 1000 companies all over the world.Some of them are world famous enterprises such as Dunham-bush,Grundfos,Johnson control and Hitachi,ect.
According to ISO9001:2008 quality management system,Grat strictly controls the product quality and the whole production process.In 2015,Grat got CE certificates and passed successfully EMC tests and CNAS 100000 times lifetime tests.
With the ERP and CRM systems applied in management,they enhance the resource and information level and improve the ability of customer relationship.High quality and good service are our advantages to win the market.

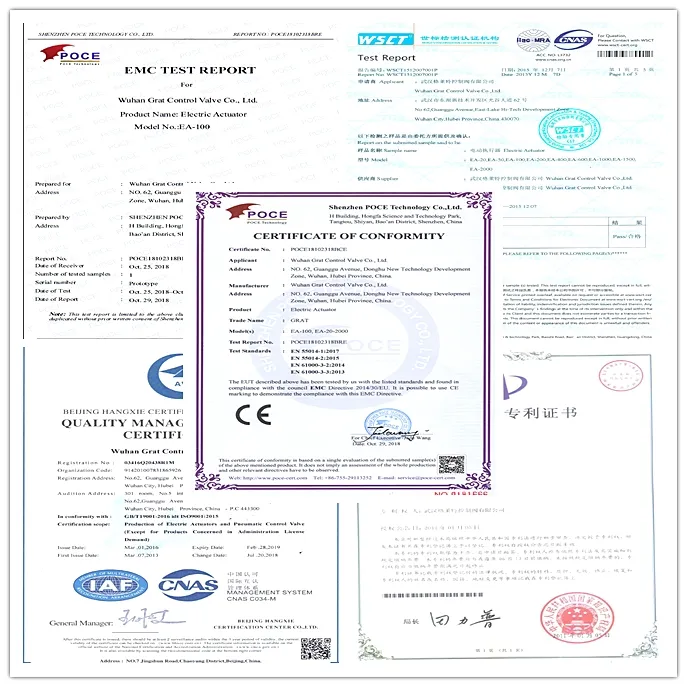

Certificates & Test reports

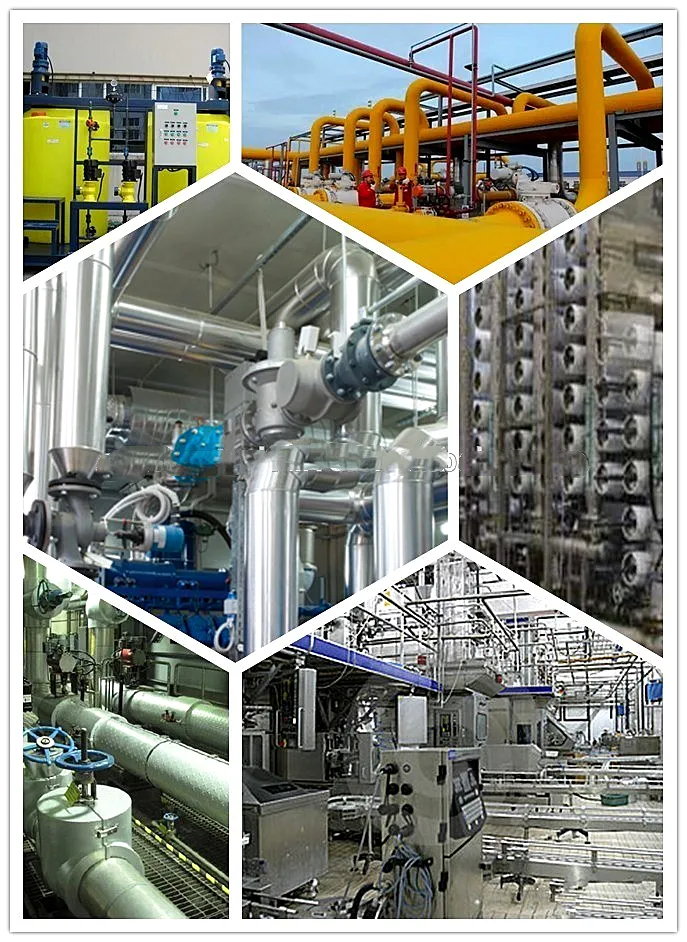

Application
