DIN 3202 -F1 3PC CF8m Flanged Ball Valve 2"
WB-85 DIN 3202-F1 3PC Stainless Steel Flanged Ball ValveFeatures:Face-to-face dimension: DIN3202-F1Flanged connection: PN16/PN40 DIN2633TEMPERATURE RANGE: -20ºC~150ºCSUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUIDINVESTMENT CASTING BODYDESIGH: 1/2"~2" PN40TEST:......
Send Inquiry
Product Description

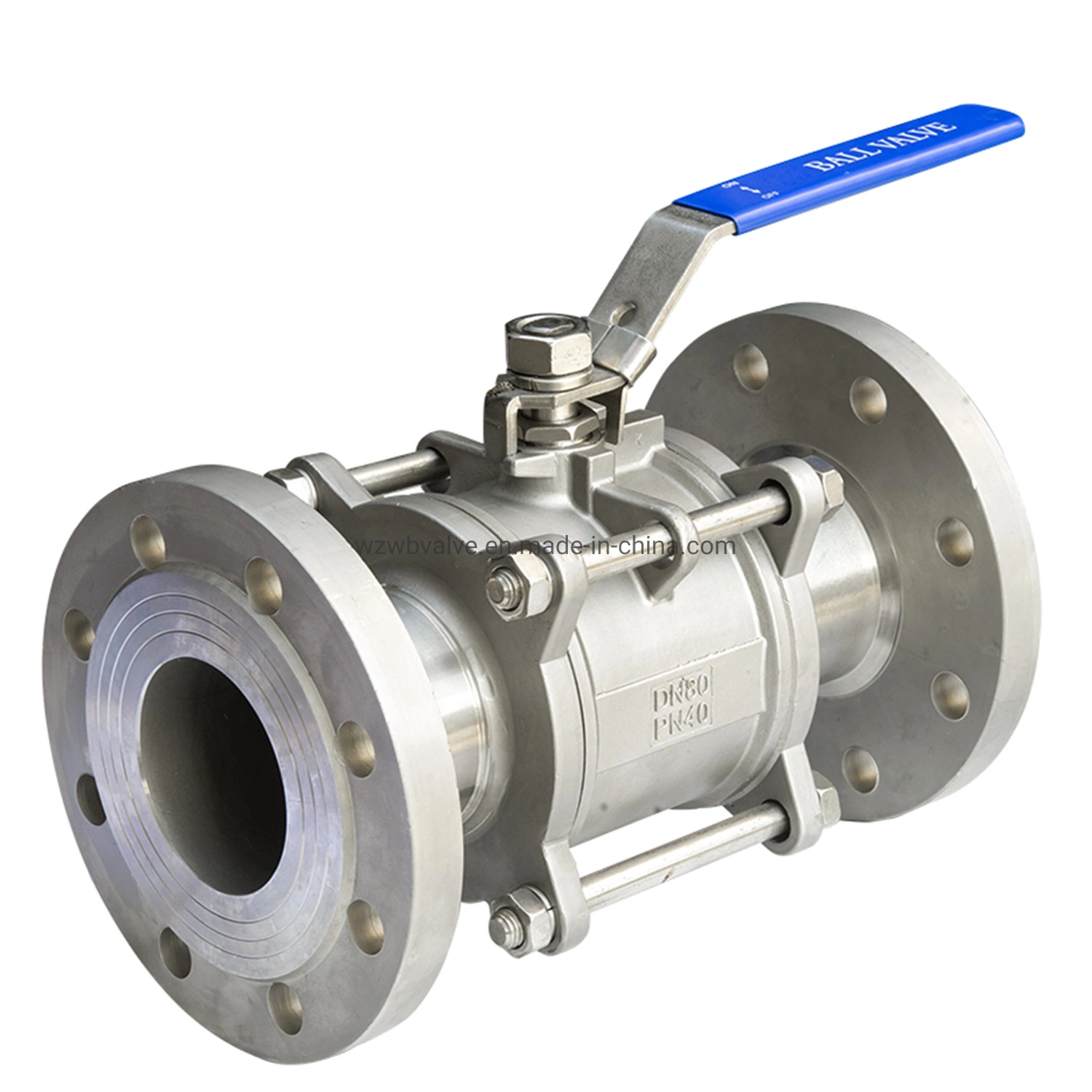

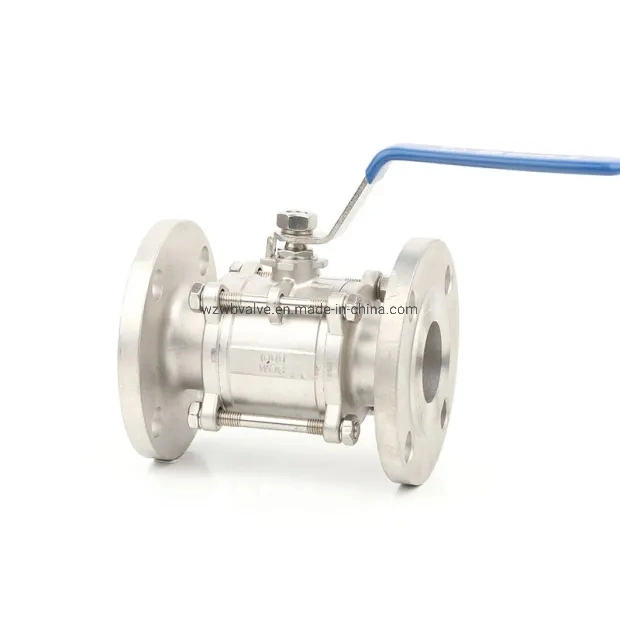

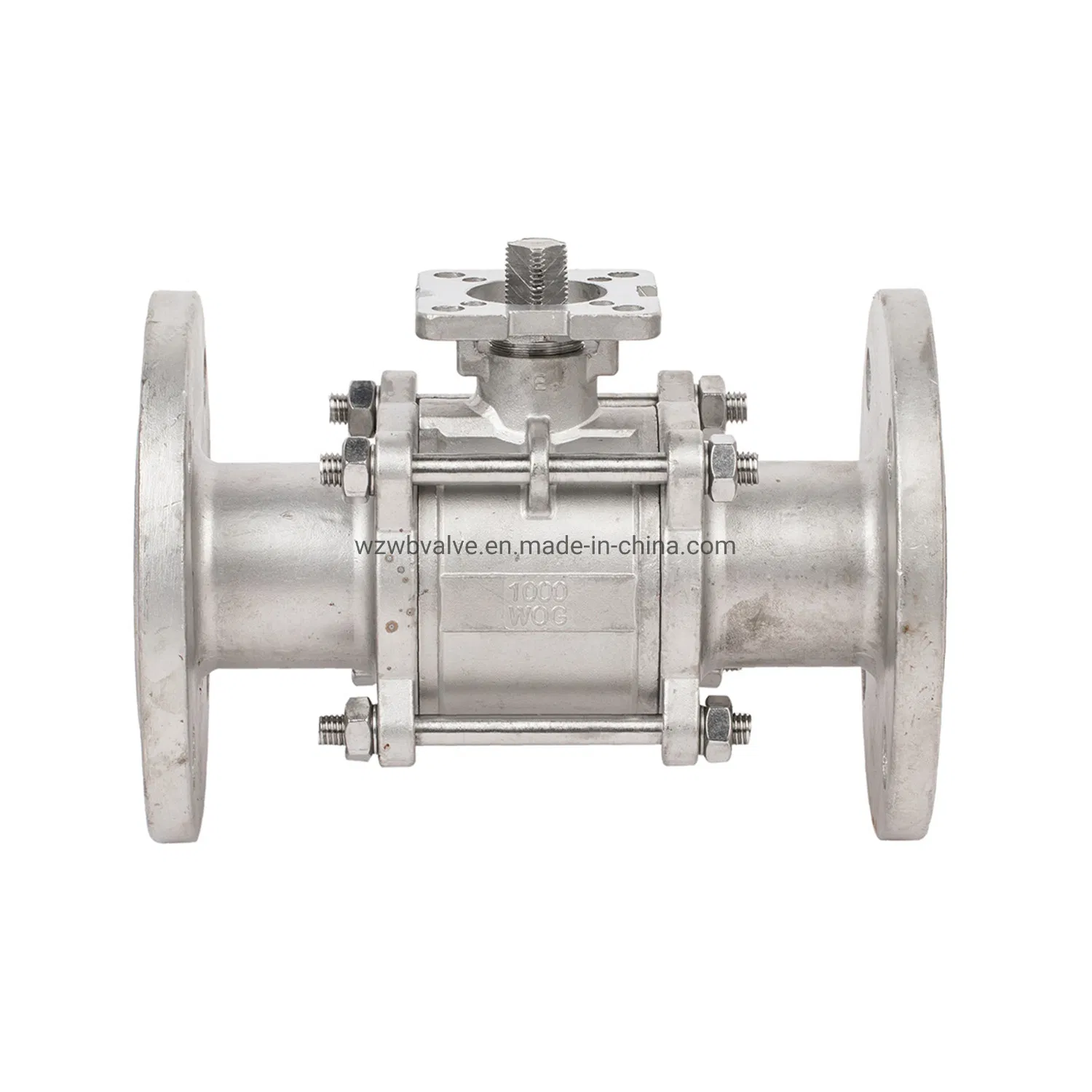

WB-85 DIN 3202-F1 3PC Stainless Steel Flanged Ball Valve
Features:
Face-to-face dimension: DIN3202-F1
Flanged connection: PN16/PN40 DIN2633
TEMPERATURE RANGE: -20ºC~150ºC
SUITABLE MEDIUM: WATER, OIL, AIR AND SOME CORROSIVE LIQUID
INVESTMENT CASTING BODY
DESIGH: 1/2"~2" PN40
TEST: API 598
MATERIAL: CARBON STEEL WCB/DIN1.0619
STAINLESS STEEL 304/1.4308
STAINLESS STEEL 316/1.4408
Main Parts and Materials
| 1 | Cap | WCB/CF8/CF8M | 9 | Thrust Washer | SS/SS304/SS316 |
| 2 | Body | WCB/CF8/CF8M | 10 | Packing | SS/SS304/SS316 |
| 3 | Bolt | SS/SS304/SS316 | 11 | Gland | SS/SS304/SS316 |
| 4 | Seat | PTFE | 12 | Handle | SS |
| 5 | Bolt Washer | SS/SS304/SS316 | 13 | Spring Washer | SS/SS304/SS316 |
| 6 | Hex Nut | SS/SS304/SS316 | 14 | Stem Nut | SS/SS304/SS316 |
| 7 | Ball | SS/SS304/SS316 | 15 | Plastic Cover | Plastic |
| 8 | Stem | SS/SS304/SS316 |

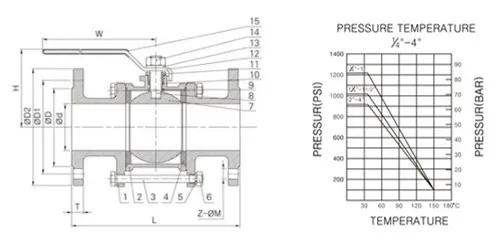

Main Dimensions
| NPS | DN | d | D | D1 | D2 | T | L | W | H | Z-M |
| 1/2" | 15 | 15 | 45 | 65 | 95 | 16 | 130 | 125 | 75 | 4-14 |
| 3/4" | 20 | 20 | 58 | 75 | 105 | 16 | 150 | 125 | 85 | 4-14 |
| 1" | 25 | 25 | 68 | 85 | 115 | 16 | 160 | 125 | 95 | 4-14 |
| 11/4" | 32 | 32 | 78 | 100 | 140 | 18 | 180 | 135 | 100 | 4-18 |
| 11/2" | 40 | 38 | 88 | 110 | 145 | 18 | 200 | 165 | 100 | 4-18 |
| 2" | 50 | 50 | 102 | 125 | 162 | 20 | 230 | 170 | 135 | 4-18 |
| 21/2" | 65 | 65 | 122 | 145 | 185 | 22 | 290 | 170 | 135 | 8-18 |
| 3" | 80 | 76 | 138 | 160 | 200 | 24 | 310 | 240 | 135 | 8-18 |
| 4" | 100 | 100 | 162 | 190 | 235 | 24 | 350 | 245 | 140 | 8-22 |
Zhejiang Wenbao Valve Co.,Ltd was established in 1985. The main products range are as following: Fully Welded Ball Valve,1PC/2PC/3PC Flanged Ball Valve, Threaded Ball Valve, Mini Ball Valve, High Pressure Ball Valve, Pneumatic Ball Valve, Electric Ball Valve, Sanitary ball valve, Ball valve with mounting pad and other valves like gate, globe, check valves and Strainer, etc. Main material include: Stainless steel, Cast Steel, Forged Steel and Brass, etc. The products manufactured as per API, ANSI, JIS, ISO, BS, JB and GB, and have CAD valve design and quality testing center. The products are widely used in chemical industry, oil, metallurgy, light industry, electric power, food, pharmacy, civil industry, fiber industry, liquefied natural gas, liquefied petroleum gas, steel mills, heating pipes, etc. Our company passed the ISO 9001:2008, Standards Organization of Nigeria(SON), International Quality Award Certificate, Manufacture License of Special Equipment, KC of South Korea,CE of Europe, etc.
