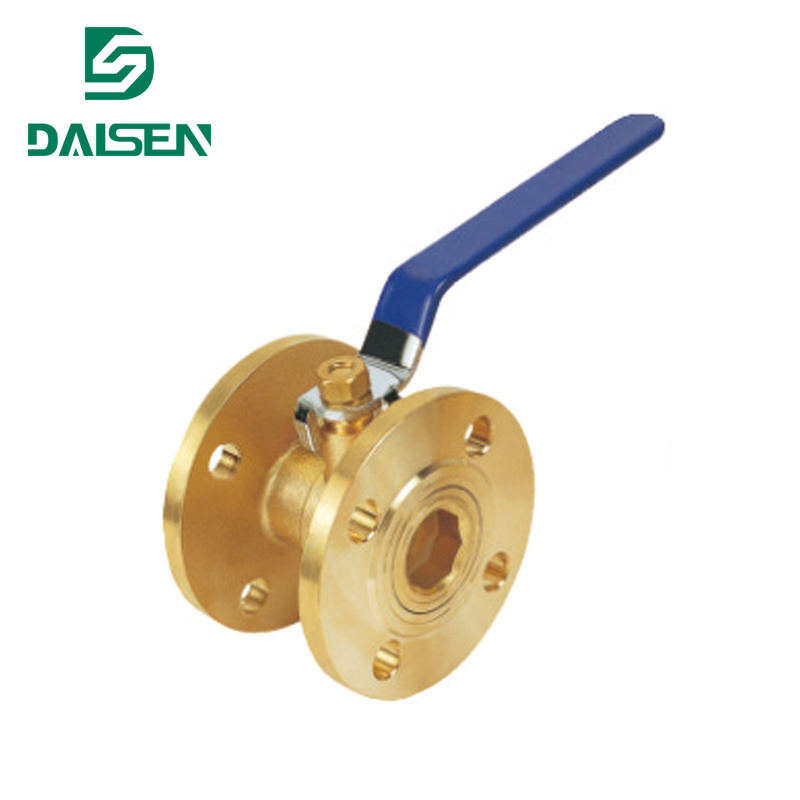

China Copper Flanged Ball Valve with High Quality Q41f-16t

Product Description

Nominal Pressure(PN)	Working Medium	Working Temperature
1.6MPa	Corrosion type gas,liquid	t<=90ºC

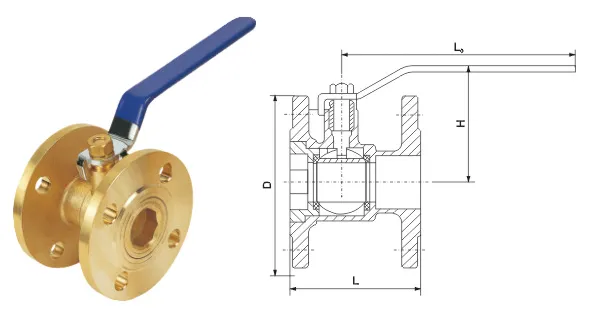

DN	L	L.	H	D
20	80	160	73	105
25	84	160	76	115
32	87	174	86	140
40	94	174	93	150
50	99	174	101	165
65	104	168	123	185
80	116	189	131	200
100	132	230	143	220

Product main features
1, Raw materials, reliable, all standard Hpb59- 1 extruded bar, imported from Italy into the plant spectrometer analysis of the quantitativecomponent, to ensure that the material composition and performance indicators.

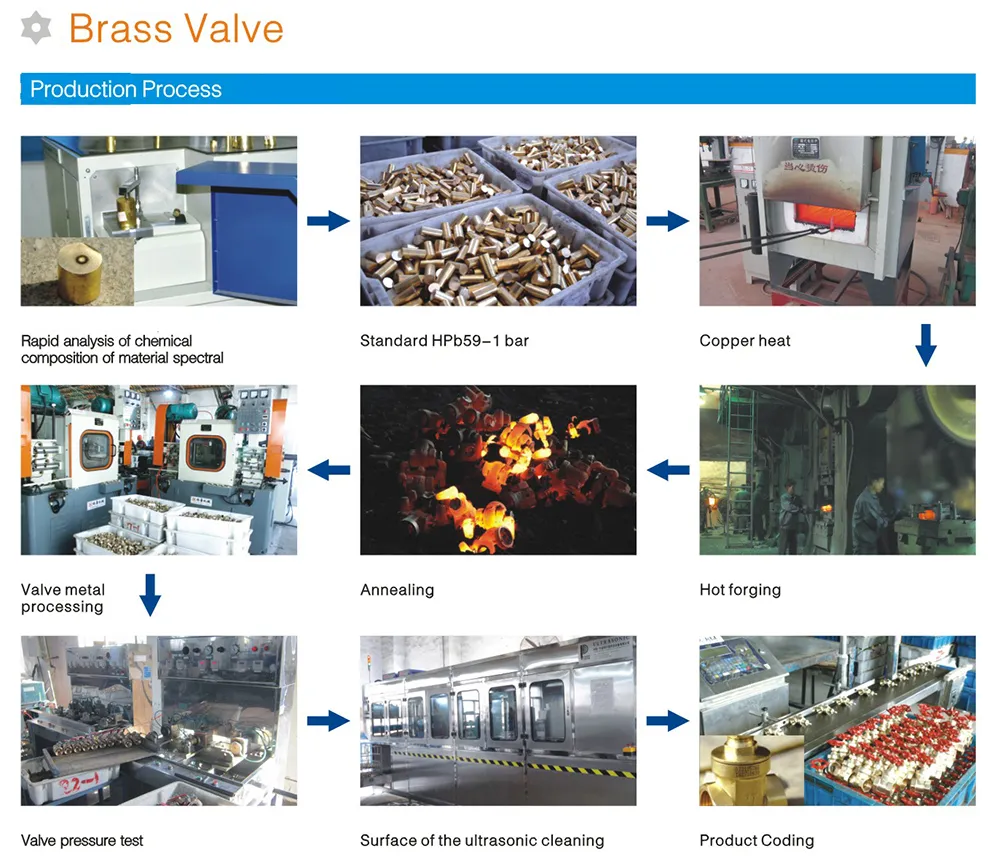

2, Advanced processing technology: the use of medium frequency induction heating, die forging process and the full line of CNCautomated processing.
3, The products are reliable, full numerical control equipment to each other with sealing, sealing performance and reliable; reliableraw materials and advanced forming process. The products of small stress, without annealing, fully applicable to central air conditioningsystem of alternating hot and cold and cold regions.
4, The surface of stainless steel shot blasting machine, copper texture perfect reproduction, no chemical treatment, no chemical residues,environmental pollution, emergence of corporate social responsibility;

Copper Flanged Ball Valve with High Quality Q41f-16t
