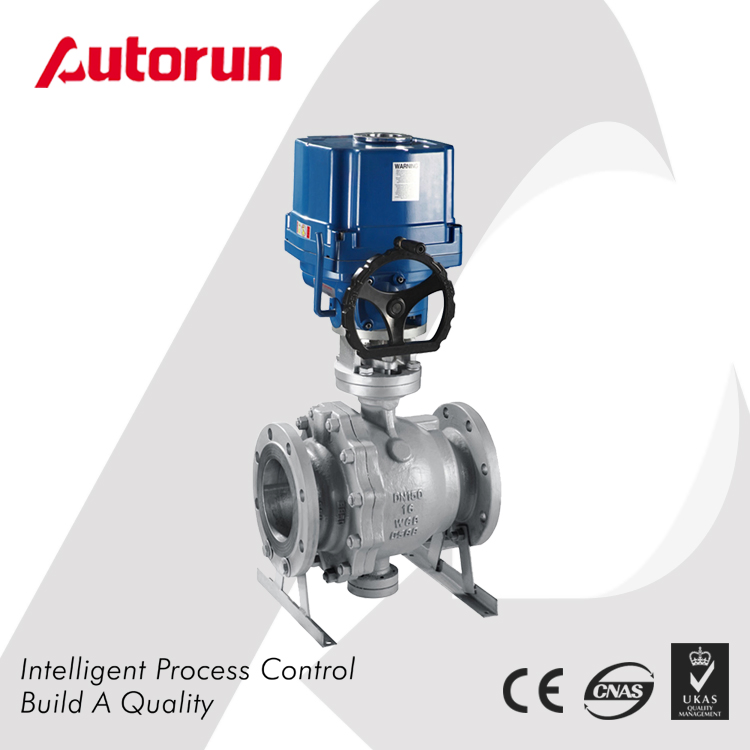

Chinese Wenzhou Supplier Explosion Proof Flange Electric Ball Valve
Chinese wenzhou supplier Explosion Proof Flange Electric Ball ValveProduct Detail:Model NO.: Q941FDN: 15-400mmPN: 1.0, 1.6, 2.5, 4.0, 6.4MPaConnection Form: FlangeValve Body Material Available: WCB/Stainless Steel CF8/CF8m/CF3/CF3mDriving Mode: ElectricalType: Floating Ball ValveApplication: Indust......
Send Inquiry
Product Description

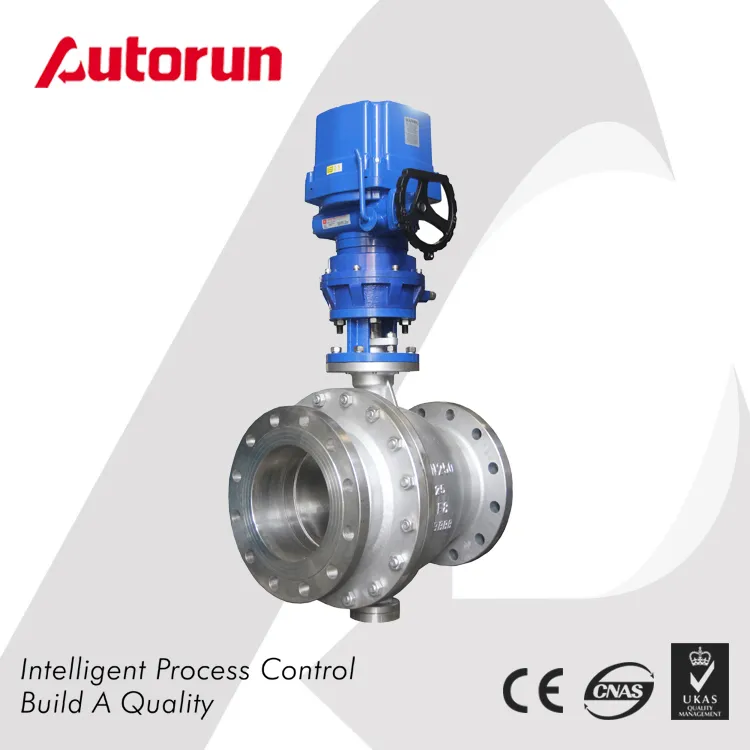

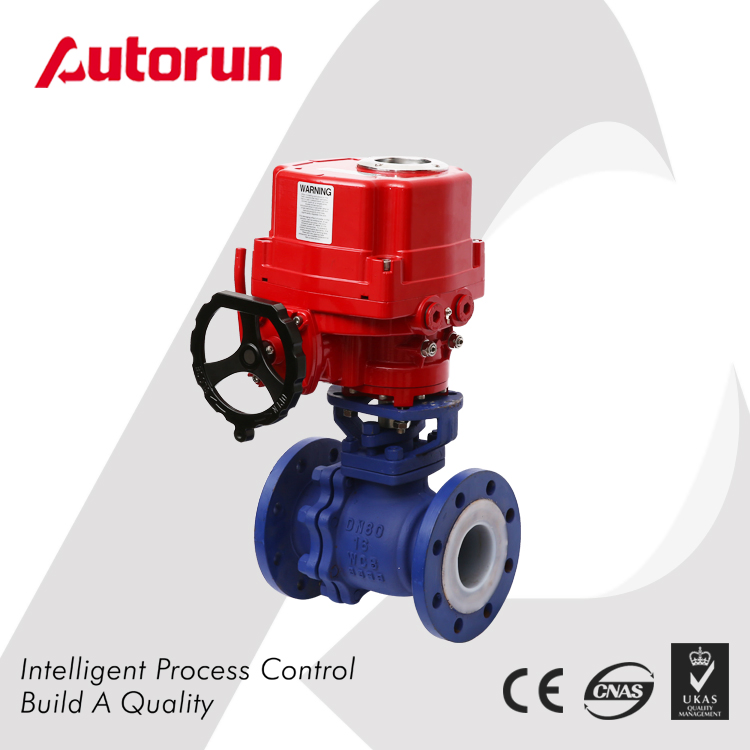

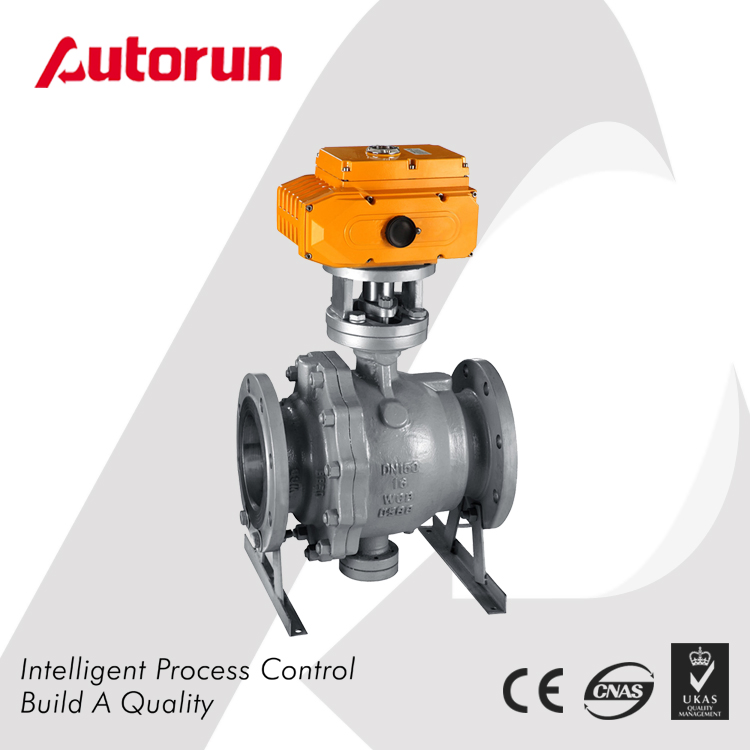

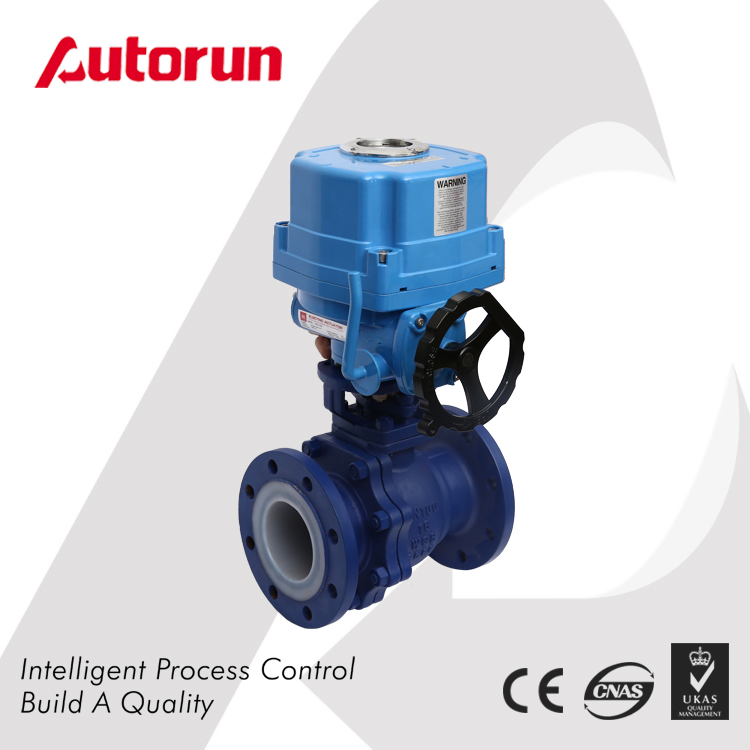

Chinese wenzhou supplier Explosion Proof Flange Electric Ball Valve
Product Detail:
Model NO.: Q941F
DN: 15-400mm
PN: 1.0, 1.6, 2.5, 4.0, 6.4MPa
Connection Form: Flange
Valve Body Material Available: WCB/Stainless Steel CF8/CF8m/CF3/CF3m
Driving Mode: Electrical
Type: Floating Ball Valve
Application: Industrial Usage, Water Industrial Usage, Household Usage
Standard Available: GB, ANSI, JIS.
Seal Material Available: PTFE, Nylon, PPL, H/Y
Actuator Voltage: 380V/220V/110V AC or 24V/110V DC

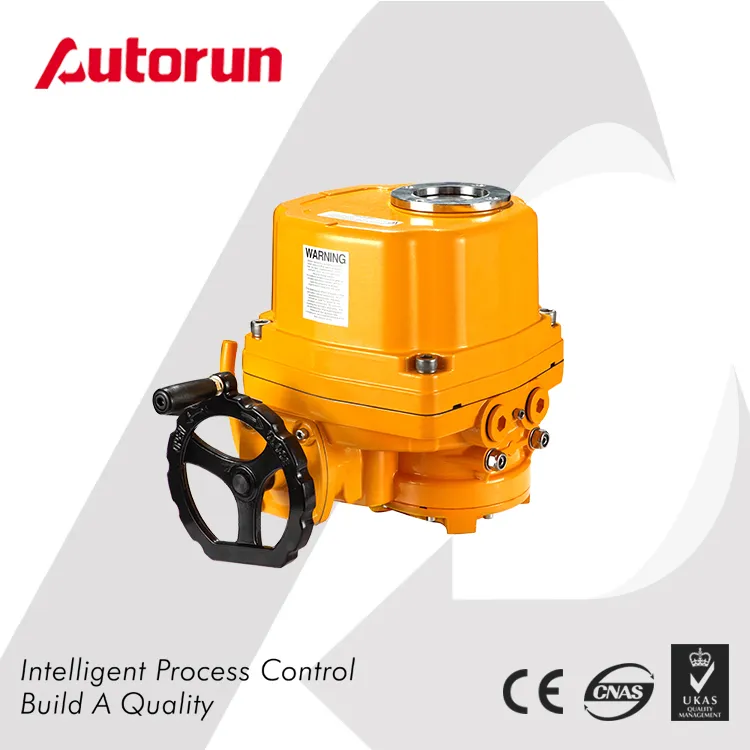

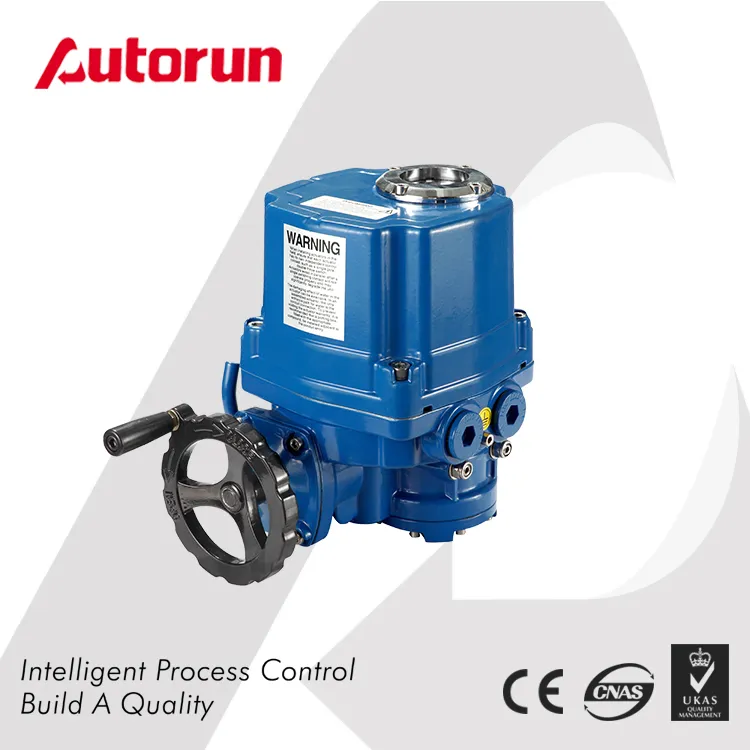

Explosion Proof Electric Valve Actuator
Introduction
OHQ Series Explosion-proof electric actuator is used for controlling 0°-270° rotation of the valves and other similar products, such as butterfly valve, ball valve, damper, flapper valve, plug valve, louver valve and so on. It widely applies to petroleum, chemical, water treatment, shipping, paper making, power plant, heating, light industry and other industries. It can be driven by 380V/220V/110V AC power or 24V/110V DC power, inputs 4-20mA current signal or 0-10V DC voltage signal as control signal. It moves the valve to the right position, and achieves automatic control, its maximum output torque is 2000N·M. (CE and explosion-proof certificates approved).
Specifications
Chinese wenzhou supplier Explosion Proof Flange Electric Ball Valve
Company Introduction
Zhejiang Odelo Automatic Control Valve Co., Ltd. is located on Wuxing Auenue, Dongou industry Park, Oubei Town, which is called "China's Valve Village". We are manufacturer of pneumatic/electric actuators and automatic control valves. Our company has designed and manufactured a series products of international level by adopting advanced technique and equipment introduced from home and abroad, which are used widely in petroleum industry, chemical industry, light industry, power plants, metallurgy, HVAC, medical treatment, fire, water treatment, etc. We have provided national key projects with high quality products and good services. In addition, we have won a good reputation among customers from all over the world. Welcome to contact us and visit our company. Sincerely hope we can enter long term business relations.
Chinese wenzhou supplier Explosion Proof Flange Electric Ball Valve
Chinese wenzhou supplier Explosion Proof Flange Electric Ball Valve
Product Detail:
Model NO.: Q941F
DN: 15-400mm
PN: 1.0, 1.6, 2.5, 4.0, 6.4MPa
Connection Form: Flange
Valve Body Material Available: WCB/Stainless Steel CF8/CF8m/CF3/CF3m
Driving Mode: Electrical
Type: Floating Ball Valve
Application: Industrial Usage, Water Industrial Usage, Household Usage
Standard Available: GB, ANSI, JIS.
Seal Material Available: PTFE, Nylon, PPL, H/Y
Actuator Voltage: 380V/220V/110V AC or 24V/110V DC
Explosion Proof Electric Valve Actuator
Introduction
OHQ Series Explosion-proof electric actuator is used for controlling 0°-270° rotation of the valves and other similar products, such as butterfly valve, ball valve, damper, flapper valve, plug valve, louver valve and so on. It widely applies to petroleum, chemical, water treatment, shipping, paper making, power plant, heating, light industry and other industries. It can be driven by 380V/220V/110V AC power or 24V/110V DC power, inputs 4-20mA current signal or 0-10V DC voltage signal as control signal. It moves the valve to the right position, and achieves automatic control, its maximum output torque is 2000N·M. (CE and explosion-proof certificates approved).
Specifications
| Torque Range: 7-2000Nm |
| Motion Range: 0-270° , 0-90° |
| Ambient Temp.: -30o C~+60o C |
| Working Pressure: 0-4.0Mpa (40Bar) |
| Open/Close Time: 7S-100S |
| Number Of Wires: 2-7 Wires |
| Actuator Body: Aluminum Alloy |
| Protection Class: IP67,IP68 |
| Voltage: 24V DC, 110V AC, 220V AC, 380V AC |
| Type: On-off, Modulating (Regulating), Passive Contact |
| Available Valve Size: Ball Valve (DN15-DN200); Butterfly Valve (DN25-DN400) |
Chinese wenzhou supplier Explosion Proof Flange Electric Ball Valve
Company Introduction
Zhejiang Odelo Automatic Control Valve Co., Ltd. is located on Wuxing Auenue, Dongou industry Park, Oubei Town, which is called "China's Valve Village". We are manufacturer of pneumatic/electric actuators and automatic control valves. Our company has designed and manufactured a series products of international level by adopting advanced technique and equipment introduced from home and abroad, which are used widely in petroleum industry, chemical industry, light industry, power plants, metallurgy, HVAC, medical treatment, fire, water treatment, etc. We have provided national key projects with high quality products and good services. In addition, we have won a good reputation among customers from all over the world. Welcome to contact us and visit our company. Sincerely hope we can enter long term business relations.
Chinese wenzhou supplier Explosion Proof Flange Electric Ball Valve
