China Casting Approved Ad2000-W0 DIN 3202-M3 2PC Ball Valve

Product Description

Casting Approved AD2000-W0 DIN 3202-M3 2pc Ball valve

SPECIFICATION

Product Name: Casting Approved AD2000-W0 DIN 3202-M3 2pc Ball valve
Material: Stainless steel ,SS304/CF8, SS316/CF8M,WCB, and so on
British Standard : BS21.0
DIN Standard: DIN2999
American Standard:ASME B1.20.1
ISO Standard: ISO 228-1, ISO7/1
Size: 1/2''-2''
Certificate: ISO9001: 2000,CE
Pressure: 150LB, 1000WOG, PN64
Temperature Range: -20-250 degree C
Application:Applied to stainless steel pipeline system, water system, petrolum system etc
Connection Ends:Socket weld or Threaded: NPT, BSP, BSPT etc.
Suitable medium:Petroleum, chemical, power, gas, water, linepipe, heat exchanger, shipbuilding, construction, high&low pressure pipeline etc.
Features: 1.1000PSI/PN63
2.Full Port
3.Investment Casting
4.Blow out Proof Stem
5.Locking Device Handle(Option)
6.PED97/23/EC(CE0036) Approved
7.Casting Approved Ad2000-W0

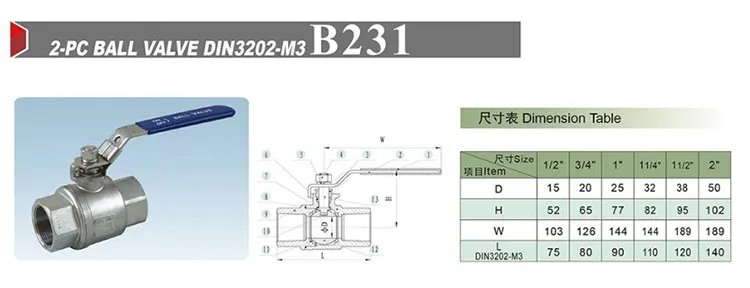

8.Length Conform To DIN 3202/4-M3
9.Thread: ASME B1.20.1, BS21.0, DIN2999/259, ISO 228-1, JIS B0203, ISO 7/1
10.Inspection Testing: API598, EN 12266

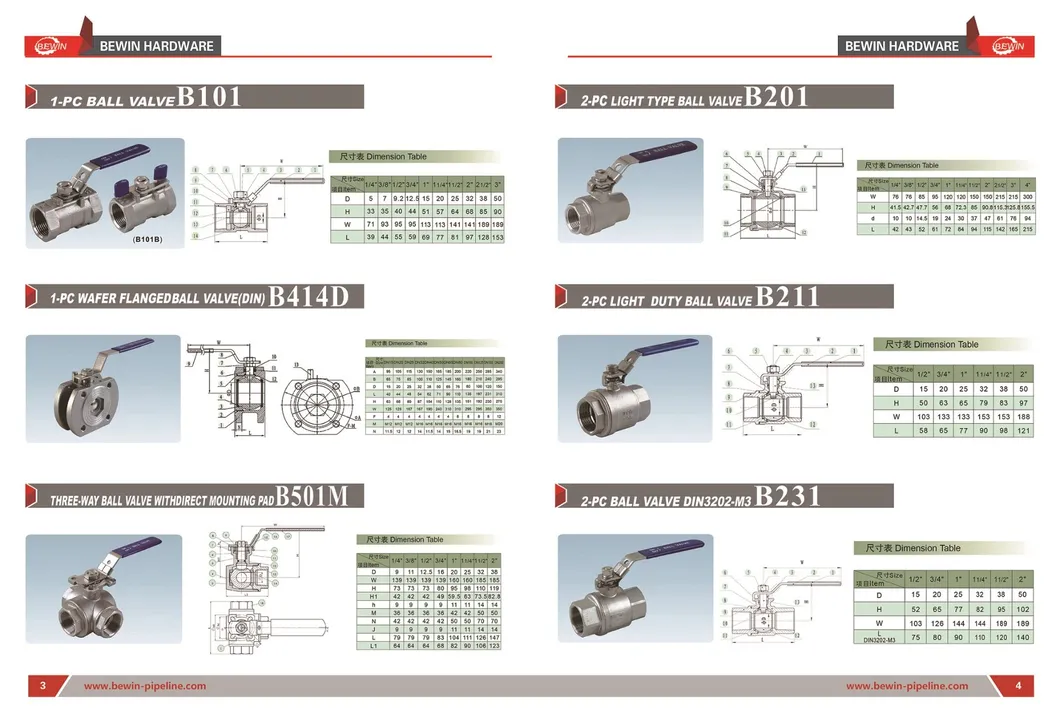

Related Type:1PC BALL VALVE, 2PC BALL VALVE, 2PC BALL VALVE LIGHT DUTY, 2PC BALL VALVE DIN3202 TYPE, 3PC BALL VALVE, 3PC BALL VALVE WITH DIRECT MOUNTING PAD, 3-WAY BALL VALVE( L & T TYPE), 2PC FLANGE BALL VALVE ( JIS, ANSI, DIN); 3PC FLANGE VALL VALVE( JIS & ANISI & DIN); MINI BALL VALVE, BIBCOCK VALVE, GATE VALVE; GLOBE VALVE; SWING CHECK VALVE; 1PC SPRING VERTICAL CHECK VALVE; 2PC SPRING VERTICAL CHECK VALVE; 3PC SPRING VERTICAL CHECK VALVE; Y-STRAINER; ETC.
Customers' drawings or designs are available.

Casting Approved Ad2000-W0 DIN 3202-M3 2PC Ball Valve

Packing&Delivery

Packing
1.Polybag+Cartons+Pallet
2.Inner Carton Box, Outside Wooden Case/Pallet
3.Customized according to customer's requirements.

Delivery Details
1.Normal delivery times is from 15 to 30 days after receiving the deposit
2. According to the quantities and specifications of each order

Shipping
1. Large Quantity Transport By Sea
2. Small Quantity or Sample Transport By Air
3. Inland Transport By Train
4. Shipping according to customers requirement
PORT: Xingang Port Tianjin, Shanghai Port, Beijing Airport

Casting Approved Ad2000-W0 DIN 3202-M3 2PC Ball Valve

ADVANTAGE

*We have been worked in this area for more than 15 years, and we know each market's request, with a good replutation among our customers, we always persuit a high quality and best service and price .
*We also have a series of products such as: flanges, pipes, forged fittings, ball vavles and butterfly valves; And some hardware parts such: Post Anchors, Ground Screws, and some other wooden connectors.

OTHER PRODUCTS

COMPANY INFORMATION

Casting Approved Ad2000-W0 DIN 3202-M3 2PC Ball Valve

FAQ

1. Q: How about trade terms ?
A: FOB, CFR, CIF will be accepted
2.What are your major products?
A:We mainly dealing with Pipe, Ball Valve, Post Spike etc.
3.Q:Can I get some samples?
A:We can offer the samples free but you need paid the freight cost by yourself.
4.Q: Can you supply the threaded treatment pipe Fittings end ?
A: Yes, We can supply threaded and coupled end treatment.
5.Q:What kind of payment is accepted?/ How about the payment terms?
A:T/T , L/C etc
6.Q:How about the delivery time?
A: New production:Need about 15-40 days after receiving your down payment or L/C.
Stock: After your down payment ,we will deliver within about 7days.
