Autoclave Type Ultra- High Pressure 316 S. S. One- Piece Trunnion Mounted Ball Valves
Hikelok Ultra- high Pressure Ball Valve- 10BV, 10000 psig (690 BAR) 15BV, 15000 psig (1034 BAR) 20BV, 20000 psig (1379 BAR)Features:* One- piece, trunnion mounted st......
Send Inquiry
Product Description

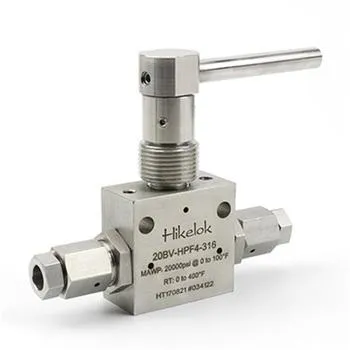

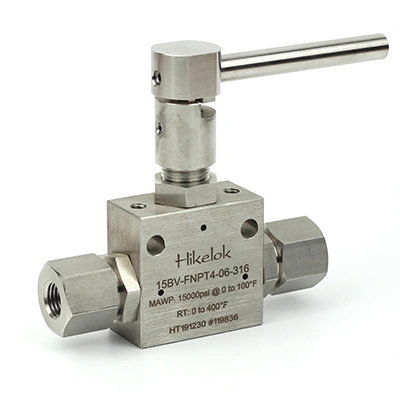

Hikelok Ultra- high Pressure Ball Valve- 10BV, 10000 psig (690 BAR)
15BV, 15000 psig (1034 BAR)
20BV, 20000 psig (1379 BAR)
Features:
* One- piece, trunnion mounted style, ideal for severe duty applications

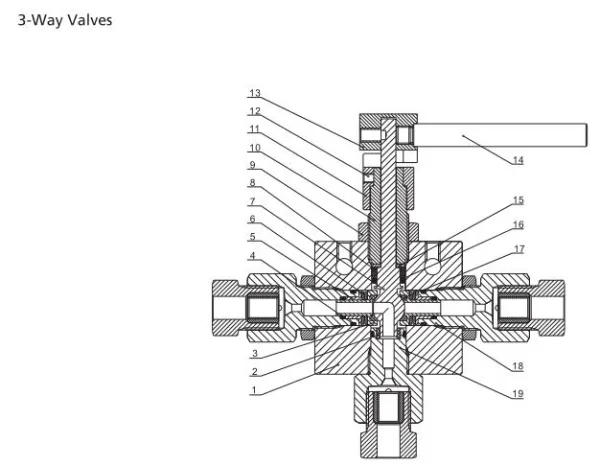

* Two- way and three- way valve configurations
* PEEK seats offer excellent resistance to chemicals, heat, and wear/ abrasion
* Full- port flow path minimizes pressure drop
* 316 cold worked stainless steel construction
* Fluorocarbon FKM O- rings for operation from 0ºF to 400ºF (-17.8ºC to 204ºC)
* Wide selection of tube and pipe end connections available

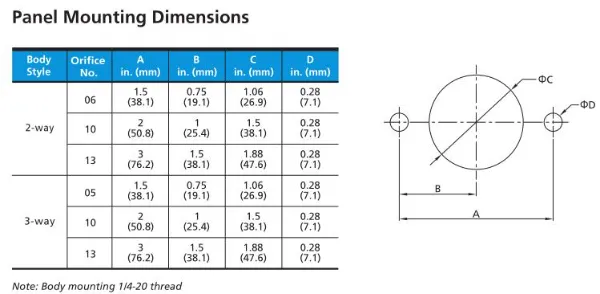

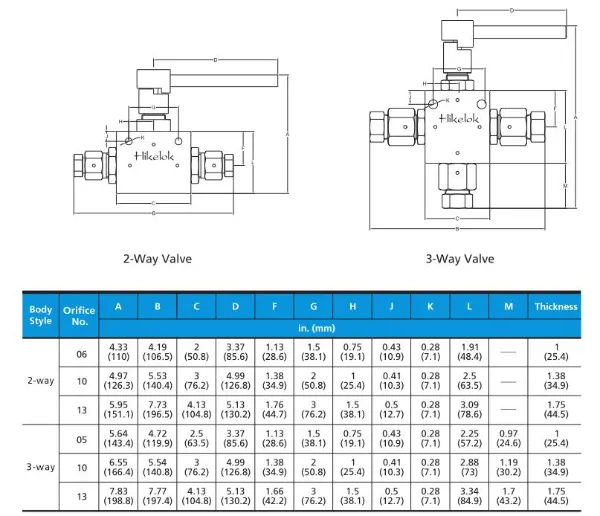

Dimensions
Certificates

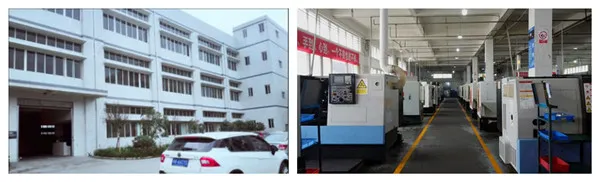

Factory
Other Options:
Needle Valve- 10NV Series, 10000 psig (690 bar)
* Non- rotating stem and bar stock body design
* Easy to assemble and replace packing
* Metal- to- metal seating chieves ideal shutoff, longer stem/ seat service lifetime for abrasive flow, excellent corrosion resistance and greater durability for repeated on/ off cycles
* PTFE is the standard packing material, RPTFE glass, Graphite and extended stuffing box with Graphite also available
* The material of packing gland and upper stem have been selected to achieve reduced handle torque and exptended thread cycle life
* The material of valve body is 316SS, the material of lower stem is 17- 4PH SS
* Options for Vee or Regulating stem tips
* The location of packing is under the thread of valve stem
* The locking device of packing gland is reliable
* Five flow patterns are available
Needle Valve- 15NV Series, 15000 psig (1034 bar)
* Tubing sizes available for 1/8'', 1/4'', 3/8'', 1/2''
* Non- rotating stem and rising stem design
* Metal- to- metal seating seating achieves bubble- tight shutoff, longer stem/ seat service life in abrasive flow, greater durability for repeated on/ off cycles
* PTFE is the standard packing material, RPTFE glass, Graphite are available
* Graphite packing working temperaures up to 1200ºF(649ºC)
* Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque
* Cold- worked type 316 stainless steel body and aluminum bronze packing gland
* Vee or Regulating stem tips for option
* Packing below the thread of valve stem
* The locking device of packing gland is reliable
* Five body patterns are available
Needle Valve- 20NV Series, 20000 psig (1379 bar)
* Tubing sizes available for 1/4'', 3/8'', 9/16'', 3/4'', 1''
* Non- rotating stem and rising stem design
* Metal- to- metal seating achives bubble-tight shutoff, longer stem/ seat service life in abrasive flow, greater durability for repeated on/ off cycles
* PTFE is the standard packing material, RPTFE glass, Graphite are available
* Graphite packing working temperature up to 1200ºF(649ºC)
* Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque
* Cold- worked type 316 stainless steel body and aluminum bronze packing gland
* Vee or Regulating stem tips for option
* Packing below the thread of valve stem
* The locking device of packing gland is reliable
* Five body patterns are available
30NV, 60NV and their related fittings are available
FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT ME!
15BV, 15000 psig (1034 BAR)
20BV, 20000 psig (1379 BAR)
Features:
* One- piece, trunnion mounted style, ideal for severe duty applications
* Two- way and three- way valve configurations
* PEEK seats offer excellent resistance to chemicals, heat, and wear/ abrasion
* Full- port flow path minimizes pressure drop
* 316 cold worked stainless steel construction
* Fluorocarbon FKM O- rings for operation from 0ºF to 400ºF (-17.8ºC to 204ºC)
* Wide selection of tube and pipe end connections available
Dimensions
Certificates
Factory
Other Options:
Needle Valve- 10NV Series, 10000 psig (690 bar)
* Non- rotating stem and bar stock body design
* Easy to assemble and replace packing
* Metal- to- metal seating chieves ideal shutoff, longer stem/ seat service lifetime for abrasive flow, excellent corrosion resistance and greater durability for repeated on/ off cycles
* PTFE is the standard packing material, RPTFE glass, Graphite and extended stuffing box with Graphite also available
* The material of packing gland and upper stem have been selected to achieve reduced handle torque and exptended thread cycle life
* The material of valve body is 316SS, the material of lower stem is 17- 4PH SS
* Options for Vee or Regulating stem tips
* The location of packing is under the thread of valve stem
* The locking device of packing gland is reliable
* Five flow patterns are available
Needle Valve- 15NV Series, 15000 psig (1034 bar)
* Tubing sizes available for 1/8'', 1/4'', 3/8'', 1/2''
* Non- rotating stem and rising stem design
* Metal- to- metal seating seating achieves bubble- tight shutoff, longer stem/ seat service life in abrasive flow, greater durability for repeated on/ off cycles
* PTFE is the standard packing material, RPTFE glass, Graphite are available
* Graphite packing working temperaures up to 1200ºF(649ºC)
* Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque
* Cold- worked type 316 stainless steel body and aluminum bronze packing gland
* Vee or Regulating stem tips for option
* Packing below the thread of valve stem
* The locking device of packing gland is reliable
* Five body patterns are available
Needle Valve- 20NV Series, 20000 psig (1379 bar)
* Tubing sizes available for 1/4'', 3/8'', 9/16'', 3/4'', 1''
* Non- rotating stem and rising stem design
* Metal- to- metal seating achives bubble-tight shutoff, longer stem/ seat service life in abrasive flow, greater durability for repeated on/ off cycles
* PTFE is the standard packing material, RPTFE glass, Graphite are available
* Graphite packing working temperature up to 1200ºF(649ºC)
* Stem sleeve and packing gland materials have been selected to achieve extended thread cycle life and reduced handle torque
* Cold- worked type 316 stainless steel body and aluminum bronze packing gland
* Vee or Regulating stem tips for option
* Packing below the thread of valve stem
* The locking device of packing gland is reliable
* Five body patterns are available
30NV, 60NV and their related fittings are available
FOR MORE INFORMATION, PLEASE FEEL FREE TO CONTACT ME!
